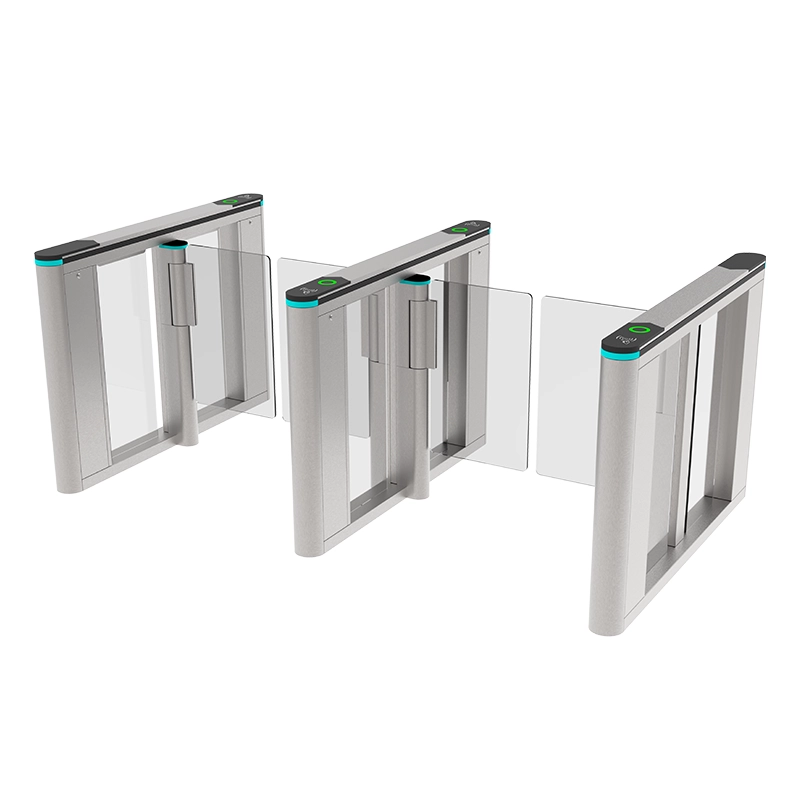

AIPADA AT401 dual-lane RFID swing speed gate, matte SUS304 stainless steel turnstile for commercial office indoor access control

AIPADA AT401 dual-lane RFID swing speed gate, matte SUS304 stainless steel pedestrian turnstile for indoor commercial building access

AIPADA AT401 dual-lane RFID swing speed gate, stacked layout matte SUS304 stainless steel turnstile for compact indoor office access

AIPADA AT401 dual-lane RFID swing speed gate, matte SUS304 stainless steel turnstile with integrated base for indoor commercial access

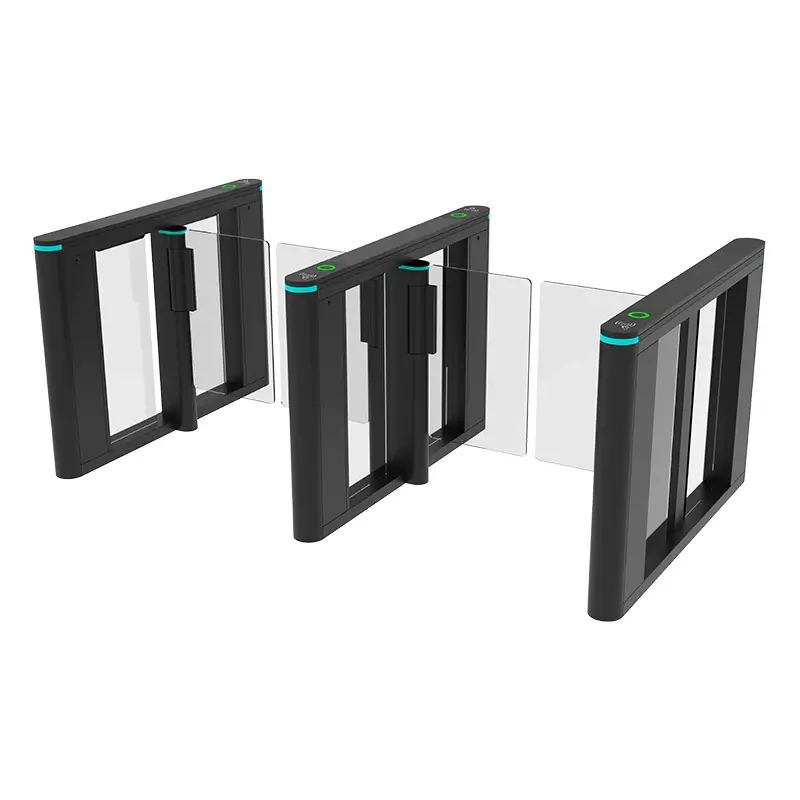

AIPADA AT401 dual-lane RFID swing speed gate, matte black coated SUS304 stainless steel turnstile for modern corporate indoor access

Office building RFID speed gate AT401

Office building RFID speed gate AT401 is SUS304 stainless steel swing turnstile with silent brushless motor, 0.2s fast swing. Customizable lane, arms & casing, compatible with RFID for offices, gyms with OEM service.

Product Dimensions: Office building RFID speed gate AT401 standard cabinet size 1400×120×980mm (4.59×0.39×3.22 ft), with full structural customization available to suit site-specific installation layouts and space limitations.
Aisle Width: Office building RFID speed gate AT401 standard aisle width is 600 mm (1.97 ft); widened optional 900 mm (2.95 ft) barrier-free lane for wheelchairs, strollers and oversized luggage to accommodate special passage demands.
Enclosure Construction: standard build adopts anti-fingerprint brushed SUS304 stainless steel housing, with scratch, rust and wear resistance suitable for most high-traffic indoor commercial environments. SUS316 stainless steel and matte powder-coated carbon steel are available as upgrade options, providing stronger anti-corrosion performance for damp basements, spa lobbies and coastal indoor spaces.
Swing arm material options: Three interchangeable swing arm materials are available to meet different safety and aesthetic requirements: transparent acrylic, shatterproof tempered safety glass, and stainless steel. The vertical height of the swing arm is fully customizable to adjust the safety interception level.
Turnstile Operation Mode: adopts fully automatic brushless servo drive as standard for ultra-quiet, stable all-day continuous operation. The swing arm only takes 0.2 seconds to complete opening and closing movement for a streamlined visitor passage experience.
Drive & Control System: Equipped with mature industrial brushless servo motor drive and intelligent control modules, supporting continuous frequent peak-hour operation. It features multi-point infrared anti-pinch induction, anti-jamming operation and automatic reset functions, effectively preventing clamping injuries, card-passing without entry and illegal tailgating behavior.
Passage Throughput: Capable of handling 40 people per minute under normal operating conditions, perfectly meeting the high-frequency morning and evening rush-hour pedestrian passage demands of office buildings and large commercial complexes.

Speed Gate Turnstile AT401 Product Manual

SKU: AT401 Categories: Speed Gate Turnstiles, All Turnstiles Tags: gym turnstiles, OEM speed gates, Project solution speed gates, security turnstiles, speed gates, speed gates for sale, speed gates nz, speed lanes, turnstile cost Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT401 Office building RFID speed gate 3D view display

AT401 Office building RFID speed gate Functional features

Overall Cabinet Dimension : Standard cabinet dimension 1400×150×1000mm (4.59×0.49×3.28 ft). Customizable cabinet height, width and depth available to fit limited entrance space, supporting personalized structural transformation for various on-site layout restrictions.
Adjustable Passage Aisle Width : Office building RFID speed gate AT401 Equipped with two optional passage sizes. Standard 600mm (1.97 ft) lane for regular pedestrian flow; widened 900mm (2.95 ft) barrier-free lane for wheelchairs, strollers and large luggage, meeting special accessibility passage demands.
Cabinet Enclosure Construction Material : Standard shell adopts anti-fingerprint brushed SUS304 stainless steel, featuring strong scratch, rust and wear resistance for daily high-traffic indoor scenes. Upgradeable options include corrosion-resistant SUS316 stainless steel and matte powder-coated carbon steel, ideal for damp basements, coastal lobbies and spa premises.
Optional Swing Arm Materials : Three interchangeable barrier materials for different aesthetic and safety standards: transparent acrylic, shatterproof tempered safety glass and solid stainless steel panels. The vertical installation height of swing arms can be fully customized to adjust security interception height.
Standard Driving Operation Mode : Full-automatic brushless servo drive as standard configuration, supporting stable 24-hour continuous non-stop operation. The swing arm completes full opening and closing cycle within only 0.2 seconds, delivering smooth and efficient pedestrian passing experience.
Intelligent Drive & Control System : Industrial-grade brushless servo motor matched with integrated intelligent control modules, stable enough for frequent peak-hour high-density passing. Built-in multi-point infrared sensing array with anti-pinch, anti-jam and automatic reset functions to avoid clamping injuries and block illegal tailgating or card skipping behavior.
Maximum Pedestrian Passage Throughput : Office building RFID speed gate AT401 Stable throughput of up to 40 pedestrians per minute under normal operating status, perfectly solving heavy rush-hour foot traffic pressure in office towers, gyms and large commercial complexes.
Supported Access Verification Mode : Native matching with RFID card readers, reserved general wiring interfaces to connect most mainstream third-party access control equipment. Swing arms automatically unlock once valid RFID card signal is identified.
Switchable Traffic Flow Direction : Support two adjustable traffic modes: one-way single-direction passing or bidirectional two-way free flow, easy to switch according to daily people flow management requirements of office lobbies.
Emergency Power-off Safety Function : Built-in mechanical automatic release structure. When power cuts off suddenly, swing arms will automatically open to form unobstructed passage, guaranteeing smooth evacuation in fire or power failure emergencies.
Multi-Layer Infrared Safety Protection : Full vertical coverage infrared sensor network. It can accurately identify human body, luggage and obstacles inside the lane, trigger instant swing arm stop to prevent collision and clamping accidents during operation.
Long-Term Service Life Performance : The servo drive core passes over 1 million opening-closing cycle fatigue test, stable for long-term daily frequent use with low maintenance rate and long service cycle for commercial access control projects.
Low Noise Running Performance : Optimized silent brushless mechanical transmission structure. The overall operating noise is controlled below 55 decibels, without harsh mechanical noise to keep quiet office and lobby environments undisturbed.
OEM Customization Service Scope : Full personalized OEM support, including cabinet surface coating color, swing arm height adjustment, multi-unit combined layout, reserved mounting holes for biometric equipment and customized printed brand logos on cabinet surface.
Applicable Installation Scenarios : Specially designed for indoor dry commercial environments such as office buildings, corporate lobbies, fitness gyms, smart campuses and business centers, matched perfectly with modern minimalist interior decoration styles.

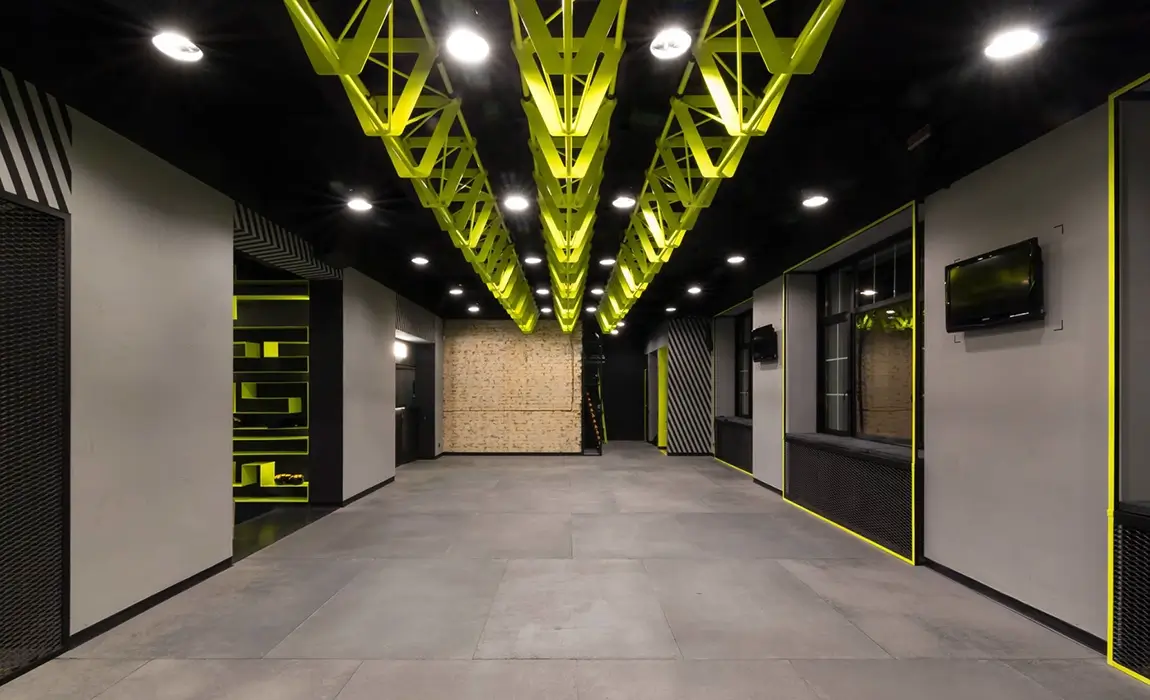

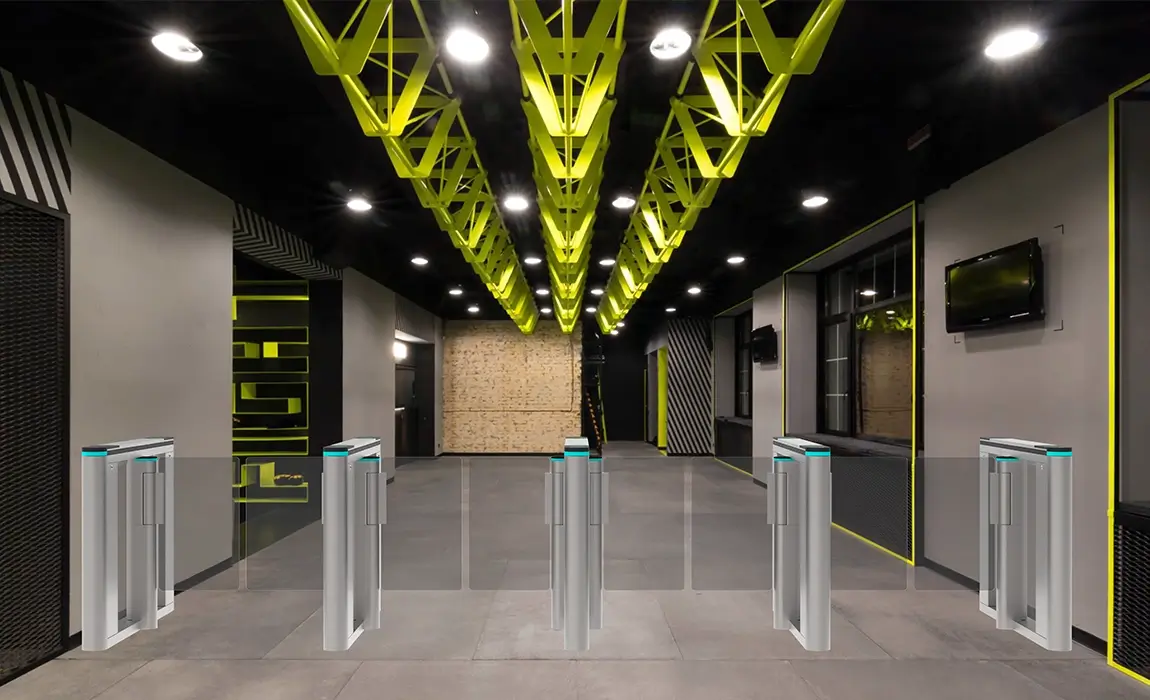

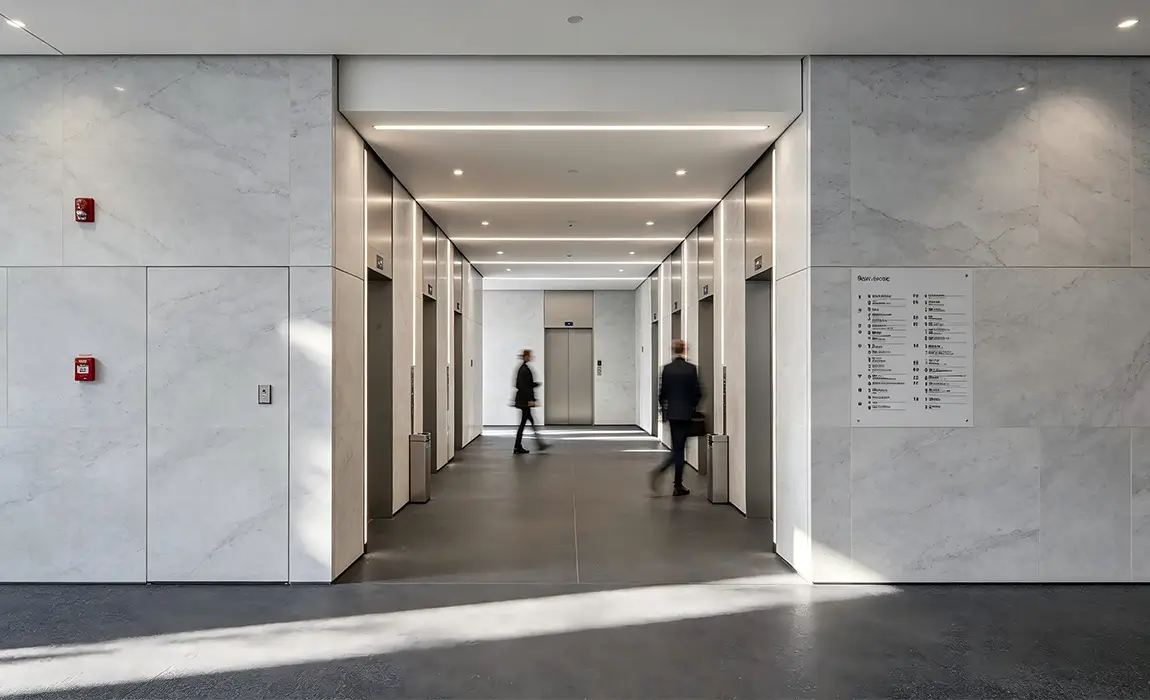

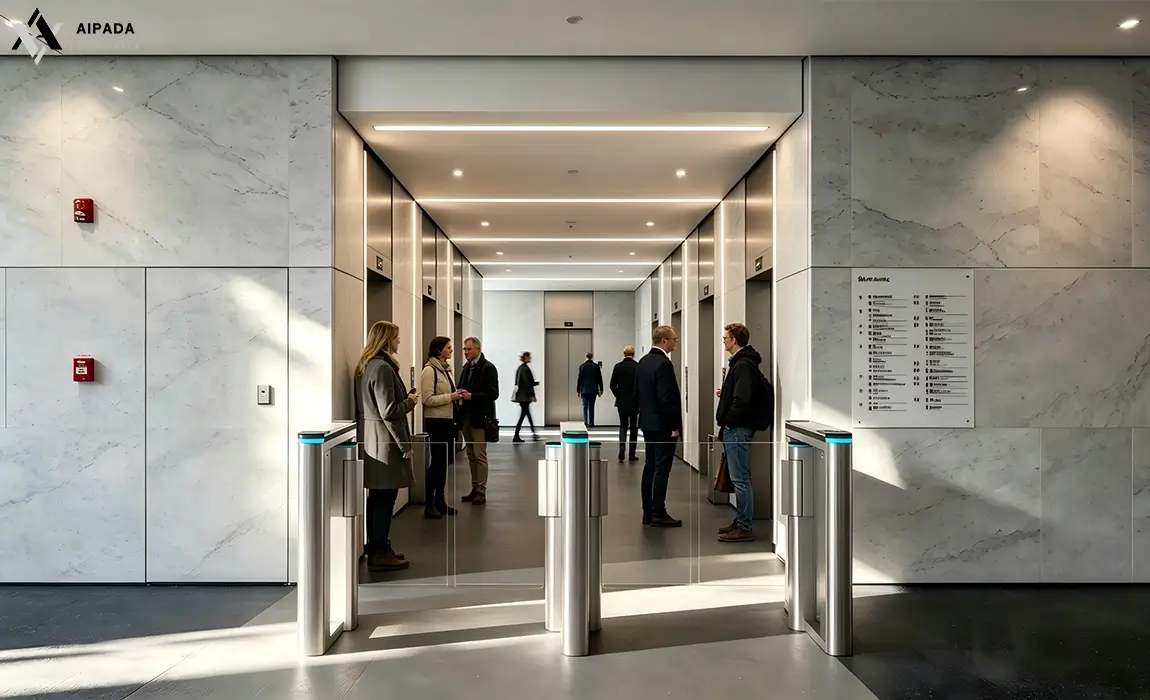

AT401 Office building RFID speed gate Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT401 Office building RFID speed gate Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows a three-channel system consisting of two single-core and two dual-core speed gates. If more channels are needed, the number of rotary gates can be increased.

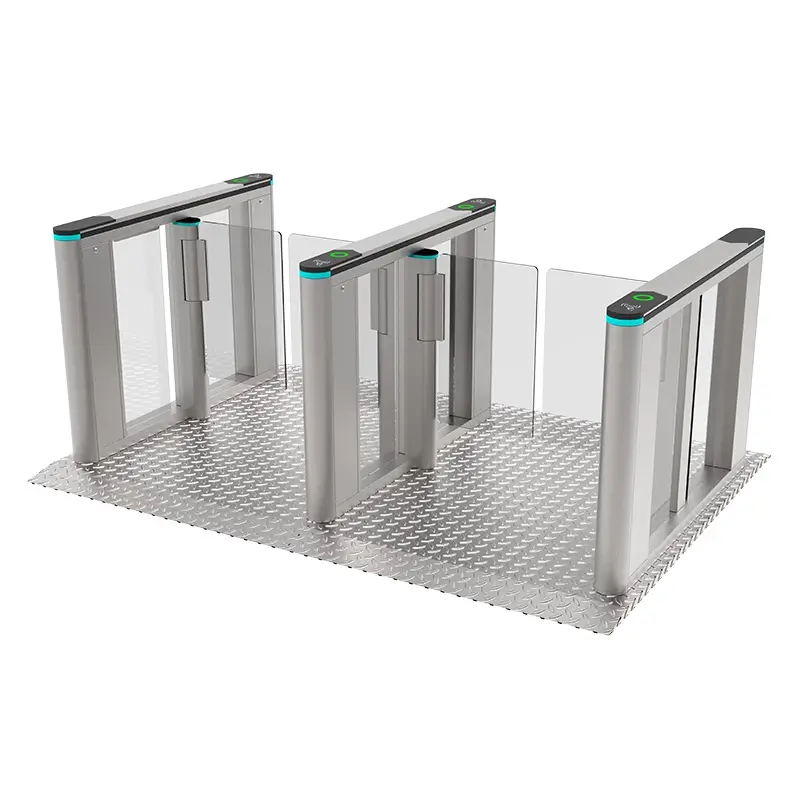

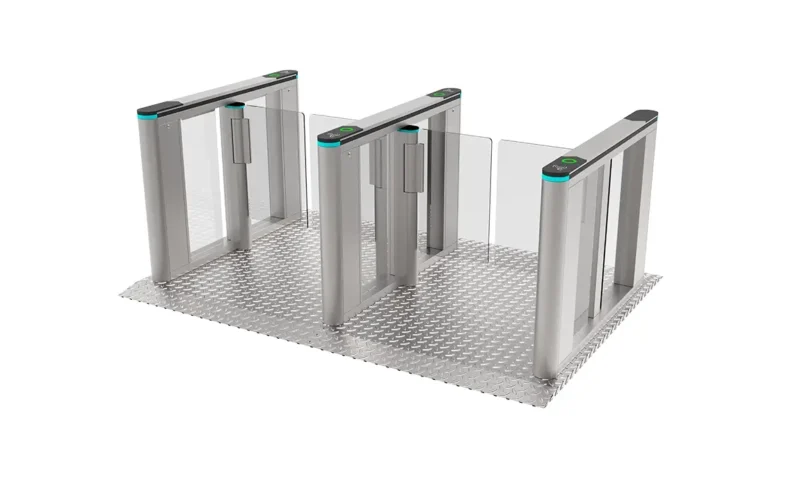

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

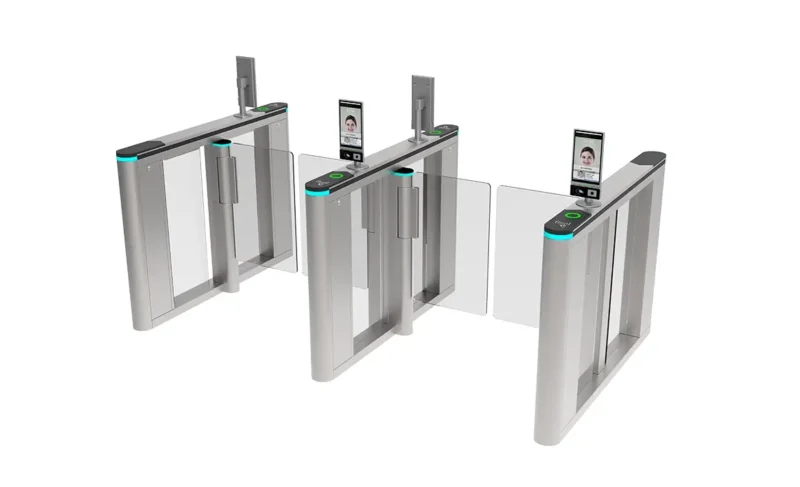

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Besides card swiping access, can I set one-way passage only to prevent people from walking backward?

A: One-way or two-way passage modes can be switched freely. The background control system can lock the passage direction separately. Audible and visual alerts will trigger if someone tries to go the wrong way, effectively regulating pedestrian flow.

2.Q: In case of a sudden power outage, can staff still exit through the speed gate normally?

A: Yes. The gate comes with an auto-open mechanism for power failure. The swing arms will fully open automatically to create an unobstructed passage, complying with fire evacuation standards and allowing people to evacuate quickly.

3.Q: Can the passage width be adjusted? Is it wide enough for wheelchairs and strollers to pass smoothly?

A: Two passage sizes are available. The standard 600mm lane is for regular pedestrians, while the widened 900mm barrier-free lane accommodates wheelchairs, strollers and large luggage. Different sizes can be combined as needed.

4.Q: Are there convenient temporary access permissions for visiting guests?

A: The supporting management system allows generating time-limited temporary access rights with customizable validity periods. Visitors can pass with temporary access cards, which will expire automatically when the time limit ends, eliminating the need for permanent cards.

5.Q: If purchasing speed gates for multiple office buildings in bulk, can we engrave our corporate logo on the gate housing?

A: OEM customization services are available. Corporate logos can be laser-engraved on stainless steel cabinets. Custom swing arm styles and cabinet colors are also offered to unify the overall visual identity of the business park.
