AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

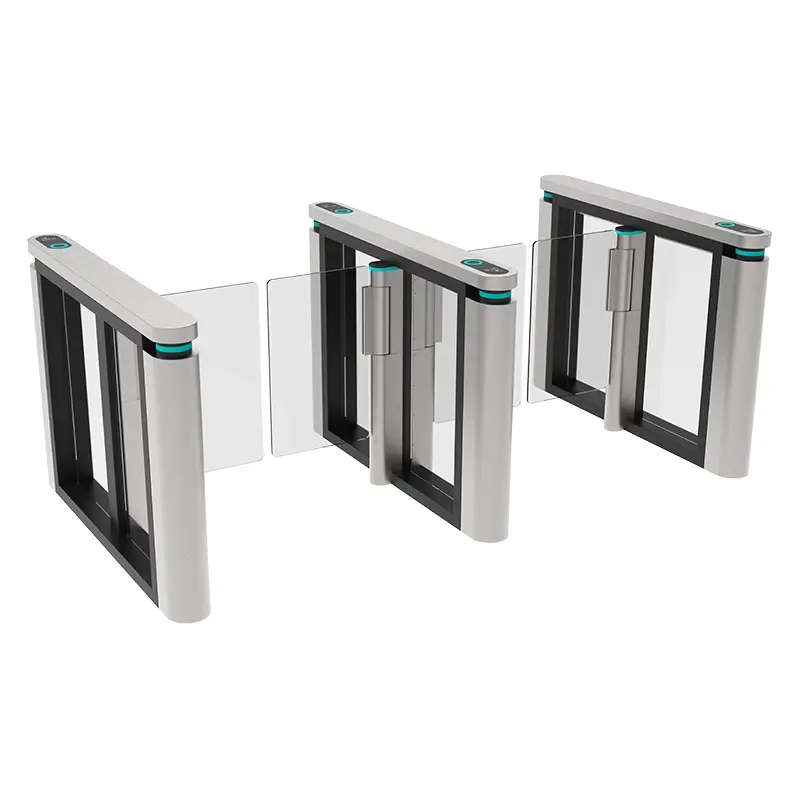

AT402 Commercial Speed Gate Turnstile 3D view display
AT402 Commercial Speed Gate Turnstile Functional features
- Standard Overall Cabinet Dimension : Standard cabinet size 1400×150×1000mm (4.59×0.49×3.28 ft). Customizable cabinet length, height and thickness available to adapt narrow, compact or oversized lobby installation spaces, solving on-site layout limitation issues.
- Configurable Passage Aisle Width : Two standard lane sizes for selection: 600mm (1.97 ft) regular pedestrian lane for daily staff passage; widened 900mm (2.95 ft) barrier-free lane to accommodate wheelchairs, baby strollers and large carry-on luggage for special passage demands.
- Single Lane Unit Net Weight : Commercial Speed Gate Turnstile AT402 Single cabinet net weight reaches 75KG, reinforced internal metal bracket structure effectively eliminates cabinet shake and tilt under long-term frequent pedestrian impact during rush hours.
- Enclosure Housing Material & Anti-Corrosion Upgrade Options : Standard anti-fingerprint brushed SUS304 stainless steel cabinet with scratch, rust and wear resistance, applicable to most dry indoor commercial scenarios. Two upgraded materials: SUS316 stainless steel for coastal, damp basement and spa lobbies; matte powder-coated carbon steel for dark minimalist high-end decorative spaces.
- Interchangeable Swing Arm Materials & Adjustable Height : Three optional swing arm barrier panels: transparent acrylic, shatterproof tempered safety glass, solid stainless steel sheet. Vertical mounting height of swing arms is fully customizable to adjust safety interception height for different security grade requirements.
- Adjustable Bidirectional Traffic Flow Mode : Freely switch between one-way locked passage and two-way bidirectional passage via backend management software. Audio-visual alarm will trigger to warn staff when illegal reverse intrusion occurs.
- Core Driving Power Mechanism : Industrial silent brushless servo motor as standard drive unit, free of regular gear lubrication maintenance, supporting stable 24-hour non-stop high-frequency continuous operation without overheating failure.
- Single Swing Arm Opening & Closing Runtime :Commercial Speed Gate Turnstile AT402 Full swing movement cycle only takes 0.2 seconds, greatly shorten visitor waiting time and improve pedestrian passing efficiency during morning and evening peak hours.
- Maximum Stable Pedestrian Throughput Capacity : Stable passing capacity up to 40 people per minute under normal operating state, fully meet high foot traffic demands of large office buildings, shopping malls and corporate headquarters.
- Full Vertical Multi-Layer Infrared Safety Detection System : Equipped with full-height distributed infrared sensor array, integrating anti-pinch protection, anti-jamming automatic reset, anti-tailgating detection and anti-card-skip identification, effectively prevent clamping injuries and unlicensed trailing passage.
- Multi-Type Access Control Terminal Compatibility : Reserved universal embedded mounting ports on cabinet surface, compatible with RFID card readers, biometric fingerprint scanners, facial recognition cameras, QR code scanners and IC card access devices.
- Power Failure Automatic Emergency Release Function : Built-in mechanical automatic opening linkage structure; when power supply cuts off, swing arms fully unlock and open automatically to form barrier-free passage, fully compliant with international fire evacuation safety standards.
- Modular Multi-Lane Combination Layout Support : Support single-lane, dual-lane, triple-lane and multi-lane linear splicing layout, also compatible with stepped layered combined structure to match various lobby decoration styles and entrance sizes.
- Visual Status Indicator Light System : Color-coded LED indicator lights set on cabinet top, green light for passable state, red light for locked/occupied state, clear real-time traffic status prompt for pedestrians from long distance.
- Anti-Collision Buffer Protection Function : Built-in soft buffer damping module inside swing arm rotation shaft, reduce collision impact force when pedestrians rush through, extend service life of motor and mechanical parts.
- OEM Personalized Customization Service : Support laser engraving corporate logo on cabinet housing, customized cabinet surface color, adjustable swing arm transparency and thickness, flexible multi-lane layout combination scheme; complete technical specification drawings and product operation manual provided for large security bidding projects.
- Low Noise Silent Operation Design : Brushless motor with silent damping structure, running noise lower than 50dB, will not produce harsh mechanical sound to disturb quiet office, hotel and library indoor environments.
- Automatic Counting & Traffic Data Statistics Module : Built-in pedestrian counting chip, record real-time inbound and outbound passenger flow data, data can be exported and synchronized to background access management platform for daily visitor statistics.

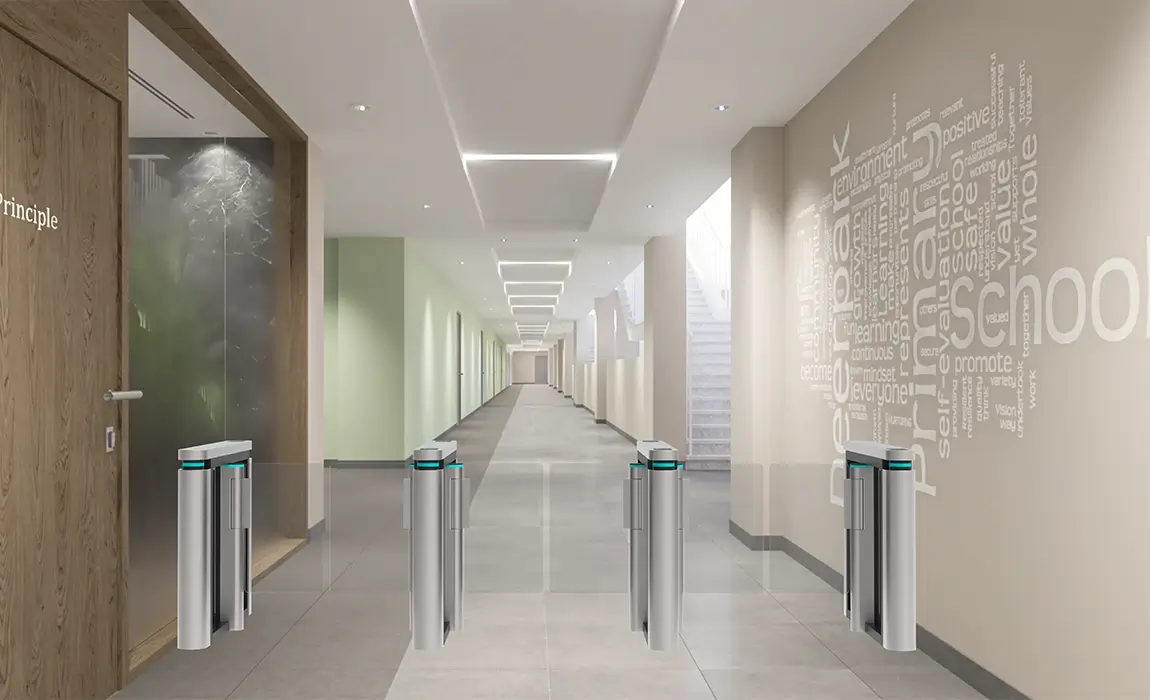

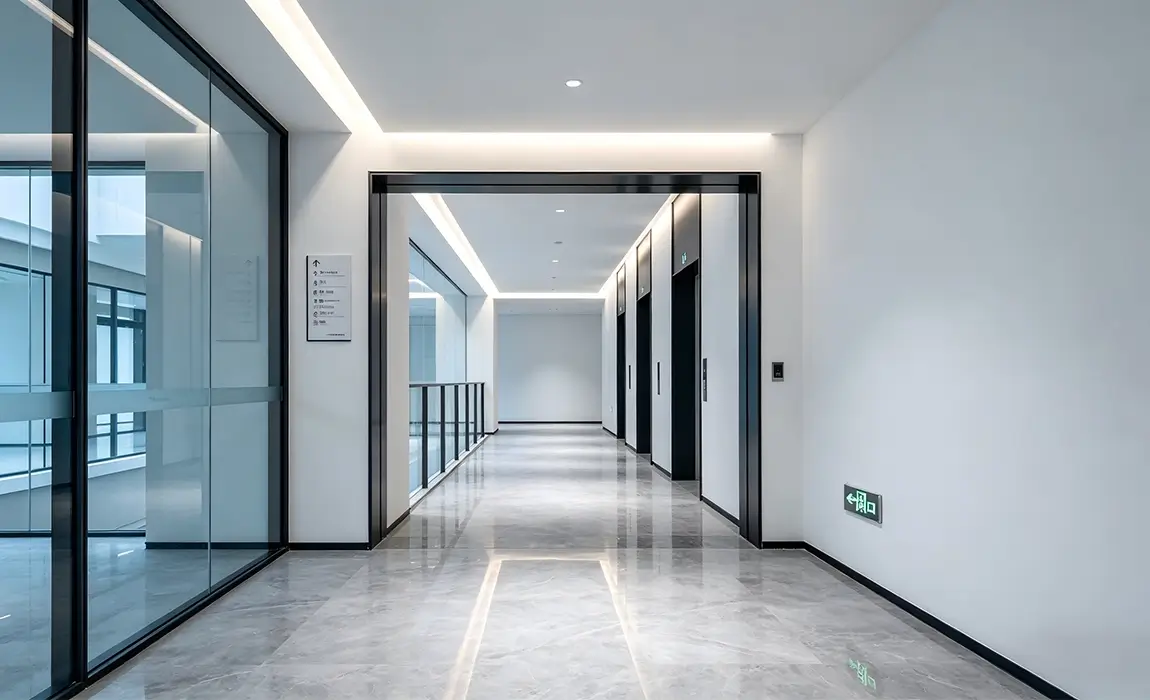

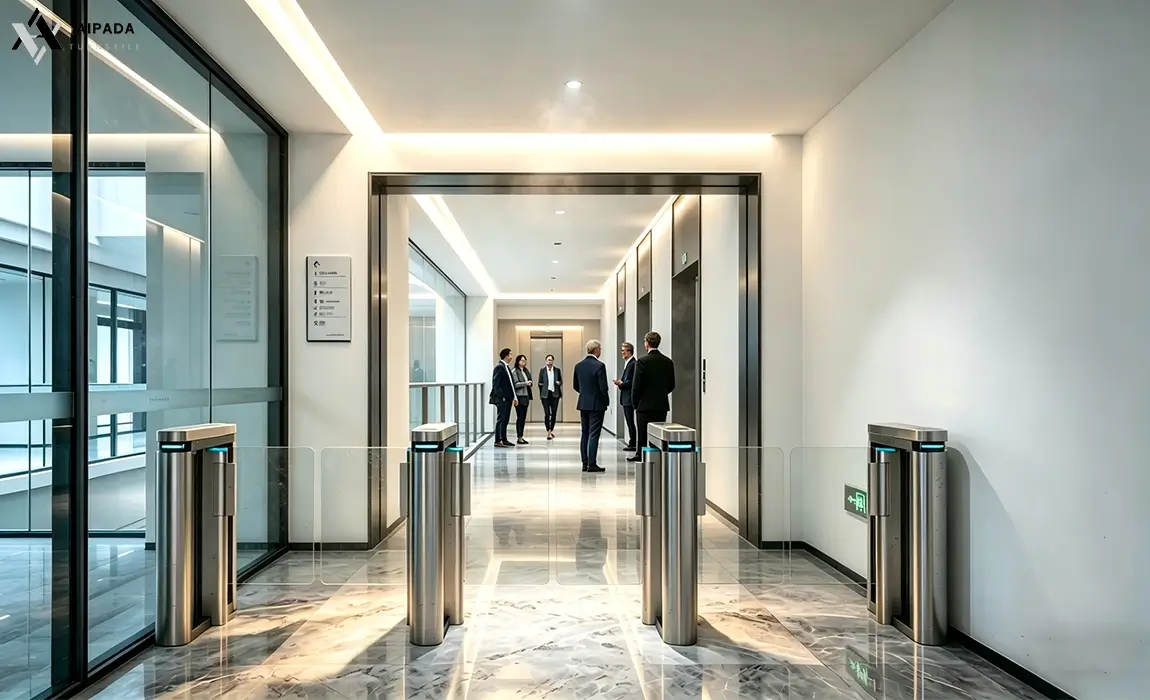

AT402 Commercial Speed Gate Turnstile Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
AT402 Commercial Speed Gate Turnstile Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.
Optional：Number of turnstile channels
The diagram shows a three-channel system consisting of two single-core and two dual-core speed gates. If more channels are needed, the number of rotary gates can be increased.

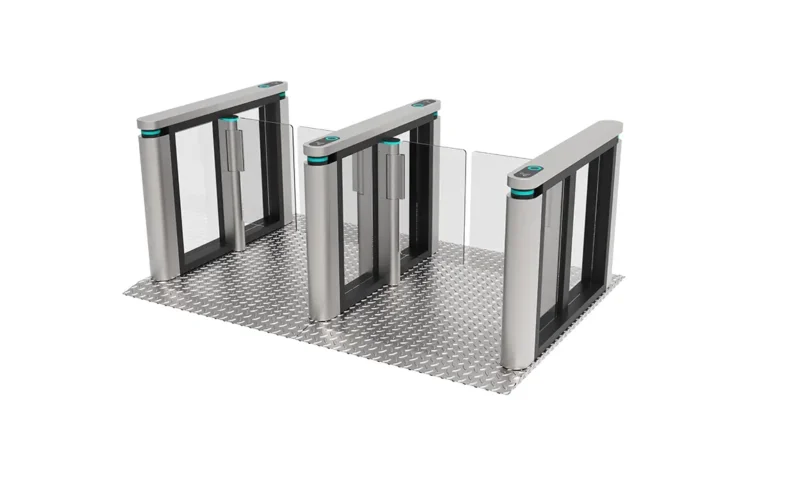

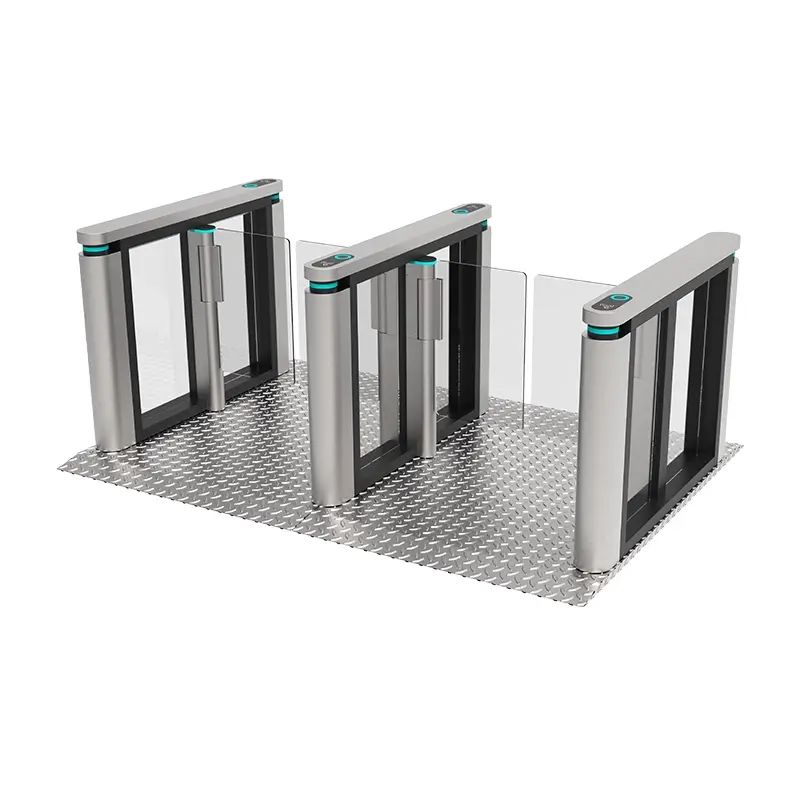

Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

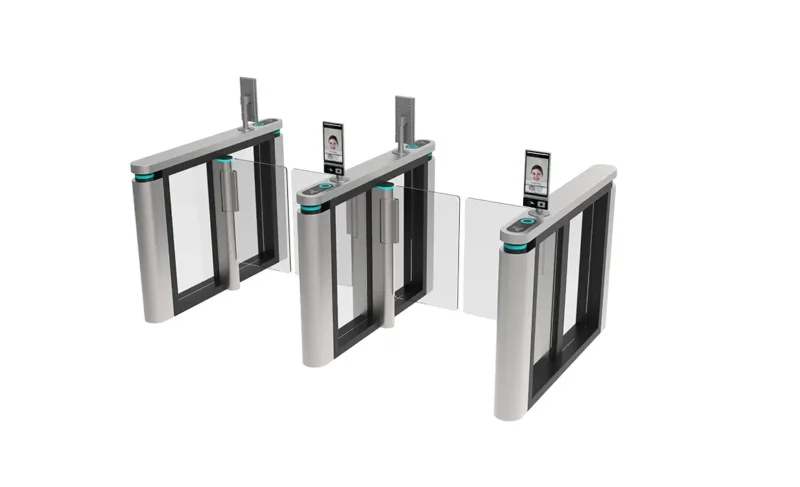

Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

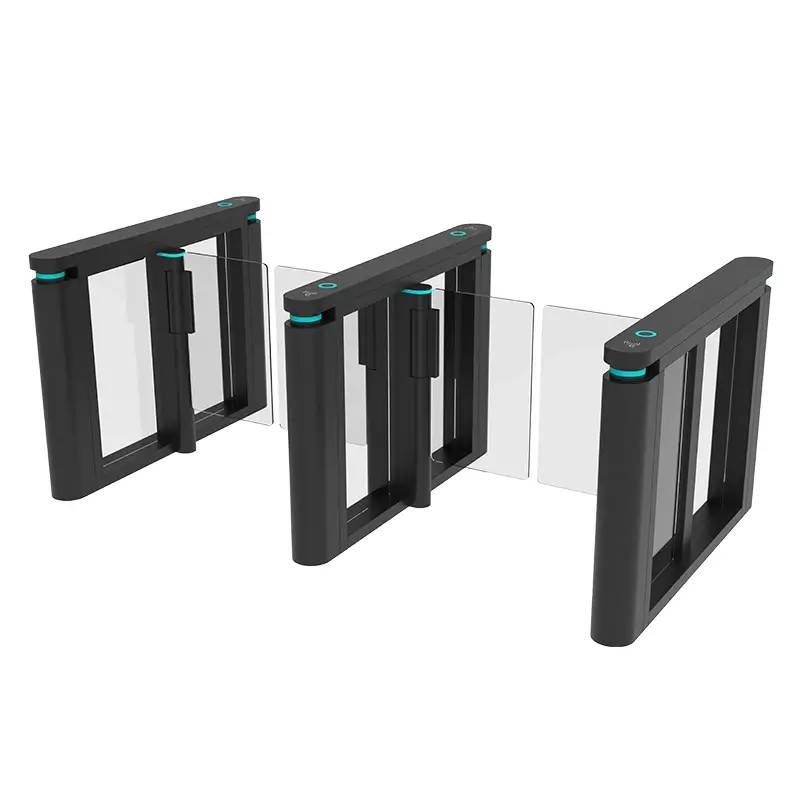

Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
1.Q: Can AT402 speed gate turnstile be modified to fit existing narrow lobby entrances with limited ceiling & floor space?
A: Yes. The AT402 cabinet outer size can be customized on length, height and thickness to match compact narrow entrances. We also provide slim streamlined cabinet variants without extra protruding parts, and all wiring ports can be reserved on the side or bottom to avoid occupying limited floor & ceiling installation space.
2.Q: If my project needs to add facial recognition scanners later after installation, does AT402 require full cabinet disassembly for refitting?
A: No full disassembly needed. AT402 reserves pre-embedded integrated mounting cavities on the top of each cabinet. You only need to fix the biometric camera directly into the reserved slot without cutting or drilling the cabinet body, which greatly reduces secondary renovation construction work and cost.
3.Q: Will the brushed SUS304 cabinet leave obvious fingerprint marks if used in high-traffic office lobbies with hundreds of daily staff?
A: It won’t. The standard housing adopts anti-fingerprint brushed SUS304 surface treatment. Light handprints can be wiped off with a dry cloth in seconds. For ultra-high traffic scenarios, we offer an upgraded matte coating process for zero fingerprint residue and easier daily cleaning by property management teams.
4.Q: What safety performance does AT402 have if children or visitors accidentally block the swing arm during closing?
A: The turnstile is equipped with full vertical multi-layer infrared induction plus built-in soft buffer damping structure. Once any obstacle is detected within the swing range, the arm instantly pauses and reverses open to prevent clamping injuries. The damping shaft also cushions impact force to avoid hard collision with pedestrians.
5.Q: Can AT402 triple-lane and dual-lane units be freely combined into a mixed layout to match irregular lobby entrance shapes?
A: Fully supported. The AT402 modular design allows free splicing of single/dual/triple lanes in linear or stepped layered mixed layouts. The connecting gap and cabinet height can be unified and adjusted, and we provide matching connecting brackets to keep the whole access barrier neat and stable for irregular lobby space.
