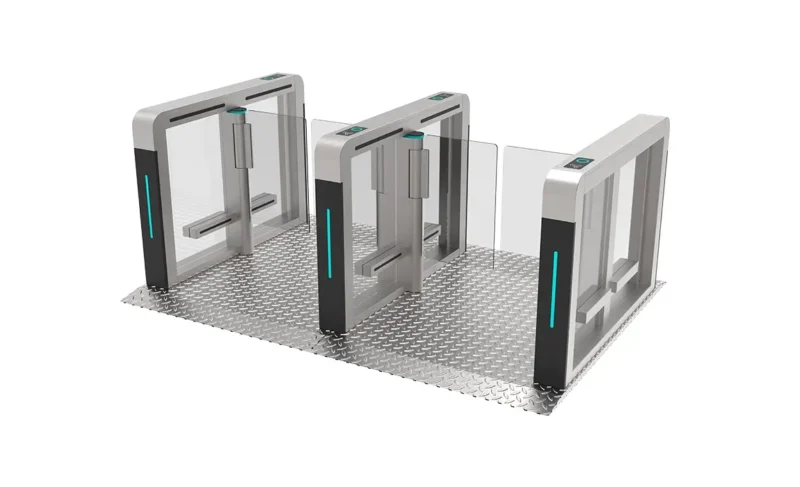

AT403-TC-06 dual lane frame swing turnstile with integrated embossed anti-slip base, brushed SUS304 stain resistant access barrier with vertical cyan status light and transparent swing panel

AT403-TC-05 dual two-channel frame swing access barrier, matte black powder coated carbon steel turnstile with vertical cyan indicator light & transparent anti-break swing glass panel

Lobby Speed Gate Turnstile AT403

The Lobby Speed Gate Turnstile AT403 features a brushless servo motor, a 0.2-second rapid swing arm, a customizable channel width of 600-900 mm, anti-pinch safety, and facial recognition compatibility, making it an ideal choice for secure entrance management in office building lobbies.

Product Dimensions: Lobby Speed Gate Turnstile AT403 standard cabinet size 1400×150×1000mm (4.59×0.49×3.28 ft), with full structural customization available to suit site-specific installation layouts and space limitations.
Aisle Width: Lobby Speed Gate Turnstile AT403 standard aisle width is 600 mm (1.97 ft); widened optional 900 mm (2.95 ft) barrier-free lane for wheelchairs, strollers and oversized luggage to accommodate special passage demands.
Enclosure Construction: Lobby Speed Gate Turnstile AT403 standard build adopts anti-fingerprint brushed SUS304 stainless steel housing, with scratch, rust and wear resistance suitable for most high-traffic indoor commercial environments. SUS316 stainless steel and matte powder-coated carbon steel are available as upgrade options, providing stronger anti-corrosion performance for damp basements, spa lobbies and coastal indoor spaces.
Swing arm material options: Three interchangeable swing arm materials are available to meet different safety and aesthetic requirements: transparent acrylic, shatterproof tempered safety glass, and stainless steel. The vertical height of the swing arm is fully customizable to adjust the safety interception level.
Turnstile Operation Mode: Lobby Speed Gate Turnstile AT403 adopts fully automatic brushless servo drive as standard for ultra-quiet, stable all-day continuous operation. The swing arm only takes 0.2 seconds to complete opening and closing movement for a streamlined visitor passage experience.
Drive & Control System: Equipped with mature industrial brushless servo motor drive and intelligent control modules, supporting continuous frequent peak-hour operation. It features multi-point infrared anti-pinch induction, anti-jamming operation and automatic reset functions, effectively preventing clamping injuries, card-passing without entry and illegal tailgating behavior.
Passage Throughput: Lobby Speed Gate Turnstile AT403 Capable of handling 40 people per minute under normal operating conditions, perfectly meeting the high-frequency morning and evening rush-hour pedestrian passage demands of office buildings and large commercial complexes.

Categories: All Turnstiles, Speed Gate Turnstiles Tags: Airport Terminal Speed Gate, Business Building Speed Gate, Exhibition Hall Speed Gate, Luxury Office Speed Gate, Metro Station Speed Gate, speed gate turnstile Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT403 Lobby Speed Gate Turnstile Pedestrian 3D view display

AT403 Lobby Speed Gate Turnstile Pedestrian Functional features

Overall Cabinet Dimensions & Customization
Lobby Speed Gate Turnstile AT403 Standard single-module cabinet outer size: 1400×150×1000 mm (4.59×0.49×3.28 ft).
Full structural and dimensional custom modifications are supported to fit unique site layout limits and personalized project design requirements.
Single lane module net weight: 80 KG, lightweight integrated construction to cut shipping costs and simplify on-site installation & lifting work.
Adjustable Pedestrian Passage Width
Standard aisle width: 600 mm (1.97 ft), meets daily regular pedestrian flow demands
Optional widened barrier-free lane: 900 mm (2.95 ft), fully compliant with global accessibility standards for wheelchairs, baby strollers and oversized luggage
Cabinet Enclosure Material & Surface Finishes
Standard Configuration
Anti-fingerprint brushed SUS304 stainless steel housing, with outstanding scratch, rust and abrasion resistance for daily high-foot-traffic indoor commercial environments.
Two Upgrade Optional Materials
1.SUS316 stainless steel: Enhanced salt-spray & heavy corrosion resistance, ideal for damp basements, hotel spa lobbies and coastal indoor spaces
2.Matte powder-coated carbon steel: Supports custom color baking paint to match minimalist, light-luxury and dark interior decoration styles
Interchangeable Swing Barrier Panels with Custom Height
Lobby Speed Gate Turnstile AT403 Three modular swing barrier materials for differentiated security and aesthetic needs:
1.Transparent acrylic: Lightweight & cost-effective for low-security general office spaces
2.Shatterproof tempered safety glass: High clarity & impact resistance, mainstream selection for premium commercial lobbies
3.Solid stainless steel plate: High anti-break performance for confidential high-security office zones
The vertical height of swing barriers can be fully customized to adjust interception levels per venue access management regulations.
Core Fully Automatic Servo Drive Operation System
Standard industrial silent brushless servo drive unit, enabling vibration-free, low-noise non-stop all-day operation.
Full open-close cycle response time: only 0.2 seconds, eliminating congestion during morning & evening rush hours for smooth visitor passing experience.
Motor service lifespan: ≥5 million open-close cycles for long-term stable high-frequency use.
Intelligent Control & Multi-Layer Integrated Safety Protection
Fitted with dedicated industrial intelligent main control board, stable enough for non-stop peak-hour frequent operation. Built-in 8 groups of multi-angle high-precision infrared sensing array to realize four core safety functions:
1.Soft anti-pinch auto rebound: Barriers retract instantly upon detecting human bodies or obstacles to avoid clamping injuries
2.Precision anti-tailgating detection: Identifies unauthorized tailgating without valid credentials to block illegal entry
3.Anti-jamming buffer protection: Slows barrier movement under forced prying or blocking to reduce equipment damage
4.Auto reset function: Automatically returns to standby mode after each valid passage without manual intervention
Sustained Pedestrian Throughput Performance
Max stable continuous throughput: 40 pedestrians per minute under standard operating conditions.
Able to bear heavy rush-hour passenger flow pressure of multi-story office buildings, large commercial complexes and medium-sized exhibition centers.
Dual Universal Communication Interfaces for Access Integration
Dual standard communication ports reserved for seamless linkage with global mainstream identification devices without extra conversion modules:
1.Wiegand 26/34 interface: Compatible with IC/RFID/Mifare card readers and NFC wearable wristbands
2.TCP/IP network interface: Supports remote cloud management, paired with dynamic facial recognition terminals, QR & barcode scanners and mobile phone remote access systems
Mandatory Fire Emergency Safety Mechanism
Fully compliant with international fire evacuation safety codes (EN 60839). All swing barriers automatically fully unlock and retract within 0.5 seconds after power cut-off, creating unobstructed emergency escape passages.
Vertical embedded cyan LED indicator strips on cabinet side panels display real-time pass/deny access status for clear visual visitor guidance.
Electrical Working Parameters
1.Input power supply: Optional AC 110V / AC 220V
2.Rated operating power: 120 W
3.Standby power consumption: ≤10 W
4.Applicable working temperature: -10 ℃ ~ +55 ℃ (indoor dry environment only)
OEM & ODM Customization & Applicable Scenarios
Installation Limitation
Designed for indoor installation only; not suitable for direct outdoor exposure without sunshade and rain shelter.
Customizable Service Items
Custom cabinet coating colors, multi-lane combined layout schemes, overall cabinet dimensions, laser-engraved brand logos, and one-stop matched complete access control system packages.
Core Applicable Venues
Corporate office lobbies, five-star hotel front entrances, shopping mall pedestrian corridors, large exhibition centers, high-end residential compound gateways and boutique fitness club entrances.

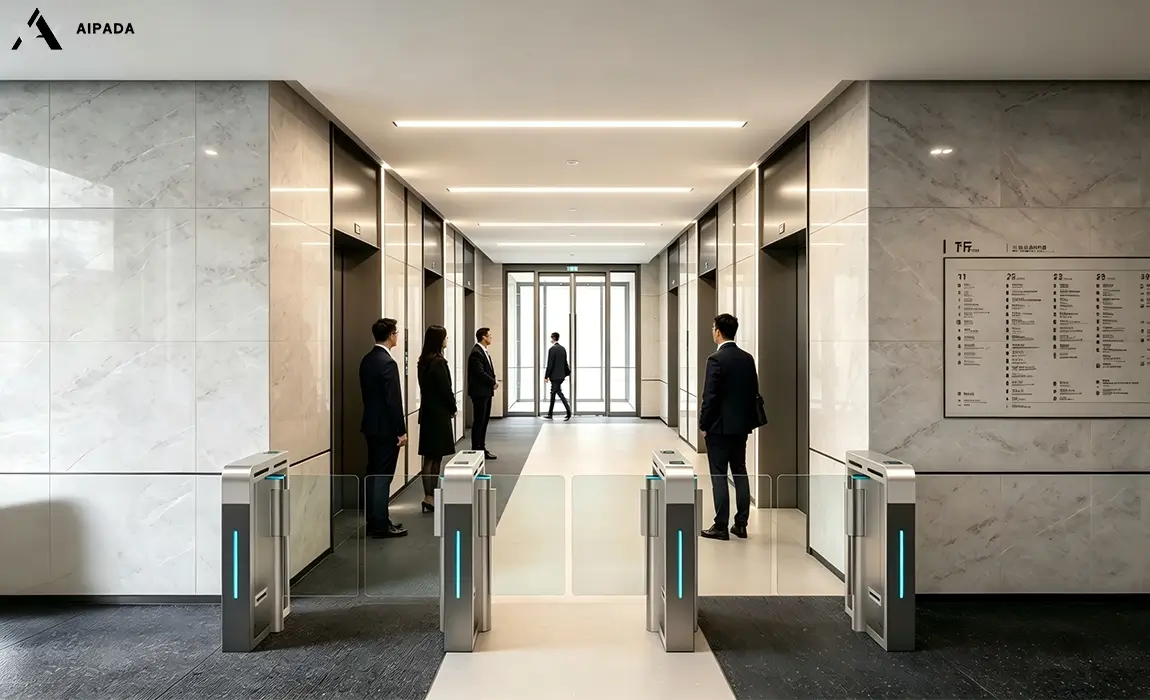

AT403 Lobby Speed Gate Turnstile Pedestrian Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT403 Lobby Speed Gate Turnstile Pedestrian Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows two single-passage systems, each consisting of a personnel passage and an accessible passage. If more passages are needed, the number of revolving gates can be increased.

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: What’s the difference between standard 600mm and optional 900mm aisle width? Which one should I choose?

A: The 600mm standard lane fits daily pedestrian flow for regular office staff, with a smaller footprint to save lobby space. The 900mm widened barrier-free lane complies with international accessibility standards, allowing wheelchairs, baby strollers and large luggage trolleys to pass smoothly. We recommend 900mm for hotels, shopping malls and office buildings with disabled visitor access demands; 600mm is cost-effective for compact small corporate lobbies.

2.Q: Is the stainless steel cabinet easy to get scratched or covered with fingerprints in high-traffic lobbies?

A: The standard housing uses anti-fingerprint brushed SUS304 stainless steel, which resists daily scratches and fingerprint marks, ideal for busy commercial entrances. If your venue has damp, coastal or spa areas prone to corrosion, you can upgrade to SUS316 stainless steel for stronger rust resistance. For dark interior decoration styles, matte black powder-coated carbon steel cabinet is also available as an alternative upgrade.

3.Q: Can this speed gate connect with my existing facial recognition or card access system?

A: Yes, the AT403 turnstile reserves dual Wiegand 26/34 and TCP/IP communication interfaces, compatible with nearly all mainstream access devices. It supports dynamic face recognition terminals, QR code scanners, IC/RFID cards and NFC wristbands without extra conversion modules. Our technical team can provide docking guidance to match your original access control software.

4.Q: Will the swing arm clamp pedestrians or children during operation? Is there emergency protection when power fails?

A: It comes with a complete multi-layer safety protection system: multi-point infrared sensors trigger automatic swing arm rebound to avoid soft pinching when obstacles or human bodies are detected. For fire emergencies, all swing arms fully unlock and retract automatically once power cuts off, creating unobstructed escape passages, which meets global fire evacuation codes. The equipment also features anti-jamming buffer protection to reduce damage from forced pushing.

5.Q: How many people can this speed gate handle during morning rush hours? How long is the service life of the motor?

A: Under stable operation, the AT403 supports a sustained throughput of 40 pedestrians per minute, fully coping with morning and evening peak flow of multi-story offices and shopping centers. The built-in industrial brushless servo motor has a service life of over 5 million open-close cycles, delivering ultra-quiet, vibration-free continuous all-day operation with low maintenance frequency and long service cycle.
