AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

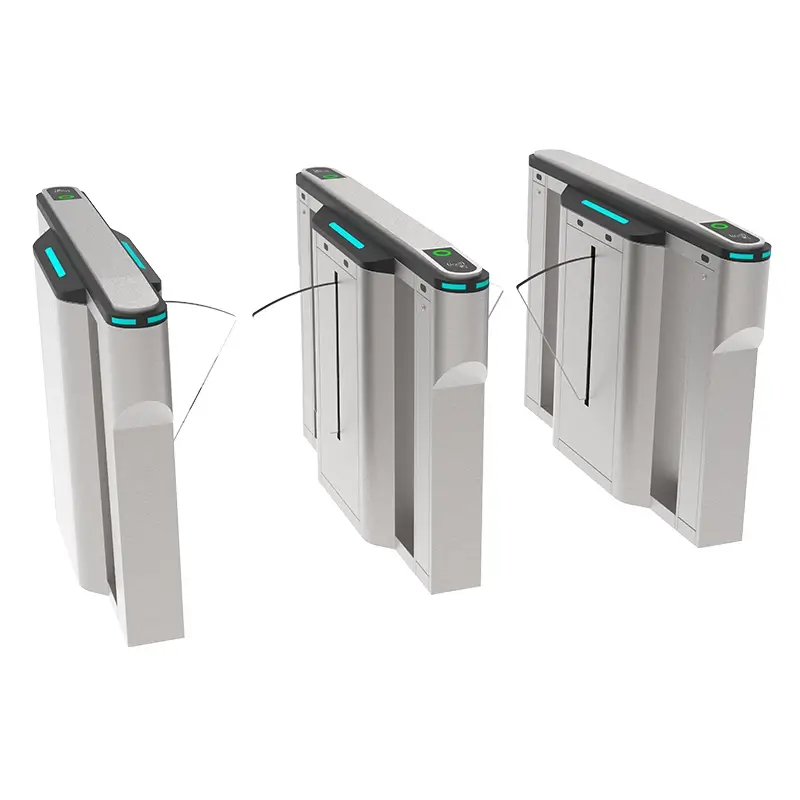

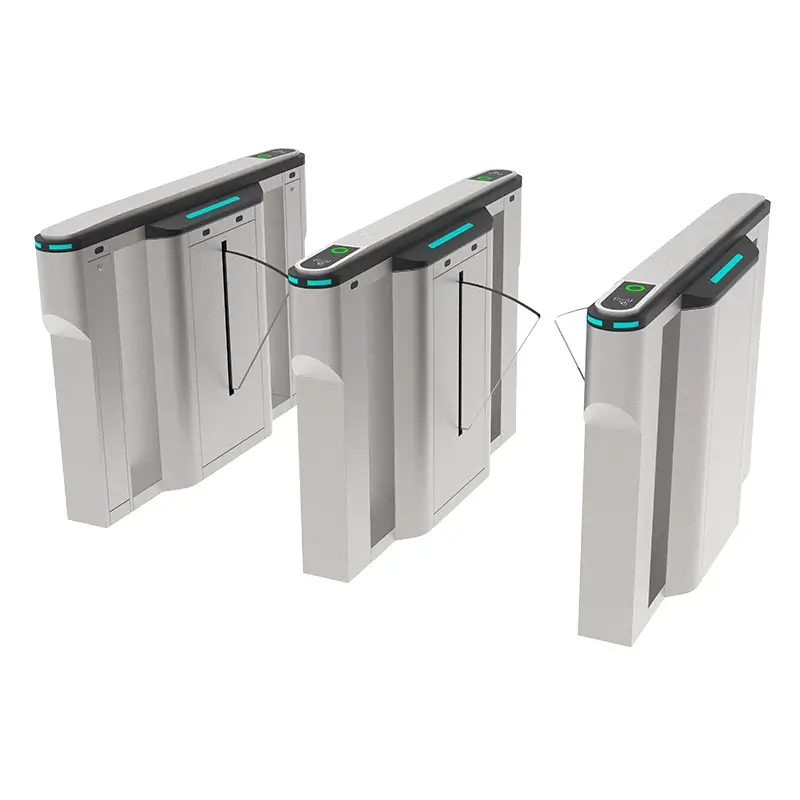

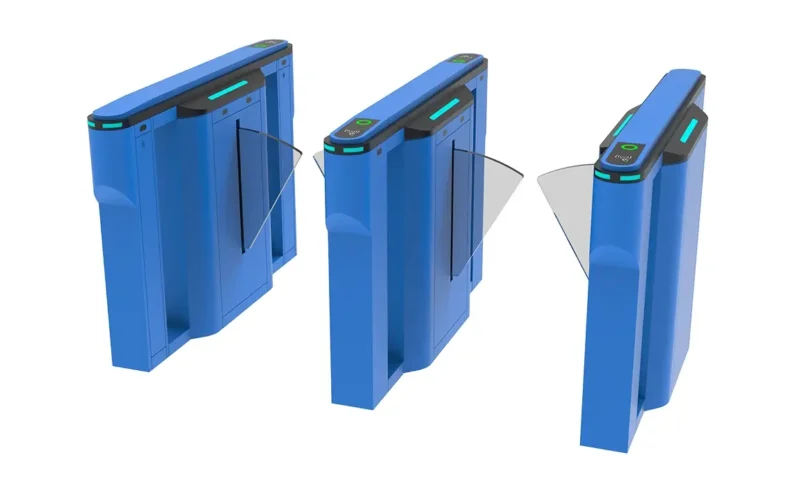

AT310 Office Block Flap Barrier Turnstile 3D view display
AT310 Office Block Flap Barrier Turnstile Functional features
- Standard Cabinet Dimension：Standard cabinet dimension 1500 × 300 × 1005 mm (4.92 × 0.98 × 3.30 ft), arbitrary length, height and width size adjustment support for special lobby layout requirements.
- Adjustable Aisle Width：Office Block Flap Barrier Turnstile AT310 Standard pedestrian passage width 550mm–600mm; optional widened 900mm barrier-free lane, convenient for wheelchair users, delivery trolleys and oversized luggage passing through.
- Cabinet Enclosure Material：Main housing with curved streamlined design, standard SUS304 stainless steel or matte powder coated carbon steel for selection; SUS316 stainless steel upgrade available for coastal humid or high-corrosion environments.
- Multiple Surface Treatment Options：Support wire drawing brushed, mirror polishing, electroplated gloss, matte baking paint multiple surface crafts; custom color matching to fit European modern office, hotel and shopping mall interior decoration.
- Transparent Swing Arm Material：Adopt high toughness transparent acrylic retractable flap arms, anti-collision, wear-resistant, easy to disassemble and replace for daily maintenance.
- Global Wide Voltage Power Supply：Office Block Flap Barrier Turnstile AT310 Wide input voltage AC 100V–240V, built-in dual DC12V & DC24V power output interfaces, compatible with power standards of all European, Middle Eastern and Southeast Asian countries.
- Programmable Traffic Flow Mode：Built-in mainboard logic program, freely switch one-way single access, one-way single exit and two-way bidirectional passing mode, realize separate management of employee entry and visitor exit.
- High Performance Brushless Drive System：Equipped with silent brushless servo motor drive core, ultra-low noise operation, instant flap retraction response, stable continuous operation under long-time peak crowd pressure.
- Stable Passing Throughput Capacity：Office Block Flap Barrier Turnstile AT310 Normal operation throughput reaches 30–45 people per minute, fully cope with morning check-in and evening off-work rush hour high pedestrian flow of office buildings and fitness clubs.
- Multi-Layer Anti-Pinch Safety Mechanism：Equipped with full-range multi-point infrared anti-pinch sensing matrix, when detecting human body or obstacles, the flap automatically rebounds and opens to eliminate clamping injury risks.
- Power-off Emergency Unlock Function：Automatic full retraction of acrylic swing arms once power fails, form unobstructed wide evacuation passage, fully comply with EU commercial building fire safety evacuation regulations.
- Multi-Device Access Control Compatibility：Reserved universal Wiegand, RS485 and relay signal interfaces, plug-and-play with facial recognition machines, NFC wristbands, IC staff cards, QR code scanners and fingerprint readers.
- Third-Party System Docking Ability：Seamless data interconnection with mainstream office attendance software, hotel visitor management systems and gym member charge management platforms.
- Modular Multi-Lane Splicing Structure：Adopt unit modular design, freely splice dual-lane, triple-lane and four-lane combined passage layout, save lobby space for compact European office entrances.
- Optional Integrated Base Plate Accessory：Custom floor base plate version available, no ground grooving and wiring slot construction needed, greatly shorten construction period for old office renovation projects.
- Intelligent LED Status Indicator：Top embedded color light strip, green light for passable, red light for restricted access, blue standby light, clear traffic status prompt for distant pedestrians.
- Anti-Dust & Waterproof Cabinet Grade：Indoor standard IP54 dustproof and waterproof cabinet, prevent dust accumulation and accidental water splash damage in office lobby environment.
- Low Power Consumption Energy Saving Design：Standby power consumption less than 10W, intelligent sleep mode automatically activated after no passage for 30s, reduce long-term office electricity operating cost.
- Humanized Alarm Prompt Function：Built-in buzzer voice reminder, trigger gentle alarm for illegal tailgating, reverse intrusion and long-time stay blocking the passage.
- Complete OEM Customization Service：Support custom cabinet dimension, surface paint color, laser engraved brand logo, packing box style and function program modification for large commercial engineering orders.
- Stackable Logistics Storage Design：Independent cabinet contour supports stacking storage without scratching surface, reduce warehouse occupation and container transportation cost for bulk orders.
- Anti-Shake Heavy Duty Cabinet Body：Whole machine net weight up to 75KG, thickened steel frame internal support structure, effectively avoid cabinet shaking during continuous high-frequency passing.

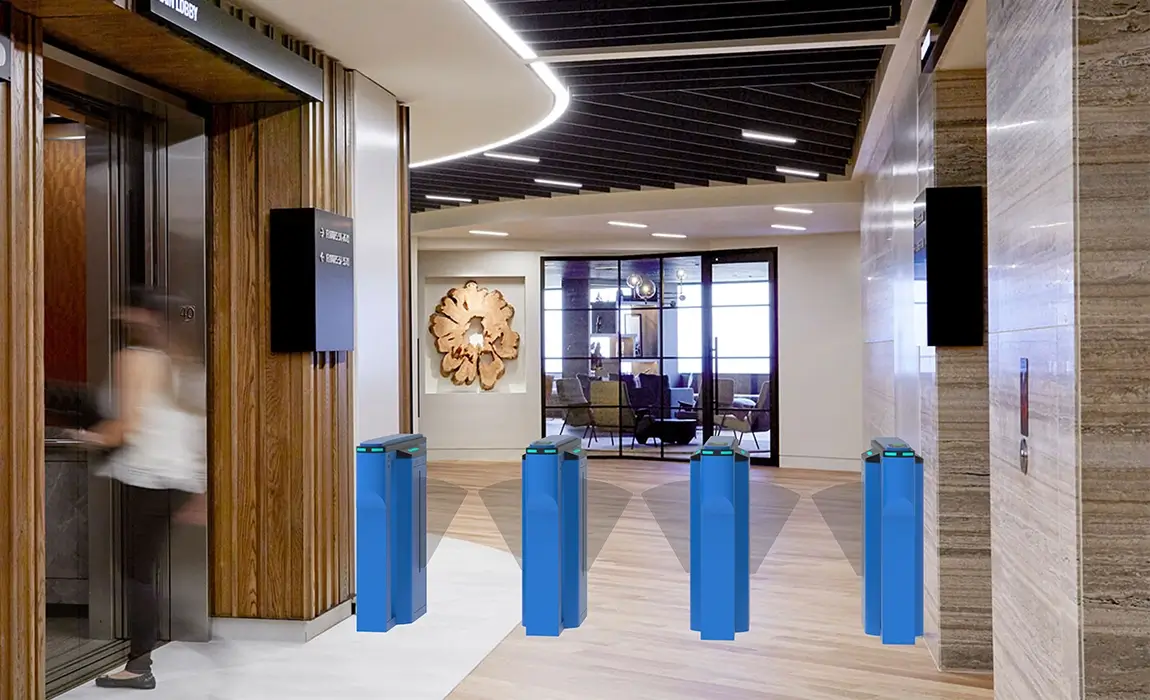

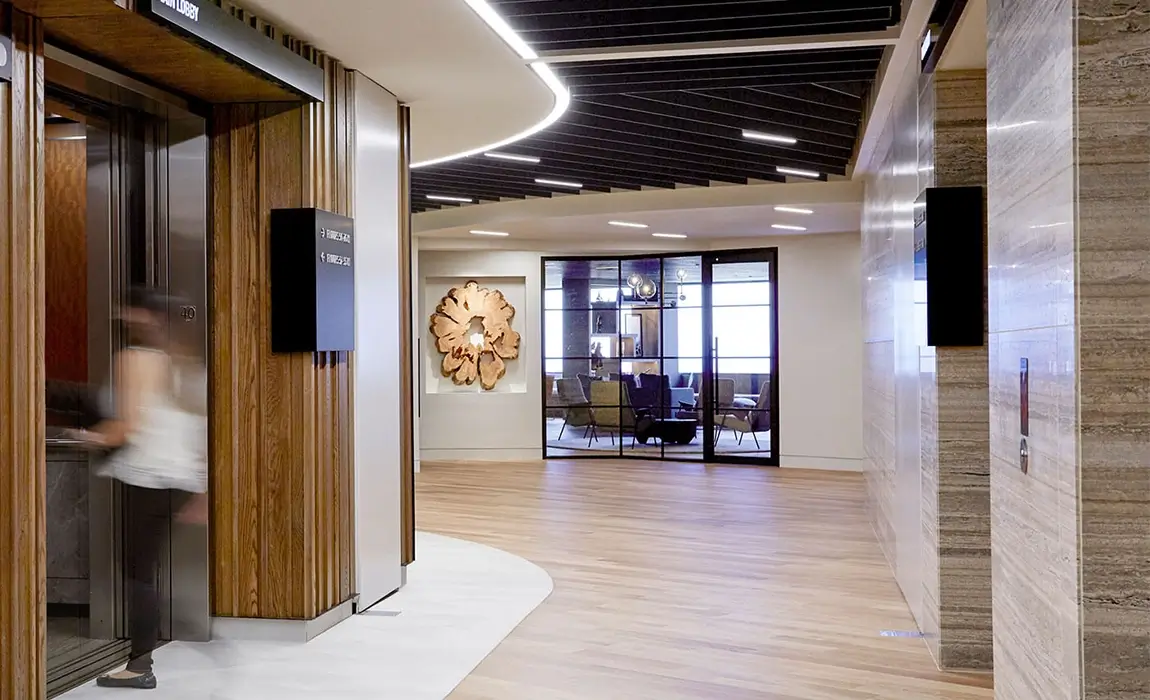

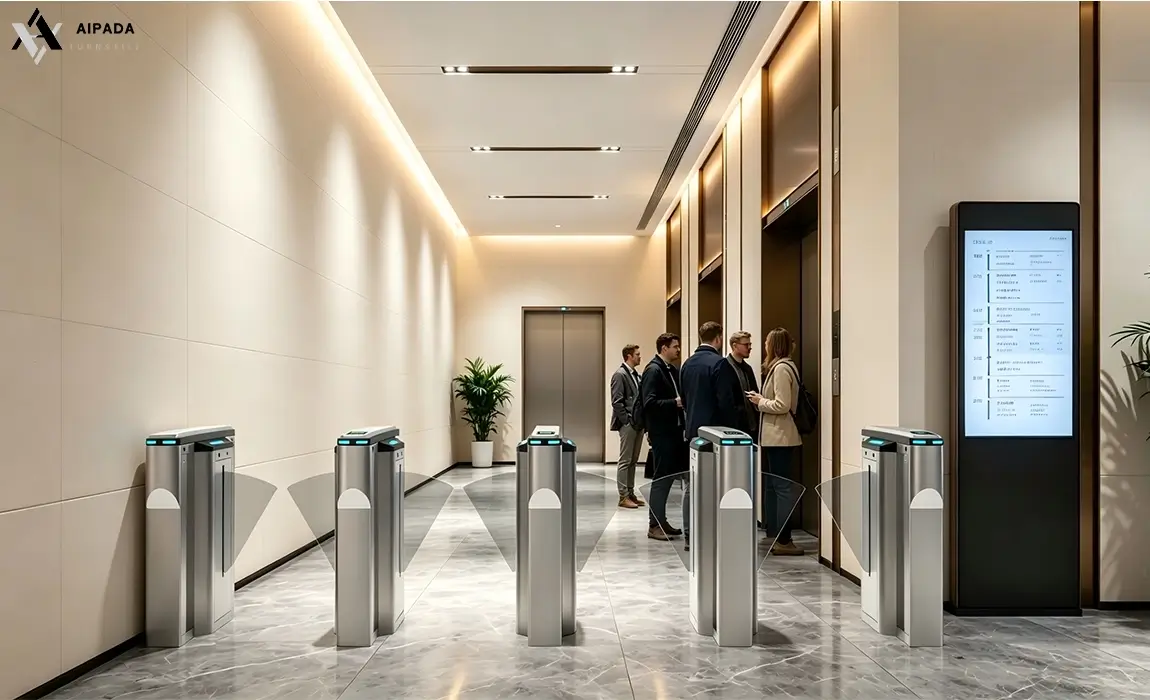

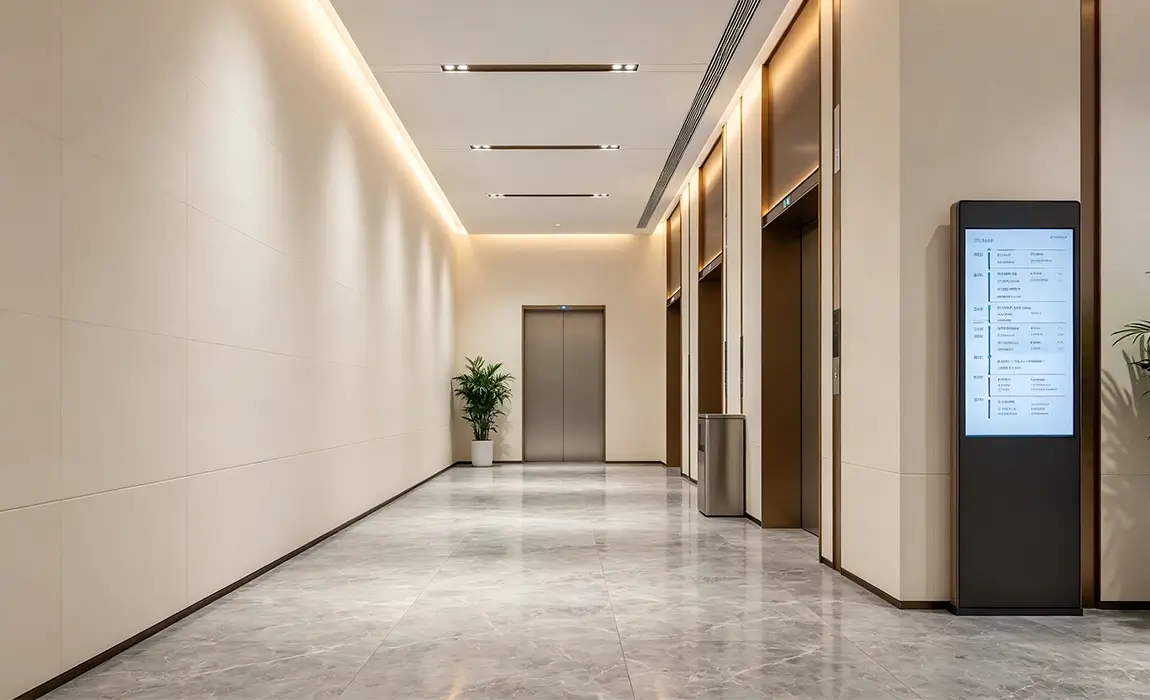

AT310 Office Block Flap Barrier Turnstile Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
AT310 Office Block Flap Barrier Turnstile Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

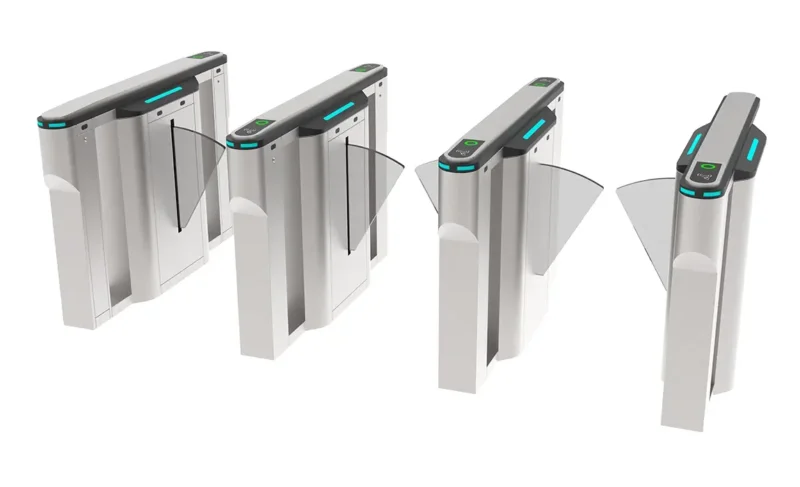

Optional：Number of turnstile channels
The diagram shows a dual-channel system consisting of two single-core and two double-core wing and rotary gates. If more channels are needed, the number of rotary gates can be increased.

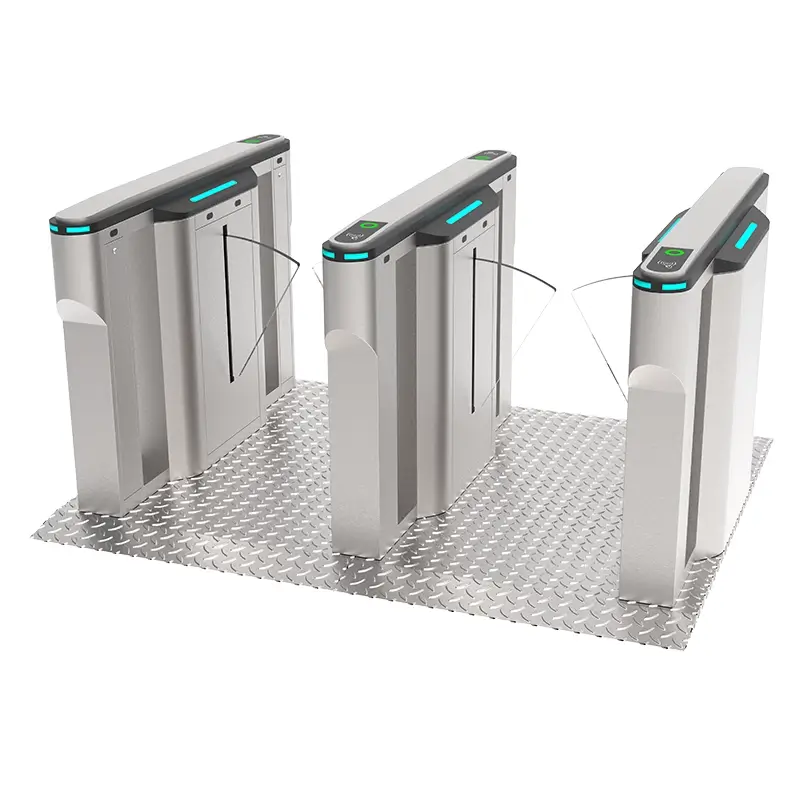

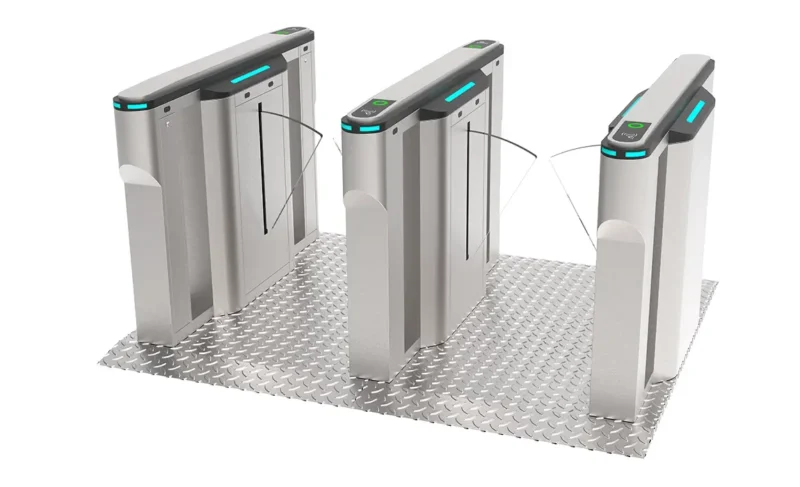

Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

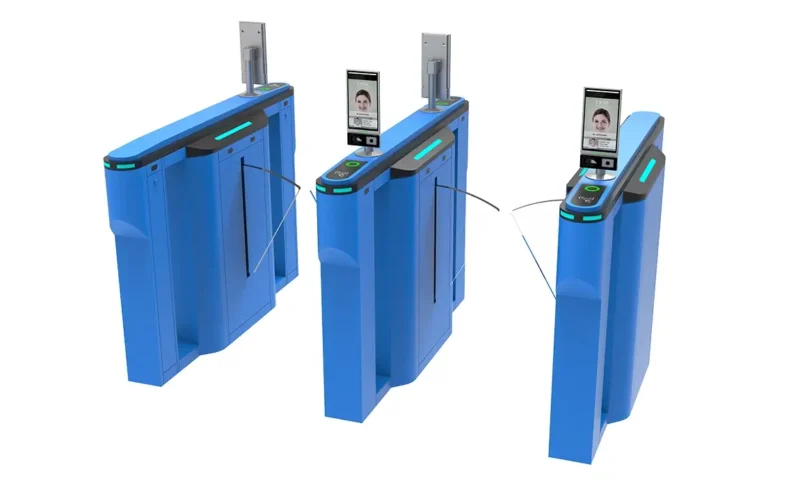

Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

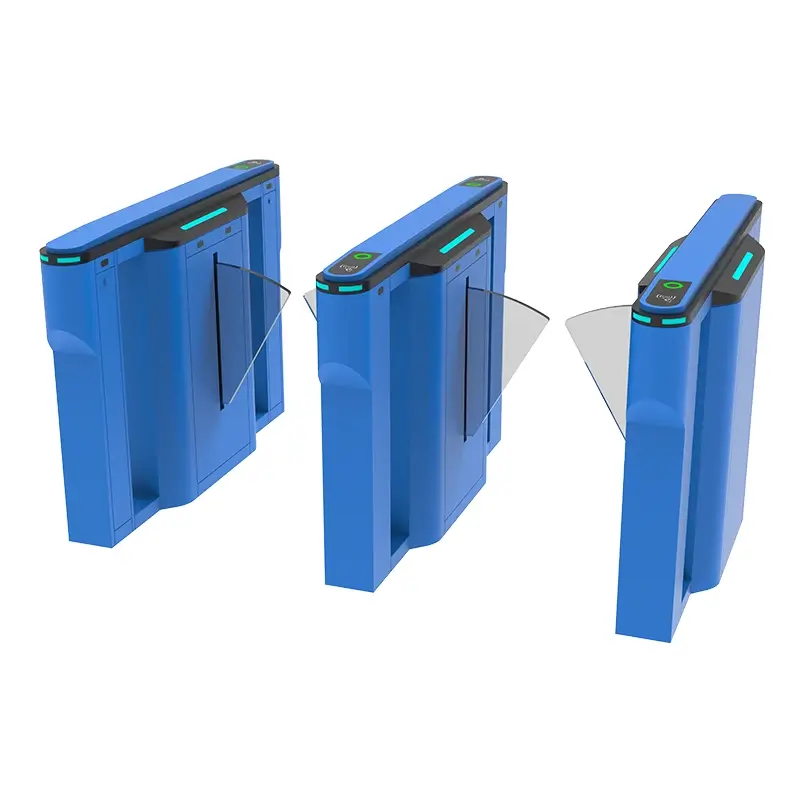

Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
1.Q: Does this Office Block Flap Barrier Turnstile AT310 comply with European office building fire evacuation codes?
A1: Yes. When power cuts off suddenly, all acrylic flap arms retract fully automatically to form an unobstructed wide passage, meeting EU fire safety evacuation standards for commercial office blocks. Multi-point infrared anti-pinch sensors also stop clamping injuries for staff passing during rush hours.
2.Q: Can I install biometric facial recognition devices directly on the AT310 office flap barrier turnstile?
A2: Absolutely. The turnstile reserves standard Wiegand, RS485 interfaces and reserved mounting brackets. It supports plug-and-play facial scanners, IC staff cards, NFC wristbands and QR readers, easily docking with mainstream European office attendance management software.
3.Q: Our office lobby is narrow, can we customize the passage width of the AT310 dual-lane flap barrier?
A3: Sure. The standard single aisle width is 550–600mm; we offer an optional widened 900mm barrier-free lane for wheelchairs and trolleys. The cabinet overall size 1500×300×1005mm can also be adjusted on demand to fit compact European office entrance layouts.
4.Q: If we renovate an old European office, do we need to dig floor trenches for the AT310 office flap barrier installation?
A4: No extra trenching required. We supply an integrated full metal base plate version of AT310. It realizes ground surface direct installation, greatly shortening construction periods and avoiding damage to the original office marble flooring.
5.Q: Does the AT310 Office Block Flap Barrier Turnstile support custom colors to match our office interior decoration?
A5: Yes, full OEM color customization is available. You can select brushed stainless steel original color, matte powder coating or custom baking paint tones (blue, black, grey etc.). The surface finish can be unified with the minimalist decoration style of European modern office blocks and hotel lobbies.
