AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.
AT415 Prismatic Aurora Speed Gate Turnstile Pedestrian 3D view display
AT415 Prismatic Aurora Speed Gate Turnstile Pedestrian Functional features
Main Cabinet Overall Size : Standard cabinet dimension 600×130×980mm (1.97×0.43×3.22 ft); modular unit supports flexible single/dual/triple lane assembly
Standard Passage Width : Prismatic Aurora Speed Gate Turnstile AT415 Default 600mm (1.97 ft) for normal pedestrian flow; optional widened 900mm (2.95 ft) barrier-free lane for luggage, strollers and wheelchairs
Cabinet Shell Material : Standard matte powder-coated carbon steel with scratch-resistant surface; optional SUS304/SUS316 stainless steel for humid, high-corrosion environments such as spas and underground lobbies
Swing Arm Optional Materials : Three interchangeable swing arm panels: transparent acrylic, shatterproof tempered safety glass, brushed stainless steel; vertical interception height fully adjustable to meet security demands
Core Driving System : High-performance industrial brushless servo motor drive, zero gear friction, ultra-low operating noise, supports uninterrupted all-day continuous peak-hour operation
Swing Arm Response Speed : Complete opening and closing action in only 0.2 seconds, delivers smooth, instant pedestrian passing experience without waiting lag
Bidirectional Operation Mode : Freely switchable operation modes including one-way access, bidirectional free pass, one-way restricted access via main control panel
Multi-Point Infrared Anti-Tailgating System : High-density matrix infrared sensors detect illegal trailing, reverse entry, card skipping and piggybacking; auto locks swing arm to block unauthorized passage
Real-Time Anti-Pinch Safety Function : Distributed infrared obstacle induction on swing arms; arm retracts instantly upon detecting pedestrians or objects to prevent clamping injuries
Fire Emergency Auto Evacuation Function : Auto fully retracts all swing arms upon receiving fire alarm signal, forms full unobstructed evacuation channel for emergency crowd escape
Max Pedestrian Throughput : Stable handling of up to 40 pedestrians per minute under normal working conditions, perfectly fits rush-hour flow of office towers, airports and large commercial complexes
Built-In Anti-Jamming Protection Program : Intelligent stall protection activates under external force impact; motor cuts off power temporarily to avoid damage to mechanical transmission components
Automatic Reset Function : Swing arm automatically rebounds to closed interception state after each valid pedestrian passage, no manual reset required
Multi-Type Access Control Interface : Reserved universal external wiring ports, compatible with facial recognition, fingerprint scanners, RFID card readers, QR code scanners and temporary visitor ticket systems
Customized Cabinet Appearance Service : Supports OEM custom cabinet paint colors, customizable RGB LED light strip colors, laser engraved brand logos and pattern printing on cabinet surface
Modular Combined Layout Design : Independent single cabinet modular structure, freely assembled into twin-lane, dual-lane, triple-lane multi-channel groups; optional integrated metal base plate for direct ground installation without excavation
Intelligent Control Mainboard : Industrial-grade stable control module with overvoltage, overcurrent and short-circuit protection; supports remote parameter adjustment and fault self-check
Low Power Standby Mode : Auto enters energy-saving standby state after 3 minutes of idle time, reduces power consumption without affecting normal standby sensing
Working Temperature Range : Prismatic Aurora Speed Gate Turnstile AT415 Stable operation within -10℃ to +55℃ indoor environment, not applicable for outdoor rain exposure
Surface Anti-Rust Treatment : Cabinet undergoes pickling, phosphating and electrostatic spraying multi-process anti-rust treatment, long service life for high-traffic indoor commercial scenes
Silent Operation Optimization : Built-in shock-absorbing rubber cushion at all mechanical contact points, eliminates collision noise during swing arm opening and closing
Power Supply Specification : Standard AC220V input, built-in DC24V stable switching power supply for motor and sensor modules
Anti-Collision Cabinet Edge Design : Arc-shaped anti-collision edge on cabinet frame, reduces impact damage and avoids scratches to passing pedestrians
Lock Delay Adjustable Function : Customizable arm lock delay time from 0.5s to 5s via control panel, adapts to slow-moving visitors such as the elderly and disabled

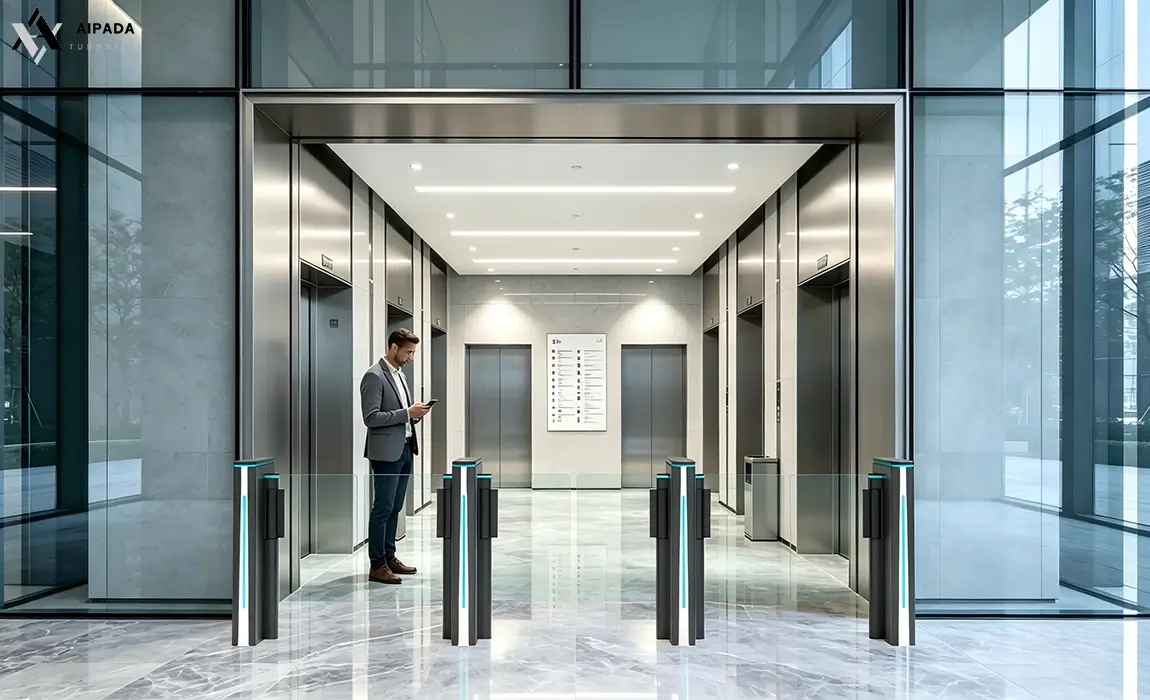

AT415 Prismatic Aurora Speed Gate Turnstile Pedestrian Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
AT415 Prismatic Aurora Speed Gate Turnstile Pedestrian Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.
Optional：Number of turnstile channels
The diagram shows two single-passage systems, each consisting of a personnel passage and an accessible passage. If more passages are needed, the number of revolving gates can be increased.
Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.
Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.
Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
1.Q: This speed gate needs to be installed in an old office lobby without pre-buried ground slots, can it be installed normally?
2.Q: If my project needs to match the corporate brand color, can the cabinet shell of this optical turnstile be customized in color?
3.Q: Our lobby has a large passenger flow during morning and evening rush hours, will the long-time continuous operation cause motor overheating and noise increase?
4.Q: We need to add facial recognition access function later after purchasing the basic three-lane speed gate, is it necessary to replace the whole cabinet?
5.Q: The underground lobby of the hotel is humid all year round, will the standard carbon steel cabinet be rusted after long-term use?
