AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

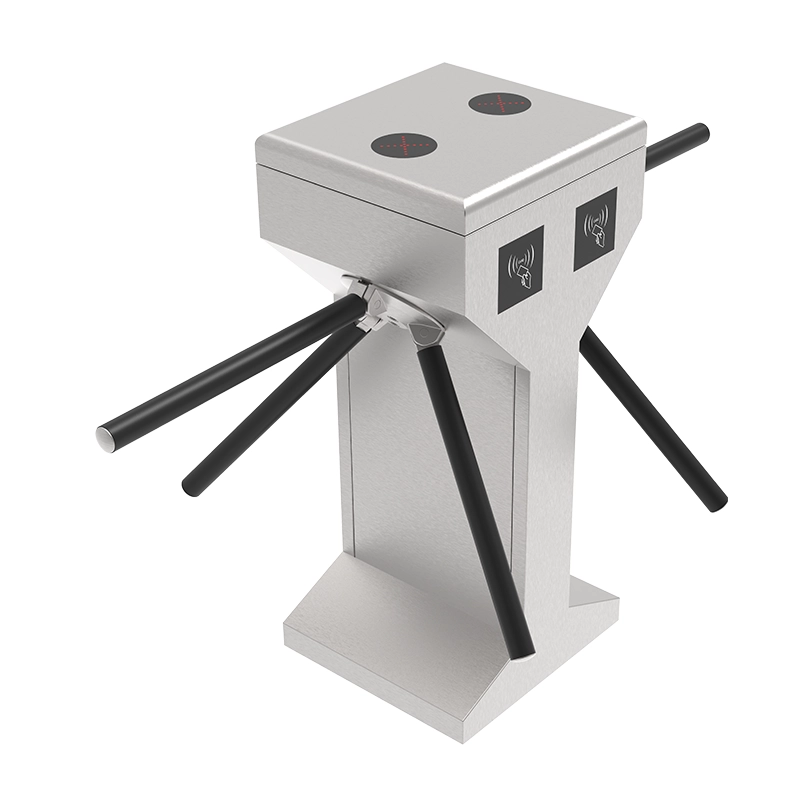

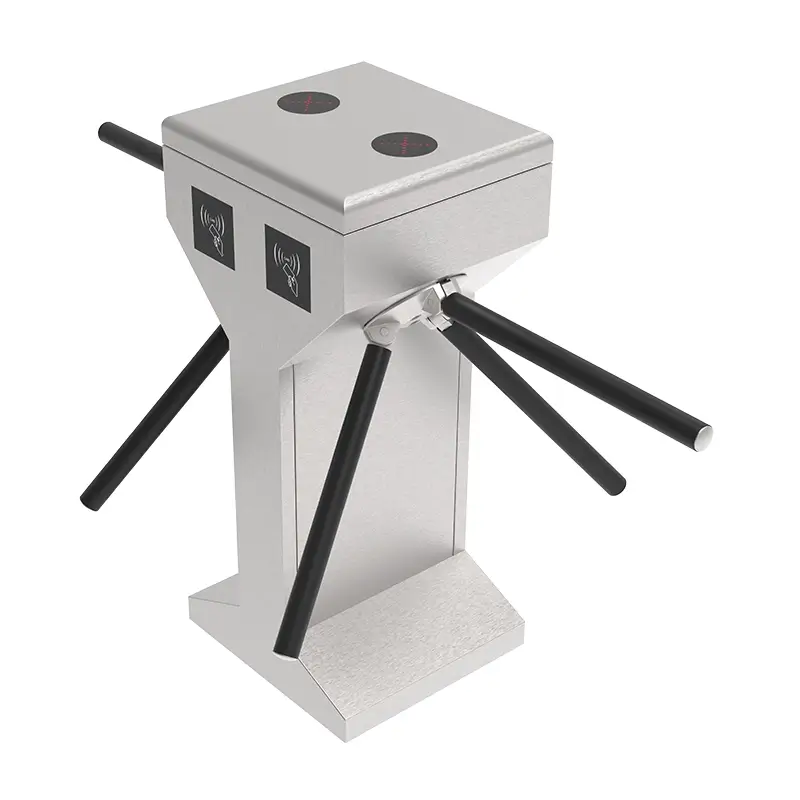

Tripod Turnstile 3D view display

Tripod Turnstile Functional features

Emergency exit function: Allows free passage in case of emergency. The arm will automatically lower in the event of a power outage and can be manually reset after power is restored.

Work direction: unidirectional or bidirectional (optional)

Automatic reset function: After the gate is opened, the system will automatically lock if no one passes through within a specified time. The passage time is adjustable. Anti-reverse passage: If someone attempts to enter in the opposite direction, the revolving door will remain locked.

Intrusion prevention: The door automatically locks before a valid open signal is sent.

Quick unlock: When a valid signal is received, the door will automatically unlock within 0.2 seconds (adjustable).

Hydraulic damper: Equipped with a hydraulic shock absorber, making operation quieter.

Mold Design: This mechanism utilizes a mold design, resulting in more precise components. This saves on labor costs and facilitates assembly.

Traffic Mode: Both entry and exit directions can be independently set to 【Controlled Traffic】/【Free Traffic】/【No Traffic】.

Passage request memory function: When two or more valid passage signals are given simultaneously (including same-direction and opposite-direction signals), the system will remember all passage requests and complete each passage action sequentially (the number of requests to remember and whether the memory function is selected can be customized according to customer requirements).

Safety features: Equipped with lightning protection and leakage protection functions.

Voice prompt function: Provides voice prompts when entering and exiting; multiple voice prompts can be set (customizable).

Interface Protocol: A free development kit protocol is provided, facilitating control and debugging, and offering strong scalability.

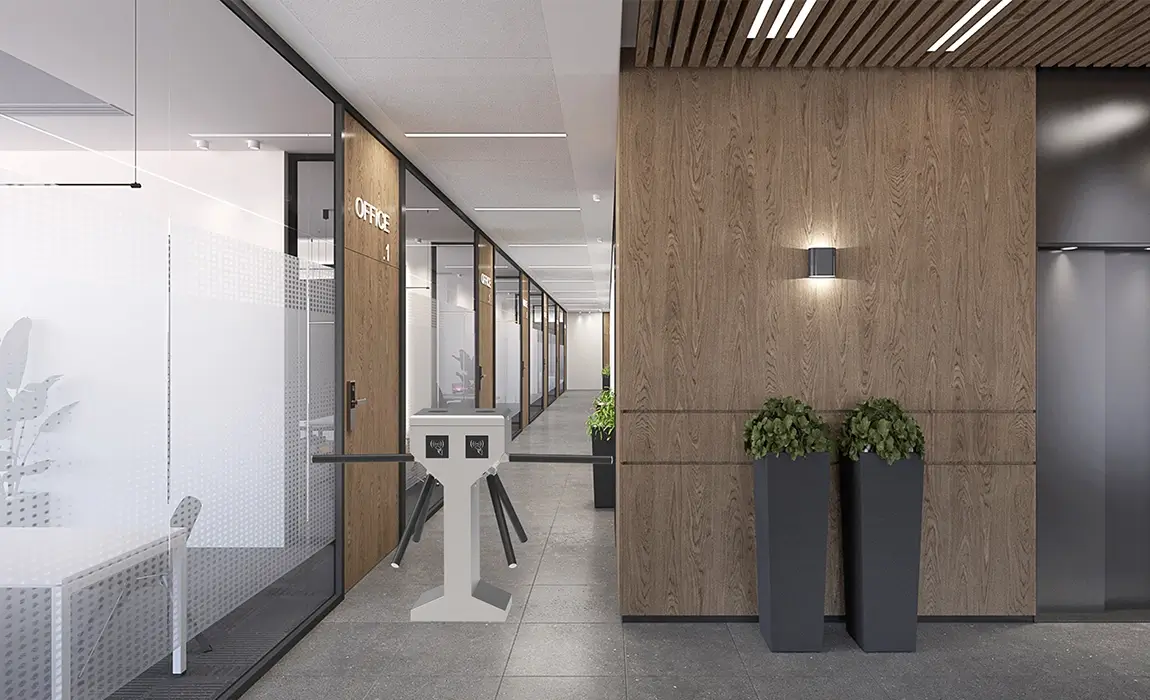

Tripod Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

Tripod Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The image shows a dual-channel system, consisting of two single-core tripod turnstiles. If more channels are needed, the number of turnstiles can be increased.

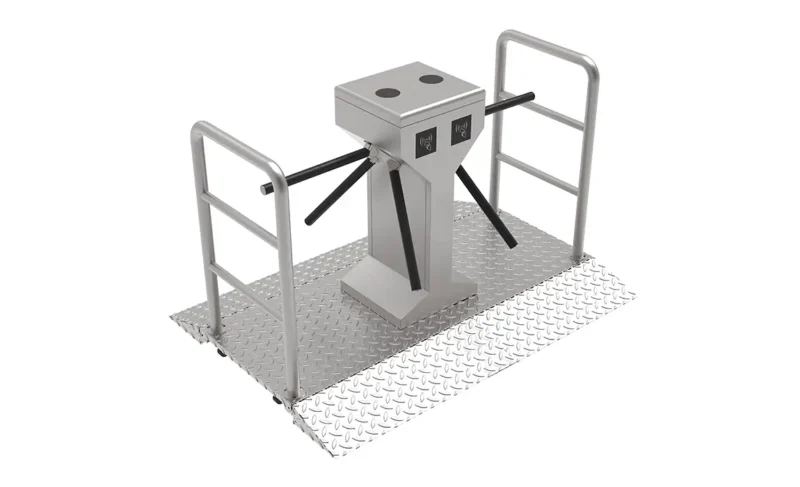

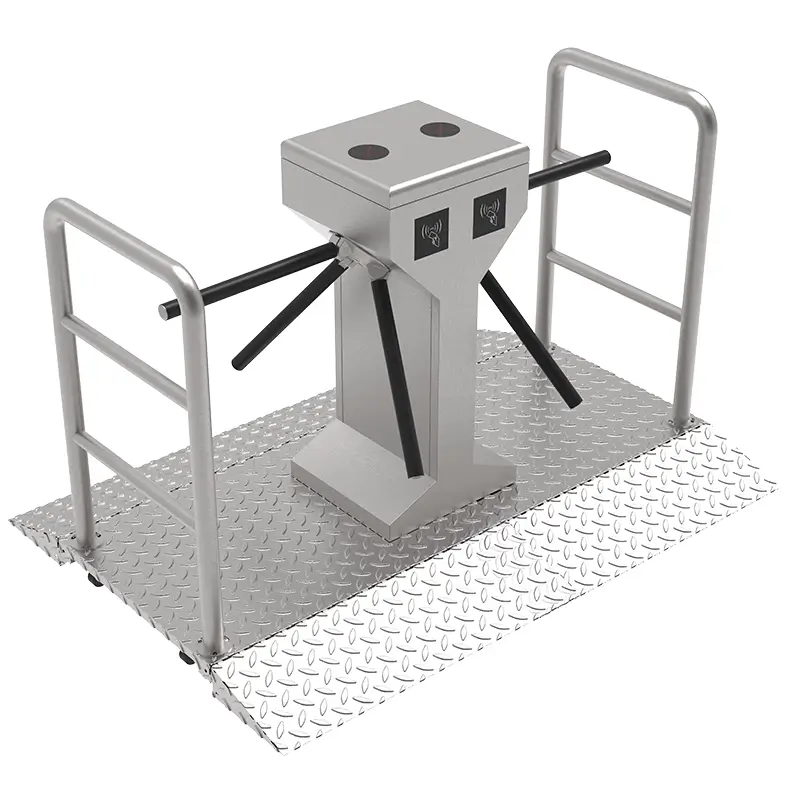

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

The AT103 tripod revolving gate is a dual-mechanism, three-arm revolving gate. Compared to the AT102 tripod revolving gate, this double door Tripod turnstile is more suitable for places with limited space that require two-way pedestrian access control. One device can meet the needs of the entrance and exit, and the passage mode can be set as double entry and double exit, single entry and single exit, etc.

Tripod turnstile is the most basic type of pedestrian turnstile gate, which is composed of the chassis, mechanism, and three blocking rods which stop or release by rotating 120° each time. Its components include chassis, mechanism, drive control board, motor, limit, direction indicator board, access control part, optional counter, etc. The metal rod (rod length standard 50cm) forms a spatial triangle as the blocking body (brake rod). As specified by leading tripod turnstile manufacturers, it is made of 304 or 316 stainless steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation.

Generally, the shape of the tripod turnstile is made of a 304 stainless steel plate, which is beautiful and generous, rustproof and durable, and can resist external force damage.

Tripod turnstile is divided into mechanical type, semi-automatic type, and full-automatic type from the mechanism control mode. From the form, it is divided into a vertical tripod turnstile and a bridge tripod turnstile. The vertical tripod turnstile gate has a small volume and is relatively easy to install; The bridge tripod turnstile gate has a longer channel and higher security.

Tripod security gate can be combined with smart card, fingerprint, bar code, and other identification system equipment to form an intelligent access control system; It is combined with a computer, access control, attendance, charge management, ticket system, and other software to form an intelligent access control management system, which can realize the functions of access control, attendance, consumption, ticket sales, current restriction and so on.
