AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.
AT208 Optical swing barrier turnstile 3D view display
AT208 Optical swing barrier turnstile Functional features
- Standard Overall Dimension: This optical swing barrier turnstile has a standard cabinet size of 1400*180*980mm. Custom‑tailored dimensions are supported to satisfy different construction requirements from UK, Germany and Poland projects.
- Adjustable Channel Width: The swing turnstile’s passage width can be adjusted between 600mm‑900mm. It is available for ordinary pedestrians, strollers and wheelchairs to pass smoothly.
- Cabinet Construction Material: The outer shell of optical swing barrier turnstile is made of anti‑rust SUS304 stainless‑steel with painted inner frame, resisting scratches and oxidation in humid European indoor environments.
- Optional Swing Arm Materials: This swing turnstile offers acrylic, tempered safety glass, plexiglass and solid stainless‑steel swing‑arm options to match modern‑style European interior decoration.
- Custom Surface Treatment: The optical swing barrier turnstile supports brushed, polished, electroplating and baking‑paint finishes, matching design styles of offices, hotels and gyms across EU countries.
- Drive Core System: Built‑in low‑noise DC brushless motor enables the swing turnstile to run steadily, which avoids noise‑pollution inside office lobbies and business parks.
- High‑Speed Passing Efficiency: This optical swing barrier turnstile achieves 40‑people‑per‑minute throughput, coping with heavy‑peak passenger‑flow for data‑centers and commercial buildings.
- Access Control Compatibility: The swing turnstile works well with face‑recognition, RFID card readers and fingerprint modules to realize intelligent permission management.
- Anti‑Tailgating Infrared Sensor: The optical swing barrier turnstile adopts high‑precision infrared optical sensors, effectively identifying tail‑gating and illegal‑pass‑through to enhance site safety.
- Emergency Unlock Function: Once power‑off or fire‑alarm triggers, swing‑arms open automatically. The swing turnstile complies with EU fire‑safety standards for quick emergency evacuation.
- One‑way & Two‑way Mode Switch: Users can set one‑way or two‑way passing modes via control panel. The optical swing barrier turnstile meets flexible access‑management for hotel‑staff‑passages.
- Centralized Network Management: Multiple swing turnstiles can connect to a unified cloud‑based platform. Property managers view access logs and receive failure alerts remotely.
- CE‑Approved Safety Standard: Our optical swing barrier turnstile passes CE certification. It fully meets EU safety requirements for projects in UK, Germany and Poland.
- Dust‑Proof Cabinet Structure: Fully‑sealed cabinet design protects internal motors and sensors from dust, reducing maintenance frequency and extending the service life.

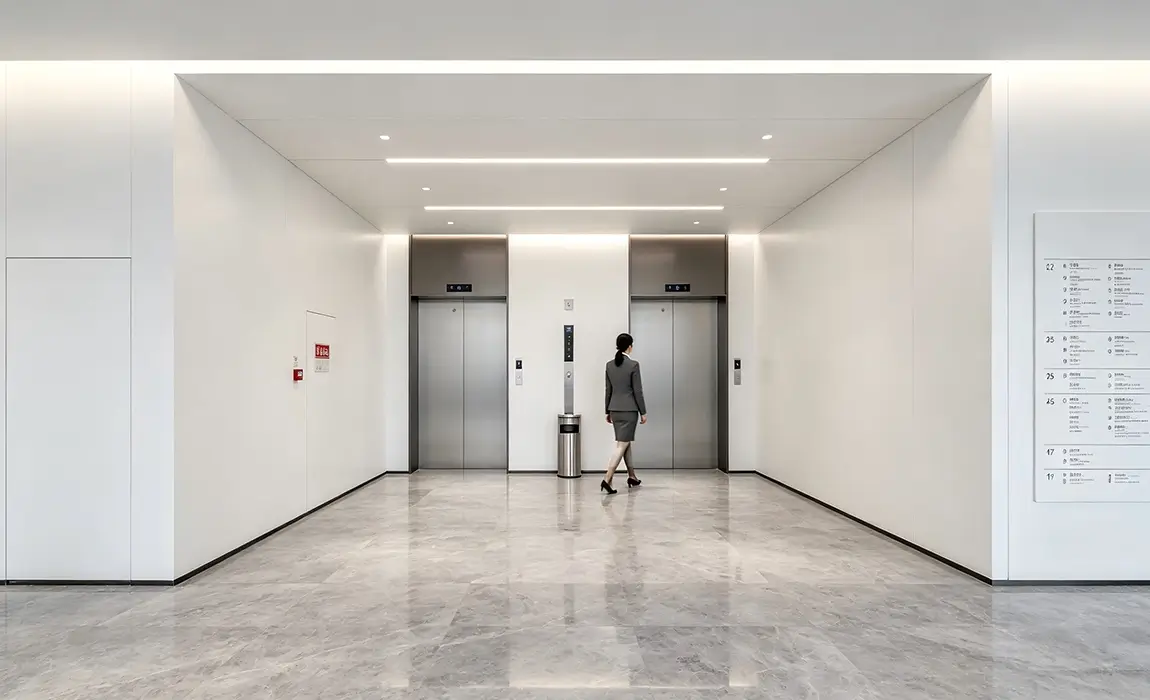

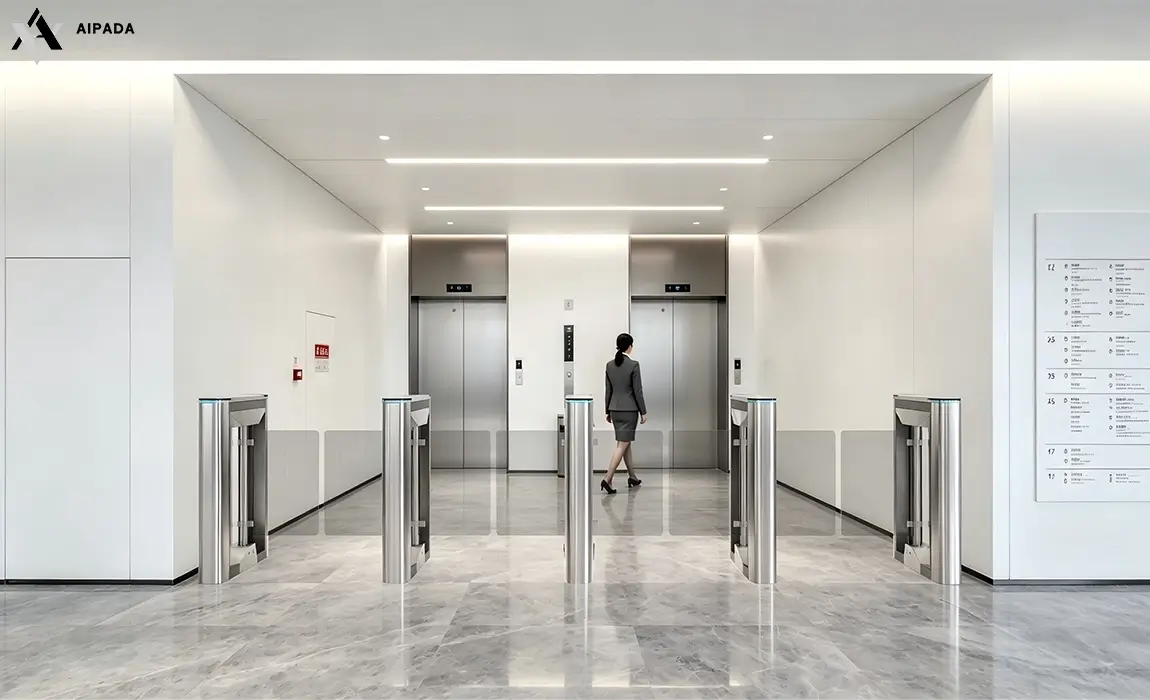

AT208 Optical swing barrier turnstile Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
AT208 Optical swing barrier turnstile Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.
Optional：Number of turnstile channels
The diagram shows a three-channel system consisting of two single-core and two dual-core speed gates. If more channels are needed, the number of rotary gates can be increased.
Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.
Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.
Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
1.Q: Can the optical swing barrier turnstile AT208 adapt to different‑width passages for our European‑project renovation?
A: Yes. Our AT208 swing turnstile supports adjustable passage width from 600mm‑900mm. It can match narrow and wide‑channel requirements for old building renovation projects in UK, Germany and Poland.
2.Q: What surface finish options do you provide for this optical swing barrier turnstile to match our lobby interior design?
A: We offer brushed, polished, electroplating and baking‑paint finishes. You can select proper surface‑treatment to fit modern‑style office and campus decoration.
3.Q: Will the DC brushless motor of AT208 swing turnstile produce loud noise and disturb our staff daily‑work?
A: Absolutely not. The low‑noise brushless motor runs quietly. Operating noise is below 50db and complies with EU environmental‑noise standards for indoor use.
4.Q: Can we switch between one‑way and two‑way passing modes after installing this optical swing barrier turnstile?
A: Sure. Our technicians will set up the passing‑mode via control panel. You also can adjust access modes later according to actual people‑flow conditions.
5.Q: Does your AT208 optical swing barrier turnstile meet EU CE‑certificate for local government‑approved projects?
A: Yes, the whole AT208 series passes CE certification. All components comply with European safety standards to help you finish local project acceptance smoothly.
How Optical Sensing Secures the Lane
An optical swing barrier turnstile does its security work with light, not locks. The high-precision infrared optical array across the passage is what turns a motorised swing panel into a controlled lane:
- Tailgating detection — the sensor field registers a second body following an authorised user; the control logic alarms and the lane refuses the next cycle. This is the optical layer that a simple motorised door cannot offer.
- Illegal pass-through detection — crawling under, climbing or forcing through the panel is registered by the beam pattern and reported, so the security desk sees the event, not just the open panel.
- Safe passage for everyone — the same array keeps the panel from closing on a slower walker, a stroller or a wheelchair, so the accessibility and security functions come from one sensor system.
The panel itself is the visible half of the system: it opens the lane quickly for authorised flow and physically defines the boundary for everyone else.
Optical Swing Barrier Turnstile — Technical Specifications
| Parameter | Specification |
|---|---|
| Cabinet dimension | 1400 × 180 × 980 mm; custom-tailored dimensions supported |
| Passage width | Adjustable 600–900 mm — pedestrians, strollers and wheelchairs |
| Cabinet construction | Anti-rust SUS304 stainless-steel shell with painted inner frame |
| Swing arm options | Acrylic, tempered safety glass, plexiglass, solid stainless steel |
| Drive core | Low-noise DC brushless motor, steady continuous running |
| Throughput | 40 people per minute |
| Optical safety | High-precision infrared array for tailgating and illegal pass-through |
| Emergency unlock | Swing arms open automatically on power failure or fire alarm — EU fire-safety compliant |
| Flow modes | One-way / two-way set via control panel |
| Cabinet sealing | Fully sealed structure — dust protection for motors and sensors |
European Project Compliance
This model was developed against the requirements of our UK, German and Polish project base, and three features exist specifically for that market:
- Fire-safety integration. The emergency unlock reacts to both power failure and fire-alarm signal, opening the arms automatically to comply with EU fire-evacuation standards — the sequence German and Polish plan reviewers check first.
- Humid-interior durability. The SUS304 shell with painted inner frame resists scratches and oxidation in the humid indoor conditions typical of northern European buildings; 316 upgrade is available for exposed or coastal sites.
- Quiet-operation lobbies. The DC brushless drive avoids noise pollution inside office lobbies and business parks where the gate sits within a working environment.
- Service reality. The fully sealed cabinet keeps dust out of motors and sensors, reducing maintenance frequency — the difference between an annual service visit and a quarterly one.
For other wide-lane formats, compare the AT203 business park swing turnstile and the full swing turnstile range.
Ordering, Warranty and Support
- MOQ 1 unit; lead time 7–15 days; payment T/T with 30 % deposit.
- Warranty: 2 years; core spare parts stocked for long-term supply.
- Certification: CE (ZR0119400918C) and CMA/CNAS (UCT1648D35) documentation for EU tender packages.
- OEM/ODM: cabinet length, arm material, finish and reader integration built to project; 3D renderings and dimensional drawings supplied before production.
