Card reader speed gate turnstile AT406

Card reader speed gate turnstile AT406, SUS304 stainless steel swing barrier with 0.2s fast brushless motor, supports 40 people/min throughput, one/two-way flow, customizable aisle width for office & factory access control.

  1. Product Dimensions: Card reader speed gate turnstile AT406 standard cabinet size 1400*150*980mm（4.59*0.49*3.22 ft), with full structural customization available to suit site-specific installation layouts and space limitations.
  2. Aisle Width: Card reader speed gate turnstile AT406 standard aisle width is 600 mm (1.97 ft); widened optional 900 mm (2.95 ft) barrier-free lane for wheelchairs, strollers and oversized luggage to accommodate special passage demands.
  3. Enclosure Construction:  standard build adopts anti-fingerprint brushed SUS304 stainless steel housing, with scratch, rust and wear resistance suitable for most high-traffic indoor commercial environments. SUS316 stainless steel and matte powder-coated carbon steel are available as upgrade options, providing stronger anti-corrosion performance for damp basements, spa lobbies and coastal indoor spaces.
  4. Swing arm material options: Three interchangeable swing arm materials are available to meet different safety and aesthetic requirements: transparent acrylic, shatterproof tempered safety glass, and stainless steel. The vertical height of the swing arm is fully customizable to adjust the safety interception level.
  5. Turnstile Operation Mode: adopts fully automatic brushless servo drive as standard for ultra-quiet, stable all-day continuous operation. The swing arm only takes 0.2 seconds to complete opening and closing movement for a streamlined visitor passage experience.
  6. Drive & Control System:  Equipped with mature industrial brushless servo motor drive and intelligent control modules, supporting continuous frequent peak-hour operation. It features multi-point infrared anti-pinch induction, anti-jamming operation and automatic reset functions, effectively preventing clamping injuries, card-passing without entry and illegal tailgating behavior.
  7. Passage Throughput:  Capable of handling 40 people per minute under normal operating conditions, perfectly meeting the high-frequency morning and evening rush-hour pedestrian passage demands of office buildings and large commercial complexes.

Speed Gate  Turnstile AT406 Product Manual

Categories: , Tags: , , , , , , , Brand: ,

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT406 Card reader speed gate turnstile 3D view display

AT406 Card reader speed gate turnstile Functional features

  • Integrated RFID Card Reader Module for Speed Gate Turnstile：Factory pre-assembled card identification panel built into the Speed Gate Turnstile cabinet, compatible with IC, ID and RFID access cards. Extra external reader installation is not required, simplifying wiring work of the Speed Gate Turnstile and matching enterprise attendance & visitor access systems for office and campus Speed Gate Turnstile projects.

  • Standard Cabinet Parameter of Speed Gate Turnstile：Single cabinet dimension 1400150980mm (4.590.493.22ft), single unit net weight 75KG, modular splicable structure to form dual lane Speed Gate Turnstile, triple stacked Speed Gate Turnstile and middle-wide-aisle dual Speed Gate Turnstile combinations.

  • Multi-Option Cabinet Material for Speed Gate Turnstile：Standard anti-fingerprint SUS304 stainless steel Speed Gate Turnstile housing with scratch, rust and wear resistance; upgrade SUS316 stainless steel Speed Gate Turnstile for coastal damp venues; matte black powder coated carbon steel Speed Gate Turnstile for high-end hotel and minimalist office decoration. IP54 dustproof & splash-proof protection grade for the whole Speed Gate Turnstile cabinet.

  • Two Custom Aisle Width for Speed Gate Turnstile：600mm (1.97ft) standard aisle for daily pedestrian flow of regular Speed Gate Turnstile; 900mm (2.95ft) widened barrier-free aisle for wheelchairs, strollers and oversized luggage, applied to mall and exhibition hall barrier-free Speed Gate Turnstile.

  • Interchangeable Swing Arm of Speed Gate Turnstile：Three swing arm materials for the Speed Gate Turnstile: transparent acrylic, shatterproof tempered safety glass, solid stainless steel plate. Swing arm interception height fully adjustable to meet different security grade demands of factory high-security Speed Gate Turnstile.

  • 0.2s Brushless Servo Drive System of Speed Gate Turnstile：Industrial brushless servo motor built inside the Speed Gate Turnstile, ultra-low noise, supports 24h non-stop continuous operation. The swing arm completes full open-close movement within 0.2 seconds, greatly boosting rush-hour passage efficiency of high-traffic commercial Speed Gate Turnstile.

  • Multi-Point Infrared Anti-Pinch Safety System for Speed Gate Turnstile：Distributed multi-group infrared sensors installed on the Speed Gate Turnstile channel, real-time obstacle detection during swing arm operation. The Speed Gate Turnstile auto stops and resets when blocked to avoid clamping injuries to pedestrians, kids and pets.

  • Intelligent Anti-Tailgating Control for Speed Gate Turnstile：Logic infrared judgment module of the Speed Gate Turnstile identifies illegal trailing, blocks passage without valid card swiping, stores and exports card passing records, ideal for staff attendance management office Speed Gate Turnstile.

  • Switchable One-Way & Two-Way Passage Mode for Speed Gate Turnstile：Users switch unidirectional entry, unidirectional exit or bidirectional access mode via background software of the Speed Gate Turnstile, flexible to fit single-lobby entry, two-way campus gate and factory workshop Speed Gate Turnstile layout.

  • 40 People/Min Max Throughput of Speed Gate Turnstile：The Speed Gate Turnstile supports stable 40 people per minute passing volume under normal working status, perfectly handling dense morning and evening peak flow of office buildings, gym and university campus Speed Gate Turnstile.

  • Optional Integrated Full Base Frame for Speed Gate Turnstile：Custom base frame version of the dual lane Speed Gate Turnstile eliminates floor cutting and pipeline digging, suitable for finished building renovation projects without damaging ground decoration.

  • AC100V-240V Wide Voltage Power Supply for Speed Gate Turnstile：Universal wide voltage power module equipped for the Speed Gate Turnstile, fits power grid standards of most countries, avoiding shutdown failure caused by voltage fluctuation during long-time continuous running of public-area Speed Gate Turnstile.

  • Fire Linkage Emergency Auto-Release of Speed Gate Turnstile：Reserved fire alarm signal interface on the Speed Gate Turnstile control board; all swing arms fully unlock and open automatically once receiving fire trigger signal, clearing all channels for fast crowd evacuation in emergency.

  • Auto Sleep Energy-Saving Mode for Speed Gate Turnstile：The Speed Gate Turnstile enters low-power standby status if no pedestrian passes within 10 seconds, cutting long-term power consumption for all-day-operated commercial public Speed Gate Turnstile.

AT406 Card reader speed gate turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

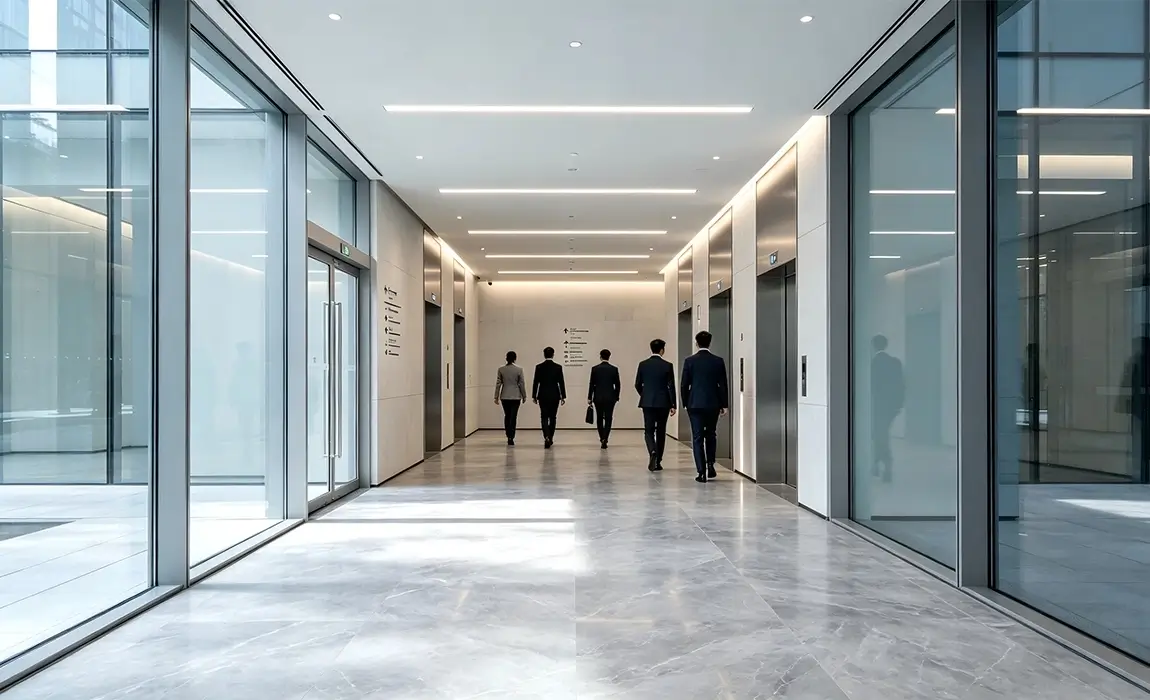

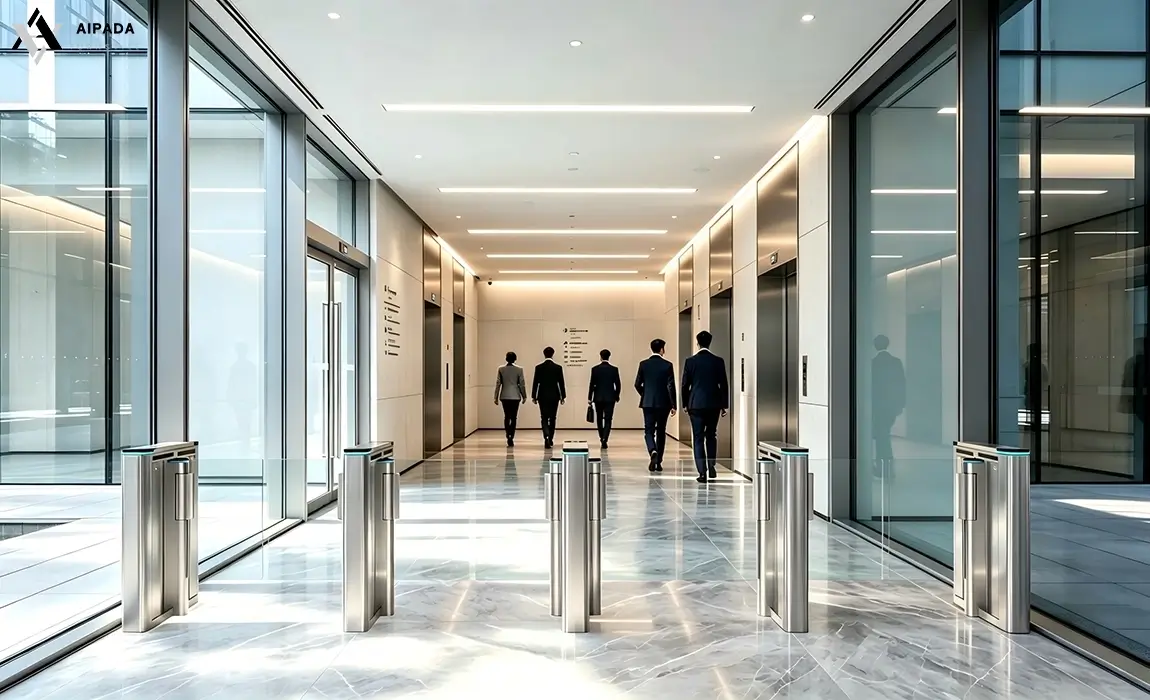

Before After

AT406 Card reader speed gate turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows a three-channel system consisting of two single-core and two dual-core speed gates. If more channels are needed, the number of rotary gates can be increased.

AIPADA AT406-LD-01 four lane Speed Gate Turnstile, SUS304 multi swing barrier with built-in RFID card reader, 4-channel modular access control speed gate for large office & campus
AIPADA AT406-LD-02 dual lane Speed Gate Turnstile with integrated full base frame, SUS304 swing barrier with built-in RFID card reader, no-floor-cut commercial access speed gate

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

AIPADA AT406-LD-03 dual lane Speed Gate Turnstile with built-in face recognition camera, SUS304 swing barrier, RFID card & facial dual verification commercial access speed gate
AIPADA AT406-LD-04-1 dual lane Speed Gate Turnstile, matte black powder coated swing barrier with built-in RFID card reader, dark finish commercial access control speed gate

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card reader

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

AIPADA AT406-TC-01 dual lane RFID card reader Speed Gate Turnstile, SUS304 two-channel swing barrier for office gym pedestrian access control
touch button

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

remote control

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.



Face

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint scanner

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Will the paint of this matte black powder coated dual lane speed gate turnstile peel or scratch after long-term use?

A: The AT406-LD-04 black speed gate turnstile adopts electrostatic high-temperature powder spraying technology, which provides far stronger paint adhesion than ordinary spray paint and excellent scratch resistance. It won’t easily peel or scratch under normal pedestrian passage in offices. If deep scratches caused by hard heavy impacts occur, we supply matching touch-up paint kits for simple self-repair. An upgraded thick protective coating option is also available for high-foot-traffic scenarios like shopping malls.


2.Q: What is the price gap between the black coated dual lane speed gate turnstile and brushed stainless steel version, and what causes the price difference?

A: The black coated model is slightly more expensive than the stainless steel version with the same lane quantity. The price difference comes from three aspects: 1. Pre-polishing and rust removal procedures for stainless steel substrates; 2. Processing costs of the high-temperature electrostatic powder spraying production line; 3. Imported matte anti-fingerprint black coating materials. The price gap is reasonable. The black coated version is preferred for high-end hotels and minimalist offices, while the stainless steel model is more cost-effective for regular factories and campuses.


3.Q: Can I install face recognition cameras on this black dual lane speed gate turnstile, or add them as a post-installation upgrade later?

A: Face recognition devices are fully compatible. The cabinet reserves pre-wired slots and mounting brackets for facial modules, with no cabinet replacement required. Pre-installation at the factory is the most convenient choice. If the black speed gate turnstile has already been mounted on site, the facial unit can also be installed later without damaging the black coating or cutting the cabinet. The finished look will be consistent with the factory pre-equipped face recognition model AT406-LD-03.


4.Q: The marble floor of my lobby has already been finished. Can this black dual lane speed gate turnstile be installed with an integrated full base frame?

A: Absolutely compatible. The AT406-LD-04 black model supports a matching all-in-one full base frame finished with the same matte black coating for unified visual effects. The base-mounted solution requires no floor trenching or cable burying; it can be fixed directly on the ground without damaging finished marble or tile floors, ideal for renovation projects of decorated offices and hotels.


5.Q: Dust and fingerprints show clearly on the black coated speed gate turnstile in the lobby. How should I clean and maintain it daily?

A: Simply wipe the surface with a slightly damp microfiber soft cloth for daily cleaning. Steel wool or hard scrub brushes are forbidden. Stubborn fingerprints and light oil stains can be wiped off with neutral non-corrosive detergent, which will not erode the black coating. Strong acid or alkaline cleaning agents are not recommended. Weekly regular wiping will keep the premium matte finish for a long time.
