Servo Motor Security Speed Gate AT409

Servo Motor Security Speed Gate features a 140mm narrow body with precision servo motor for 0.2s silent fast swing. Customizable 600–900mm channel and multi-point infrared anti-pinch sensors deliver 40 people/min throughput, ideal for secure office, airport and public transport access control.

Product Dimensions: Servo Motor Security Speed Gate AT409 standard cabinet size 1700*140*960mm(5.58*0.46*3.15ft), with full structural customization available to suit site-specific installation layouts and space limitations.
Aisle Width: Servo Motor Security Speed Gate AT409 standard aisle width is 600 mm (1.97 ft); widened optional 900 mm (2.95 ft) barrier-free lane for wheelchairs, strollers and oversized luggage to accommodate special passage demands.
Enclosure Construction: standard build adopts anti-fingerprint brushed SUS304 stainless steel housing, with scratch, rust and wear resistance suitable for most high-traffic indoor commercial environments. SUS316 stainless steel and matte powder-coated carbon steel are available as upgrade options, providing stronger anti-corrosion performance for damp basements, spa lobbies and coastal indoor spaces.
Swing arm material options: Three interchangeable swing arm materials are available to meet different safety and aesthetic requirements: transparent acrylic, shatterproof tempered safety glass, and stainless steel. The vertical height of the swing arm is fully customizable to adjust the safety interception level.
Turnstile Operation Mode:Equipped with a servo drive as standard, it achieves ultra-quiet, stable, and continuous operation around the clock. The swing arm can complete the opening and closing action in just 0.2 seconds, providing visitors with a smooth passage experience.
Drive & Control System: Equipped with mature industrial brushless servo motor drive and intelligent control modules, supporting continuous frequent peak-hour operation. It features multi-point infrared anti-pinch induction, anti-jamming operation and automatic reset functions, effectively preventing clamping injuries, card-passing without entry and illegal tailgating behavior.
Passage Throughput: Servo Motor Security Speed Gate AT409 Capable of handling 40 people per minute under normal operating conditions, perfectly meeting the high-frequency morning and evening rush-hour pedestrian passage demands of office buildings and large commercial complexes.

Categories: All Turnstiles, Speed Gate Turnstiles Tags: OEM Servo Speed Gate, Servo Motor Security Speed Gate for Factory, Servo Motor Security Speed Gate for Office Building, Servo Speed Gate Manufacturer, Silent Speed Gate for Quiet Office, Slim Speed Gate for Small Lobby, UK Servo Motor Security Speed Gate Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT409 Servo Motor Security Speed Gate 3D view display

AT409 Servo Motor Security Speed Gate Functional features

Ultra-Slim Narrow Cabinet Body：140mm ultra-thin cabinet design of Speed Gate Turnstile, saves indoor installation space, fits compact office lobby & narrow corridor layout
Precision Servo Motor Drive System：Core servo motor module for Servo Motor Security Speed Gate, realizes 0.2s ultra-silent fast swing, stable continuous 24h peak traffic operation
Multi-Point Infrared Anti-Pinch Sensor：Full passage infrared induction of speed gate turnstile, real-time anti-clamp protection, avoids pedestrian injury during swing arm reset
Anti-Tailing & Anti-Jamming Function：Intelligent algorithm built in Servo Motor Security Speed Gate, blocks illegal tailgating, auto-lock when foreign objects jam swing arms
Customizable Channel Width：Adjustable aisle width 600mm–900mm for speed gate turnstile, 900mm wide barrier-free lane supports wheelchair & oversized luggage passage
Interchangeable Swing Arm Material：3 optional arm materials for servo speed gate turnstile: transparent acrylic, tempered safety glass, stainless steel, height fully customizable for safety interception
SUS304 Anti-Fingerprint Cabinet Housing：Standard brushed stainless steel enclosure of Speed Gate Turnstile, scratch, rust & wear resistant for high-traffic indoor commercial scenes
SUS316 Corrosion Resistant Upgrade Option：Optional SUS316 stainless steel cabinet for Servo Motor Security Speed Gate, anti-corrosion for coastal, damp basement & spa lobby environments
Auto Reset Self-Recovery Function：After each passage of speed gate turnstile, swing arm automatically resets without manual operation, supports frequent peak-hour pedestrian flow
High Passage Throughput Capacity：Servo Motor Security Speed Gate Turnstile supports 40 people per minute stable throughput, meets morning & evening rush hour high-frequency access demand
Low Noise Silent Operation Mode：Brushless servo drive of speed gate turnstile eliminates mechanical friction noise, suitable for quiet office, hotel & hospital indoor scenarios
Full Custom Structural Layout：Complete size & layout customization for servo speed gate turnstile, supports single/dual/triple/four multi-lane combined installation with integrated base pedestal
All-Day Continuous Cycle Operation：Industrial-grade servo control module of Servo Motor Security Speed Gate, long service life, stable operation under long-time frequent access without overheating
Barrier-Free Access Expansion Design：Widened optional lane of speed gate turnstile, creates smooth passage experience for strollers, disabled wheelchairs and large baggage carriers
Anti-Scratch Matte Coating Upgrade：Optional matte powder coated carbon steel cabinet for servo speed gate turnstile, adds personalized color appearance while boosting surface wear resistance

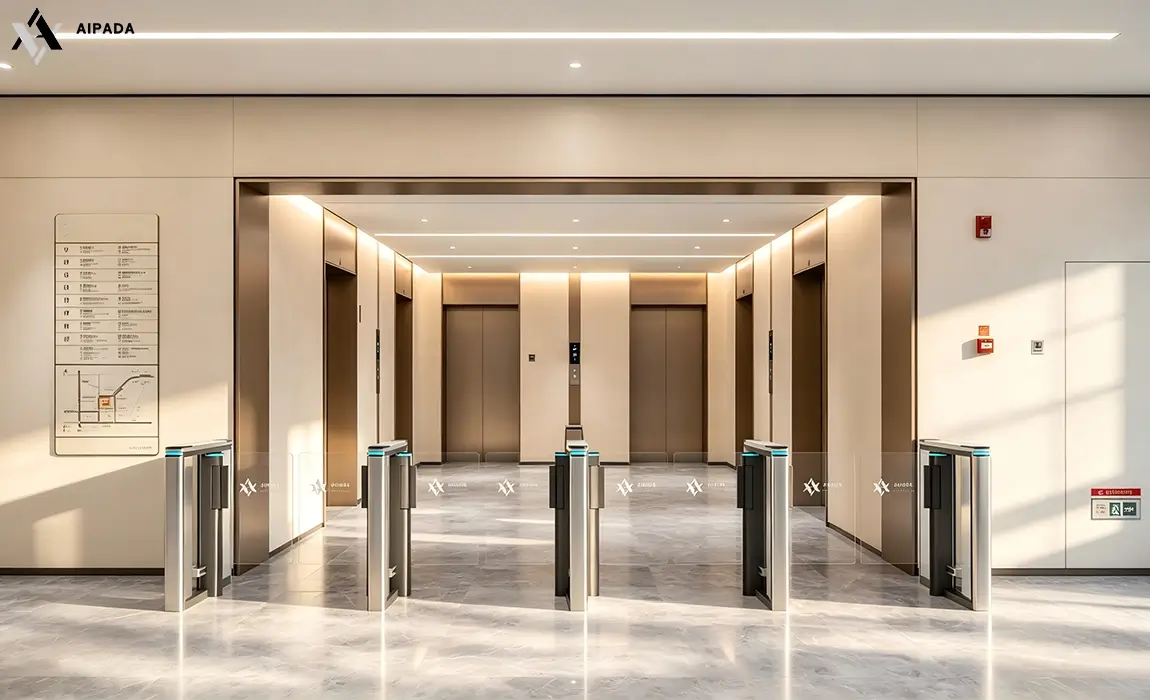

AT409 Servo Motor Security Speed Gate Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT409 Servo Motor Security Speed Gate Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows a three-channel system consisting of two single-core and two dual-core speed gates. If more channels are needed, the number of rotary gates can be increased.

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Can the AT409 Servo Motor Security Speed Gate work with my existing access control card & facial recognition terminals?

A: Definitely. This speed gate turnstile reserves universal wiring interfaces, compatible with most mainstream RFID card readers, fingerprint scanners and facial recognition devices for seamless system integration without extra adapters.

2.Q: What maintenance cycles and costs are required for the servo motor inside the Servo Motor Security Speed Gate?

A: The industrial brushless servo motor is maintenance-free within 5 million operation cycles. No regular lubrication or component replacement needed, greatly lowering long-term operation cost for office and commercial buildings.

3.Q: Is there an emergency unlock mode for the Servo Motor Security Speed Gate during power outages or fire alarms?

A: Yes. Equipped with mechanical manual release and fire signal linkage function. When power cuts off or fire alarm triggers, swing arms automatically open fully for quick pedestrian evacuation.

4.Q: Can I customize the cabinet color of AT409 Servo Motor Security Speed Gate to match my building interior decoration style?

A: We support custom powder coating colors for the cabinet, such as blue, gray and black. Besides standard brushed SUS304 silver, personalized color schemes are available for hotel, mall and corporate lobby matching.

5.Q: How does the anti-tailing function of this Servo Motor Security Speed Gate avoid false triggering for closely walking visitors?

A5: Multi-point infrared matrix sensors cover the whole passage. It accurately distinguishes single person, two closely following people and large luggage, reducing false anti-tailing lockup during peak passenger flow.
