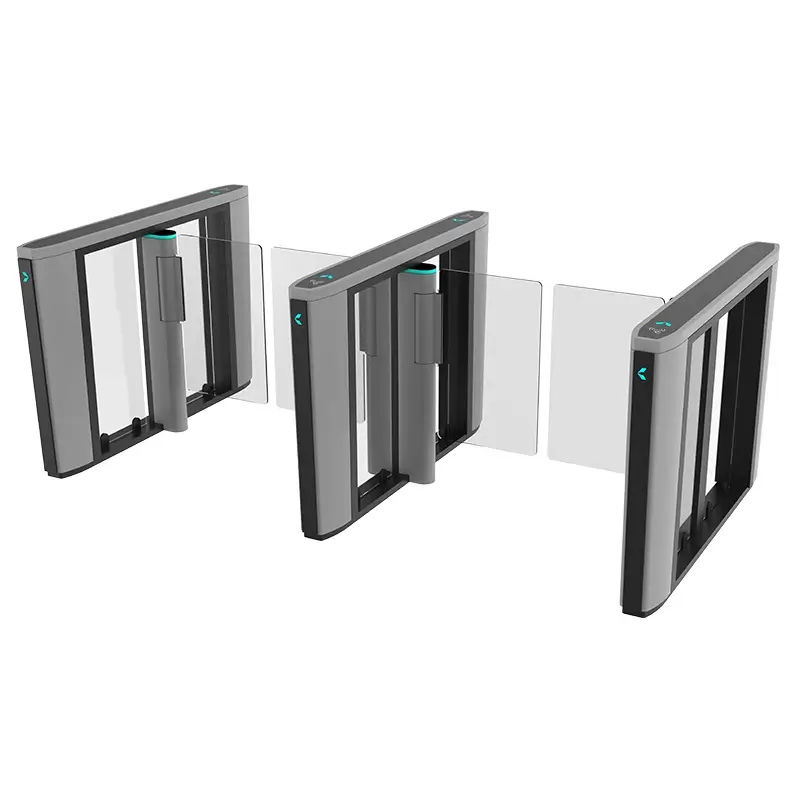

Dual lane slim body high speed gate, AT416-TC-04 stainless steel speed gate turnstile for office access control
Dual channel slim body high speed gate, AT416 integrated base stainless steel speed gate turnstile
Dual passage slim body high speed gate, AT416 slim stainless steel speed turnstile for building access
AIPADA AT416-TC-01 slim body high speed gate dual lane brushless servo turnstile render
AIPADA AT416-TC-03 slim body high speed gate triple lane servo speed gate turnstile render
AIPADA AT416-TC-02 slim body high speed gate dual lane 3D render brushless servo turnstile

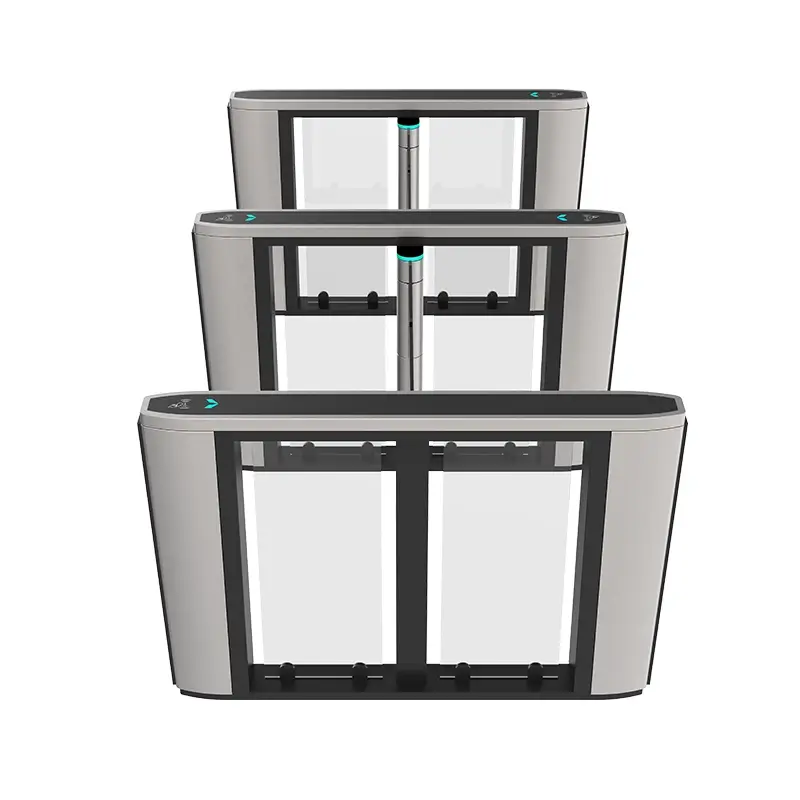

Dual lane slim body high speed gate, AT416-TC-04 stainless steel speed gate turnstile for office access control

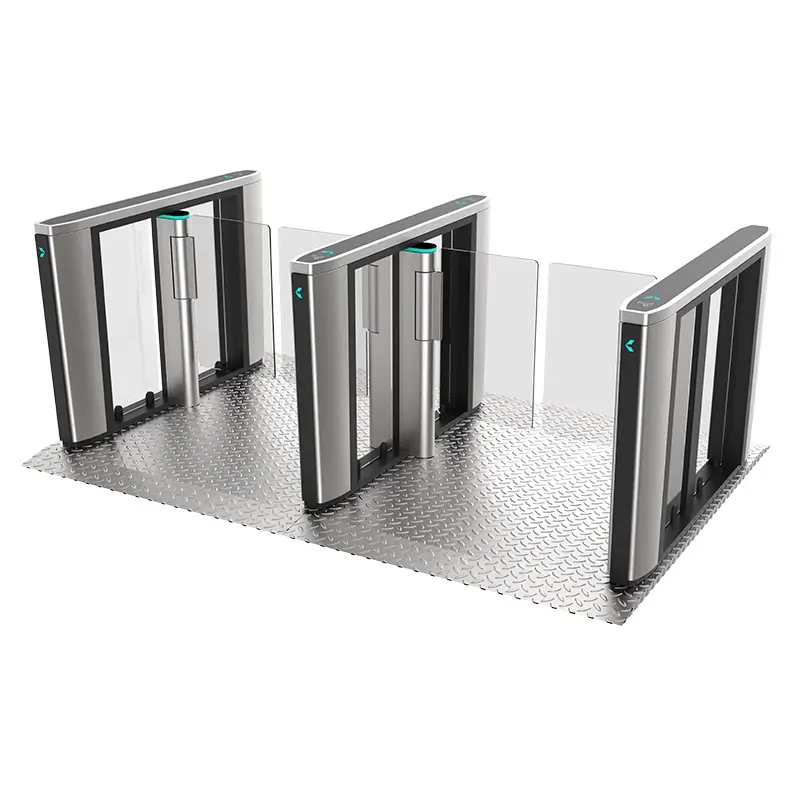

Dual channel slim body high speed gate, AT416 integrated base stainless steel speed gate turnstile
Dual passage slim body high speed gate, AT416 slim stainless steel speed turnstile for building access

Slim body high speed gate turnstile AT416

Slim body high speed gate turnstile with reliable brushless servo drive. Ultra-slim cabinet, 0.2s fast swing, customizable channel & housing materials, secure pedestrian speed gate for office building and airport access control.

  1. Product Dimensions: Slim body high speed gate turnstile AT416 standard cabinet size 1470*150*970mm(4.82*0.49*3.18 ft), with full structural customization available to suit site-specific installation layouts and space limitations.
  2. Aisle Width: Slim body high speed gate turnstile AT416 standard aisle width is 600 mm (1.97 ft); widened optional 900 mm (2.95 ft) barrier-free lane for wheelchairs, strollers and oversized luggage to accommodate special passage demands.
  3. Enclosure Construction: standard build adopts anti-fingerprint brushed SUS304 stainless steel housing, with scratch, rust and wear resistance suitable for most high-traffic indoor commercial environments. SUS316 stainless steel and matte powder-coated carbon steel are available as upgrade options, providing stronger anti-corrosion performance for damp basements, spa lobbies and coastal indoor spaces.
  4. Swing arm material options: Three interchangeable swing arm materials are available to meet different safety and aesthetic requirements: transparent acrylic, shatterproof tempered safety glass, and stainless steel. The vertical height of the swing arm is fully customizable to adjust the safety interception level.
  5. Turnstile Operation Mode:Equipped with a servo drive as standard, it achieves ultra-quiet, stable, and continuous operation around the clock. The swing arm can complete the opening and closing action in just 0.2 seconds, providing visitors with a smooth passage experience.
  6. Drive & Control System: Equipped with mature industrial brushless servo motor drive and intelligent control modules, supporting continuous frequent peak-hour operation. It features multi-point infrared anti-pinch induction, anti-jamming operation and automatic reset functions, effectively preventing clamping injuries, card-passing without entry and illegal tailgating behavior.
  7. Passage Throughput: Slim body high speed gate turnstile AT416 Capable of handling 40 people per minute under normal operating conditions, perfectly meeting the high-frequency morning and evening rush-hour pedestrian passage demands of office buildings and large commercial complexes.
SKU: AT416 Categories: , Tags: , , , , , , Brand: ,

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT416 Slim body high speed gate turnstile 3D view display

AT416 Slim body high speed gate turnstile Functional features

  • 150mm Ultra-Slim Cabinet Design：Core feature of slim body high speed gate turnstile AT416, 1470150970mm narrow cabinet saves indoor space, flexible layout for compact office & airport lobby

  • Industrial Servo Drive System：Power core for slim body high speed gate turnstile, ultra-quiet stable 24h continuous running, 0.2s rapid swing arm open-close for speed gate turnstile high frequency traffic

  • Customizable Channel Width：Dual size options for speed gate turnstile, standard 600mm aisle for daily passage, expandable 900mm barrier-free lane for wheelchair, stroller & oversized luggage

  • Infrared Anti-Pinch Sensor Array：Full passage infrared detection built in slim body high speed gate turnstile, real-time anti-clamp protection to avoid pedestrian pinch injury during swing reset

  • Multi-Layer Anti-Tailing & Anti-Jamming Logic：Intelligent control module of speed gate turnstile, identify single/multiple pedestrians accurately, auto lock when foreign objects block swing arms to stop illegal tailgating

  • Multi-Grade Enclosure Material Selection：SUS304 anti-fingerprint stainless steel as standard housing for slim body high speed gate turnstile; upgrade SUS316 steel or matte coated carbon steel for damp, coastal & spa venues

  • Interchangeable Custom Swing Arm：3 optional swing arm materials for speed gate turnstile: acrylic, shatterproof tempered glass, stainless steel; adjustable vertical height to match safety interception demands

  • Bidirectional Optional Traffic Mode：Flexible passage direction setting for slim body high speed gate turnstile, support one-way or two-way pedestrian flow to fit different building access management rules

  • 40 People Per Minute High Throughput：High efficiency speed gate turnstile AT416, stable 40 people/min passing capacity, fully cope with morning & evening rush hour crowd in office and commercial complex

  • Auto Swing Arm Self-Reset Function：After each valid access, swing arm of slim body high speed gate turnstile automatically resets without manual operation, reduce staff maintenance workload

  • Full Custom Structural Layout：Customized multi-lane combined solution for speed gate turnstile, single/dual/triple lane combination available, adapt to space limitation and site specific installation layout

  • All-Day Peak Load Stable Operation：Industrial servo control module of slim body high speed gate turnstile, support long-time frequent peak-hour operation without overheating, extend service life of speed gate turnstile

  • Fire Alarm Signal Linkage Escape Mode：Safety protection function of slim body high speed gate turnstile, auto fully open swing arms once receiving fire alarm signal, realize unobstructed emergency evacuation for speed gate turnstile

  • Mechanical Manual Unlock For Power Failure：Backup safety design for speed gate turnstile, built-in manual release key, manually open barriers when power cut to guarantee normal pedestrian passage

  • Universal Access Control Interface Compatibility：Expansion function of slim body high speed gate turnstile, reserved wiring port to connect facial recognition, RFID card reader, fingerprint device for integrated intelligent access system

  • Low Power Energy Saving Standby Mode：Energy-saving design for speed gate turnstile, auto enter low power standby state without passing requests, cut power consumption for long-time idle office scenes

  • Surface Anti-Scratch & Wear Resistance Treatment：Surface craft of slim body high speed gate turnstile, brushed stainless steel shell resists daily scratch, abrasion, suitable for high-traffic speed gate turnstile public areas

  • Real-Time Passage Status LED Indicator Light：Visual prompt function for speed gate turnstile, built-in cabinet LED light to show passable/locked/abnormal status for intuitive pedestrian guidance

  • Independent Lane Operation Separation Control：Multi-lane control function of slim body high speed gate turnstile, each single lane can run independently without affecting other channels of the whole speed gate turnstile group

  • Rainproof Dustproof Indoor Protection Grade：Sealed cabinet design for speed gate turnstile, good dust and splash resistance, adapt to semi-open indoor lobby and airside airport waiting hall environment

AT416 Slim body high speed gate turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

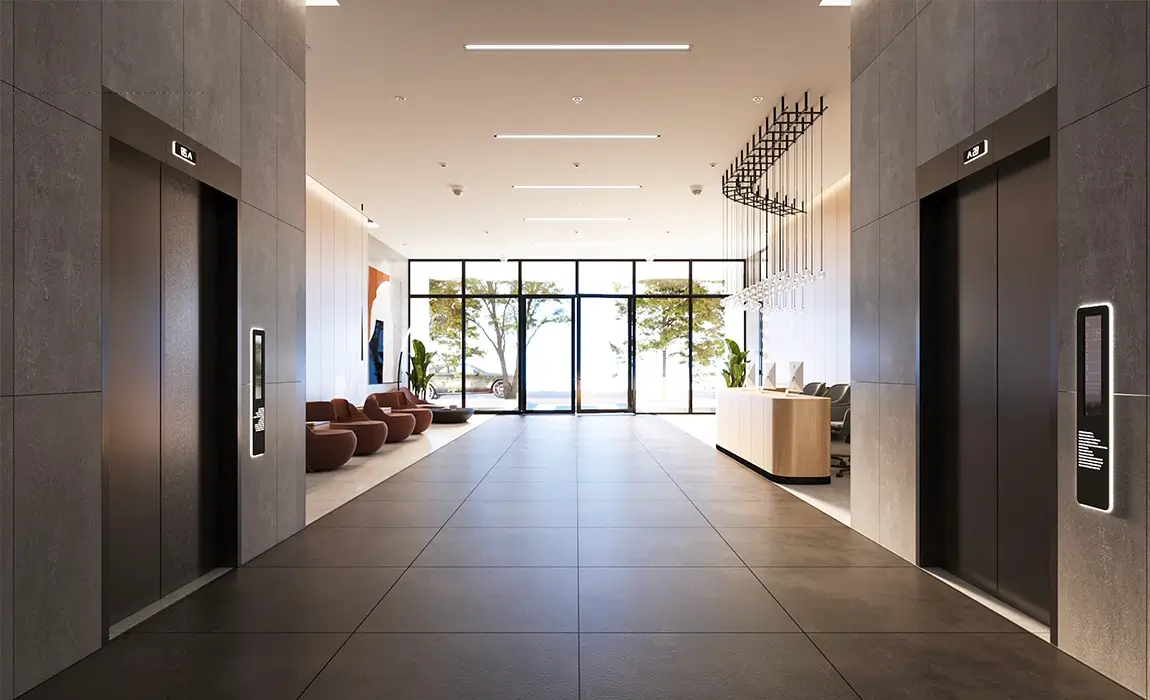

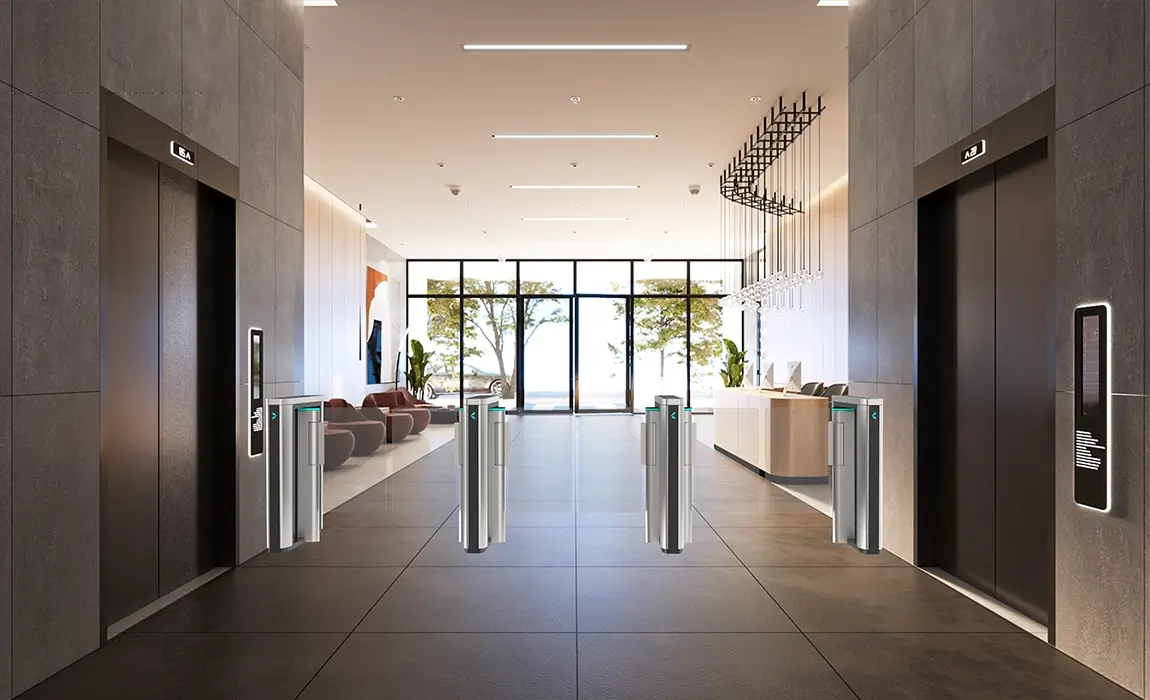

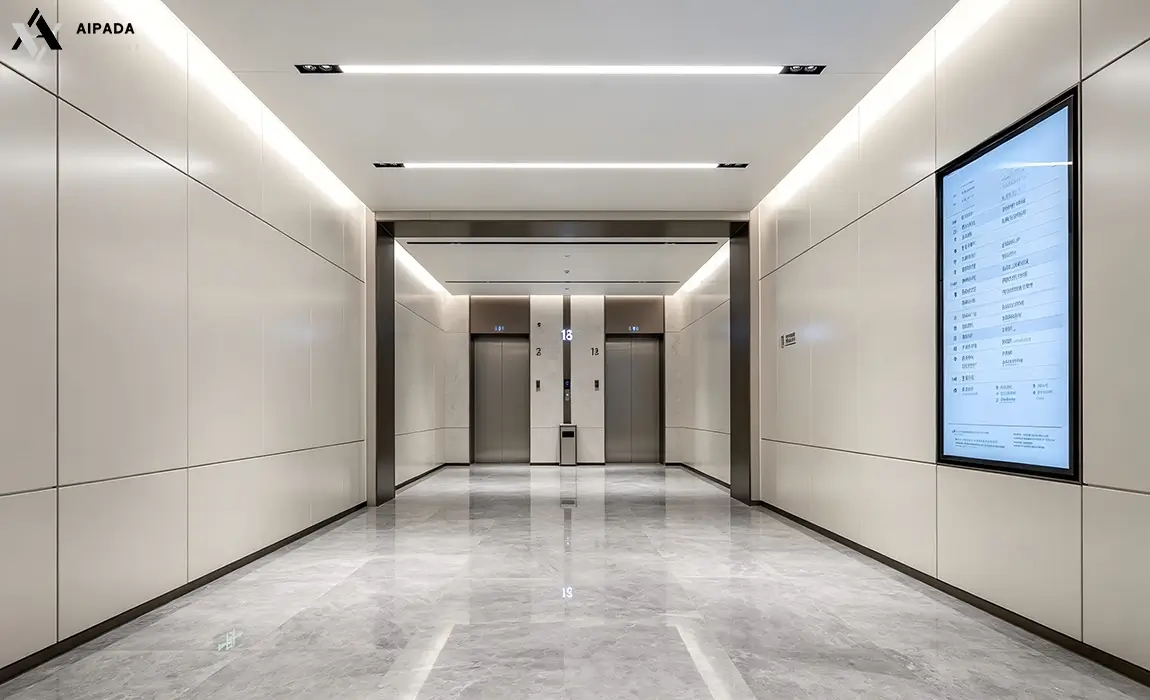

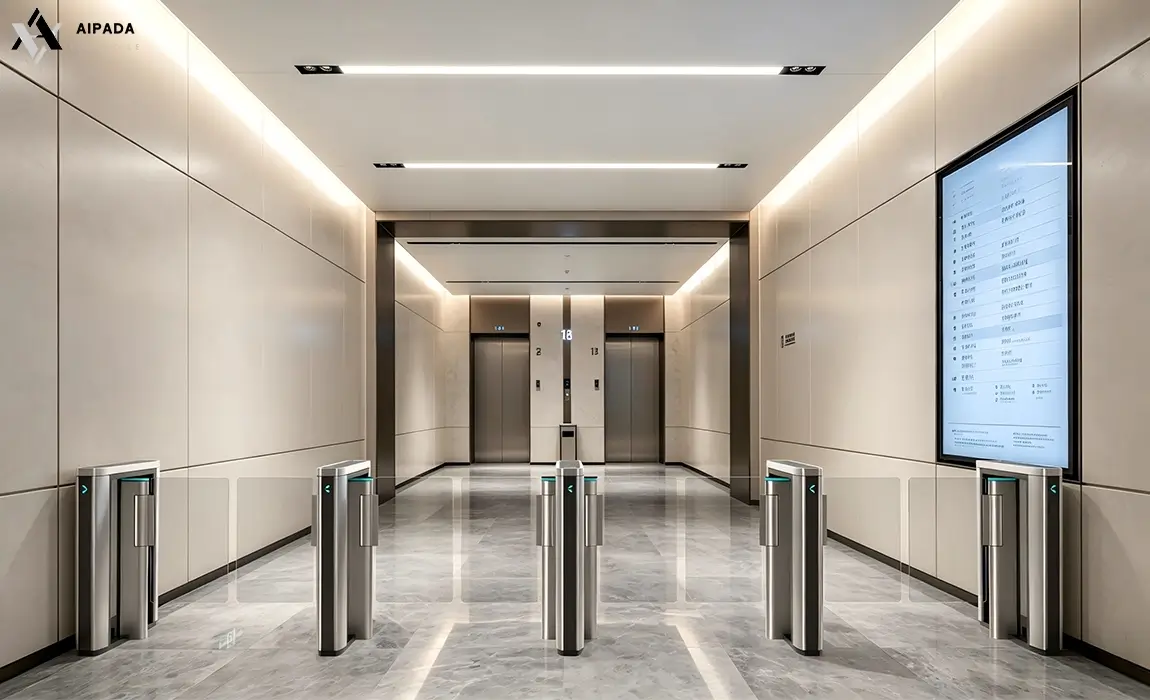

Before After

AT416 Slim body high speed gate turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows a three-channel system consisting of two single-core and two dual-core speed gates. If more channels are needed, the number of rotary gates can be increased.

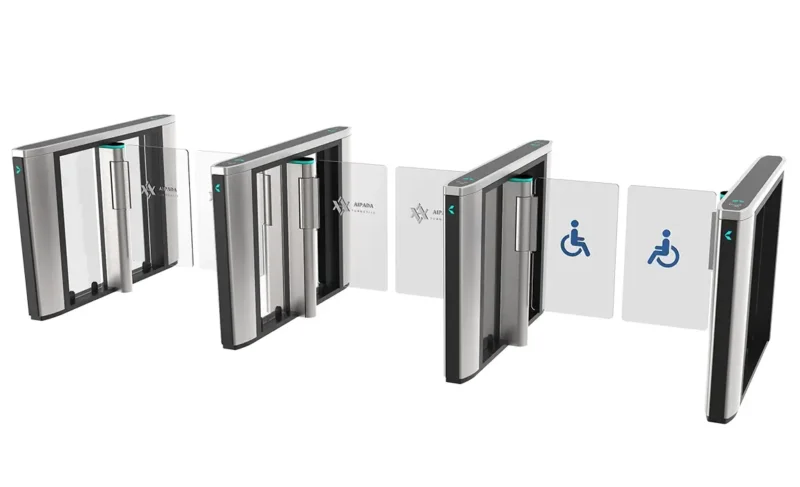

AIPADA AT416-LD-01 slim body high speed gate triple lane render with one barrier-free aisle

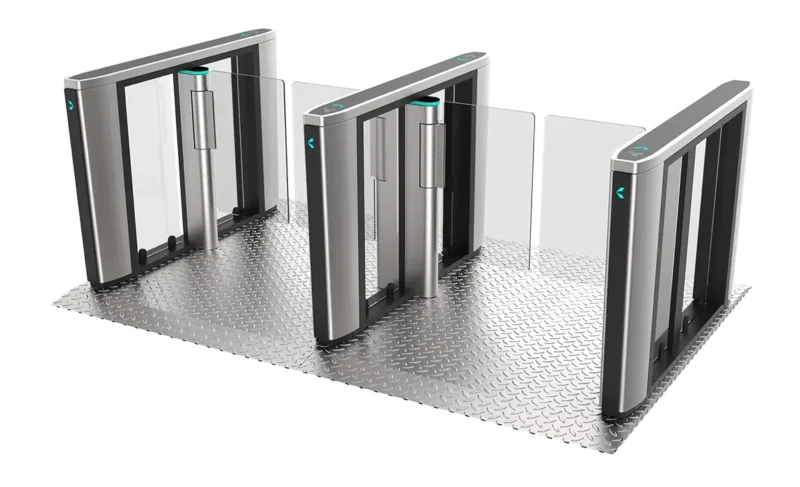

AIPADA AT416-LD-02 slim body high speed gate dual lane 3D render with integrated base pedestal

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

AIPADA AT416-LD-02 slim body high speed gate dual lane render with built-in facial recognition terminal

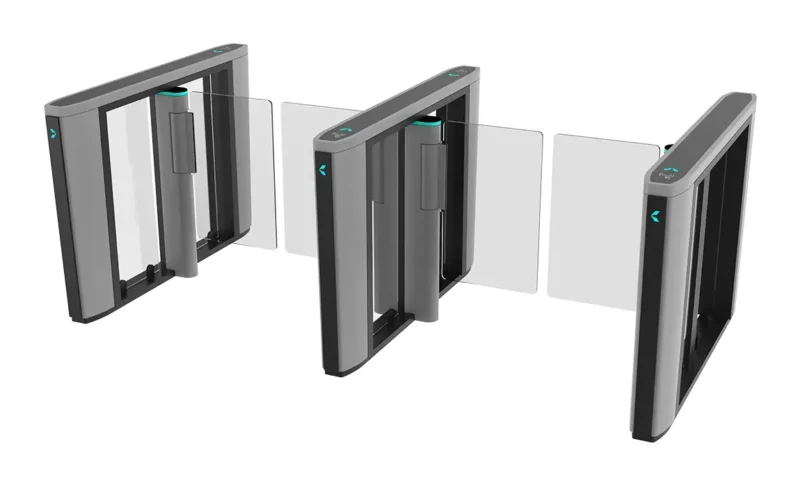

AIPADA AT416-LD-04 slim body high speed gate dual lane dark gray customized cabinet render

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card reader

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

AIPADA AT416-TC-01 slim body high speed gate dual lane brushless servo turnstile render
touch button

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

remote control

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.



Face

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint scanner

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Can the ultra-slim cabinet of AT416 slim body high speed gate turnstile be installed against narrow wall corridors less than 1.6m wide?

A: Absolutely. The 150mm ultra-thin cabinet design of this slim body high speed gate turnstile occupies minimal wall space. We provide matched narrow-site layout plans to fit compact corridor spaces of office and hotel elevator lobbies.

2.Q: If I choose powder coated cabinet for the slim body high speed gate turnstile AT416, will the paint layer peel off under long-term frequent touching?

A: No. The matte powder coating undergoes high-temperature baking treatment. It delivers scratch and abrasion resistance same as brushed stainless steel, no peeling or fading under daily heavy pedestrian contact.

3.Q: Is the 0.2s fast swing servo mechanism of slim body high speed gate turnstile AT416 adjustable to slower speed for primary school or senior community access?

A: Yes. The servo drive supports multi-speed adjustment. We can slow down swing arm opening/closing speed to avoid bumping kids and elderly people for low-speed safety access scenarios.

4.Q: When I combine multiple lanes of AT416 slim body high speed gate turnstile, can each channel run independently without linkage shutdown if one lane fails?

A: Yes. Every lane of this speed gate turnstile adopts independent control modules. Faults on one single channel will not cut off operation of other lanes, ensuring uninterrupted overall pedestrian passage.

5.Q: Does the slim body high speed gate turnstile AT416 support post-installation upgrade to add facial recognition access terminals without replacing the whole cabinet?

A: It supports modular retrofitting. The cabinet reserves pre-wired reserved interfaces, you can install facial scanners, card readers or fingerprint modules later without dismounting the entire speed gate turnstile.
