Gym Speed Gate Turnstile AT407 ,dual-lane slim baking paint speed gate turnstile, compact lightweight access barrier with vertical cyan LED indicator for gym and airport pedestrian control

AT407-TC-03 dual-channel slim coated swing gate, lightweight compact access turnstile with side cyan LED prompt, humidity-proof cabinet for gym and transit station entry control

AT407-TC-04 layered stacked display swing gate unit, single slim baking paint turnstile sample with vertical cyan indicator light for showroom product presentation

AT407-TC-06 dual swing gate with integrated full stainless anti-slip base, thin coated compact turnstile with vertical cyan light strip for temporary venue & gym quick setup

Gym Speed Gate Turnstile AT407

The Gym Speed Gate Turnstile AT407 slim lightweight gym speed gate withstands gym sweat and humidity. Brushless servo motor delivers 0.2s fast swing with 40 people/min throughput. It supports adjustable lanes, dual-way flow, anti-pinch safety, and multi-mode gym access linkage, with OEM color & logo customization.

Product Dimensions: Gym Speed Gate Turnstile AT407 standard cabinet size 603×130×981.5mm (1.98×0.43×3.22 ft), with full structural customization available to suit site-specific installation layouts and space limitations.
Aisle Width: Gym Speed Gate Turnstile AT407 standard aisle width is 600 mm (1.97 ft); widened optional 900 mm (2.95 ft) barrier-free lane for wheelchairs, strollers and oversized luggage to accommodate special passage demands.
Enclosure Construction: Gym Speed Gate Turnstile AT407 Standard matte powder-coated carbon steel housing resists scratches, rust and wear for high-traffic indoor commercial use. Upgrade to SUS304 / SUS316 stainless steel for stronger corrosion protection in humid basements and spa lobbies.
Swing arm material options: Three interchangeable swing arm materials are available to meet different safety and aesthetic requirements: transparent acrylic, shatterproof tempered safety glass, and stainless steel. The vertical height of the swing arm is fully customizable to adjust the safety interception level.
Turnstile Operation Mode: Gym Speed Gate Turnstile AT407 adopts fully automatic brushless servo drive as standard for ultra-quiet, stable all-day continuous operation. The swing arm only takes 0.2 seconds to complete opening and closing movement for a streamlined visitor passage experience.
Drive & Control System: Equipped with mature industrial brushless servo motor drive and intelligent control modules, supporting continuous frequent peak-hour operation. It features multi-point infrared anti-pinch induction, anti-jamming operation and automatic reset functions, effectively preventing clamping injuries, card-passing without entry and illegal tailgating behavior.
Passage Throughput: Gym Speed Gate Turnstile AT407 Capable of handling 40 people per minute under normal operating conditions, perfectly meeting the high-frequency morning and evening rush-hour pedestrian passage demands of office buildings and large commercial complexes.

Categories: All Turnstiles, Speed Gate Turnstiles Tags: airport transit turnstile, exhibition hall temporary turnstile, fitness club access control turnstile, gym speed gate turnstile, office building entrance speed gate, public transport pedestrian barrier, retail store member access turnstile, turnstile manufacturers china Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT407 Gym Speed Gate Turnstile Pedestrian 3D view display

AT407 Gym Speed Gate Turnstile Pedestrian Functional features

Gym Speed Gate Turnstile AT407, tailor-made for fitness clubs, airports and compact commercial lobbies. Humidity-resistant painted & stainless steel casing withstands sweat and damp gym environments, paired with quiet brushless servo drive for efficient, safe member access management.

Overall Dimensions
Standard cabinet:Gym Speed Gate Turnstile AT407 603×200×982mm (1.98×0.66×3.22ft); fully customizable size to match site layout limits
Single unit net weight: 38KG, lightweight for easy delivery & quick installation
Adjustable Passage Width
Standard lane: 600mm (1.97ft) for regular pedestrian flow
Optional wide barrier-free lane: 900mm (2.95ft), fits wheelchairs, strollers and large luggage
Supports one-way / two-way traffic mode switchable on demand
Cabinet Enclosure Material & Finish
Standard: Matte iron baking paint, anti-fingerprint SUS304 brushed stainless steel
Upgrade options: SUS316 stainless steel / anti-corrosion powder-coated carbon steel
All finishes resist scratch, rust, sweat and moisture for long-term humid-space use
Interchangeable Swing Arm Panels
3 customizable barrier materials for different security grades:
Transparent acrylic: Low-cost lightweight option
Shatterproof tempered safety glass: Premium clear aesthetic
Solid stainless steel plate: High security interception
Swing arm vertical height fully adjustable
Core Drive & Operation Performance
Power unit: Industrial silent brushless servo motor
Barrier response speed: 0.2s full open & close cycle
Max stable throughput: 40 people per minute, handles gym peak rush hours
Motor lifespan supports non-stop all-day frequent operation
Multi-Layer Intelligent Safety System
Built-in multi-point infrared sensing array with full protection functions:
Soft anti-pinch auto rebound to avoid clamping injuries
Anti-tailgating detection blocks unauthorized follow-up passing
Anti-jamming buffer protection against forced prying
Auto-reset after each valid passage
Auto full unlock during power failure for emergency evacuation compliance
Access Control Compatibility
Dual universal communication ports reserved for seamless linkage:
Wiegand 26/34: IC/RFID membership card, NFC wristband readers
TCP/IP Ethernet: Facial recognition terminals, QR code scanners, mobile access systems
Compatible with all mainstream gym membership management software
Electrical Specifications
Input wide voltage: AC 100V–240V; Output: DC24V / DC12V
Stable operation temperature range: -10℃ ~ +55℃, fits indoor gym & transit venues
Customization & Application Scenarios
Available OEM service: Custom cabinet paint colors, laser engraved brand logos, combined multi-lane layout design
Core applicable sites: Fitness gyms, boutique sports clubs, airport transit corridors, small office lobbies, retail commercial entrances

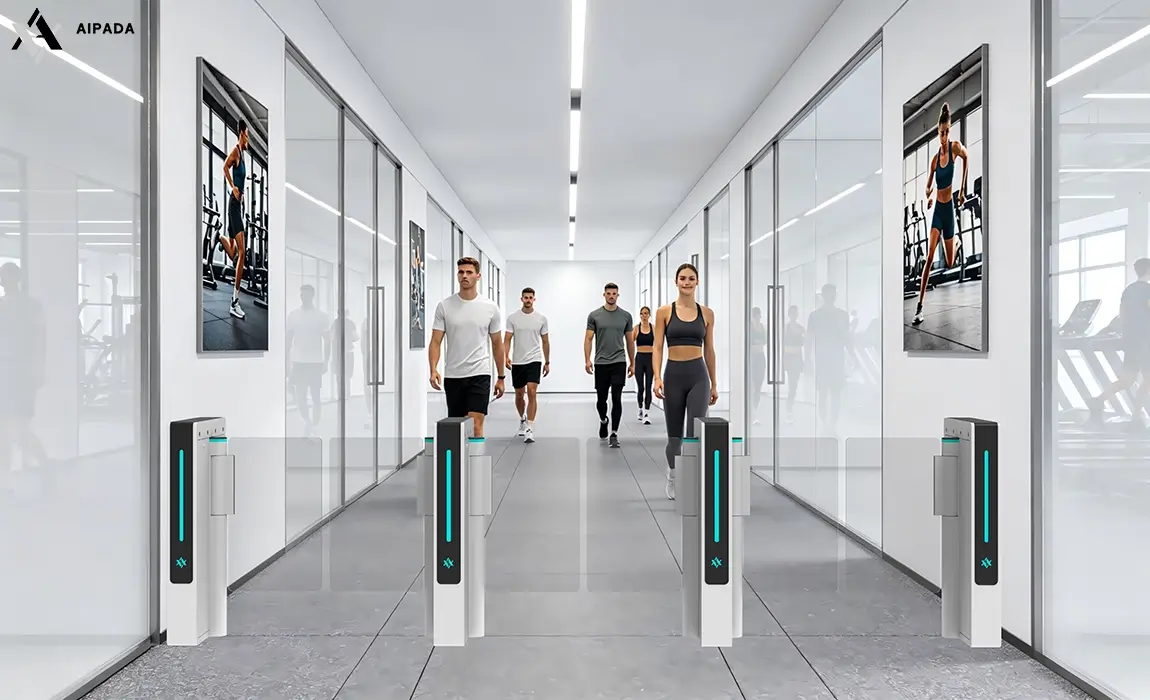

AT407 Gym Speed Gate Turnstile Pedestrian Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT407 Gym Speed Gate Turnstile Pedestrian Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows two single-passage systems, each consisting of a personnel passage and an accessible passage. If more passages are needed, the number of revolving gates can be increased.

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: My gym has heavy member traffic during morning and evening rush hours. Will this turnstile lag or break down under long continuous operation?

A: There is no need to worry about wear and tear from frequent peak-hour use. The AT407 is equipped with an industrial-grade brushless servo drive module that supports non-stop high-frequency passage all day long, handling a steady flow of 40 people per lane every minute with a rapid 0.2-second swing cycle. A built-in anti-jam buffer program triggers automatic arm rebound if external resistance is detected to protect the motor. It runs reliably through daily gym rush hours and drastically cuts long-term maintenance costs.

2.Q: My front lobby has an irregular layout. Can I adjust the passage width and cabinet size of this speed gate to fit my space?

A: Full dimensional customization is available. The standard cabinet measures 1400×150×1000mm, and the whole structure can be resized to fit narrow or oddly-shaped reception areas. Two aisle width options are provided: the standard 600mm lane for regular foot traffic and an extended 900mm barrier-free lane that accommodates wheelchairs, strollers and large sports backpacks. It fits all corridor and lobby layout types.

3.Q: I want to use both facial recognition and QR code scanning for member verification besides card swiping. Is this turnstile compatible with multiple access methods?

A: The gate is pre-fitted with multiple universal expansion communication ports, requiring no extra adapters. It seamlessly connects facial recognition terminals, QR scanners, IC gym membership cards and NFC wristbands simultaneously. One single turnstile supports multi-type identity verification, fully matching online and offline member management systems for fitness studios.

4.Q: Basement gyms and coastal venues suffer from high humidity and rust issues. How corrosion-resistant is this turnstile’s frame?

A: The standard version features anti-fingerprint SUS304 stainless steel or matte coated cabinets that fully resist sweat and regular dampness in ordinary gyms. For basements, spa lobbies and coastal locations with extreme moisture, you can upgrade to SUS316 stainless steel or matte powder-coated carbon steel enclosures for doubled anti-rust and anti-oxidation performance, preventing rust spots and peeling paint in long-term humid conditions.

5.Q: If I renovate my gym and rebrand later, can I modify the turnstile’s appearance to match the new store design?

A: Complete OEM appearance customization is supported. Custom paint colors can be mixed to match your brand visual identity, and laser engraving is offered to print exclusive gym logos on cabinet surfaces. Three interchangeable swing arm materials — acrylic, shatterproof tempered glass and solid stainless steel — are optional, plus fully adjustable swing arm heights. It easily matches minimalist, luxury, trendy and all other gym interior styles.
