AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.
AT314 Business style Premium Flap Barrier Turnstile Pedestrian 3D view display
AT314 Business style Premium Flap Barrier Turnstile Pedestrian Functional features
Flap Material Spec：High toughness transparent acrylic swing arm, anti-collision & anti-breakage, single-piece detachable replacement without cabinet disassembly
Working Voltage Scope：Global universal AC 100V–240V input, built-in independent DC24V/DC12V dual power output terminals for external identification devices
Infrared Sensor Quantity：6 pairs full aisle distributed infrared detectors, covering top to bottom of passage to eliminate blind detection zones
Cabinet Surface Customization：4 optional surface craft: brushed finish, mirror polishing, electroplating coating, custom color baking paint for brand matching
Emergency Linkage Function：Supports fire alarm signal linkage, instantly retracts all flaps once receiving fire control signal to form wide evacuation channel
Modular Splicing Layout：Flexible combination for dual-lane / triple-lane assembly, unified integrated base plate optional for surface installation without floor grooving
Servo Motor Operating Noise：Near-silent running design, low vibration servo core, suitable for quiet high-end office and hotel lobby environments
Custom Wide Lane Option：Business style Premium Flap Barrier Turnstile AT314 900mm widened barrier-free aisle optional, fits wheelchair, large luggage and oversized sports gear passing through
Traffic Direction Programming：Freely programmable 4 operation modes: one-way entry only, one-way exit only, two-way free pass, two-way locked state
Anti-Tailgating Protection Logic：Multi-layer infrared judgment algorithm, automatically lock flaps when detecting unauthorized following pedestrians to avoid piggyback access
Corrosion Resistant Upgrade Option：Optional SUS316 stainless steel cabinet upgrade, anti-rust for coastal, humid swimming pool and shower commercial venues
Continuous Operation Endurance：Supports 24-hour non-stop continuous operation, stable performance under daily morning & evening peak flow surges
Access Control Interface Protocol：Built-in Wiegand 26/34 and RS485 dual standard communication ports, compatible with all mainstream biometric & card reading hardware
Cabinet Outline Styling：Sharp straight linear angular design, differentiated appearance compared to curved AT312 model, fits minimalist business decoration style
Pedestrian Passing Throughput：Business style Premium Flap Barrier Turnstile AT314 30–45 people per minute stable passing capacity, satisfies high foot traffic demand of corporate headquarters and large exhibition halls
Obstacle Rebound Safety Logic：Instant automatic flap rebound when sensing human body or obstacles during closing stroke, effectively prevent pinching injuries
Working Ambient Condition：Indoor dedicated design, stable working performance under normal office temperature and humidity environment
Equipment Docking Compatibility：Seamlessly connected with facial recognition machine, NFC wristband, IC membership card, visitor QR scanner and gym management system
Custom Dimension Service：Business style Premium Flap Barrier Turnstile AT314 Beyond standard 1470×300×970mm cabinet size, customized height, width and depth available for special narrow/wide lobby space
Real-Time Status Indicator：Front embedded colored LED indicator light, green for allow passage, red for access denial, clear visual prompt for pedestrians

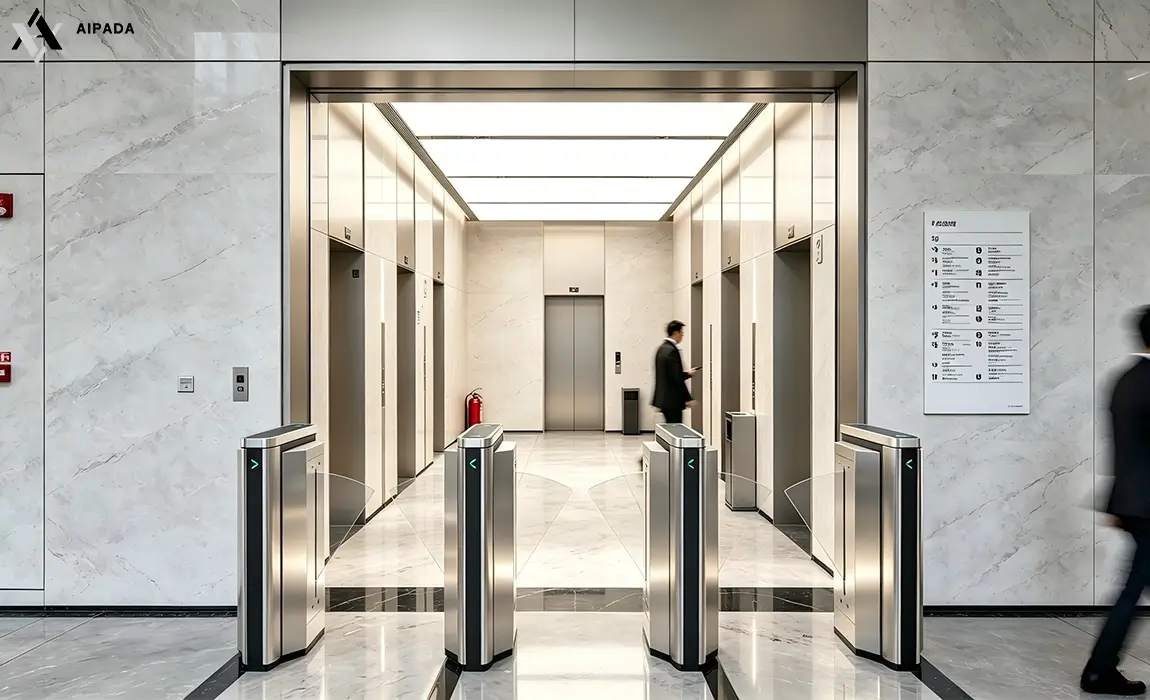

AT314 Business style Premium Flap Barrier Turnstile Pedestrian Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
AT314 Business style Premium Flap Barrier Turnstile Pedestrian Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.
Optional：Number of turnstile channels
The diagram shows two single-passage systems, each consisting of a personnel passage and an accessible passage. If more passages are needed, the number of revolving gates can be increased.
Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.
Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.
Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
1.Q: What anti-tailgating technology does the AT314 linear flap barrier adopt to prevent unauthorized piggybacking?
A: This turnstile adopts multi-group full-height distributed infrared sensors combined with intelligent logic algorithm. It accurately judges the number of passing pedestrians within the aisle. If a second person follows closely behind the verified visitor, the flaps will lock immediately to block tailgating, effectively stopping unauthorized personnel from sneaking into office and hotel restricted areas.
2.Q: Is SUS316 stainless steel housing optional for the AT314 flap barrier, and what scenarios is it suitable for?
A: SUS316 anti-corrosion stainless steel housing is available as an upgrade option. Compared with standard SUS304 material, it features superior rust and salt spray resistance, perfect for coastal buildings, humid gym shower zones, spa clubs and other high-humidity, high-salinity environments that require long-term anti-rust performance.
3.Q: Can I freely combine dual-lane and triple-lane spliced layouts for the AT314 premium flap barrier according to my lobby space?
A: Yes, modular splicing design supports flexible combination. You can freely assemble dual-channel, triple-channel or multi-group combined passages based on the size of your entrance lobby. We also supply matching integrated base plates for all combined layouts to keep the whole equipment stable and neatly arranged.
4.Q: How quiet is the servo drive system of AT314 flap barrier during daily continuous operation?
A: It is equipped with high-performance brushless silent servo motor core. The whole retracting and opening process generates extremely low vibration and near-silent running noise. It will not produce harsh mechanical sounds even under all-day peak-hour continuous use, fully matching the quiet atmosphere of high-end office lobbies and luxury hotel entrances.
5.Q: Does the AT314 Business style flap barrier support custom cabinet dimensions for narrow or oversized entrance spaces?
A: Custom dimension service is fully supported. The standard cabinet size is 1470 × 300 × 970 mm. We can adjust the height, thickness and depth of the cabinet on demand to adapt to narrow corridor entrances or oversized lobby spaces, perfectly solving space matching troubles for special decoration layouts.
