Access Control Speed Gate AT408

AIPADA AT408 narrow silent speed gate turnstile adopts brushless motor with 0.2s fast swing. Customizable SUS304 cabinet and channel width support 40 people/min throughput, ideal for office, airport and public transport access control.

  1. Product Dimensions: Access Control Speed Gate AT408 standard cabinet size 1400*120*980mm（4.59*0.39*3.22ft), with full structural customization available to suit site-specific installation layouts and space limitations.
  2. Aisle Width: Access Control Speed Gate AT408 standard aisle width is 600 mm (1.97 ft); widened optional 900 mm (2.95 ft) barrier-free lane for wheelchairs, strollers and oversized luggage to accommodate special passage demands.
  3. Enclosure Construction: standard build adopts anti-fingerprint brushed SUS304 stainless steel housing, with scratch, rust and wear resistance suitable for most high-traffic indoor commercial environments. SUS316 stainless steel and matte powder-coated carbon steel are available as upgrade options, providing stronger anti-corrosion performance for damp basements, spa lobbies and coastal indoor spaces.
  4. Swing arm material options: Three interchangeable swing arm materials are available to meet different safety and aesthetic requirements: transparent acrylic, shatterproof tempered safety glass, and stainless steel. The vertical height of the swing arm is fully customizable to adjust the safety interception level.
  5. Turnstile Operation Mode:adopts fully automatic brushless servo drive as standard for ultra-quiet, stable all-day continuous operation. The swing arm only takes 0.2 seconds to complete opening and closing movement for a streamlined visitor passage experience.
  6. Drive & Control System: Equipped with mature industrial brushless servo motor drive and intelligent control modules, supporting continuous frequent peak-hour operation. It features multi-point infrared anti-pinch induction, anti-jamming operation and automatic reset functions, effectively preventing clamping injuries, card-passing without entry and illegal tailgating behavior.
  7. Passage Throughput: Access Control Speed Gate AT408 Capable of handling 40 people per minute under normal operating conditions, perfectly meeting the high-frequency morning and evening rush-hour pedestrian passage demands of office buildings and large commercial complexes.
Categories: , Tags: , , , , , , Brand: ,

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT408 Access Control Speed Gate 3D view display

AT408 Access Control Speed Gate Functional features

  • Product Dimensions: Access Control Speed Gate AT408 standard cabinet size 1400*120*980mm(4.59*0.39*3.22 ft), with full structural customization available to suit site-specific installation layouts and space limitations for commercial Speed Gate Turnstile projects.

  • Aisle Width: Access Control Speed Gate AT408 standard single lane width is 600mm (1.97ft), widened optional 900mm (2.95ft) barrier-free lane for wheelchairs, strollers and oversized luggage to accommodate special passage demands of Speed Gate Turnstile installations.

  • Enclosure Construction: Speed Gate Turnstile standard build adopts anti-fingerprint brushed SUS304 stainless steel housing, with scratch-resistant matte finish; SUS316 stainless steel and matte powder-coated carbon steel available as upgrade options for coastal and high-humidity Speed Gate Turnstile projects.

  • Swing Arm Material Options: Speed Gate Turnstile provides three interchangeable swing arm materials — transparent acrylic, shatterproof tempered safety glass, and stainless steel — with fully customizable vertical safety height to adjust the safety interception level of each Speed Gate Turnstile lane.

  • Turnstile Operation Modes: Speed Gate Turnstile adopts fully automatic brushless servo drive as standard for ultra-quiet 24/7 all-day continuous operation; swing arm completes full opening and closing movement in only 0.2 seconds for streamlined visitor passage experience.

  • Drive & Control System: Equipped with mature industrial brushless servo motor drive and intelligent control module, the Speed Gate Turnstile supports continuous frequent peak-hour operation, multi-point infrared anti-pinch induction, anti-jamming features and automatic reset to prevent clamping injuries.

  • Passage Throughput: Access Control Speed Gate AT408 is capable of handling 40 people per minute per lane under normal operating conditions, perfectly meeting high-frequency morning and evening rush-hour pedestrian passage demands of office building Speed Gate Turnstile systems.

  • Traffic Direction Control: Speed Gate Turnstile supports switchable one-way and two-way traffic flow modes, configurable via built-in control panel to fit different entrance layouts and pedestrian flow management requirements of commercial Speed Gate Turnstile installations.

  • Anti-Tailgating Detection: Speed Gate Turnstile integrates multi-point infrared sensor arrays along the passage lane to detect tailgating and illegal intrusion, triggering automatic alarm and swing arm lock to enhance security of Speed Gate Turnstile access control systems.

  • Anti-Pinch Safety Protection: Speed Gate Turnstile is equipped with full-range infrared anti-pinch sensors and mechanical anti-collision buffer, automatically retracting swing arm when obstacles are detected to prevent injuries and ensure safe Speed Gate Turnstile operation.

  • Power Supply Parameters: Speed Gate Turnstile operates on AC100–240V 50/60Hz universal power input, with DC24V low-voltage internal control circuit for stable and safe operation of commercial Speed Gate Turnstile systems.

  • Operating Temperature Range: Speed Gate Turnstile works reliably within -20°C to +60°C (-4°F to 140°F) ambient temperature, suitable for indoor lobby, semi-outdoor corridor and covered entrance Speed Gate Turnstile installations.

  • Noise Level: Speed Gate Turnstile operates at ≤55dB ultra-low noise level thanks to brushless servo motor and precision transmission structure, maintaining quiet office environment without disturbing daily work in Speed Gate Turnstile equipped lobbies.

  • Service Life: Speed Gate Turnstile is rated for ≥5 million cycles of maintenance-free operation, with brushless motor design extending service life and reducing downtime for long-term commercial Speed Gate Turnstile deployment.

  • Access Control Integration: Speed Gate Turnstile is compatible with RFID card reader, face recognition camera, fingerprint scanner, QR code reader and biometric verification devices, supporting Wiegand 26/34 protocol for seamless Speed Gate Turnstile system integration.

  • Emergency Release Function: Speed Gate Turnstile automatically opens swing arms to free passage during power failure or emergency evacuation, complying with fire safety regulations for commercial building Speed Gate Turnstile installations.

  • Installation Method: Speed Gate Turnstile supports both floor-embedded installation and surface-mounted base installation; optional integrated full base frame eliminates floor trenching for renovation projects of finished building Speed Gate Turnstile upgrades.

  • Cabinet Color Customization: Speed Gate Turnstile offers custom powder coating colors including matte black, bright blue, corporate brand colors and custom RAL codes to match interior decoration themes of branded Speed Gate Turnstile projects.

  • IP Protection Grade: Speed Gate Turnstile standard indoor model reaches IP42 dust and splash protection rating; upgraded IP54 waterproof version available for semi-outdoor and covered entrance Speed Gate Turnstile installations.

  • Application Scenarios: Narrow silent Speed Gate Turnstile is ideal for compact office lobbies, airport terminals, metro stations, exhibition halls, corporate headquarters, hotels and commercial buildings, delivering space-saving and high-efficiency pedestrian access control solutions.

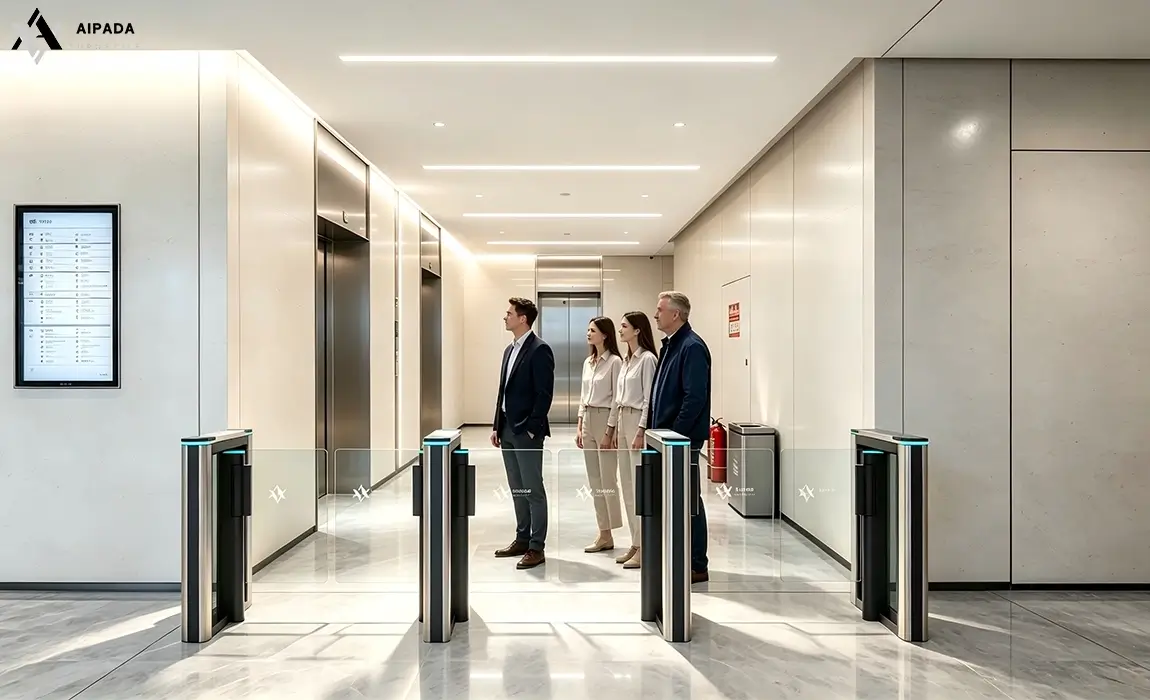

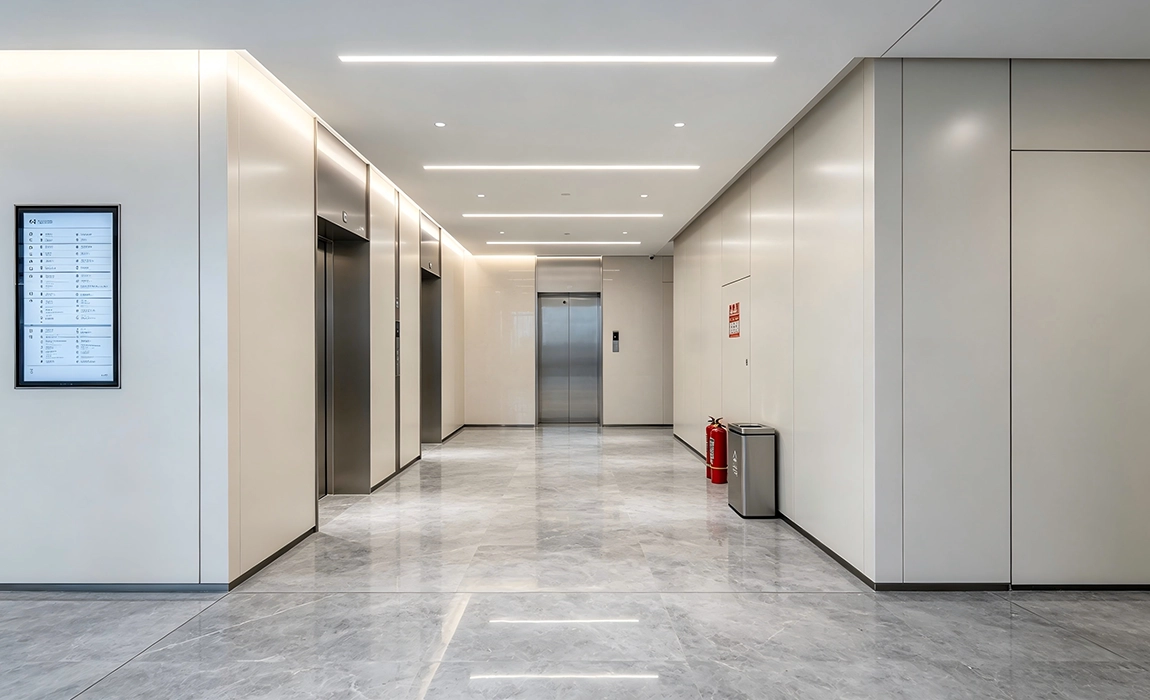

AT408 Access Control Speed Gate Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

Before After

AT408 Access Control Speed Gate Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows a three-channel system consisting of two single-core and two dual-core speed gates. If more channels are needed, the number of rotary gates can be increased.

AIPADA AT408-LD-01 three lane four cabinet narrow Speed Gate Turnstile multi-angle product view, SUS304 silent swing barrier with brushless motor commercial access control gate
AIPADA AT408-LD-02 dual lane Speed Gate Turnstile with widened base frame and LED indicator lights, SUS304 compact swing barrier no-floor-cut access control gate

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

AIPADA AT408-LD-03 dual lane narrow Speed Gate Turnstile with face recognition camera and LED aesthetic lights, SUS304 swing barrier with integrated base frame biometric access control gate
AIPADA AT408-LD-04 dual lane Speed Gate Turnstile with blue powder coated cabinet and LED modern design lights, SUS304 swing barrier with integrated base frame colored access control gate

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card reader

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

AIPADA AT408 dual lane narrow silent Speed Gate Turnstile, SUS304 compact swing barrier with brushless servo motor, dual channel access control speed gate for airport office
touch button

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

remote control

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.



Face

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint scanner

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: The narrow speed gate turnstile has such a slim cabinet. Will it be less stable, prone to wobbling, and have a shorter service life than wide-body models?

A: Not at all. Although the AT408 narrow Speed Gate Turnstile has a cabinet width of only 120mm, it adopts an integrated reinforced steel frame structure internally, with all core transmission components embedded and reinforced. Combined with the heavy-duty integrated base frame, the overall thrust resistance and stability fully meet the same standards as wide-body models. The brushless motor and precision transmission mechanism are rated for ≥5 million maintenance-free operation cycles, using the exact same core movement as the wide-body series — there is no difference in service life. The narrow profile only optimizes the outer shell dimensions, with zero compromise in core performance or durability.

2.Q: What is the waterproof and dustproof rating of the speed gate turnstile with integrated base frame? Can it be installed in semi-outdoor areas or under canopies?

A: The standard indoor model has an IP42 protection rating, suitable for dry environments such as indoor lobbies and office buildings. For installation in semi-outdoor areas, under canopies, or at underground garage entrances with humid and dusty conditions, an upgraded IP54 waterproof version is available. All base joints, motor compartments and circuit board enclosures receive full sealed waterproof treatment, capable of withstanding daily water splashes and dusty environments. However, fully exposed outdoor installation is not recommended, as long-term direct sun and rain will accelerate aging of the coating and seals.

3.Q: How exactly do the anti-pinch and anti-tailgating safety features of the speed gate turnstile work? Is it safe for the elderly and children?

A: The AT408 Speed Gate Turnstile adopts triple safety protection. First, multiple pairs of infrared photoelectric sensors are densely arranged along both sides of the passage, detecting pedestrian positions in real time; when obstacles are detected or a pedestrian has not fully passed, the swing arm immediately stops and rebounds without hard clamping. Second, the swing arm itself has a built-in elastic buffer mechanism, so even accidental contact applies very light force. Third, the anti-tailgating infrared array accurately distinguishes single vs. multiple people — if someone follows too closely, it triggers an audible alarm and blocks the second person from passing. It is completely safe for the elderly, children, and people pushing strollers.

4.Q: Can your speed gate turnstile integrate with our existing access control system? What identification devices and protocols are supported?

A: Full integration with third-party access control systems is supported. The standard configuration supports Wiegand 26/34 protocols, which can be directly connected to most access controllers on the market. For identification devices, it supports nearly all mainstream verification methods including RFID card reading, QR code, fingerprint, face recognition and ID card readers — these can be factory pre-installed or retrofitted on site according to customer requirements. It also supports TCP/IP networking and relay signal output for flexible integration, making deployment very straightforward for system integrators.

5.Q: For overseas procurement, what is the lead time, how is after-sales service handled, and are wearing parts easy to source?

A: Lead time for standard models is 15–20 working days, and 25–30 working days for custom colors or special configurations. For after-sales service, the whole machine comes with a 1-year warranty, and the core brushless motor has a 2-year warranty. Non-human-damaged spare parts are shipped free of charge during the warranty period. The main wearing parts — infrared sensor tubes, LED light strips and card reader modules — all adopt a plug-and-play modular design. Customers can replace them on site following our video tutorials without dispatching professional engineers. We maintain abundant spare parts inventory year-round, and overseas shipments via DHL arrive in 3–5 days, ensuring minimal downtime for your projects.
