AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.
AT305 Fast Speed Flap Barrier Turnstile Pedestrian 3D view display
AT305 Fast Speed Flap Barrier Turnstile Pedestrian Functional features
Customizable Appearance & Structural Stability Function：Curved Cabinet Fast Speed Flap Barrier Turnstile AT305 Features standard cabinet dimension of 1400×300×1000mm with full OEM customizable size, height and base structure to fit various on-site installation spaces. Adopts one-piece curved stamping and seamless welding polished process without sharp edges. Equipped with thickened internal metal beam and reserved bottom fixing holes, the 68KG heavy-duty cabinet ensures anti-tilt, anti-shake and stable performance under continuous high pedestrian flow. Supports multi-unit seamless combination for single/dual/triple/quadruple lane layouts.
Dual Channel Width Optional Access Function：Curved Cabinet Fast Speed Flap Barrier Turnstile AT305 Provides two standard lane width options to match different usage scenarios. The 550–600mm standard narrow lane limits side-by-side passing and reduces tailgating risks for strict-authority areas such as offices and exhibition centers while retaining all full safety functions. The optional 900mm barrier-free wide lane complies with international accessibility standards, allowing smooth passage for wheelchairs, strollers and large equipment, equipped with extended infrared sensors to maintain identical safety accuracy as standard lanes.
Multi-Grade Cabinet Material & Surface Customization Function：Offers three cabinet material grades: SUS304 brushed stainless steel for general indoor anti-rust use, cost-effective powder-coated carbon steel for dry indoor environments, and premium SUS316 stainless steel for high-humidity, sweat and salt-corrosion scenarios. Equipped with 10mm high-toughness anti-crack acrylic swing arms with soft buffer structure. Supports four optional surface finishes including brushed, mirror polished, electroplated and matte baking paint to match diverse interior decoration styles.
Industrial-Grade Silent Brushless Servo High-Speed Drive Function：Adopts industrial brushless servo motor with gearless direct-drive structure, supporting up to 5 million stable operation cycles with low maintenance. Running noise is controlled below 45dB for quiet indoor environments. Built-in heat dissipation module enables 24-hour continuous heavy-duty operation without overheating or stalling. Features intelligent adaptive speed buffer and achieves 0.3s ultra-fast flap retraction after authorized verification, delivering stable high-speed passing performance during peak hours.
High Throughput Efficient Pedestrian Passing Function：Supports 30–45 pedestrians per minute steady throughput to effectively relieve peak-hour congestion. Adopts multi-area infrared logic to enforce single-person independent passing, preventing crowd squeezing and unauthorized access. The servo system supports uninterrupted cyclic opening and closing with zero delay response, ensuring stable and fluent long-term high-frequency passing.
Programmable Multi-Mode Traffic Direction Control Function：Allows one-click background switching of three operating modes: one-way entry only, one-way exit only, and bidirectional free passage. Supports independent permission configuration for inlet and outlet directions for employees, visitors and temporary personnel with separate data recording. Equipped with automatic timing mode switching function to adapt to working and off-duty security management needs.
Real-Time LED Visual Status Indication Function：Built-in high-brightness top circular LED indicators show real-time channel status: green for passable, red for locked, flashing red for abnormal alarms. Soft cyan edge atmosphere light strips synchronize with access status to improve visual guidance and product grade. Matched adjustable buzzer provides audible reminders for tailgating, reverse intrusion and obstacle faults.
Full Height Multi-Point Infrared Anti-Pinch Safety Function：Equipped with full vertical coverage infrared grating with no sensing blind zones. Automatically stops and rebounds the flap immediately when detecting obstacles, limbs or foreign objects during closing to prevent clamping injuries. Supports adjustable sensing sensitivity for different crowd scenarios and includes automatic sensor self-check to ensure long-term stable safety protection.
Multi-Zone Anti-Tailgating & Anti-Reverse Intrusion Function：Divides the channel into front/middle/rear independent sensing zones to accurately identify single-person passing trajectories. Triggers sound-light alarm and locks the flap to block tailgating and reverse intrusion behavior, with real-time abnormal record upload. Adopts 3-second delayed closing logic after pedestrian exit to avoid false clamping and ensure safe and reliable access judgment.
Fire Linkage & Power Failure Emergency Auto-Open Function：Reserves standard fire signal interface for linkage with building fire alarm systems, automatically opening and locking all flaps open during fire emergencies. Built-in energy storage capacitor module supports instant full opening under sudden power outage and maintains open status for over 2 hours, providing unobstructed evacuation passages and fully complying with international fire safety standards.
Servo Soft Anti-Collision Buffer Protection Function：Integrates real-time collision sensing algorithm in the servo driver. When the swing arm receives accidental external impact, the motor automatically reduces thrust and performs slow buffer movement. It prevents acrylic arm breakage and mechanical damage while avoiding pedestrian collision injuries, with automatic reset after impact without manual operation.
Multi-Layer Electrical Safety Protection Function：Comes with complete over-current, over-voltage, under-voltage and short-circuit protection to safeguard internal circuits and motors. Built-in lightning surge protection module resists thunderstorm induction damage. Low standby power consumption below 8W ensures energy-saving and stable long-term 24-hour operation.
Dual-Protocol Universal Access Compatibility Function：Equipped with standard Wiegand 26/34 and RS485 dual interfaces, plug-and-play compatible with all mainstream access devices. Supports seamless connection with facial recognition terminals, temperature measurement devices, IC/NFC card readers and dynamic QR code scanners without secondary development, covering all common office and gym access verification methods.
Real-Time Data Upload & Background Interconnection Function：Uploads all passing records, personnel information, time logs and abnormal alarm data in real time. Supports long-term data storage, time-period query and Excel report export. Seamlessly docks with employee attendance, visitor registration, gym membership and property security systems to realize integrated intelligent access management.
Global Wide-Voltage Adaptive Power Supply Function：Adopts AC100V–240V universal wide voltage design, adaptable to global power standards without extra transformers. Provides isolated dual output of DC24V for motor drive and DC12V for control systems and sensors to avoid signal interference. Ensures stable continuous power output even under long-term full-load and high-frequency operating conditions.

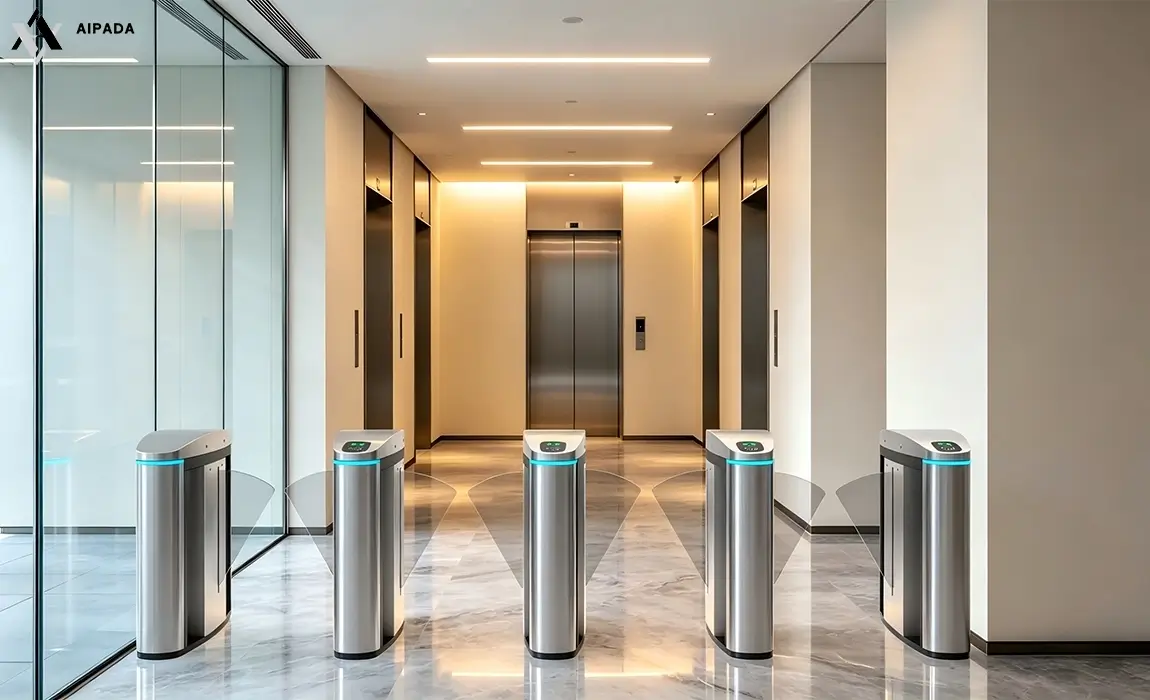

AT305 Fast Speed Flap Barrier Turnstile Pedestrian Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
AT305 Fast Speed Flap Barrier Turnstile Pedestrian Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.
Optional：Number of turnstile channels
The diagram shows two single-passage systems, each consisting of a personnel passage and an accessible passage. If more passages are needed, the number of revolving gates can be increased.

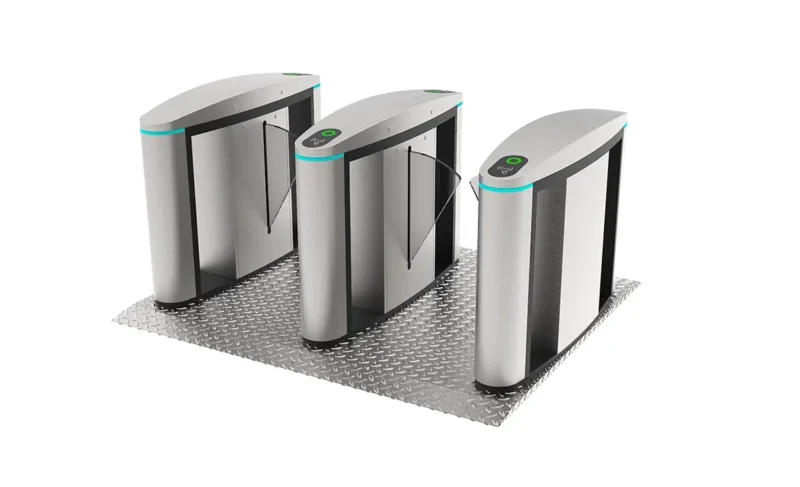

Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.
Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.
Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
