Prismatic Aurora Flap Barrierr Turnstile AT311 commercial pedestrian flap gate

Black matte coated AIPADA AT311-TC-01 flap barrier turnstile with vertical Aurora LED light strips, anti-pinch servo motor security gate for gym membership access and commercial building entry control

AIPADA AT311-TC-03 Prismatic Aurora retractable flap turnstile, LED indicator security wing gate for commercial office and fitness center access control

Single AIPADA AT311-TC-04 Prismatic Aurora flap barrier turnstile front view, matte black slanted cabinet security wing gate for premium commercial access control

AIPADA AT311-TC-06 Prismatic Aurora flap barrier turnstile with integrated metal base plate, floor-mounted access control wing gate for office building lobby entry

Bright blue AIPADA AT311-TC-05 Prismatic Aurora flap barrier turnstile, custom color security wing gate for transit hubs and fitness club member access control

Prismatic Aurora Flap Barrierr Turnstile AT311

Prismatic Aurora Flap Barrierr Turnstile AT311 is a modern high-end retractable wing access control solution built for airports, office towers and public transit hubs. Featuring a distinctive prismatic slanted cabinet with vertical Aurora LED light strips, this turnstile delivers sleek minimalist aesthetics that match contemporary commercial interior design.

Product Dimensions: Prismatic Aurora Flap Barrierr Turnstile AT311 Standard cabinet size: 1000×300×980mm (3.28×0.98×3.22 ft). Custom dimension customization is available on demand.
Aisle Width:Prismatic Aurora Flap Barrierr Turnstile AT311 Standard single passage width ranges from 550 mm to 600 mm. A widened 900 mm barrier-free lane is optional to accommodate wheelchairs and bulky sports gear.
Enclosure Material:Prismatic Aurora Flap Barrierr Turnstile AT311 The unit comes standard with a matte powder-coated carbon steel enclosure. For moisture-prone spaces like gym shower zones, upgraded SUS304 and SUS316 stainless steel housings are provided to deliver exceptional anti-rust and anti-corrosion performance.
Traffic Flow Mode:Supports programmable one-way or bidirectional passage, enabling flexible control over member entry and exit.
Drive System:Equipped with a high-performance brushless servo motor core. It delivers stable, near-silent wing operation and instant response, even under continuous heavy peak-hour use.
Throughput Capacity:Handles 30–45 pedestrians per minute under regular operation, fully covering high visitor volumes during gym morning and evening rush hours.
Safety Mechanisms:Fitted with multi-point infrared anti-pinch sensors that activate automatic obstacle rebound to eliminate pinching hazards, the turnstile’s retractable flaps fully unlock automatically in the event of a power failure to enable unobstructed emergency fire evacuation.
Access Integration:Compatible with facial recognition terminals, NFC wristbands, IC membership cards and QR code readers, and seamlessly connects to most mainstream gym member management systems.

Categories: All Turnstiles, Flap Barrier Turnstiles Tags: flap barrier gate, flap barrier system, gym turnstiles, innovative design, New design, office building lobby Flap Barrierr Turnstile Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT311 Prismatic Aurora Flap Barrierr Turnstile Pedestrian 3D view display

AT311 Prismatic Aurora Flap Barrierr Turnstile Pedestrian Functional features

Modern Minimalist Prismatic Cabinet & Aurora LED Ambient Lighting

The Prismatic Aurora Flap Barrierr Turnstile AT311 adopts a unique slanted prismatic cabinet silhouette paired with vertical Aurora LED light strips, delivering sleek minimalist aesthetics that seamlessly integrate with contemporary commercial interior designs for offices, airports, transit hubs and high-end fitness venues. The built-in LED light strips act as intuitive traffic indicators to guide pedestrian passage.

Flexible Customizable Cabinet & Passage Dimensions

Standard cabinet dimension: Prismatic Aurora Flap Barrierr Turnstile AT311 1000×300×980mm (3.28×0.98×3.22 ft), with fully custom cabinet sizing available on demand to fit restricted lobby layouts.
Standard single-lane aisle width: 550–600mm for regular pedestrian flow; optional widened 900mm barrier-free lane to accommodate wheelchairs, strollers and large sports equipment.

Multi-Grade Corrosion-Resistant Enclosure Materials

Two enclosure material options are provided to match different environmental conditions:

Standard version: Matte powder-coated carbon steel cabinet for dry indoor office & commercial spaces.
Upgraded anti-corrosion version: SUS304 / SUS316 stainless steel housing, specially engineered for moisture-prone areas such as gym shower zones, swimming clubs and coastal humid environments to resist rust and long-term oxidation.

Programmable Bidirectional Traffic Flow Control

The turnstile supports fully programmable one-way or bidirectional passage modes. Facility managers can flexibly configure entry/exit permissions to regulate member and visitor flow, ideal for separating inbound and outbound crowds during morning/evening peak hours.

High-Performance Silent Brushless Servo Drive System

Equipped with an industrial-grade brushless servo motor core, the AT311 realizes near-silent wing retraction, ultra-fast response speed and stable long-term operation. It can sustain continuous heavy-duty peak-hour use without mechanical lag or loud noise, suitable for high-foot-traffic venues like busy gym lobbies and airport concourses.

High Throughput for Dense Pedestrian Traffic

Under standard operation, the turnstile handles 30–45 pedestrians per minute, efficiently managing large visitor volumes during gym opening/closing rush hours, office morning check-in and transit station peak periods without congestion.

Multi-Layer Intelligent Safety Protection Mechanisms

Multi-point infrared anti-pinch sensors: Trigger automatic obstacle rebound when detecting obstructions between retractable flaps, completely eliminating finger/body pinching risks for adults and children.
Power-failure automatic unlock function: All retractable flaps fully retract and unlock once power cuts off, creating unobstructed wide passageways to guarantee safe emergency fire evacuation.

Wide-Range Access Control Integration Compatibility

The AT311 features universal access signal interfaces to connect with all mainstream identification terminals: facial recognition devices, NFC wristbands, IC membership cards and QR code scanners. It seamlessly links to most professional gym member management systems, enabling automatic identity verification, access authorization and visitor record tracking.

All-Scenario Commercial Applicability

This high-end retractable wing access control solution is purpose-built for airports, high-rise office towers, public transit hubs, fitness & sports centers, luxury clubs and exhibition halls, balancing aesthetic design, traffic efficiency, safety and long-term durability for commercial pedestrian access management.

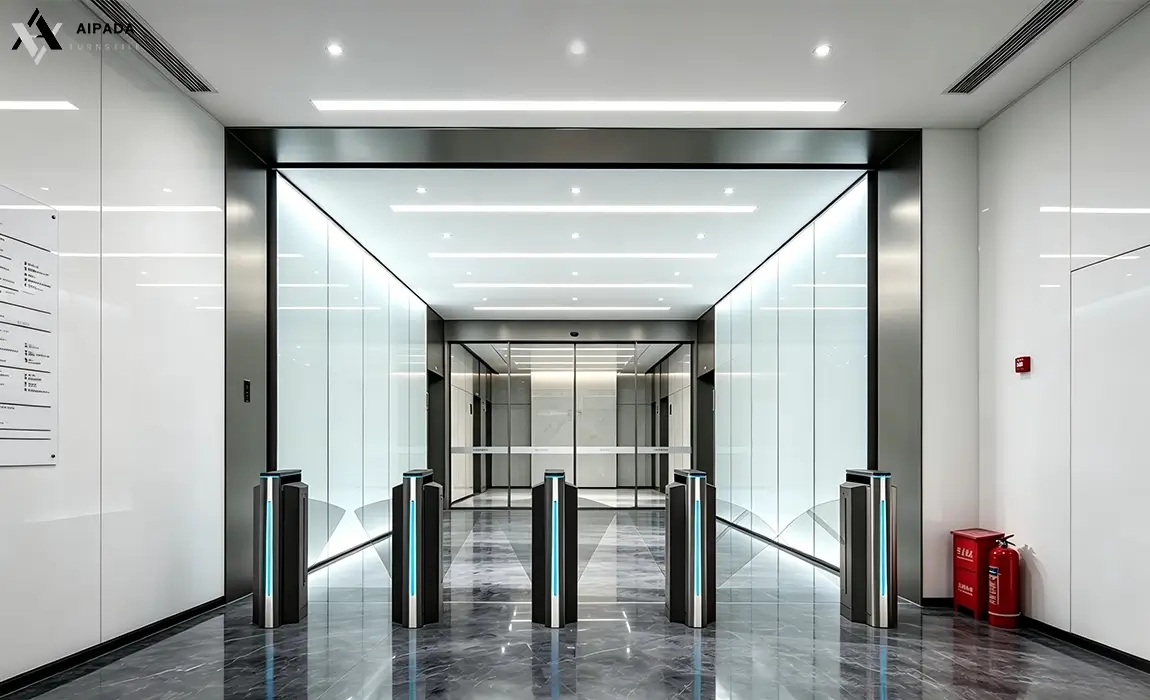

AT311 Prismatic Aurora Flap Barrierr Turnstile Pedestrian Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT311 Prismatic Aurora Flap Barrierr Turnstile Pedestrian Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows two single-passage systems, each consisting of a personnel passage and an accessible passage. If more passages are needed, the number of revolving gates can be increased.

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Is this flap barrier suitable for installation in high-humidity gym shower areas?

A: The standard model features a matte powder-coated carbon steel enclosure, which is only suitable for dry indoor spaces such as gym lobbies and office building receptions. If your venue includes shower rooms or damp underground zones, you may upgrade to SUS304 or SUS316 stainless steel housings. They deliver superior rust and corrosion resistance and will not rust or peel after long-term use in humid environments.

2.Q: Can the aisle width be widened to accommodate wheelchairs and bulky fitness equipment?

A: Custom widened aisles are available. The standard single passage width ranges from 550 mm to 600 mm, and an optional 900 mm barrier-free wide lane is offered. It fully fits wheelchairs, strollers and large sports gear, making it ideal for rehabilitation gyms and comprehensive sports centers.

3.Q: Can this turnstile connect to our existing gym membership management system? What verification methods does it support?

A: It is fully compatible with mainstream gym membership management systems. The turnstile natively supports facial recognition terminals, NFC wristbands, IC membership cards and QR code scanners. It seamlessly links to your current membership software to enable automatic access for members and temporary access authorization for visitors.

4.Q: How efficient is the turnstile during morning and evening gym rush hours? Will it cause crowd congestion?

A: It delivers a stable throughput of 30–45 pedestrians per minute with zero lag. Equipped with a high-performance brushless servo motor, the flaps open and close instantly and operate ultra-quietly. It can fully handle peak visitor flow in morning and evening workout periods without continuous-passage jams.

5.Q: Can people evacuate quickly in case of fire during power outages? Does it have anti-pinch safety protection?

A: Dual safety protections are equipped. First, built-in multi-point infrared anti-pinch sensors trigger automatic obstacle rebound to prevent clamping injuries. Second, all acrylic flaps fully unlock automatically once power fails, keeping the passage completely unobstructed to meet fire emergency evacuation standards and pass venue fire inspections smoothly.
