Curved Stylish Flap Barrier Turnstile AT303

Curved Stylish Flap Barrier Turnstile Curved LED Flap Barrier Turnstile features streamlined curved stainless steel housing and eye-catching status LED strips, delivering modern aesthetic and reliable intelligent access control. Equipped with transparent acrylic swing wings, anti-pinch infrared sensors and bidirectional traffic mode, this speed gate perfectly matches high-end offices, hotels and malls for smooth, safe crowd management.

Product Dimensions: Curved Stylish Flap Barrier Turnstile Standard cabinet dimensions are 1400*300*1000mm（4.59*0.98*3.28ft); custom sizes are available upon request.
Aisle Width:Curved Stylish Flap Barrier Turnstile Standard single aisle 550–600 mm; optional up to 900 mm for easy access for wheelchair users and large exercise equipment.
Outer Shell Material: Curved Stylish Flap Barrier Turnstile Standard SUS304 brushed stainless steel cabinet; optional SUS316 stainless steel upgrade for humid environments such as gym shower areas, enhancing rust and corrosion resistance.
Flip-up Material: Standard transparent imported acrylic; optional tempered glass for higher security requirements.
Surface Treatment: Curved Stylish Flap Barrier Turnstile Default brushed stainless steel; custom finishes such as painted or polished are available to match the gym’s interior design.
Pedestrian Flow Direction: Programmable one-way or two-way passage for flexible management of member entry and exit.
Drive Mechanism: High-performance servo brushless motor core drive ensures stable, ultra-quiet flap operation and rapid response even during prolonged peak hours.
Passage Capacity: Pedestrian 30-45 people per minute during normal operation, perfectly meeting the gym’s morning and evening peak check-in needs.
Safety Features: Multi-point infrared anti-pinch + automatic obstacle rebound; automatically opens all flaps in case of power failure for convenient emergency fire evacuation.
Access Compatibility: Supports facial recognition, NFC wristbands, IC cards, and QR code scanners, compatible with mainstream gym membership management systems.Curved Stylish Flap Barrier Turnstile AT303 Product Manual

Categories: All Turnstiles, Flap Barrier Turnstiles Tags: face recognition turnstile, flap barrier gate, flap barrier system, flap barrier turnstile, flap turnstile, flap turnstile gate Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT303 Curved Stylish Flap Barrier Turnstile Pedestrian 3D view display

AT303 Curved Stylish Flap Barrier Turnstile Pedestrian Functional features

Core Appearance & Material

Cabinet: Curved Stylish Flap Barrier Turnstile AT303 SUS304 brushed stainless steel, curved streamline curved edge design, anti-fingerprint treatment; optional matte black baking paint finish
Flap: Transparent impact-resistant acrylic, optional tempered glass for higher security demand
Status Indicator: Vertical cyan LED light strip on side + top row LED dot indicator, real-time display pass/forbid status
Whole machine size: Customizable standard size, multiple channel combinations (single/double/triple lanes optional)

Drive & Operation Performance

Drive Core: High-performance brushless servo motor, ultra-low noise, fast flap response speed
Passing Efficiency: 30–45 people per minute under normal continuous operation, stable for morning & evening peak flow
Operation Mode: Programmable one-way / two-way bidirectional passage, freely switch access logic via control panel

Full-Range Safety Protection

Multi-point infrared anti-pinch sensor: Automatically retract flaps when obstacles detected to prevent clamping pedestrians
Power-off automatic full opening: All flaps fully unlock when power fails, meet fire emergency evacuation requirements
Anti-tailgating infrared detection: Block unauthorized people from following valid users to enter
Overcurrent & overvoltage circuit protection, extend motor service life

Access Control Compatibility

Reserved universal wiring interfaces, fully compatible with most mainstream identification devices:

Facial recognition terminal
QR code scanner
IC / ID card reader
NFC wristband & membership card

Support docking with gym membership system, enterprise staff attendance management platform

Customization & Installation Advantages

Channel width optional: Standard 550–600mm, widened 900mm lane for wheelchairs, strollers and large fitness equipment
Surface finish customizable: Brushed stainless steel, mirror polishing, multi-color baking paint to match interior decoration
Two installation options: Split separate base / integrated one-piece bottom base (no extra ground foundation needed for quick construction)
Cabinet size, LED light color, flap material all support OEM & ODM customization

Applicable Scenarios

High-end office lobbies, commercial shopping malls, luxury hotels, premium fitness gyms, university campuses, high-end residential entrances and other high-traffic premium commercial venues

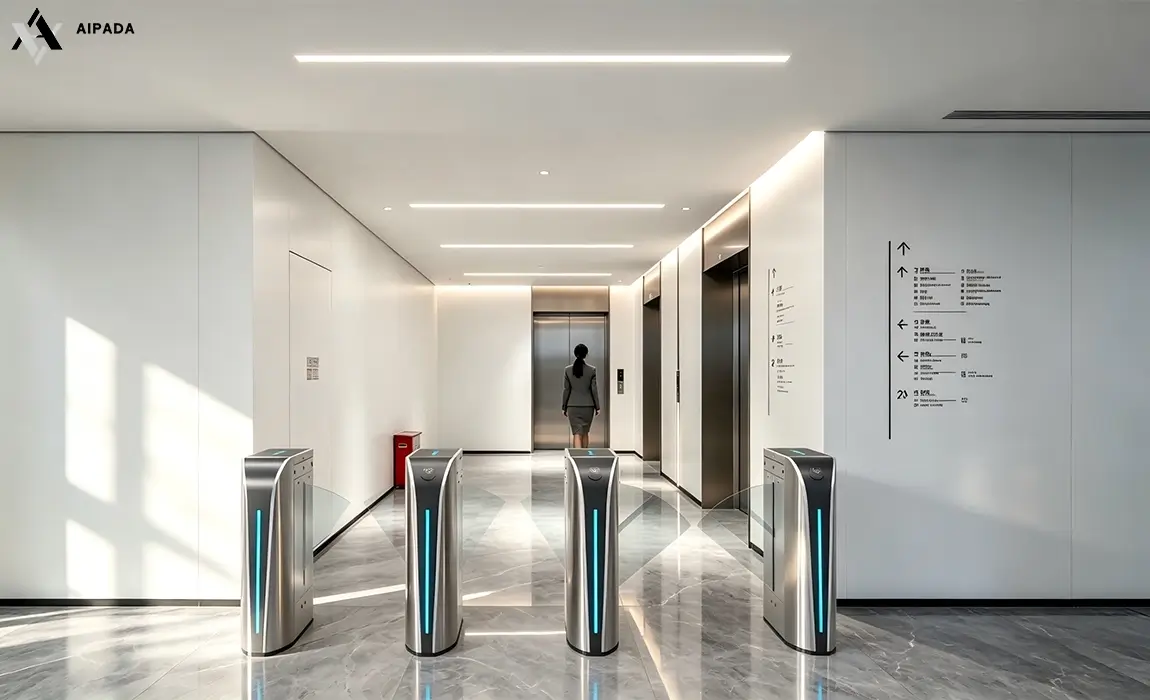

AT303 Curved Stylish Flap Barrier Turnstile Pedestrian Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT303 Curved Stylish Flap Barrier Turnstile Pedestrian Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows two single-passage systems, each consisting of a personnel passage and an accessible passage. If more passages are needed, the number of revolving gates can be increased.

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Can this AT303 curved flap barrier be fitted with facial recognition cameras?

A: Yes, it fully supports facial recognition devices. The turnstile reserves standard wiring and mounting interfaces on the cabinet top, compatible with facial recognition terminals, QR scanners, IC card readers and NFC wristbands to realize unattended contactless access control for offices, gyms and hotels.

2.Q: If my gym has damp shower areas, will the stainless steel cabinet rust easily?

A: The standard cabinet is made of SUS304 brushed stainless steel. For high-humidity environments like gym shower zones or underground floors, you can upgrade to SUS316 stainless steel, which offers stronger anti-rust and anti-corrosion performance to avoid oxidation after long-term damp use.

3.Q: Can wheelchairs or large gym equipment pass through the aisle smoothly?

A: Absolutely. The standard aisle width is 550–600mm, and a widened 900mm lane is optional. The extra-wide passage allows wheelchairs, strollers and large fitness gear to pass without obstruction, covering both regular pedestrians and special access demands.

4.Q: Will the acrylic flaps clamp pedestrians during morning & evening peak hours? Are there any safety protections?

A: Multiple safety protection functions are built in. Multi-point infrared anti-pinch sensors detect obstacles and retract flaps instantly to prevent clamping. When power fails, all flaps fully open automatically to meet fire emergency evacuation standards. It also adds anti-tailgating detection to stop unauthorized people from following valid users.

5.Q: Can I customize the cabinet size, surface color and appearance to match my venue’s decoration style?

A: Full customization is available. The overall cabinet dimension and aisle width can be adjusted on demand. Surface finishes include brushed stainless steel, mirror polishing and custom baking paint colors. The sleek curved outline can coordinate with light luxury offices, minimalist hotels and modern gym interior designs.
