Overall External Dimension: Standard cabinet size is 1400 × 300 × 990 mm (4.59 × 0.98 × 3.25 ft). The whole machine adopts slim curved streamline design, saving installation space. Customized length, width and height are fully supported to adapt to different exhibition hall entrance sizes, wall gaps and venue decoration styles, realizing zero-fit on-site installation.
Single Unit Net Weight: Standard single turnstile net weight is 65KG. The lightweight integrated cabinet structure is convenient for container shipping, cross-border transportation, on-site handling and rapid assembly, perfectly suitable for temporary exhibition projects and long-term fixed venue installation.
Optional Passage Width: Exhibition Hall Flap Barrier Turnstile AT306 Equipped with dual passage specifications for exhibition scenarios. Standard 550–600mm pedestrian lane for high-density orderly visitor passage; optional 900mm widened barrier-free lane, which can freely pass wheelchairs, baby strollers, exhibition handling trolleys and large exhibition display equipment, fully meeting international exhibition center barrier-free access standards.
Cabinet Body Material: The main cabinet is made of high-quality SUS304 stainless steel as standard, with high hardness, anti-collision, anti-rust and anti-scratch performance. Optional matte spray-painted carbon steel cabinet and upgraded SUS316 stainless steel cabinet are available. SUS316 material is specially suitable for coastal humid and high-salt-fog exhibition venues, effectively resisting corrosion and extending service life.
Swing Arm Material & Performance: The flap adopts high-transparency impact-resistant acrylic material, with thickness up to 18mm. It features anti-breakage, anti-collision, anti-aging and no yellowing performance. The transparent design facilitates security staff to observe the internal passage situation in real time, improving the safety and order of exhibition venue access.
Surface Customization Process: Supports multiple high-grade surface finishing treatments, including stainless steel wire drawing, mirror polishing, vacuum electroplating, matte black baking paint, gray baking paint and customized color spraying. Various appearance styles can perfectly match modern, minimalist, business and high-end customized exhibition hall interior decoration styles.
Traffic Operation Mode: Intelligent programmable traffic logic is adopted, supporting free switching of one-way entry, one-way exit and bidirectional two-way passage. Exhibition managers can flexibly adjust the access mode according to daily passenger flow peaks, exhibition opening hours, evening centralized evacuation and closed-door maintenance scenarios to achieve precise crowd diversion.
Core Drive Motor Parameters: Equipped with industrial-grade brushless servo motor, with built-in intelligent encoding positioning system. The opening and closing speed is adjustable from 0.2s to 1s. The operation is ultra-quiet, stable and jitter-free. It supports 24-hour uninterrupted high-frequency operation, with a mechanical service life of up to 5 million opening and closing cycles, completely adapting to long-cycle multi-day exhibition events.
Pedestrian Passing Efficiency: The maximum stable passing capacity reaches 30–45 people per minute. It can efficiently disperse large passenger flow surges during exhibition opening peak hours, effectively reduce visitor queuing time, greatly improve the entry and exit turnover efficiency of exhibition centers and avoid venue congestion.
Full Anti-Pinch Safety Protection System: Adopts full-height dense multi-point infrared induction probe array, covering the entire passage without dead induction zones. During the closing process of the flap, once obstacles such as human body, clothes, backpacks and exhibition accessories are sensed, the flap will immediately stop moving and rebound softly to avoid clamping accidents. The whole machine has over-current, over-voltage and short-circuit automatic protection functions.
Fire Emergency Release Function: Built-in energy storage capacitor emergency power supply module. When the power is suddenly cut off or the fire linkage signal is received, all flaps will automatically open and keep open permanently, forming a full unobstructed emergency passage, fully complying with international fire safety evacuation standards and exhibition venue safety acceptance specifications.

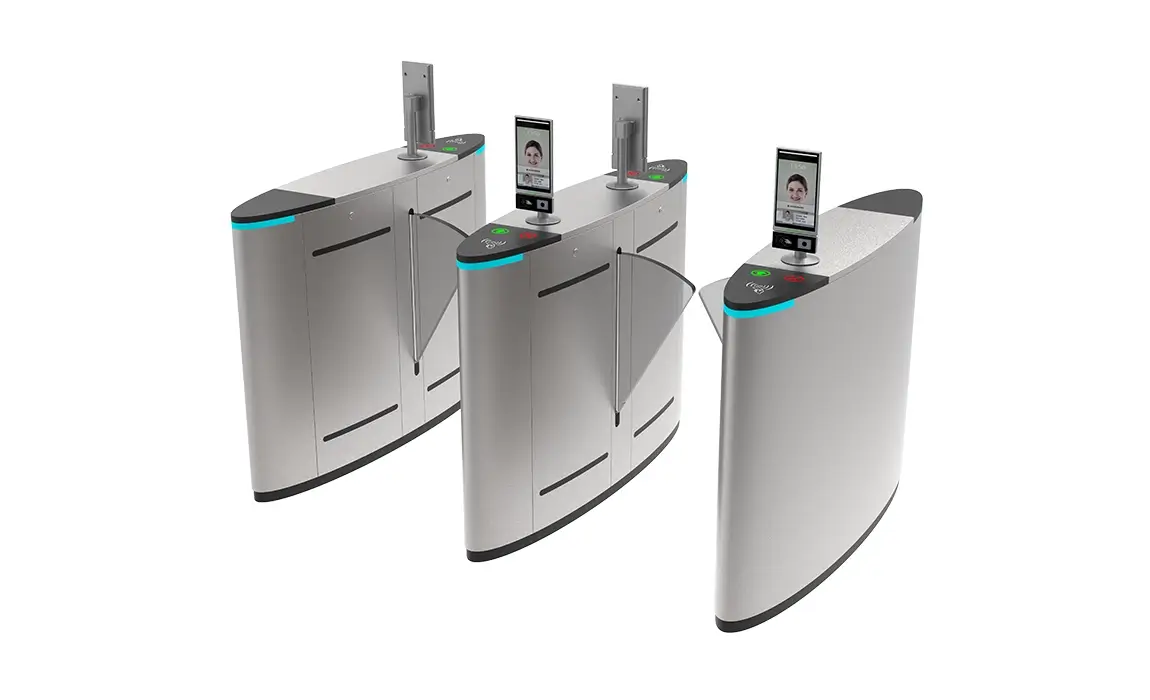

Universal Access Control Interface Protocol: Reserved standard Wiegand 26/34 and RS485 dual universal communication interfaces, plug-and-play without secondary program development. It is highly compatible with dynamic face recognition terminals, human body temperature measurement devices, IC/ID card readers, NFC smart wristbands, temporary visitor QR code scanners, and can be seamlessly connected to exhibition venue visitor registration and background management systems.
Professional Electrical Parameter Configuration: Adopts global wide voltage power supply, with input voltage AC100V–240V 50/60Hz, suitable for power supply standards in all countries and regions. Built-in high-stability isolation power module, with dual output of DC24V (motor power supply) and DC12V (sensor and access control equipment power supply), no voltage drop and no crash during long-term continuous operation.

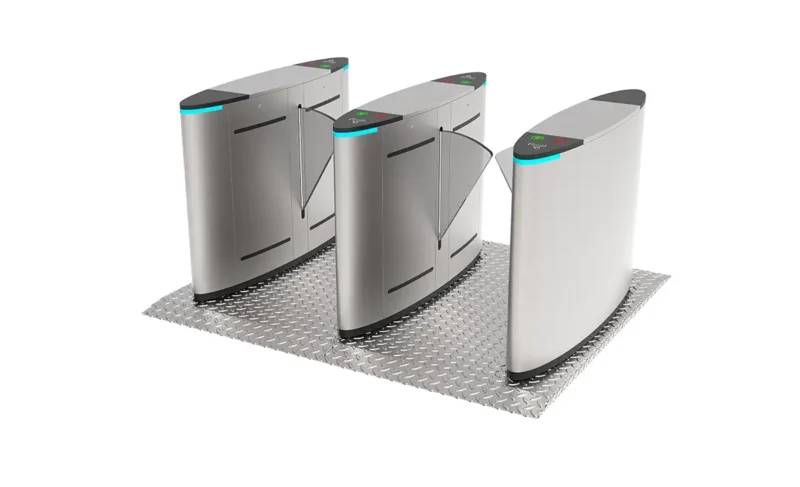

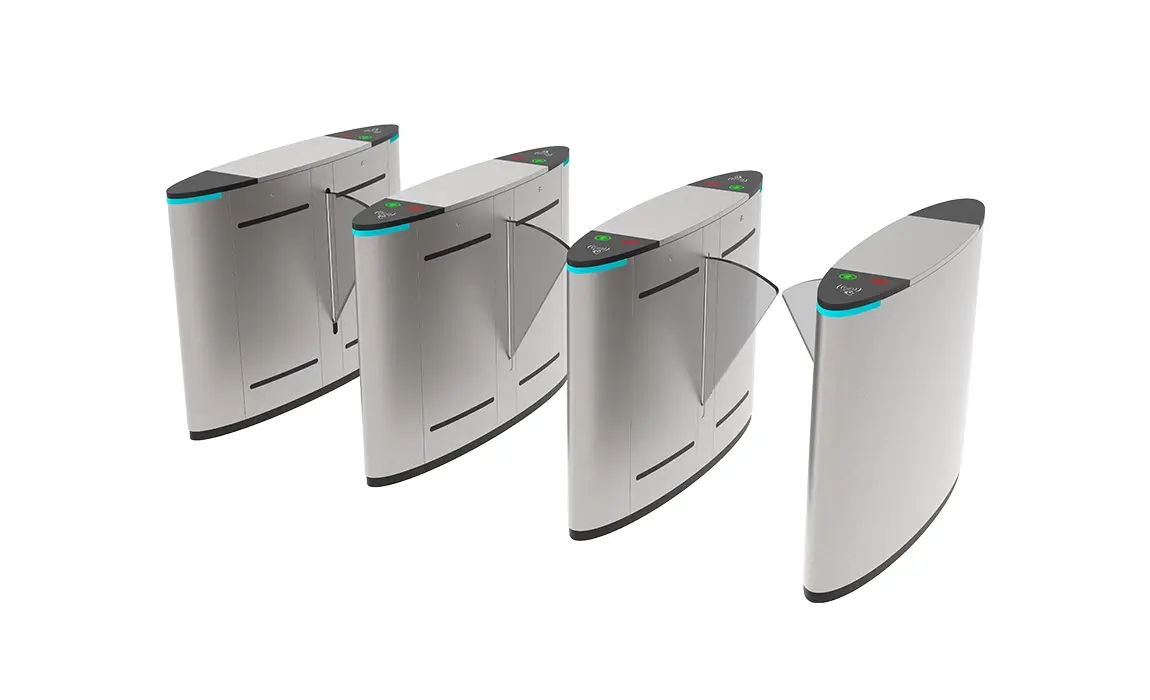

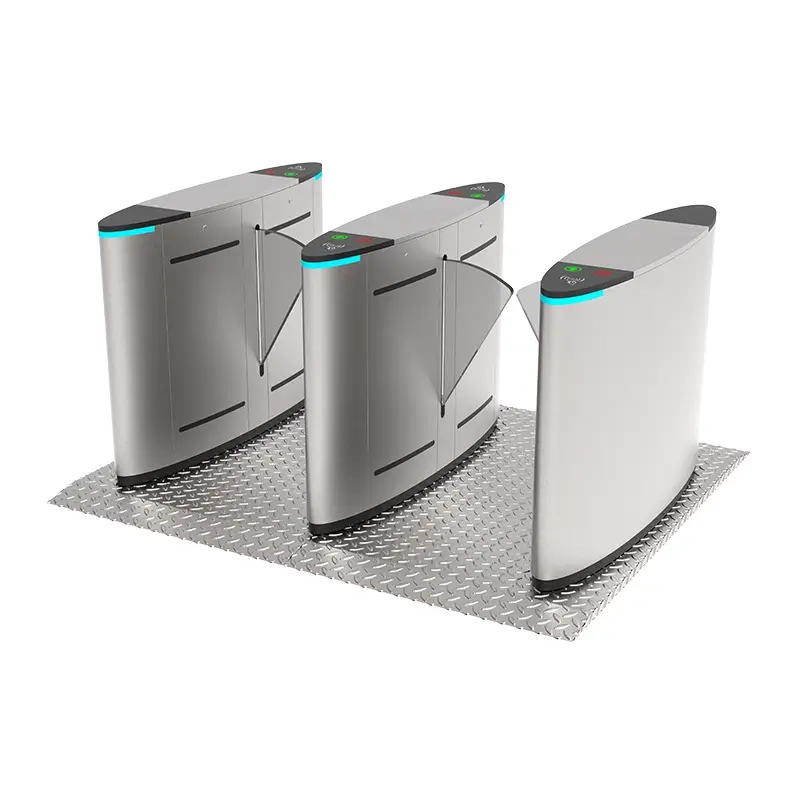

Multi-Lane Combined Installation Mode: Exhibition Hall Flap Barrier Turnstile AT306 Supports flexible multi-unit combined assembly, including single-lane, dual-lane, three-lane and four-lane integrated layout. The spacing between multiple turnstiles can be preset in the factory or fine-tuned on site. Optional integral integrated base plate is available, realizing direct floor installation without ground grooving and wiring, greatly shortening the construction cycle of exhibition temporary projects.
Working Environment Adaptability: Suitable for indoor use only, with working temperature range of -10℃ to +55℃ and working humidity of 10%–90% (non-condensing). It can adapt to the constant temperature environment of exhibition halls, convention centers and business venues, and support continuous uninterrupted operation for 7–15 days of long-term exhibition cycles.
Intelligent Alarm & Self-Check Function: Built-in system self-inspection program, which can automatically detect motor failure, sensor abnormality and power supply failure, and feed back fault codes in real time. It has illegal intrusion alarm and trailing anti-follow functions, effectively preventing visitors from rushing the gate and following illegally, ensuring standardized access management of exhibition venues.
Remote Management & Expansion: Supports remote parameter adjustment, operation data viewing and fault diagnosis. It can be expanded with visitor ticket checking system, real-time passenger flow statistics system and access record query function, helping exhibition venues realize intelligent, digital and automated access management.
After-Sales Warranty Service: The whole machine enjoys a 2-year free warranty, and core components such as brushless servo motors and infrared sensors enjoy a 3-year free replacement service. Provide global remote technical guidance, installation debugging tutorials and personalized customized solution services for exhibition engineering projects.
