AT107 Tripod Turnstile Factory Tripod Turnstile Suppliers Scenic Area Tripod Turnstile

As a leading Tripod Turnstile Factory, AIPADA provides high-quality access control solutions like the AT107 Scenic Area Tripod Turnstile. This robust model is specifically engineered for high-traffic tourist attractions and public venues. As one of the most trusted tripod turnstile suppliers, we ensure the AT107 features a durable 304 stainless steel body and a rapid 0.2s response rate, effectively managing up to 40 people per minute. Whether you are upgrading a theme park or a nature reserve, our scenic area tripod turnstile offers the perfect balance of security, efficiency, and long-term reliability.

1.Product dimensions:603*320*982 mm; 1.98*1.05*3.22 ft(standard; customizable)

2.channel width：550 mm; 1.80 ft (standard)

3.Net weight of the turnstile: 33 KG

4.Arm length:510 mm; 1.67 ft (standard)

5.Materials：iron baking paint or 304/316 stainless steel baking paint

6.Surface treatment: Brushed finish / Polished finish / Electroplating finish / Baking paint finish (customizable)

7.Turnstile Type: Semi-automatic (standard) / Fully automatic (customizable)

8.Pass rate:30-40 people/minute

9.Power supply: Input:AC100V-240V, Output: DC24V, DC12V

SKU: AT107 Categories: Tripod Turnstiles, All Turnstiles Tags: coated tripod turnstile, coated Turnstile，coated gate, innovative design, New design, painted gate, security turnstiles, Tripod turnstile, tripod turnstile gate, turnstile manufacturers china

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

Tripod Turnstile 3D view display

Tripod Turnstile Functional features

Emergency exit function: Allows free passage in case of emergency. The arm will automatically lower in the event of a power outage and can be manually reset after power is restored.

Work direction: unidirectional or bidirectional (optional)

Automatic reset function: After the gate is opened, the system will automatically lock if no one passes through within a specified time. The passage time is adjustable. Anti-reverse passage: If someone attempts to enter in the opposite direction, the revolving door will remain locked.

Intrusion prevention: The door automatically locks before a valid open signal is sent.

Quick unlock: When a valid signal is received, the door will automatically unlock within 0.2 seconds (adjustable).

Hydraulic damper: Equipped with a hydraulic shock absorber, making operation quieter.

Mold Design: This mechanism utilizes a mold design, resulting in more precise components. This saves on labor costs and facilitates assembly.

Traffic Mode: Both entry and exit directions can be independently set to 【Controlled Traffic】/【Free Traffic】/【No Traffic】.

Passage request memory function: When two or more valid passage signals are given simultaneously (including same-direction and opposite-direction signals), the system will remember all passage requests and complete each passage action sequentially (the number of requests to remember and whether the memory function is selected can be customized according to customer requirements).

Safety features: Equipped with lightning protection and leakage protection functions.

Voice prompt function: Provides voice prompts when entering and exiting; multiple voice prompts can be set (customizable).

Interface Protocol: A free development kit protocol is provided, facilitating control and debugging, and offering strong scalability.

Tripod Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

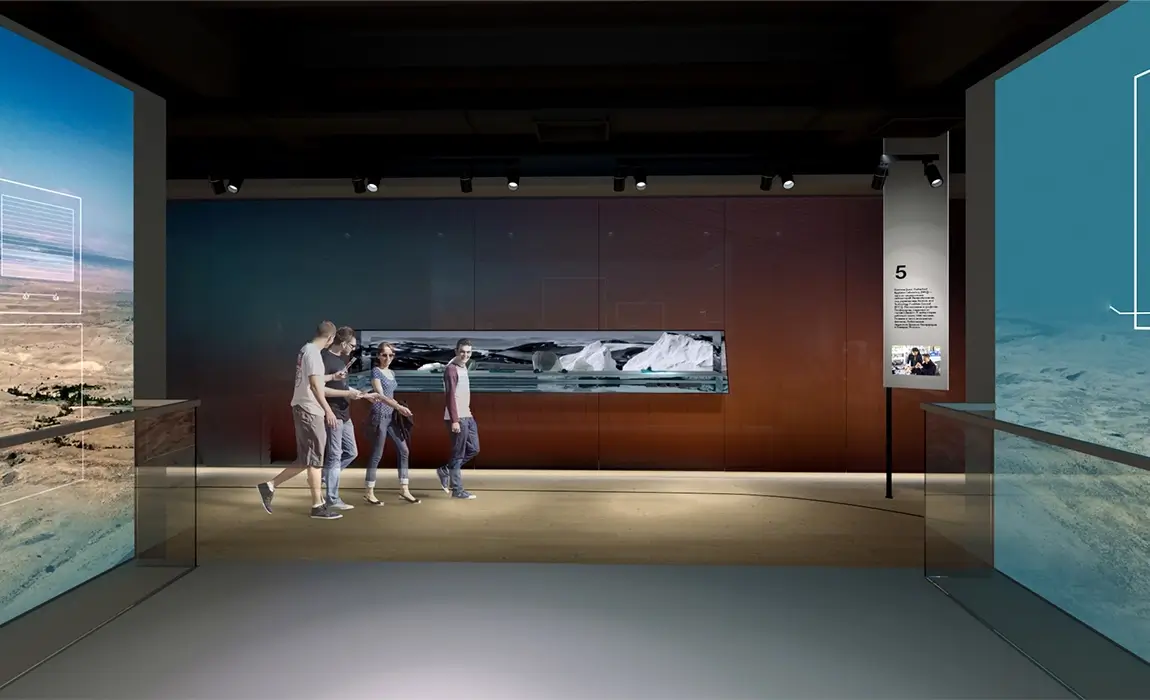

Before

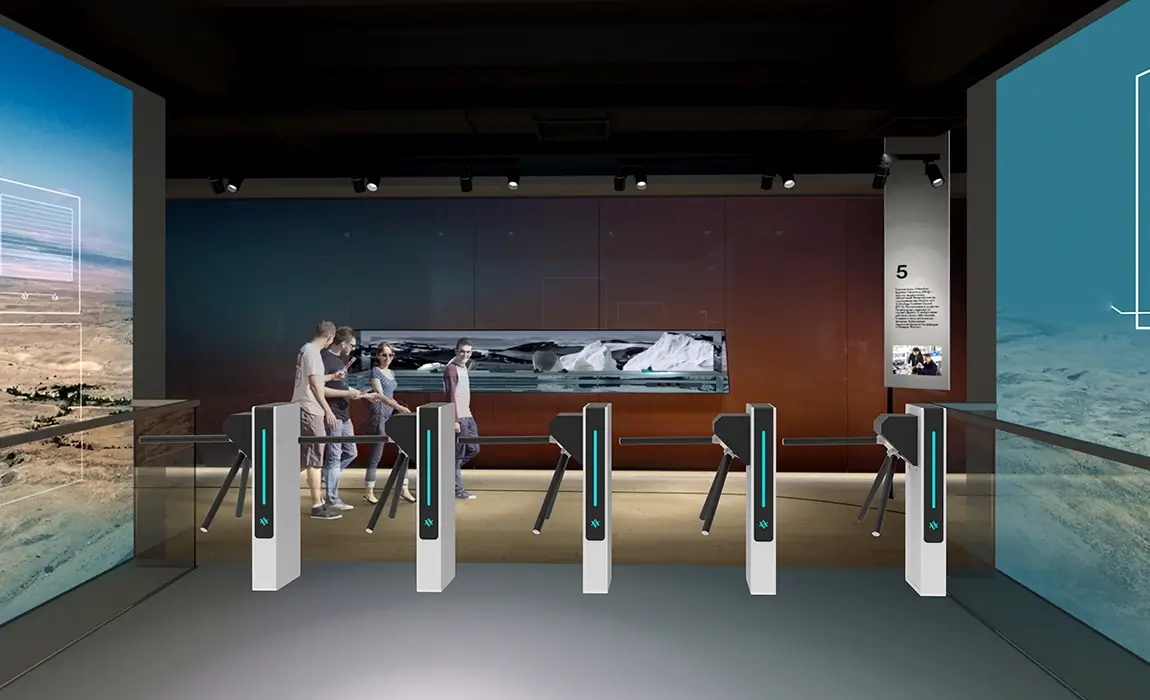

After

Tripod Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

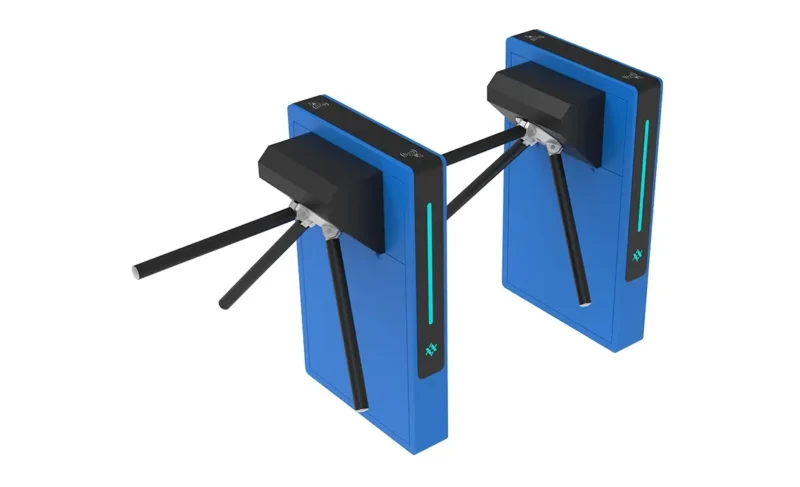

Optional：Number of turnstile channels

The image shows a dual-channel system, consisting of two single-core tripod turnstiles. If more channels are needed, the number of turnstiles can be increased.

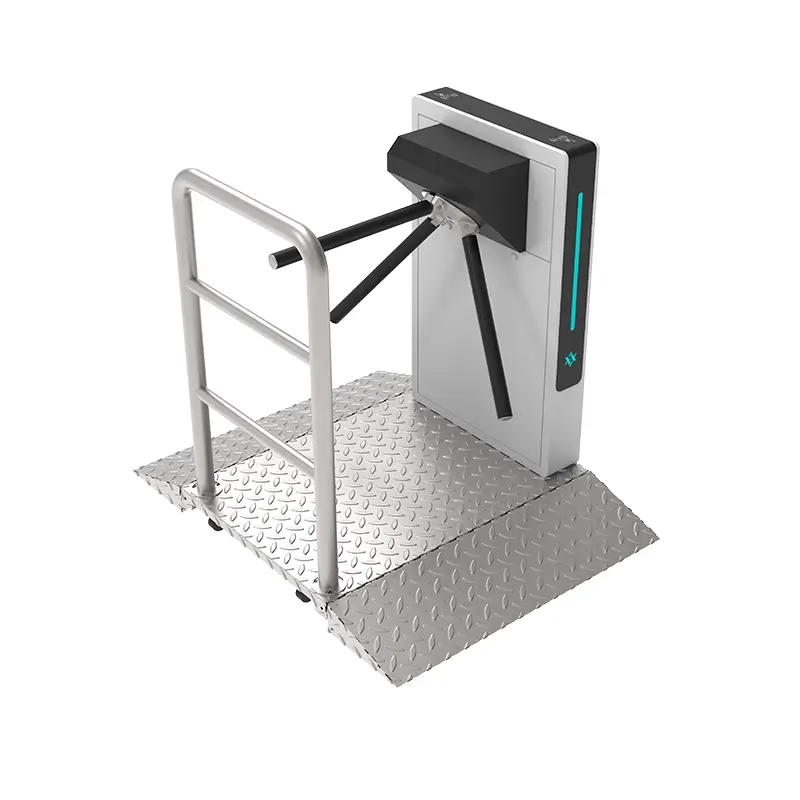

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

The Zhi leng series of tripod turnstiles are intelligent access control terminals designed for densely populated environments. With industrial-grade stability and user-friendly design, they provide efficient and orderly access control for office buildings, parks, stadiums, transportation hubs and other locations.

Minimalist industrial aesthetics

Featuring a black and white color scheme, a body without sharp edges and a matte finish, it balances visual simplicity with collision protection and safety, making it suitable for various modern architectural styles. As a professional tripod turnstile factory, we prioritize both form and function in every design.

Industrial-grade stable performance

Equipped with a microprocessor and a precision mechanical transmission system, it operates smoothly and quietly; the chassis is made of 304 stainless steel and the internal components are treated with anti-corrosion coating, allowing it to work stably in a wide temperature range of -35℃ to 60℃, with a service life of more than 3 million cycles.

Intelligent safety protection

It has anti-ramming, anti-tailgating, and fault self-diagnosis alarm functions; the barrier automatically lowers when the power is off (in compliance with fire protection regulations) and automatically resets when the power is on; the passage timeout is automatically canceled (adjustable from 3 to 60 seconds) to prevent “one card for multiple people”.

Full compatibility and integration capabilities

Trusted tripod turnstile suppliers ensure our systems support mainstream identification devices such as IC/ID cards, QR codes, facial recognition, and fingerprints. Remote control and data synchronization can be achieved through TCP/IP/RS485 interfaces, and it can be seamlessly integrated with access control, attendance, consumption and other all-in-one card systems.

Counting function optional

The turnstile counting system is a part of the turnstile access control system formed by adding a counting module on the pedestrian turnstile gate, which is mainly used to count the number of people passing through.

Applicable Scenarios

Applicable scenarios include access control and attendance systems for office buildings/parks, ticket verification for venues and scenic area tripod turnstile installations, personnel management in factories/construction sites, and traffic flow control at transportation hubs.
