Flap Barrier Turnstile Pedestrian AT302

Flap Barrier Turnstile Pedestrian AT302 is a high-performance pedestrian turnstile for efficient crowd access control. Ideal for offices, gyms, schools, transit hubs and busy commercial sites, this heavy-duty speed gate features robust build, full customizability and stable intelligent recognition to ensure safe, fluent pedestrian passage.

Product Dimensions: Flap Barrier Turnstile Pedestrian Standard cabinet dimensions are 1400*300*1000mm（4.59*0.98*3.28ft); custom sizes are available upon request.
Aisle Width:Flap Barrier Turnstile Pedestrian Standard single aisle 550–600 mm; optional up to 900 mm for easy access for wheelchair users and large exercise equipment.
Outer Shell Material: Flap Barrier Turnstile Pedestrian Standard SUS304 brushed stainless steel cabinet; optional SUS316 stainless steel upgrade for humid environments such as gym shower areas, enhancing rust and corrosion resistance.
Flip-up Material: Flap Barrier Turnstile Pedestrian Standard transparent imported acrylic; optional tempered glass for higher security requirements.
Surface Treatment: Flap Barrier Turnstile Pedestrian Default brushed stainless steel; custom finishes such as painted or polished are available to match the gym’s interior design.
Pedestrian Flow Direction: Programmable one-way or two-way passage for flexible management of member entry and exit.
Drive Mechanism: High-performance servo brushless motor core drive ensures stable, ultra-quiet flap operation and rapid response even during prolonged peak hours.
Passage Capacity: Pedestrian 30-45 people per minute during normal operation, perfectly meeting the gym’s morning and evening peak check-in needs.
Safety Features: Multi-point infrared anti-pinch + automatic obstacle rebound; automatically opens all flaps in case of power failure for convenient emergency fire evacuation.
Access Compatibility: Supports facial recognition, NFC wristbands, IC cards, and QR code scanners, compatible with mainstream gym membership management systems.

Flap Barrier Turnstile AT302 Product Manual

Categories: All Turnstiles, Flap Barrier Turnstiles Tags: flap barrier gate, flap barrier system, flap barrier turnstile, Flap Barrier Turnstile Pedestrian, flap turnstile, full height turnstile Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT302 Flap Barrier Turnstile Pedestrian 3D view display

AT302 Flap Barrier Turnstile Pedestrian Functional features

Product Overview
Flap Barrier Turnstile Pedestrian AT302 is a heavy-duty intelligent pedestrian speed gate specially optimized for gyms, office buildings, campuses, shopping malls and transit hubs. It combines stable servo drive technology, comprehensive safety protection and full customization capability, supporting seamless connection with all mainstream access recognition equipment to realize standardized, efficient and secure crowd management for high-traffic commercial venues.

Core Technical Specifications

Dimension & Passage Width
Standard cabinet size: 14003001000mm, custom sizes available. Standard aisle width 550–600mm; expandable to 900mm to accommodate wheelchairs and large fitness gear.
Premium Build Materials
Outer shell: Standard SUS304 brushed stainless steel; SUS316 stainless steel optional for humid, corrosive environments like gym shower zones. Swing flap: Transparent acrylic as standard, tempered glass upgrade for enhanced security. Multiple customizable surface finishes: brushed, polished, baking paint.
Traffic Performance
Equipped with brushless servo motor core drive for ultra-quiet, fast response operation. Throughput reaches 30–45 people per minute, effectively solving queuing problems during morning and evening peak hours. Supports programmable one-way or two-way passage modes for flexible entry-exit management.|
Power & Safety Mechanism
Built-in multi-point infrared anti-pinch sensors for automatic obstacle rebound. All flaps fully unlock and open when power cuts off, enabling emergency fire evacuation. Intelligent anti-tailgating function blocks unauthorized follow-up access.
Access Compatibility
Reserved universal interfaces to connect facial recognition devices, NFC wristbands, IC cards and QR code scanners, perfectly matching gym membership and enterprise attendance management systems.

Core Product Advantages

1.All-Round Customization to Match Site Needs
Every detail supports personalized adjustment, from cabinet size, lane width, cabinet material and surface color to swing flap material, adapting to various interior decoration styles and special venue requirements such as humid gym areas and wheelchair access passages.

2.High-Efficiency & Stable Servo Drive
Brushless servo motor delivers rapid, low-noise flap movement with long service life, stable operation under continuous high-frequency peak traffic, reducing long-term maintenance frequency and operation costs.

3.Multi-Layer Safety Protection
Dual protection of infrared anti-pinch sensor and power-off automatic opening eliminates risks of pinching and evacuation blockage. Anti-tailgating sensing prevents non-members from sneaking in, greatly lifting site security management level.

4.Wide Compatibility for Intelligent Management
Dockable with all common access control hardware and management software, realizing automatic identity verification, access records and member attendance statistics, helping venues achieve unmanned intelligent management.

5.Corrosion-Resistant Durable Structure

Stainless steel cabinet resists scratch, rust and water vapor. SUS316 upgrade option performs excellently in damp gym shower spaces, extending equipment service life in harsh environments.

Main Application Scenarios

Fitness & sports industry: Gyms, fitness clubs, sports centers
Commercial office: Corporate lobbies, office buildings, business parks
Education: Schools, university campuses, libraries
Public transport: Metro stations, bus terminals
Public service: Government halls, shopping malls, hotels, factories

After-Sales Support

Complete installation manuals and wiring guides are provided. We support OEM & ODM customized production, bulk wholesale quotations, and long-term technical after-sales maintenance guidance for global project partners.

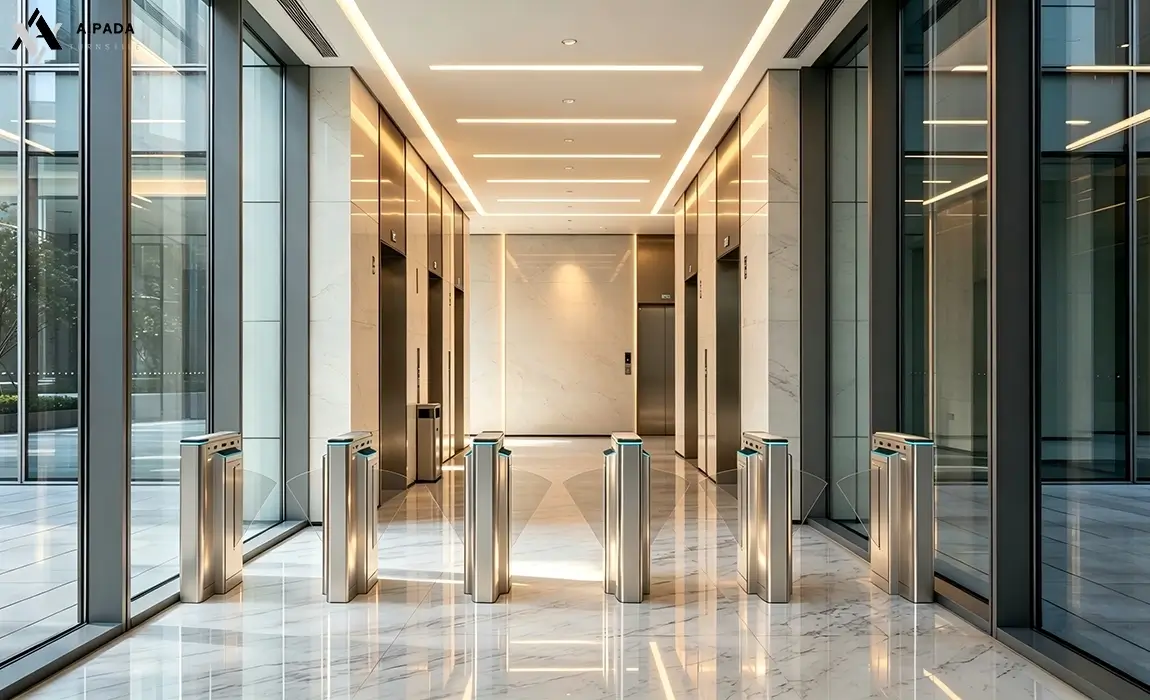

AT302 Flap Barrier Turnstile Pedestrian Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT302 Flap Barrier Turnstile Pedestrian Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows two single-passage systems, each consisting of a personnel passage and an accessible passage. If more passages are needed, the number of revolving gates can be increased.

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Can this flap barrier work with facial recognition devices?

A: Absolutely. The AT302 flap barrier reserves standard wiring interfaces, which can be directly equipped with facial recognition terminals, QR scanners, IC card readers, NFC wristbands and other identification devices to realize contactless intelligent verification, ideal for unattended access scenarios in office buildings and gyms.

2.Q: Is this flap barrier suitable for humid gym environments? Will it get rusty?

A: Yes, it can be used. The standard cabinet is made of 304 stainless steel. For highly humid areas such as gym shower zones and underground floors, you can upgrade to 316 stainless steel, which delivers superior rust and moisture corrosion resistance and avoids oxidation even after long-term use in damp conditions.

3.Q: Can wheelchairs or large fitness equipment pass through smoothly?

A: No problem. The standard passage width is 600mm, and an optional widened 900mm lane is available. It offers enough space for wheelchairs, strollers and large fitness gear, meeting the passage needs of regular pedestrians and special users.

4.Q: Will the flaps pinch people during rush hours? Are there any safety protections?

A: It is equipped with multi-layer safety protection. Multiple infrared anti-pinch sensors are built inside; the flaps will retract automatically once obstacles are detected. All flaps fully open automatically when power cuts off for quick emergency evacuation. Besides, the anti-tailgating sensor prevents unauthorized people from sneaking in behind valid users.

5.Q: Can I customize the cabinet size and surface color?

A: Full customization is supported. The overall cabinet size and lane width can be adjusted on demand. Available surface finishes include brushed stainless steel, mirror polishing and baking paint in custom colors, to match the interior design styles of office buildings, shopping malls and gyms.
