Heavy Duty Flap Barrier Turnstile AT309

Our Heavy Duty Flap Barrier Turnstile AT309 features heavy-duty thick cabinet, flexible lane width and customizable appearance. It runs steadily under peak passenger flow, perfect for wholesale projects of office lobbies, shopping malls and fitness centers.

  1. Product Dimensions: Heavy Duty Flap Barrier Turnstile AT309 Standard cabinet size: 1400×300×1000mm (4.59×0.98×3.28ft). Custom dimension customization is available on demand.
  2. Aisle Width:Heavy Duty Flap Barrier Turnstile AT309 Standard single passage width ranges from 550 mm to 600 mm. A widened 900 mm barrier-free lane is optional to accommodate wheelchairs and bulky sports gear.
  3. Enclosure Material:Heavy Duty Flap Barrier Turnstile AT309 The unit comes standard with a matte powder-coated carbon steel enclosure. For moisture-prone spaces like gym shower zones, upgraded SUS304 and SUS316 stainless steel housings are provided to deliver exceptional anti-rust and anti-corrosion performance.
  4. Traffic Flow Mode:Supports programmable one-way or bidirectional passage, enabling flexible control over member entry and exit.
  5. Drive System:Equipped with a high-performance brushless servo motor core. It delivers stable, near-silent wing operation and instant response, even under continuous heavy peak-hour use.
  6. Throughput Capacity:Handles 30–45 pedestrians per minute under regular operation, fully covering high visitor volumes during gym morning and evening rush hours.
  7. Safety Mechanisms:Fitted with multi-point infrared anti-pinch sensors that activate automatic obstacle rebound to eliminate pinching hazards, the turnstile’s retractable flaps fully unlock automatically in the event of a power failure to enable unobstructed emergency fire evacuation.
  8. Access Integration:Compatible with facial recognition terminals, NFC wristbands, IC membership cards and QR code readers, and seamlessly connects to most mainstream gym member management systems.
Categories: , Tags: , , , , , , , , , Brand: ,

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT309 Heavy Duty Flap Barrier Turnstile Pedestrian 3D view display

AT309 Heavy Duty Flap Barrier Turnstile Pedestrian Functional features

  1. Product Dimensions: Standard cabinet dimension 1400×300×1000mm (4.59×0.98×3.28ft). Custom overall size is available, and the length, depth and height can be adjusted according to on-site passage space.

  2. Channel Width: Heavy Duty Flap Barrier Turnstile AT309 Standard 600mm pedestrian passage; optional 900mm widened barrier-free lane, which allows smooth passage of wheelchairs, strollers and large fitness equipment to meet barrier-free access standards.

  3. Net Weight: Net weight of the whole unit is 72KG. The thickened sheet metal cabinet with heavy weight ensures stable operation without shaking, resisting impact from crowded pushing, suitable for long-term high-frequency commercial use.

  4. Enclosure Material: Standard electrostatic powder-coated carbon steel cabinet; SUS304 and SUS316 stainless steel housing are optional for humid areas, featuring moisture and rust resistance for gyms, underground lobbies and other damp environments.

  5. Swing Arm Material: The flap is made of high-toughness acrylic plate, with transparent and attractive appearance, impact resistance and anti-breakage, easy to replace and maintain, matching modern light-luxury commercial decoration.

  6. Surface Treatment: Multiple cabinet surface processes are optional, including matte powder coating, brushed stainless steel, mirror polishing and electroplating. Custom color matching is supported to fit indoor decoration styles.

  7. Traffic Flow Mode: Built-in program supports one-way and two-way passage modes, which can be switched with one click in the backend to flexibly control access permissions of staff and visitors for crowd diversion management.

  8. Throughput Capacity: Standard throughput reaches 30–45 pedestrians per minute with stable high-load performance, easily handling rush hours of office buildings and fitness centers.

  9. Drive System: Equipped with industrial brushless servo motor for smooth, silent start & stop and fast recognition response. It supports 24-hour non-stop continuous operation with low failure rate and long service life.

  10. Power Supply: Heavy Duty Flap Barrier Turnstile AT309 Wide voltage input AC100V–240V for universal mains power, with stable dual output DC24V and DC12V, compatible with power supply standards of most countries worldwide and stable power output.

  11. Infrared Anti-Pinch Safety Sensor: Multiple groups of infrared sensing probes are installed inside the cabinet. When detecting obstacles such as people, clothes and bags during passage, the flap rebounds immediately to eliminate pinching risks.

  12. Emergency Power-off Release Function: The flaps fully open automatically the moment power is cut off externally, forming an unobstructed evacuation passage in compliance with fire emergency escape regulations.

  13. Access Control Compatibility: Natively compatible with face recognition terminals, QR code readers, IC card swipers, NFC member bracelets and other identification devices. No extra adapter is required, and it can connect to mainstream attendance and membership management systems on the market.

  14. Modular Assembly Structure: Modular splicing design allows free combination of single, dual, triple and multi-lane layouts. Matching integrated metal base installation is supported without on-site floor trenching to shorten construction time.

  15. LED Status Indicator Light: Status ambient light strips are equipped on cabinet sides. Green light means passable while red light means access denied, making the gate status recognizable from a long distance.

  16. Anti-Collision Cabinet Design: Round anti-collision corners are adopted for the cabinet, with thickened sheet metal structure to resist accidental impact from pedestrians and scratches from trolleys, preventing deformation and paint peeling after long-term use.

  17. Low Noise Operation Design: The motor is equipped with a silent shock-absorbing structure, generating extremely low noise during flap opening and closing without disturbing quiet office and shopping environments of offices and malls.

  18. Customized Appearance Service: Custom color tuning is available for the whole machine frame and cabinet panel to match corporate VI brand colors and create an integrated visual effect for lobbies.

  19. Overload Protection Function: Built-in chips for current overload and overheat protection. The gate will automatically stop to protect the motor under abnormal load during long peak-hour passage, extending the overall service life.

  20. Indoor Application Adaptation: The whole unit is specially developed for indoor scenarios with dust-proof structure design, suitable for indoor entrances of office buildings, shopping malls, enterprise parks, fitness centers and government service halls.

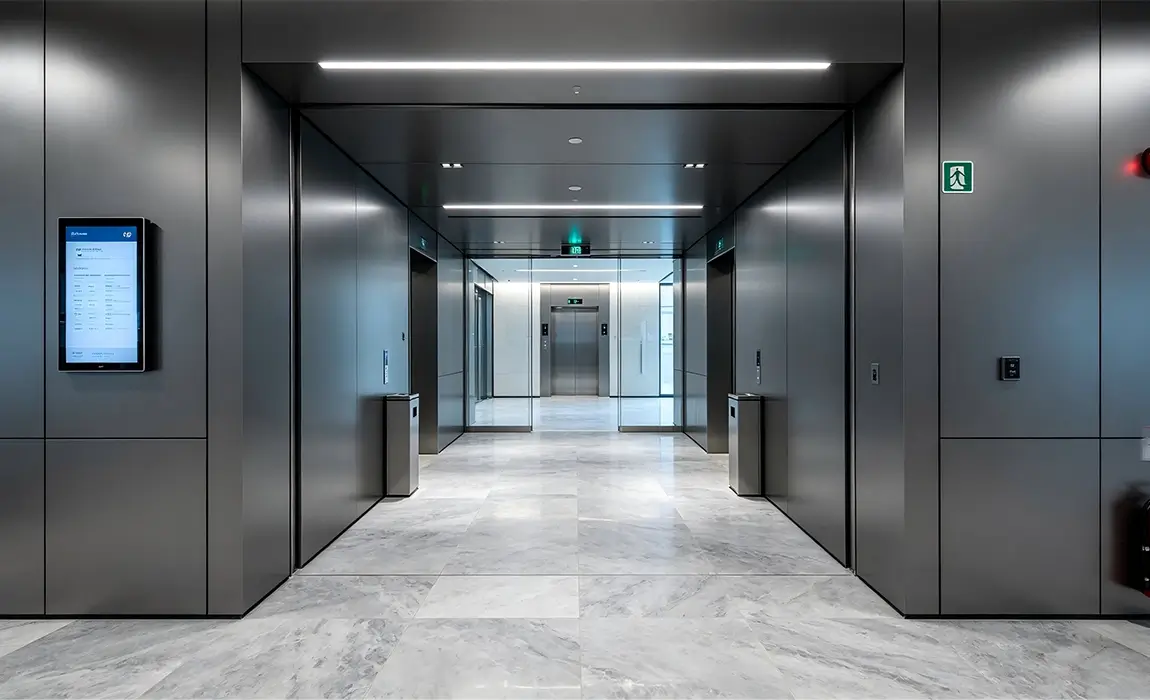

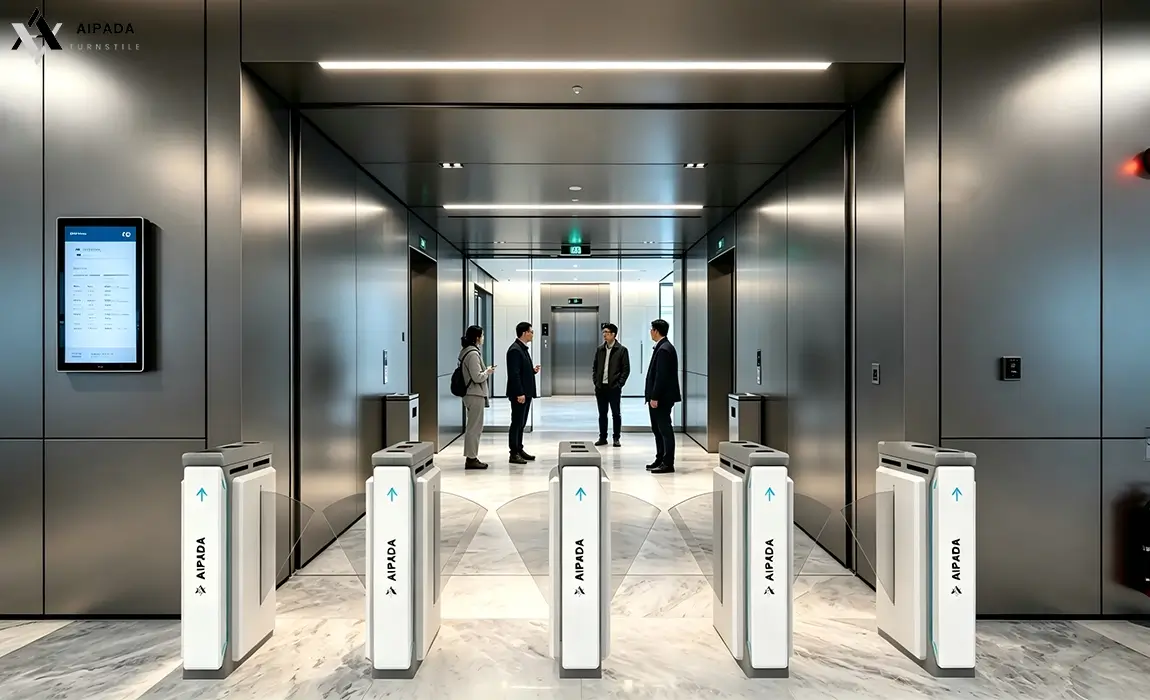

AT309 Heavy Duty Flap Barrier Turnstile Pedestrian Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

Before After

AT309 Heavy Duty Flap Barrier Turnstile Pedestrian Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows two single-passage systems, each consisting of a personnel passage and an accessible passage. If more passages are needed, the number of revolving gates can be increased.

Three-lane Heavy Duty Flap Barrier Turnstile AT309, modular intelligent pedestrian barrier for upscale commercial office entry
Base integrated triple-passage Heavy Duty Flap Barrier Turnstile AT309, pre-fitted base plate pedestrian gate for office and commercial lobby access control

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Dual-lane Heavy Duty Flap Barrier Turnstile AT309 with integrated facial recognition reader, all-in-one access gate for corporate office lobby identity verification
Custom orange framed dual-lane Heavy Duty Flap Barrier Turnstile AT309, personalized color access barrier for brand-themed office and upscale commercial lobby

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card reader

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Dual lane Heavy Duty Flap Barrier Turnstile AT309, robust two-way pedestrian access gate for office buildings and commercial entrance lobbies
touch button

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

remote control

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.



Face

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint scanner

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Can I freely combine single, dual, triple or 4-lane layouts for the AT309 flap barrier turnstile to fit my office lobby space?

A1: Yes. The AT309 series adopts fully modular splicing design. You can freely match 1/2/3/4 multi-channel combinations according to your entrance width and daily passenger volume. We also offer an integrated metal base plate as an option to skip floor trenching and speed up on-site installation.

2.Q: Is this heavy duty AT309 flap gate durable enough for all-day high-frequency rush-hour use in office buildings and shopping malls?

A2: Absolutely. It features a thickened heavy-duty cabinet paired with industrial brushless servo motor, supporting 30–45 pedestrians passing per minute for long continuous operation. The anti-collision cabinet structure and overload protection chip effectively reduce breakdowns even under daily morning and evening peak crowds.

3.Q: Does the AT309 turnstile support connection with my existing facial recognition attendance and visitor management system?

A3: It’s fully compatible. Reserved universal Wiegand and RS485 interfaces support facial terminals, QR scanners, IC cards and NFC wristbands. No extra transfer modules are required, and it can seamlessly dock most mainstream office attendance and gym member management software.

4.Q: What safety designs does the AT309 flap barrier have to avoid pinching staff or visitors? Will it open during power outages for fire evacuation?

A4: Two core safety protections are equipped. Multi-point infrared anti-pinch sensors trigger instant flap rebound once obstacles are detected to eliminate clamping risks. When power cuts off, all retractable flaps automatically fully unlock to form an unobstructed evacuation passage that meets fire safety standards.

5.Q: Can I customize the cabinet material, color and surface finish of AT309 to match my office or commercial hall interior decoration style?

A5: Multiple customization options are available. The standard housing is matte powder-coated carbon steel; SUS304/SUS316 stainless steel can be upgraded for damp areas like gyms. Cabinet frame colors (orange, gray, white and custom brand tones) and surface processes (brushed, mirror polishing) are all customizable to coordinate with indoor marble and metal decor.
