New Flap Barrier Turnstile AT307

The New Flap Barrier Turnstile AT307 modern flap barrier turnstile delivers stable, commercial offices. With lightweight 50KG unit weight, customizable appearance, anti-collision acrylic swing arms and universal access control interfaces, it provides safe, smooth pedestrian passage for all public indoor venues.

  1. Product Dimensions: New Flap Barrier Turnstile AT307 Standard cabinet size: 1003×300×981.5mm (3.29×0.98×3.22 ft). Custom dimension customization is available on demand.
  2. Aisle Width:New Flap Barrier Turnstile AT307 Standard single passage width ranges from 550 mm to 600 mm. A widened 900 mm barrier-free lane is optional to accommodate wheelchairs and bulky sports gear.
  3. Enclosure Material:New Flap Barrier Turnstile AT307 The unit comes standard with a matte powder-coated carbon steel enclosure. For moisture-prone spaces like gym shower zones, upgraded SUS304 and SUS316 stainless steel housings are provided to deliver exceptional anti-rust and anti-corrosion performance.
  4. Traffic Flow Mode:Supports programmable one-way or bidirectional passage, enabling flexible control over member entry and exit.
  5. Drive System:Equipped with a high-performance brushless servo motor core. It delivers stable, near-silent wing operation and instant response, even under continuous heavy peak-hour use.
  6. Throughput Capacity:Handles 30–45 pedestrians per minute under regular operation, fully covering high visitor volumes during gym morning and evening rush hours.
  7. Safety Mechanisms:Fitted with multi-point infrared anti-pinch sensors that activate automatic obstacle rebound to eliminate pinching hazards, the turnstile’s retractable flaps fully unlock automatically in the event of a power failure to enable unobstructed emergency fire evacuation.
  8. Access Integration:Compatible with facial recognition terminals, NFC wristbands, IC membership cards and QR code readers, and seamlessly connects to most mainstream gym member management systems.
Categories: , Tags: , , , , , , Brand: ,

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT307 New Flap Barrier Turnstile Pedestrian 3D view display

AT307 New Flap Barrier Turnstile Pedestrian Functional features

  • Product Dimensions：Standard cabinet dimension 1003×300×981.5mm (3.29×0.98×3.22 ft); full customization of length, width and height is supported to adapt narrow corridors and special installation spaces.

  • Aisle Width：New Flap Barrier Turnstile AT307 Standard pedestrian lane width 550–600mm; optional 900mm barrier-free widened lane, compatible with wheelchairs, strollers, luggage trolleys and large fitness equipment.

  • Enclosure Material：Standard shell adopts matte powder-coated carbon steel with scratch-resistant coating; optional upgraded SUS304 stainless steel for damp areas and SUS316 stainless steel for high humidity & salt fog environments, delivering long-term anti-rust and anti-corrosion performance.

  • Swing Arm Material：High-toughness transparent anti-collision acrylic swing arm with built-in buffer rebound structure, resisting frequent impact, cracking and deformation under long-term heavy peak operation.

  • Net Unit Weight：New Flap Barrier Turnstile AT307 Single cabinet net weight 50KG, lightweight split structure, convenient for long-distance transportation, manual handling and fast on-site modular splicing.

  • Power Supply Specification：Global wide input AC100V–240V 50/60Hz; stable internal output DC24V & DC12V, equipped with built-in over-current, over-voltage, short-circuit and surge protection modules.

  • Working Environment：Applicable temperature range -10℃ ~ +55℃; working humidity 10%–90% non-condensing, only suitable for indoor use, not resistant to outdoor rainwater soaking.

  • Traffic Flow Mode：3 programmable operation modes including one-way entry, one-way exit and bidirectional passage; independent access permission configuration for entry and exit channels.

  • Drive System：Industrial silent brushless servo motor core, instant response speed ≤0.3s; support 24-hour continuous non-stop operation without overheating, zero mechanical jitter during dense passenger flow.

  • Throughput Capacity：Stable passing capacity 30–45 pedestrians per minute, effectively solving crowd congestion during morning check-in and evening off-peak hours of offices, gyms and commercial buildings.

  • Safety Anti-Pinch Mechanism：Full-coverage multi-point infrared sensor array; swing arms automatically rebound when detecting human bodies, clothes, bags and other obstacles to eliminate clamping hidden dangers.

  • Power-off Emergency Unlock Function：Automatic full opening of all swing arms once power failure occurs, forming an unobstructed wide passage that fully complies with fire emergency evacuation standards.

  • Anti-Collision Delay Protection：Adjustable delayed closing logic after pedestrians pass, effectively avoiding accidental collision between swing arms and passers-by.

  • Communication Interface：Dual universal interfaces Wiegand 26/34 + RS485, plug-and-play without secondary program development.

  • Access Device Compatibility：Compatible with facial recognition terminals, temperature measuring access all-in-one machines, QR code scanners, IC/ID card readers, NFC smart wristbands and temporary visitor verification equipment, seamlessly docking mainstream office and gym member management systems.

  • Custom Surface Treatment：Multiple optional finishes including matte baking paint, stainless steel wire drawing, mirror polishing and electroplating finish.

  • Color Customization：Support arbitrary cabinet color matching according to enterprise VI standards and indoor decoration styles.

  • Dual Installation Modes：Mode 1: Direct floor drilling fixing for permanent fixed projects; Mode 2: Matching integrated metal base plate, no ground grooving or pre-buried wiring, easy disassembly and relocation for temporary exhibition and office renovation.

  • Mechanical Service Life：Core servo motor supports more than 5 million stable opening & closing cycles under normal use; cabinet surface coating guarantees no obvious fading within 5 years.

  • Application Venues：Suitable for office buildings, commercial lobbies, fitness gyms, enterprise service halls, industrial parks and various indoor public pedestrian intelligent access control scenarios.

AT307 New Flap Barrier Turnstile Pedestrian Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

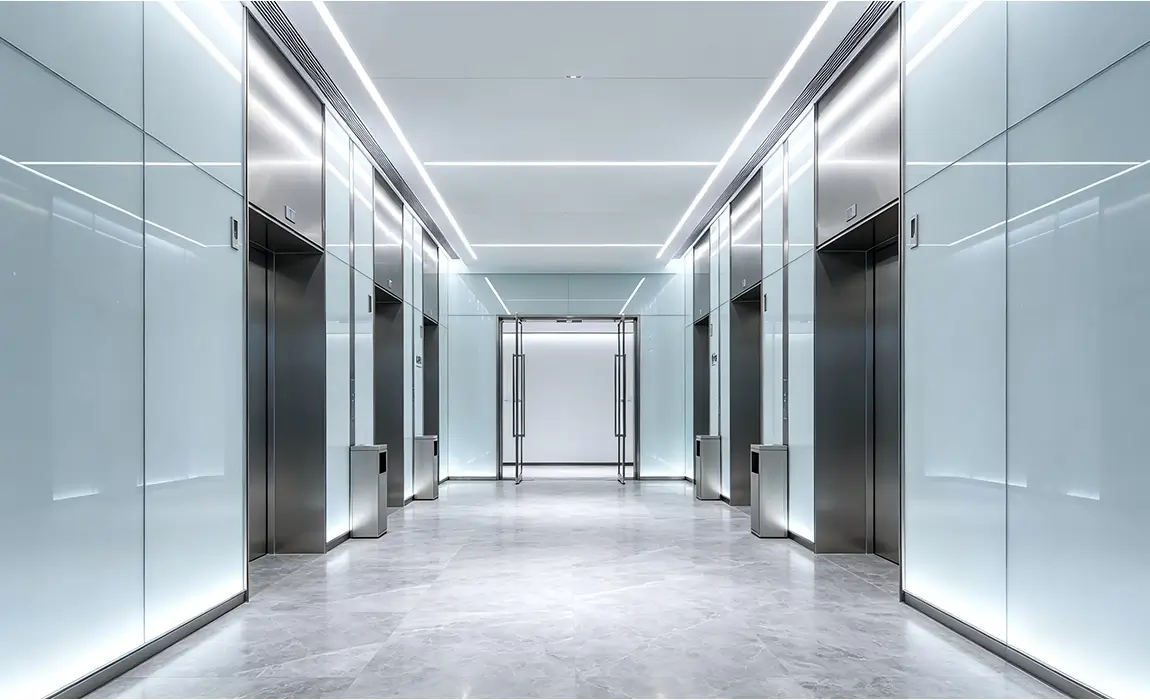

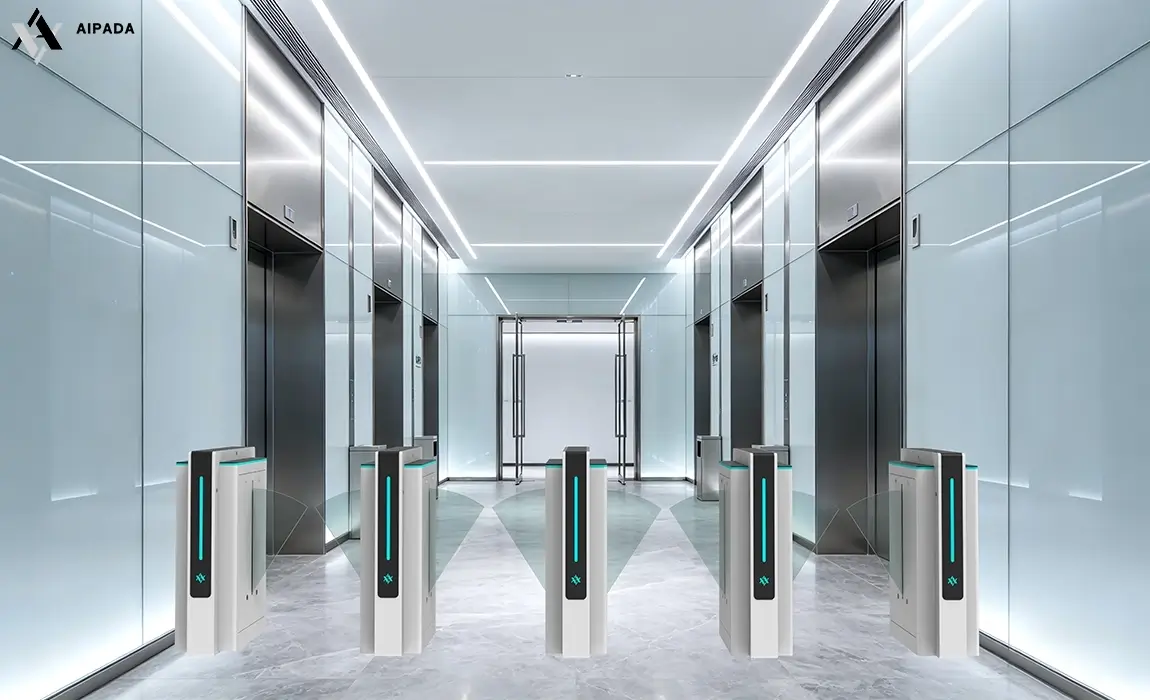

Before After

AT307 New Flap Barrier Turnstile Pedestrian Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows two single-passage systems, each consisting of a personnel passage and an accessible passage. If more passages are needed, the number of revolving gates can be increased.

Three-lane modular New Flap Barrier Turnstile AT307, slim vertical multi-lane flap access gate designed for mid-sized office buildings and upscale commercial entrance lobbies
Three-lane New Flap Barrier Turnstile AT307 with integrated all-metal base plate, pre-assembled base-mounted slim flap gate for medium-sized corporate offices and high-end commercial entrance halls

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Two-lane New Flap Barrier Turnstile AT307 equipped with facial recognition readers, biometric slim flap access gate for corporate office and commercial lobby identity verification
Custom vibrant blue dual-lane New Flap Barrier Turnstile AT307, personalized color slim two-channel flap access gate for brand-themed corporate offices and stylized commercial lobbies

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card reader

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Dual-lane New Flap Barrier Turnstile AT307, slim vertical two-channel flap gate for office building and commercial lobby intelligent access control
touch button

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

remote control

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.



Face

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint scanner

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: What installation options are available for the New Flap Barrier Turnstile AT307?

A1: We provide two mature installation solutions. The first is ground drilling fixed installation for long-term permanent venues like office buildings. The second is an integrated all-metal base plate version, which requires no floor grooving or pre-buried wiring, greatly shortening construction time and supporting later disassembly relocation for temporary commercial halls. Custom installation size adjustment is also acceptable on request.

2.Q: Can the AT307 flap barrier turnstile match my office’s unique interior decoration style?

A2: Yes, full personalized customization is supported. You can freely select matte powder coating in any custom color such as blue, white and gray. We also offer SUS304/SUS316 stainless steel housings with wire drawing or mirror polishing finishes, which can perfectly coordinate with minimalist, high-end and brand-themed office & commercial lobby decoration styles.

3.Q: Is the AT307 turnstile compatible with my existing access control equipment for office entrances?

A3: Absolutely. This AT307 model reserves standard Wiegand 26/34 and RS485 universal communication interfaces, compatible with facial recognition terminals, QR code scanners, IC/ID membership cards and NFC wristbands. It can seamlessly link with mainstream office staff attendance and commercial venue visitor management systems without extra secondary development.

4.Q: Does the New Flap Barrier Turnstile AT307 have reliable safety protection for crowded office rush hours?

A4: It comes with complete multi-layer safety mechanisms. Multi-point infrared anti-pinch sensors trigger automatic flap rebound once obstacles like human bodies, bags or clothes are detected to avoid clamping injuries. When power cuts off, all flaps will fully open automatically to form unobstructed passages that meet fire emergency evacuation standards for offices and commercial lobbies.

5.Q: What aisle width options does AT307 offer to fit office and commercial lobby crowds?

A5: Two standard aisle sizes are optional. The regular 550–600mm narrow lane fits daily pedestrian flow of ordinary offices. The widened 900mm barrier-free lane can pass wheelchairs, luggage carts and large fitness equipment, ideal for large commercial lobbies, enterprise park entrances and gym venues with diverse visitor groups.
