AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.
AT101 vertical tripod turnstile 3D view display
AT101 vertical tripod turnstile Functional features
- Overall Appearance Design：Angular‑shaped top cover with integrated base, sleek and rigid outlook, compatible with various modern indoor architectural decoration styles
- Integrated Identification Module：Top cover integrates RFID card reading and QR code recognition module, identification response ≤0.2s, completes identity verification rapidly for efficient access release
- Rotating Arm：Three sets of black triangular rotating arms of this tripod turnstile, robust mechanical structure, impact‑resistant and wear‑proof, support ≥5 million times high‑frequency continuous operation
- Standard Dimension：Standard size 420280980mm(1.380.923.22ft), non‑standard size customization available for special installation space
- Housing Material：Standard 304 stainless‑steel housing for rust & corrosion resistance; 316 stainless steel optional for indoor and partial semi‑outdoor projects
- Surface Treatment：Supports brushed, polished, electroplating and baking paint finishes, diversified color options to match overall project design requirements
- Passing Capacity：Stable throughput 30‑40 people per minute, handles heavy pedestrian flow for high‑frequency visitor‑intensive premises
- Power Supply：Wide‑voltage AC100V‑240V input with DC12V / DC24V output, compatible with power grids in different countries worldwide
- Operation Mode：Standard semi‑automatic mode, full‑automatic version optional, flexible configuration according to actual site project requirements
- Power‑off Unlock Protection：Arms automatically unlock within 0.5s upon power failure to guarantee fast emergency evacuation, compliant with fire‑safety regulations
- Anti‑tailgating Function：Mechanical plus electrical dual anti‑tailgating detection with ±10cm detection accuracy, prevent unauthorized tailgating entry and improve site security level of the tripod turnstile gate
- Audio‑visual Alarm：Trigger audio‑visual alarm within 1 second under illegal entry or forced impact, provides instant on‑site warning to reduce potential security risks
- Third‑party Interface：Reserved dry‑contact signal output, compatible with most access controllers, supports integration with face recognition, fingerprint, ticketing and other third‑party access control systems
- Working Temperature：‑20℃ ~ +60℃, adapts to seasonal temperature difference across temperate and subtropical regions
- High‑durability Core Mechanism：Optimized mechanical core, designed service life ≥8 million cycles, failure rate lower than 0.3%, greatly cuts later‑stage maintenance cost, supports 7×24‑hour non‑stop operation for the tripod turnstile
- Fast Deployment Advantage：100% pre‑commissioned before delivery, only 30‑45 minutes on‑site wiring & commissioning required, lowers difficulty of field commissioning for this tripod turnstile gate
- Strong Compatibility Advantage：Flexible optional identification modules without main‑structure modification, supports ≥8 identification modes for later‑stage project upgrade and iteration
- Comprehensive Application Scenarios：This reliable tripod turnstile is widely used in industrial parks, museums, exhibition halls, scenic spots, gymnasiums, government service halls and office buildings, realizing access permission management for various indoor premises

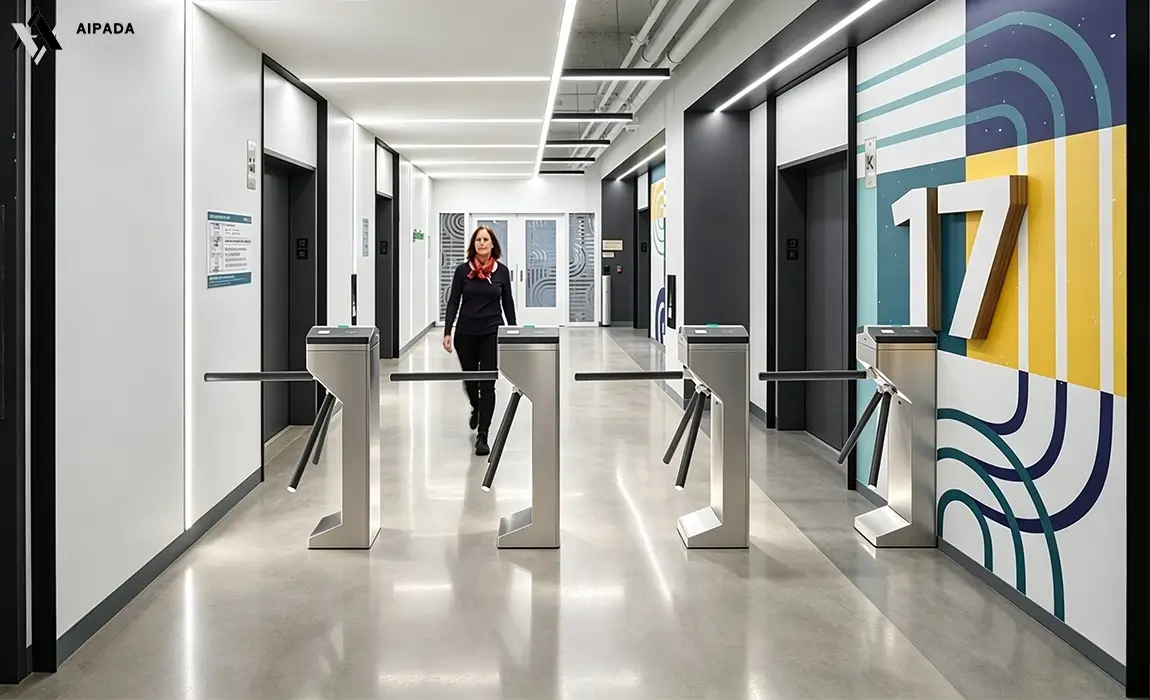

AT101 vertical tripod turnstile Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
AT101 vertical tripod turnstile Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.
Optional：Number of turnstile channels
The image shows a dual-channel system, consisting of two single-core tripod turnstiles. If more channels are needed, the number of turnstiles can be increased.
Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.
Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with a variety of access control systems. If you already have an access control system, please let us know your equipment dimensions and we can make it compatible with our turnstiles.
QR Code
Optional: We offer QR code module integration; through development, employees can scan QR codes to enter, while visitors can use temporary QR codes to enter.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
A：Yes, we support custom spray‑paint colour options. You can provide colour codes to match your lobby or venue decoration style.
2.Q：What maintenance work does this tripod turnstile require for long‑term operation?
A：Only simple regular surface cleaning and mechanical part inspection. No complex daily maintenance is needed.
4.Q：Can we add extra access readers after the tripod turnstile is installed?
A：Reserved interfaces allow later expansion for fingerprint, QR code or other recognition modules without major modification.
5.Q：How does the tripod turnstile behave under frequent high‑volume visitor usage?
A：Equipped with durable brushless motor, it can sustain long‑hour high‑frequency operation for busy public venues.
6.Q：Does the custom‑painted surface peel off easily in high‑traffic indoor environments?
A：We use high‑quality spray‑paint process, anti‑wear for indoor scenarios, resisting daily friction wear.
