AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.
AT103 Double vertical tripod turnstile 3D view display
AT103 Double vertical tripod turnstile Functional features
Non‑standard dimension customization: Standard size 450420980mm, custom dimension available for projects with limited installation space
Dual‑mechanism synchronous drive: Equipped with two independent core mechanisms, both‑side arms run synchronously, ensuring stable passing and reducing jamming risks, reliable dual‑mechanism tripod turnstile unit for heavy‑use sites
Widened stable base structure: Thickened widened base lowers overall gravity, prevents shaking during operation, ideal for long‑term high‑frequency usage
Integrated cabinet card reading: Square top cabinet builds‑in dual card‑reading sensors, no extra external devices required, saves installation space
Multiple housing material options: Standard 304 stainless steel, optional 316 stainless steel, anti‑corrosion for indoor and partial semi‑outdoor projects, durable stainless steel tripod turnstile for public building
Diversified surface finishing: Support brushed, polished, electroplating and baking paint finish, custom color to fit site decoration style
High passing throughput: Stable capacity up to 30‑40 people per minute, cope with heavy foot traffic from factories, exhibition halls and public venues
Wide‑voltage power supply: AC100‑240V wide‑voltage input, stable DC12V / DC24V output, compatible with power grids in various countries
Adjustable operation mode: Standard semi‑automatic mode, optional fully‑automatic version, flexible configuration for different site requirements
Multi‑scene compatibility: Suitable for factories, scenic spots, exhibition halls, museums and public venues, deliver reliable indoor pedestrian access management, perfect vertical tripod turnstile for museum
Black wear‑resistant tripod arms: Dual‑side black tripod arms with high mechanical strength, impact‑resistant and anti‑deformation for long service life
Modular disassembly structure: Modular construction for easy part replacement and maintenance, shorten equipment downtime for repair
Auto drop‑arm under power failure: Arms drop automatically upon power cut to keep passage open for emergency evacuation
Anti‑tailgating protection: Built‑in anti‑tailgating logic prevents unauthorized tailgating and improves access security
Reserved signal expansion interface: Multi‑channel dry contact interfaces, compatible with face recognition, QR code, fingerprint and third‑party readers
Customizable passing direction: Independently set in/out direction for each side, one‑way or two‑way mode configurable for diverse management logic
Low‑noise operation: Optimized transmission structure reduces running noise, fit for noise‑sensitive indoor sites like offices and museums

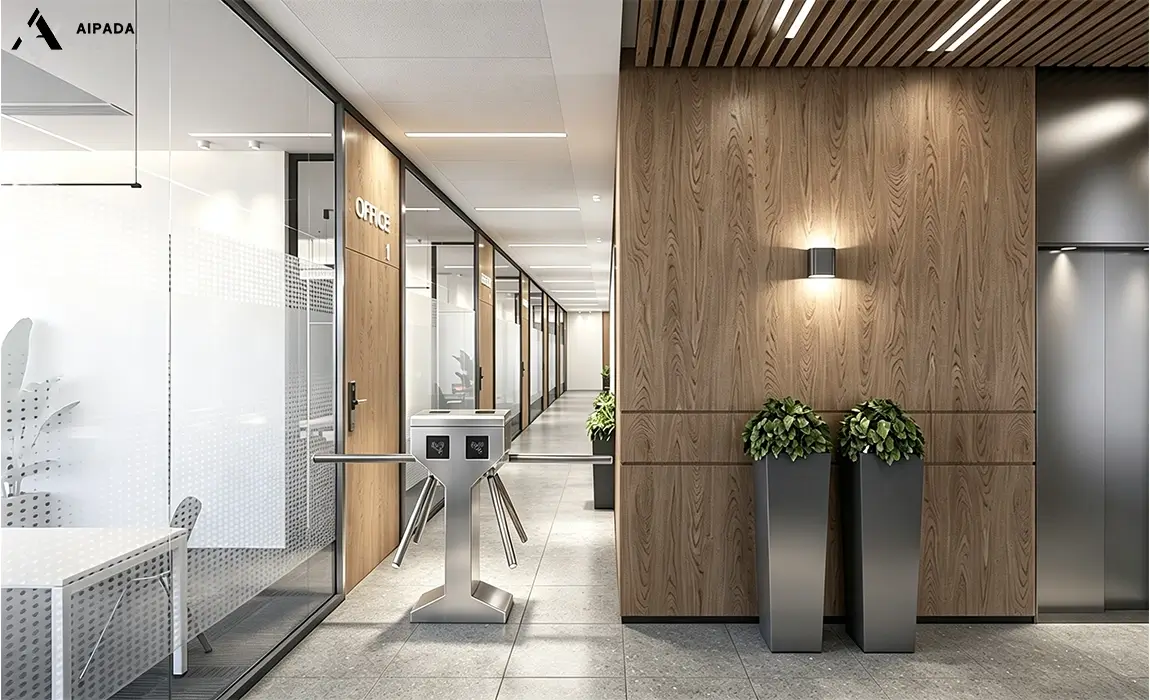

AT103 Double vertical tripod turnstile Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
AT103 Double vertical tripod turnstile Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.
Optional：Number of turnstile channels
The image shows a dual-channel system, consisting of two single-core tripod turnstiles. If more channels are needed, the number of turnstiles can be increased.
Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.
Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.
Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
1.Q：Can this tripod turnstile work with our existing access control system?
A：It supports standard dry‑contact relay signal, compatible with most mainstream access controllers, we can provide technical protocol for integration.
2.Q：Is it possible to adjust the holding time for each passing cycle?
A：Passing delay time is adjustable on main control board, you can set suitable dwell time for different crowd flow.
3.Q：What will happen if power cuts off suddenly?
A：Upon power failure, arms drop automatically for free passage, to guarantee safe evacuation for onsite personnel.
4.Q：Do you offer on‑site installation guidance or remote technical support?
A：We supply detailed installation manuals, remote online support is available; on‑site service can be negotiated separately.
5.Q：Will the tripod turnstile trigger false alarm when people loiter nearby?
A：Sensor logic can be configured, false alerts from nearby loitering can be filtered according to actual site conditions.
6.Q：What surface finish options do you provide for the tripod turnstile cabinet?
A：Stainless steel brushed finish and custom paint coating are optional to match building interior decoration style.
7.Q：Is there any height limitation for installing external recognition devices on top?
A：There are recommended mounting height specifications, we can share dimension drawing for your device pre‑check.
