AT513 Full Height Pedestrian Turnstile Glass Frame Full Height Turnstile

The AT513 Full Height Pedestrian Turnstile is a heavy-duty, floor-to-ceiling security solution designed for maximum containment and access control. Built from high-quality 304 stainless steel (optional 316), this anti-climb pedestrian gate creates an unbreachable barrier, making it the ideal choice for sensitive sites such as industrial plants, logistics hubs, and high-security government facilities. The AT513 features a sophisticated mechanical anti-reverse mechanism and supports seamless integration with biometric scanners and RFID systems. Whether operating in extreme heat or freezing rain, this outdoor full-height turnstile delivers 24/7 reliability, ensuring that only authorized personnel can cross your facility’s most critical perimeters.

1.Product dimensions:1500*2300mm; 4.92*7.55 ft
(standard; customizable)

2.Aisle width: 650 mm (2.13 ft) (standard)

3.Access height: 2000 mm (6.56 feet) (standard)

4.Turnstile net weight: 260KG

5.Enclosure material: iron baking paint or 304/316 stainless steelbaking paint

6.Turnstile types:Semi-automatic(standard),Fully automatic (customizable)

7.Surface treatment: Brushed finish / Polished finish / Electroplating finish / Powder coating (customizable)

8.Traffic flow: One-way/Two-way

9.Power supply:Input: AC100V-240V,Output:DC24V,DC12V

SKU: AT513 Categories: Full Height Turnstiles, All Turnstiles Tags: 304 Stainless Steel, Curved Glass Panels, full height turnstile, full height turnstile gate, Full-Floor Anti-Tip Chassis, high security turnstile, Powder Coated Optional Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

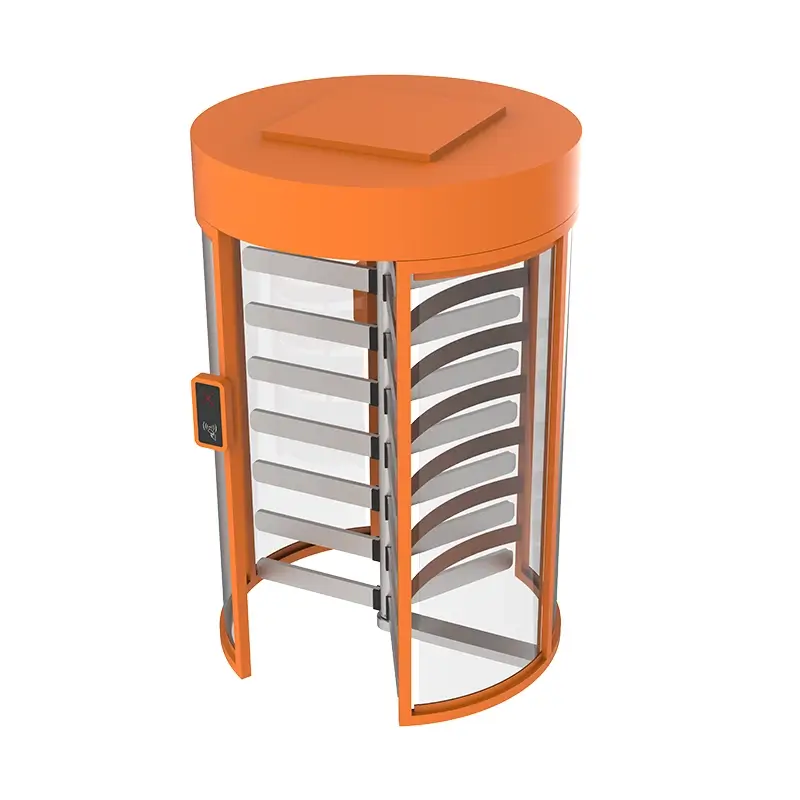

Full Height Turnstile 3D view display

Full Height Turnstile Functional features

1.Passage Indication: The front LED remains green to indicate lane availability. It turns red if the lane is unavailable.

2.Emergency Exit Function: Allows free passage in emergencies; the full-turn gate opens for free passage during power outages.

3.Operating Direction: Selectable for one-way or two-way passage.

4.Automatic Reset Function: After opening, the system automatically locks if no passage occurs within a specified time; the passage time is adjustable.

5.Intrusion Prevention: The gate automatically locks before a valid opening signal is sent.

6.Quick Unlock: The gate automatically unlocks within 0.2 seconds (adjustable) upon receiving a valid signal.

7.Hydraulic Damper: Equipped with a hydraulic shock absorber for quieter operation.

8.Mold Design: The mechanism utilizes a mold design, resulting in more precise components. This saves on labor costs and facilitates assembly.

9.Passage Modes: Entry and exit directions can be independently set to 【Controlled Passage】/【Free Passage】/【No Passage】.

10.Passage Request Memory Function: When two or more valid passage signals are given simultaneously (including same-direction and opposite-direction), the system will remember all passage requests and complete each passage action sequentially (the number of requests to remember and whether to select the memory function can be customized according to customer requirements).

11.Safety Features: Equipped with lightning protection and leakage protection.

12.LCD Display Function: Controlled by a controller with a display screen for easy parameter setting.

13.Anti-Reverse Rotation Function: This mechanism is equipped with a mechanical anti-reverse rotation function; if the rotor rotates to a 60° angle, it is prevented from rotating in the opposite direction.

14.Lighting Function: Full-height turnstile with night lighting function.

15.Voice Prompt Function: Voice prompts during entry and exit; multiple voice prompts can be set (customizable).

16.Interface Protocol: Free development kit protocol provided for convenient control and debugging; strong scalability.

Full Height Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

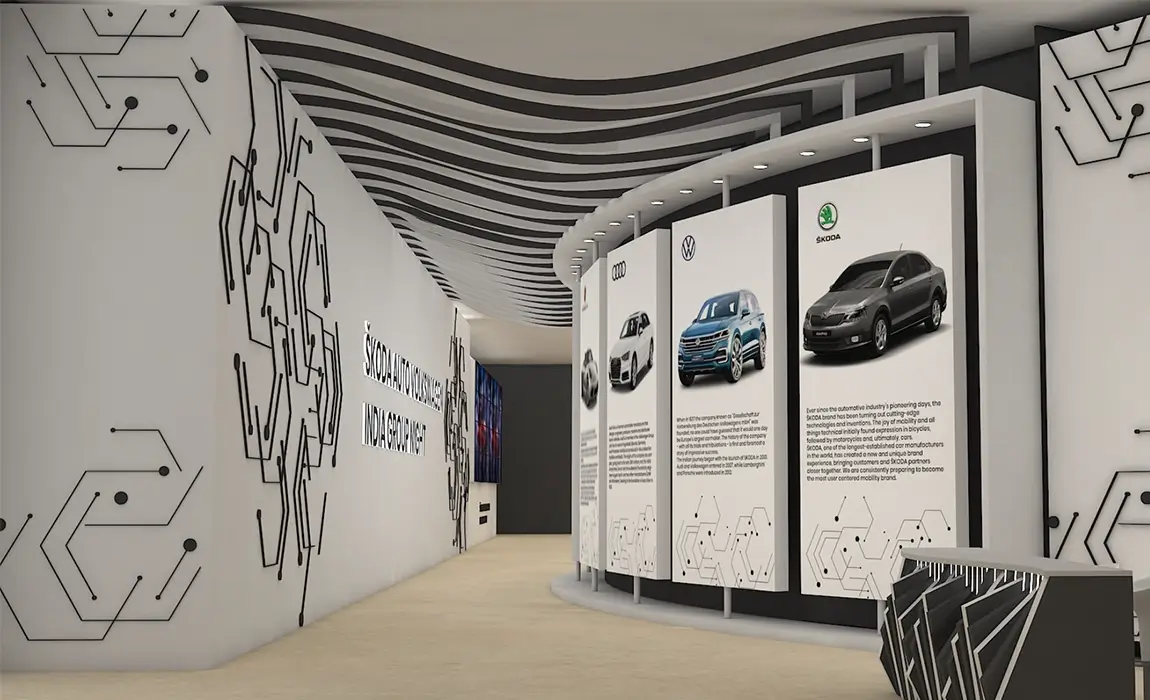

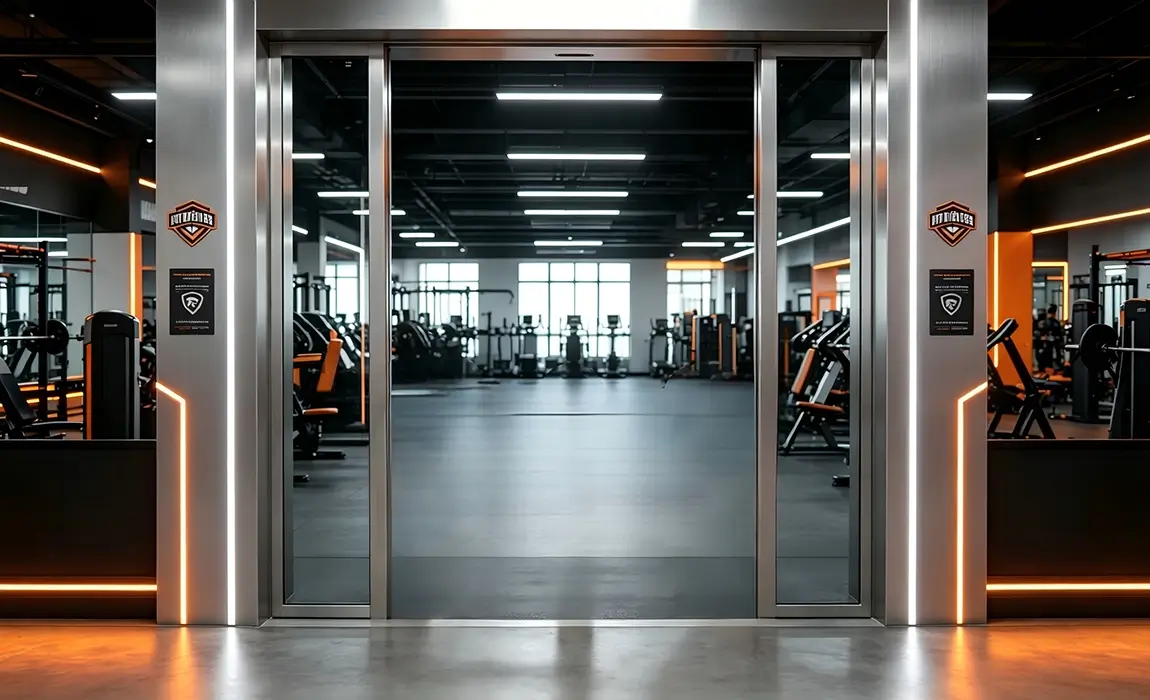

Before

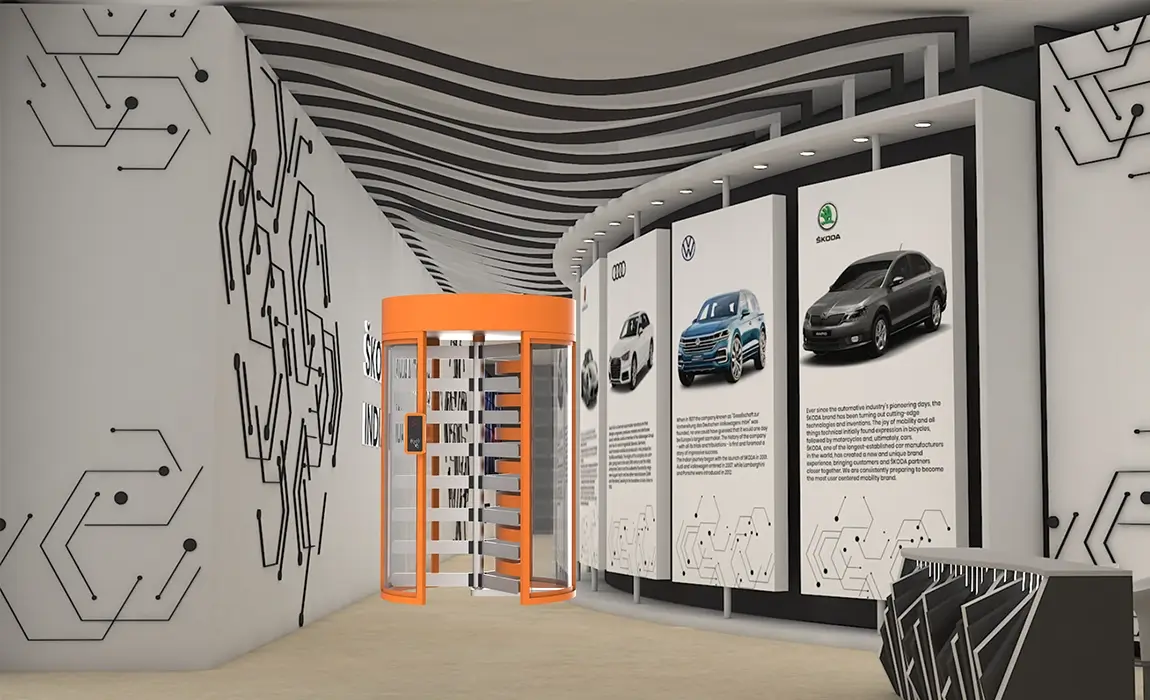

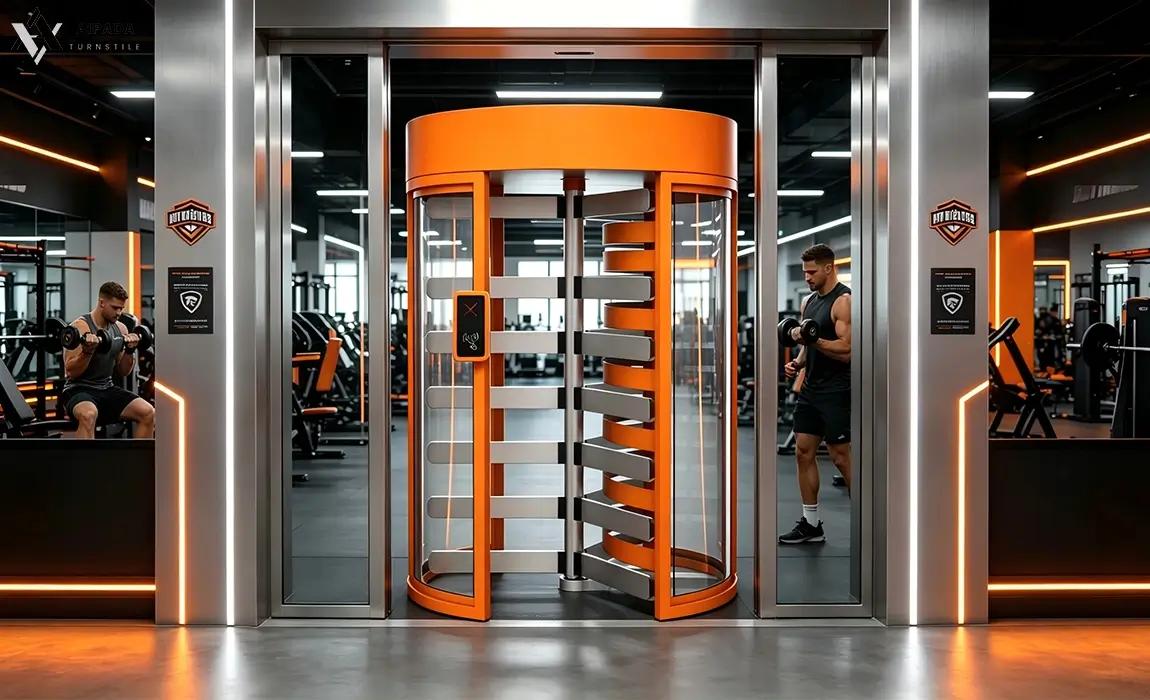

After

Full Height Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

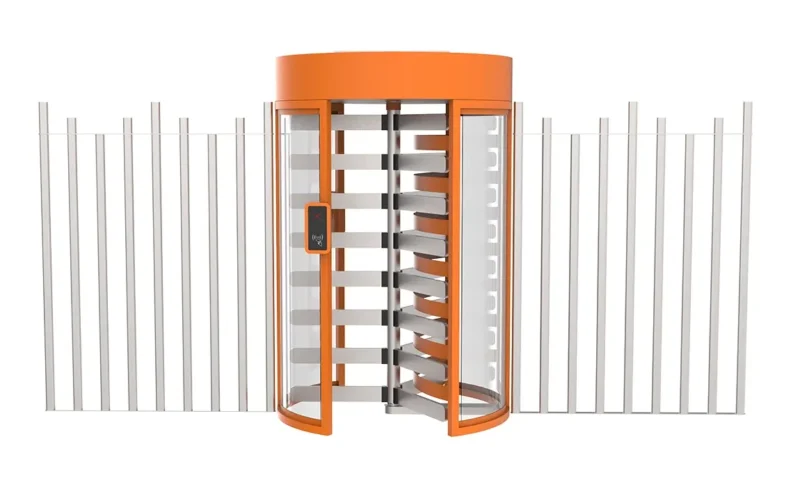

Optional: Turnstile Guardrail

As illustrated in the diagram, this is a combined solution of the Full-Height Turnstile and matching guardrails. When the entrance/exit width is wider than required for a single access point but only one passage is needed, the remaining excess space can be neatly segregated with the guardrails. This setup not only precisely demarcates the pedestrian flow area to prevent disorderly access but also delivers a seamless visual integration between the turnstile and guardrails, resulting in a more organized and streamlined passage layout. Additionally, it optimizes on-site space utilization, striking a perfect balance between robust security control and rational space planning.

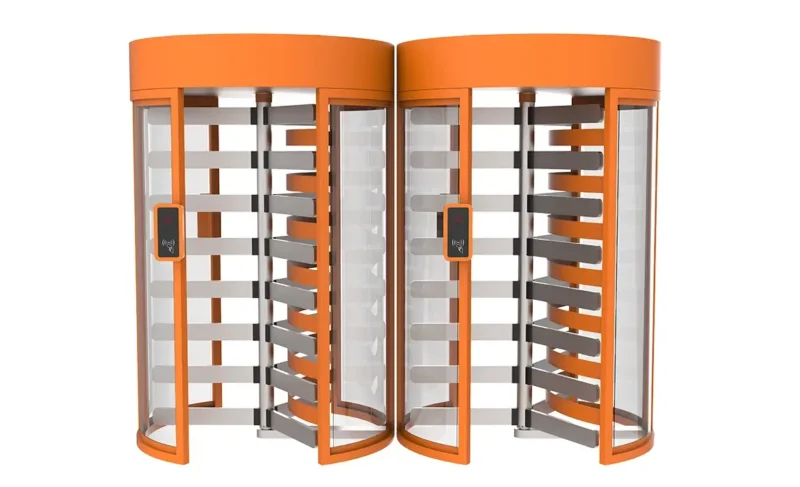

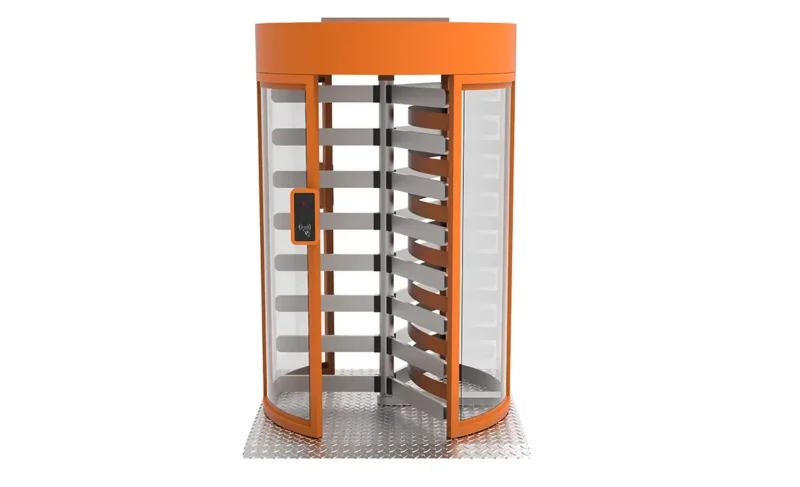

Optional：Turnstile channel count

This full height turnstile is available in flexible lane configurations to meet different site requirements. It can be deployed as a single lane unit for compact installations, or expanded into a double lane system to increase pedestrian throughput while maintaining strict access control. For projects requiring both security and accessibility, the turnstile can be combined with an integrated accessible swing gate, forming a multi-lane solution that supports standard users and wheelchair access simultaneously. Multiple units can also be installed side by side to create a scalable multi-lane entrance system, ideal for high-traffic environments such as industrial facilities, stadiums, and transportation hubs. This modular lane design allows clients to balance space, flow rate, and security level efficiently.

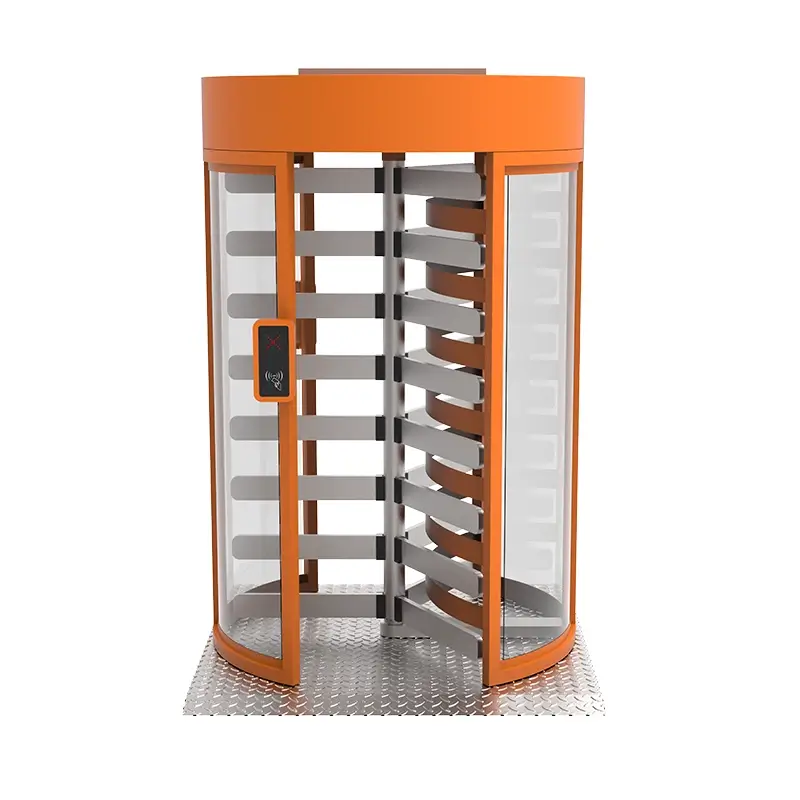

Optional：Turnstile base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

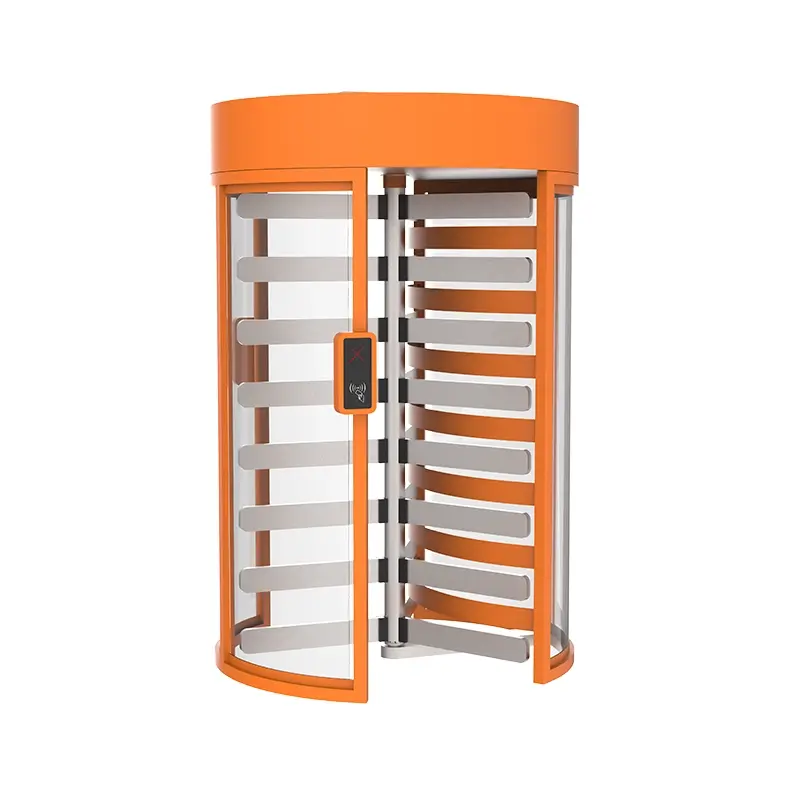

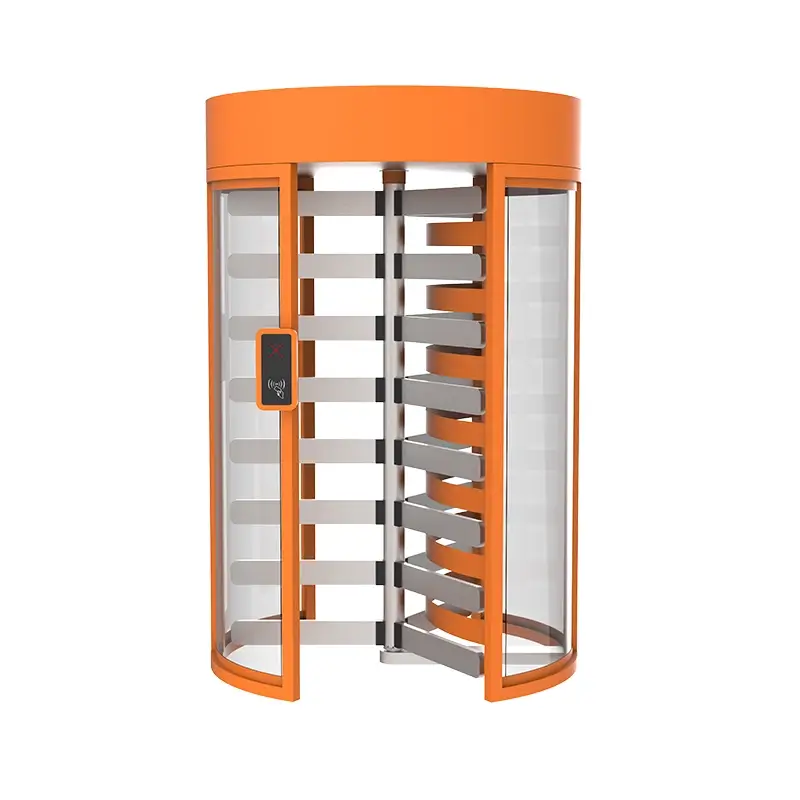

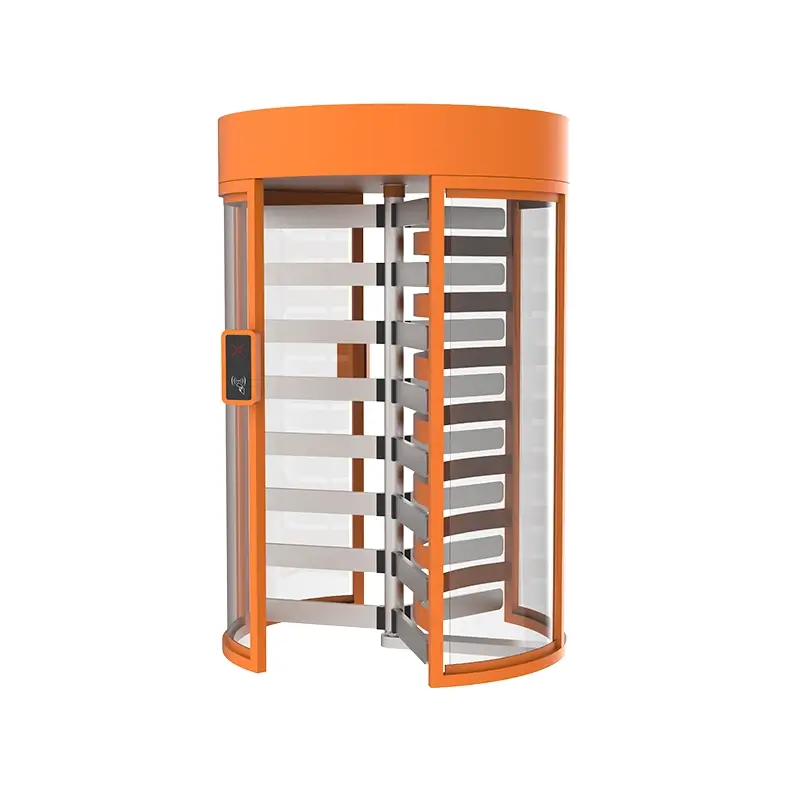

This curved glass full height turnstile is designed to deliver both premium aesthetics and uncompromising security for modern access control environments. The entire unit features a durable powder-coated finish, allowing flexible color customization to match different architectural styles and project requirements, making it ideal as an outdoor security turnstile or for high-end indoor installations.

The side enclosure is built with curved tempered glass panels, offering a sleek, panoramic appearance while maintaining strength and visibility. The rotating arms are equipped with robust stainless steel barrier panels, ensuring long-term durability and resistance to impact and wear. With a full ground-mounted cabinet design, this high security full height turnstile provides exceptional stability, eliminating any risk of forced tipping or vandalism, and serving as a reliable anti-tailgating access control system.

Available for single lane or double lane turnstile configurations, it can also be deployed as part of a multi-lane pedestrian access control system to handle high traffic flow efficiently. This full height rotating turnstile gate is widely used in industrial facilities, construction sites, data centers, stadiums, transportation hubs, campuses, and government buildings, offering seamless integration with RFID, biometric, QR code, and facial recognition systems.

Engineered for both performance and design flexibility, this custom color full height turnstile is the perfect solution for projects requiring secure, scalable, and visually refined entrance control.
