Acrylic Panel Full Height Turnstile

Acrylic Panel Full Height Turnstile AT514 - Image 2

Acrylic Panel Full Height Turnstile

Acrylic Panel Full Height Turnstile AT514

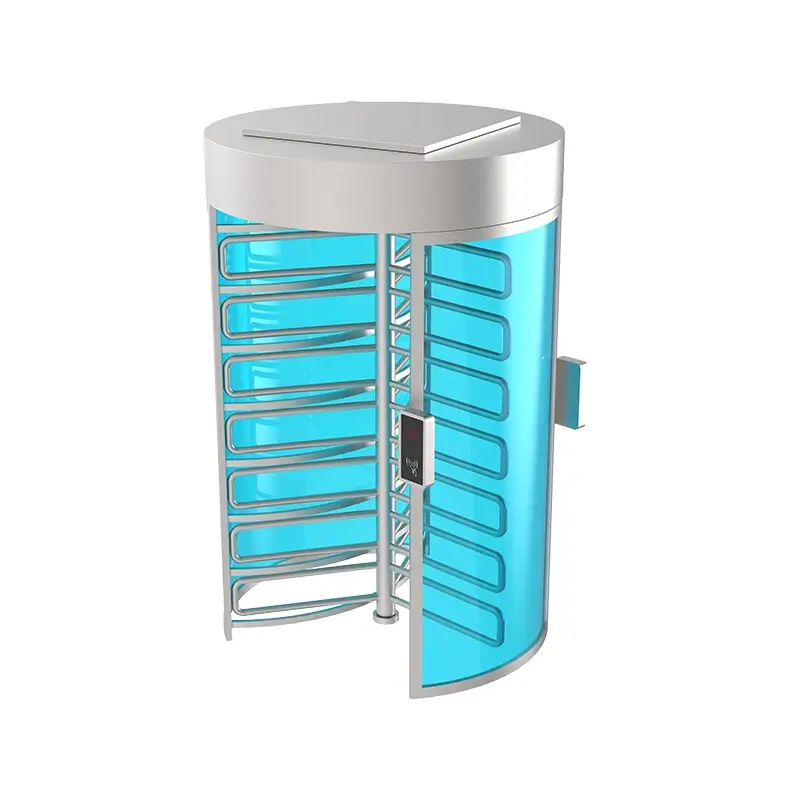

This modern cylindrical full‑height turnstile features a sleek round cabinet with a stainless‑steel circular top cover. Curved blue translucent side panels surround heavy‑duty tubular metal rotary baffles, with the access‑control reader embedded on the side housing. Its compact circular footprint saves floor space and delivers a striking contemporary look, paired with reliable anti‑climb and anti‑tailgating security performance. Supporting multi‑mode identification, direction‑configurable passage and emergency auto‑release, this rotary turnstile fits gymnasiums, entertainment venues, office parks and commercial projects pursuing modern visual aesthetics.

Product Dimensions:Standard size is 1500*2300 mm (4.92 × 7.55 ft), fully customizable to suit site layout and space constraints.
Aisle Width:Standard aisle width is 650 mm (2.13 ft), customizable to specific passage requirements.
Shell Structure: Standard structure uses painted metal sheet or tempered glass railings, offering rust and wear resistance suitable for most common indoor and outdoor environments. SUS304 and SUS316 stainless steel are available as upgrade options, providing enhanced corrosion and salt spray resistance, suitable for coastal, high-humidity, and harsh industrial environments.
Turret Operation Modes: Standard semi-automatic mode ensures economical, efficient, and stable daily operation. Fully automatic mode can be customized for upgrades, featuring smarter sensor detection and a smoother passage experience.
Pedestrian Flow: Supports configurable one-way or two-way traffic modes, allowing for flexible and scientific management of pedestrian flow based on actual site access rules. Drive Control System: Equipped with mature and reliable mechanical drive and intelligent control modules, supporting continuous and frequent operation. It features sensitive sensing, anti-interference operation, and automatic reset functions, effectively preventing card swipe failures and unauthorized tailgating.
Passage Capacity:Under normal operating conditions, it can accommodate 25-30 people per minute, meeting the high-frequency pedestrian passage needs of medium to large-scale traffic scenarios.

SKU: AT514 Categories: Full Height Turnstiles, All Turnstiles Tags: 304 Stainless Steel Full Height Turnstile, Anti-climb Full Height Turnstile, Full Height Access Control Turnstile, Full Height Security Turnstile, LED Full Height Turnstile, Single Door Full Height Turnstile Brand: AIPADA

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

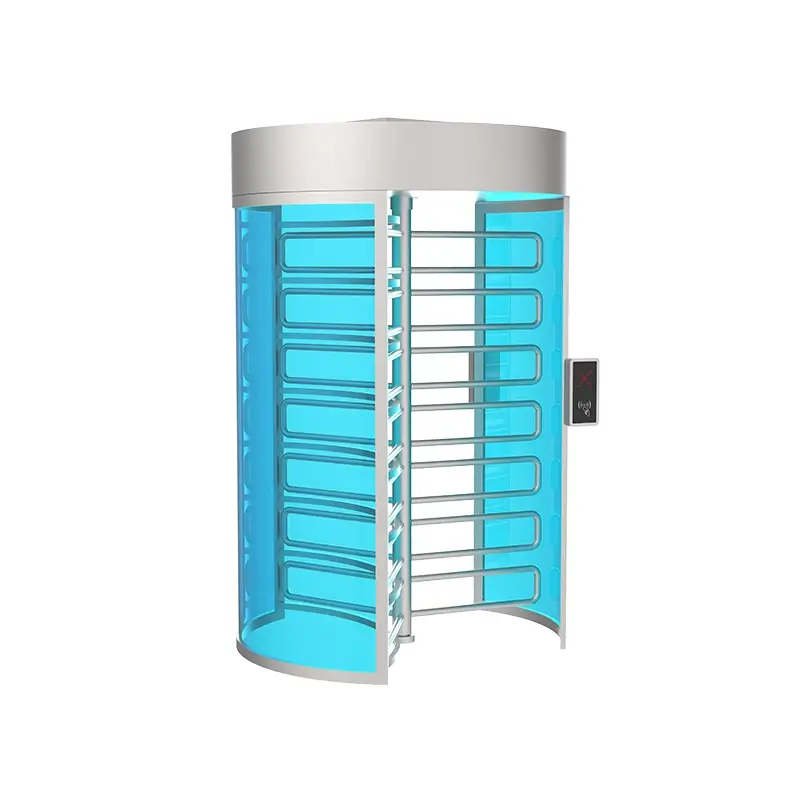

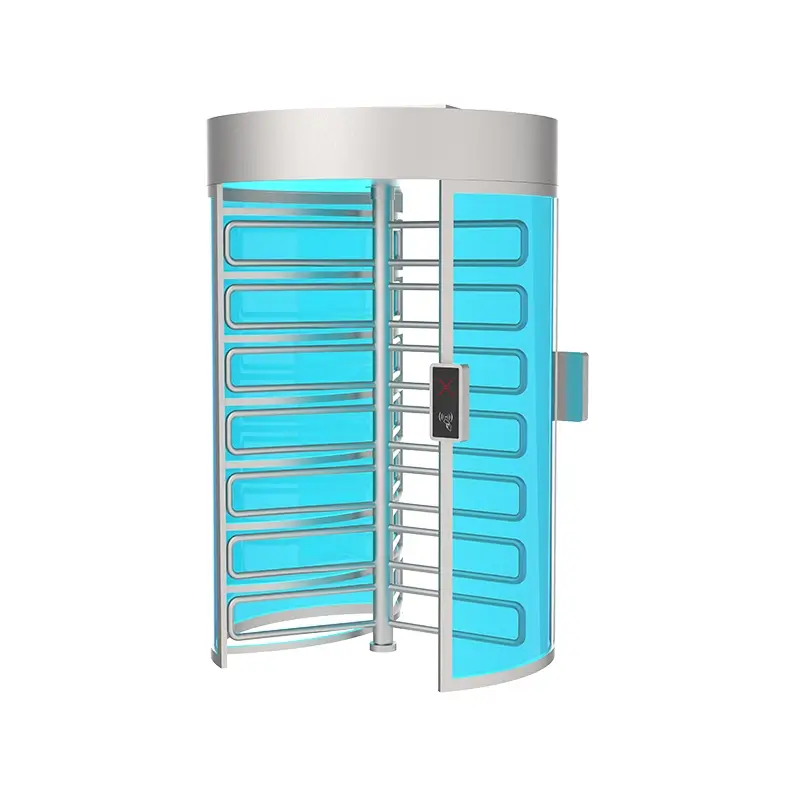

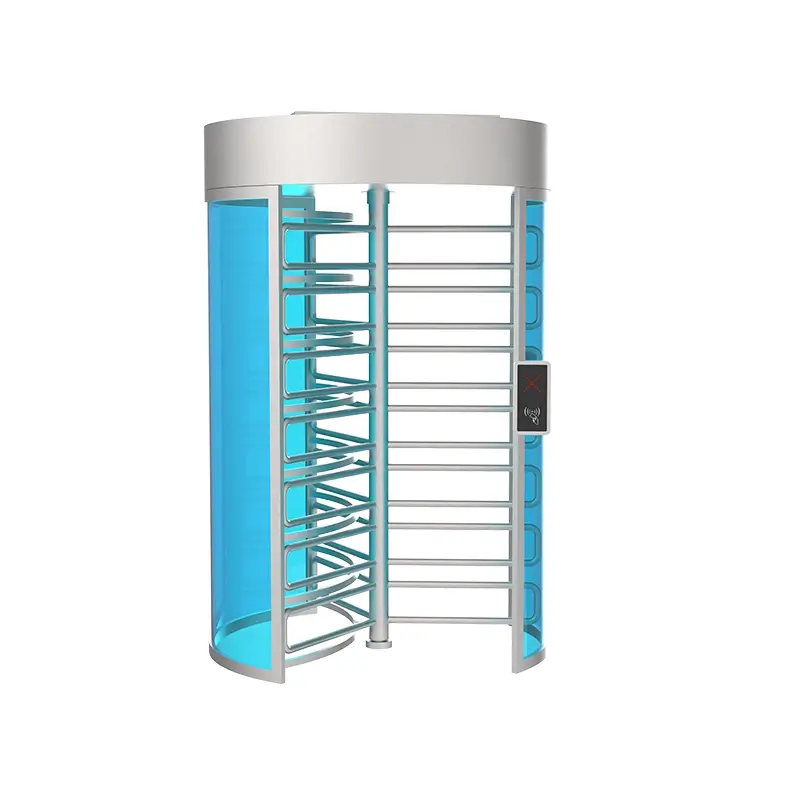

AT514 Acrylic Panel Full Height Turnstile 3D view display

AT514 Acrylic Panel Full Height Turnstile Functional features

Standard Overall Dimension：This Full Height Turnstile adopts standard dimension 1500×2300 mm with metric‑imperial dual‑unit display. Complete structural customization supports height, diameter adjustment to match various site layout and space‑restricted installation conditions.
Customizable Passage Clear Width：Default 650 mm aisle width meets regular pedestrian passing demands; adjustable passage width can be customized for special‑size access requirements of individual projects.
Main Shell Construction Material：Standard enclosure uses painted metal sheet, delivering excellent rust‑proof and wear‑resistant performance for general indoor and semi‑outdoor application scenarios.
Premium Stainless‑Steel Upgrade：SUS304 and SUS316 stainless steel are optional for this Full Height Turnstile. SUS316 provides superior salt‑spray and anti‑corrosion property for coastal, high‑humidity and heavy‑industrial locations.
Curved Blue Translucent Acrylic Side Panel：Arc‑shaped blue translucent acrylic side panels feature light‑transmission effect, impact resistance and lightweight property, creating modern visual effect for cylindrical turnstile.
Stainless‑Steel Circular Top Cover：Polished stainless‑steel round top cover enhances texture, water‑proof and anti‑rust performance, suitable for long‑term indoor and semi‑outdoor service.
Heavy‑Duty Tubular Metal Rotary Baffles：Thick tubular metal rotor baffles ensure mechanical strength and deformation‑resistance under long‑term high‑frequency rotation operation.
Embedded Access‑Control Reader Mounting Position：Reader reserved mounting area on side cabinet, access‑control equipment can be directly installed without extra external brackets.
Semi‑Automatic Operating Mode：Factory‑set semi‑automatic mode features low power consumption, stable running and cost‑effective performance for daily frequent pedestrian access.
Upgradable Fully‑Automatic Mode：Optional fully‑automatic configuration adds high‑precision sensor system, realizing soft start‑stop and smoother user passing experience.
Independent Lane Traffic‑Direction Setting：Supports configurable one‑way or two‑way passage mode, administrators can set traffic logic flexibly according to on‑site management regulations.
Mature Mechanical‑Intelligent Drive‑Control System：Combines robust mechanical transmission and intelligent control board, supporting non‑stop continuous operation under heavy‑load high‑frequency conditions.
Automatic Rotor Reset Function：Rotary baffles automatically lock and reset after each valid credential verification, preventing unauthorized random rotor rotation.
Practical Passage Throughput：Achieves 25‑30 people per minute under normal working status, satisfying high‑frequency pedestrian flow of gyms, entertainment venues and office parks.
Multi‑Identification Hardware Compatibility：Reserved standard interfaces for IC card, QR‑code, fingerprint and facial recognition modules to realize diversified identity verification.
Fire‑Alarm Signal Linkage Function：Responds to external fire‑alarm input signal, rotor mechanism auto‑unlocks to realize unobstructed emergency evacuation.
Power‑Failure Manual Mechanical Release：Independent manual unlocking structure; authorized personnel can mechanically release rotor for evacuation when power supply fails.
Wide Operating Temperature Range：Stable operation within ‑20℃ ~ +60℃, adaptable to diverse climate for indoor and semi‑outdoor installation.
Modular Split Assembly Structure：Modular split‑body design simplifies packing, container transportation and shortens on‑site assembly & commissioning time.
Dry‑Contact Signal Output Port：Reserved dry‑contact signal interface for connecting central monitoring platform in large‑scale integrated security projects.
Custom Surface Colour & Logo Engraving：Shell supports custom RAL colour spraying and laser‑engraved customer logo to match brand styling requirements for commercial projects.

AT514 Acrylic Panel Full Height Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

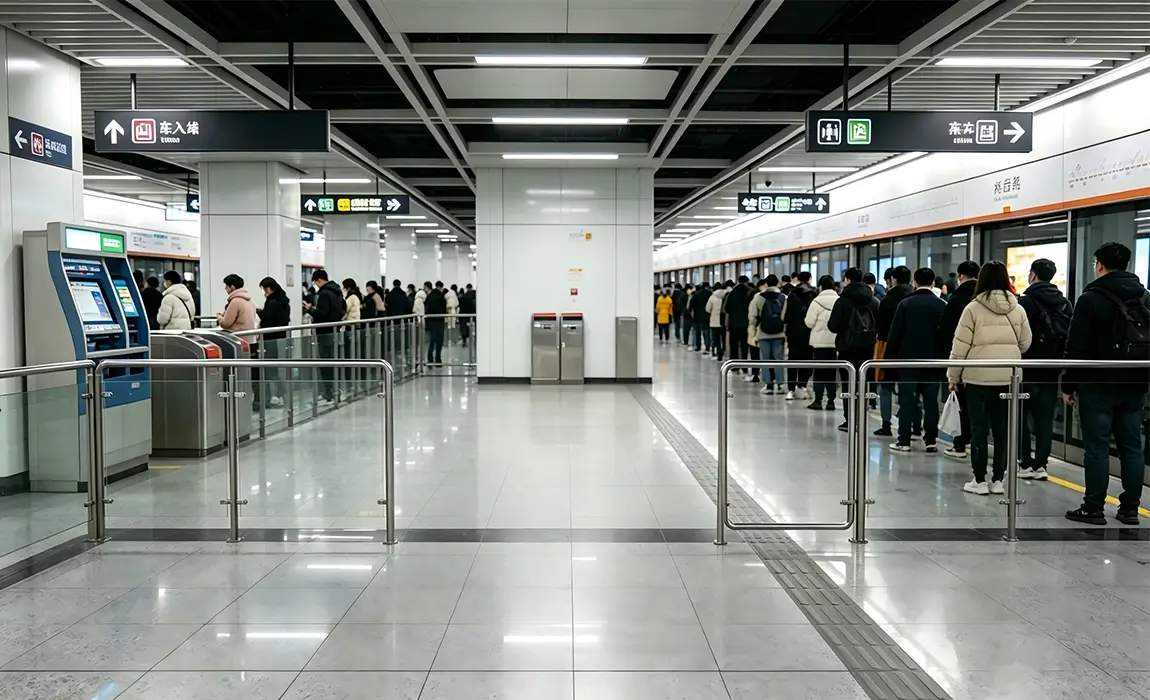

Before

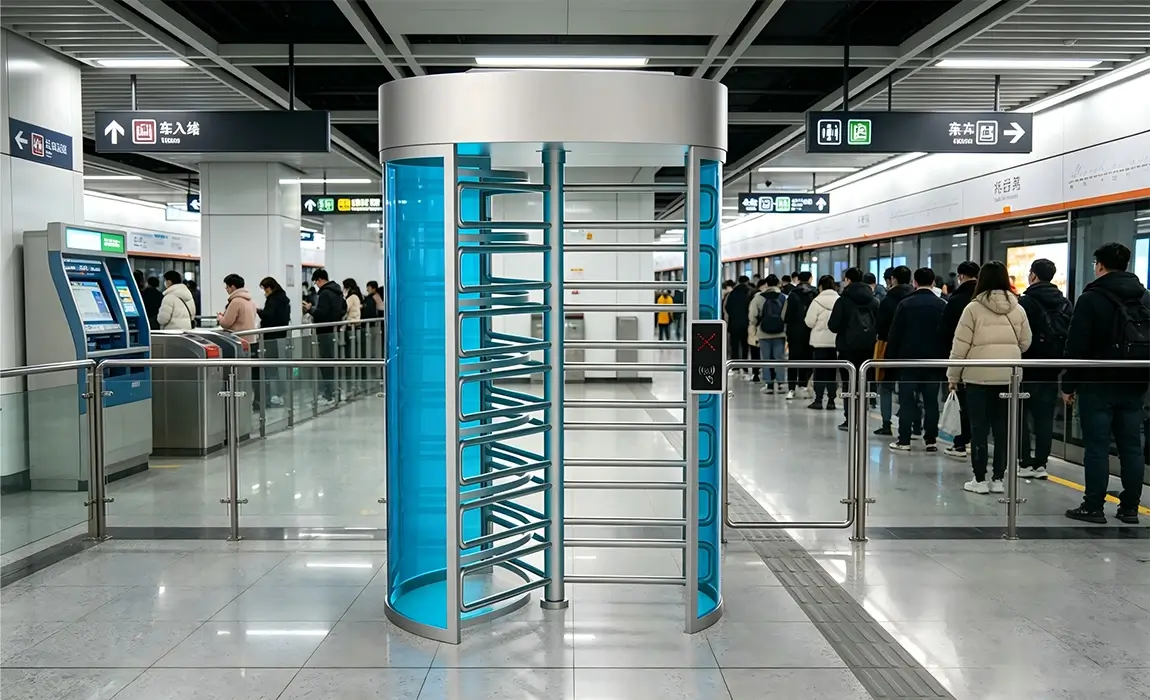

After

AT514 Acrylic Panel Full Height Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

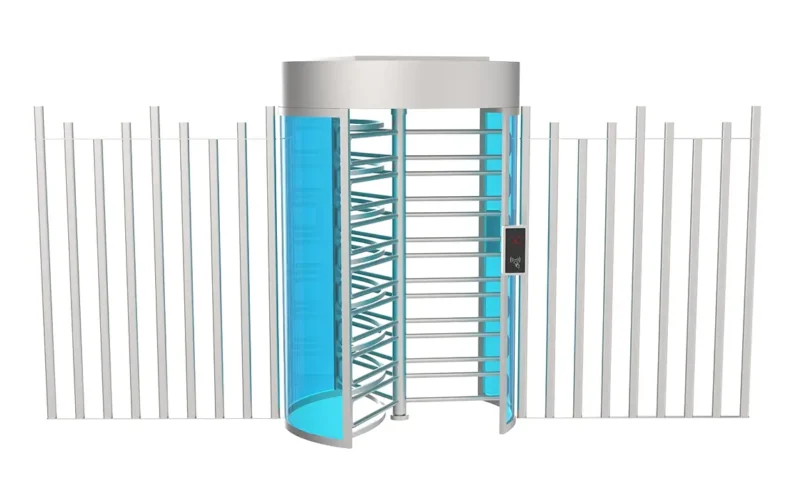

Optional: Turnstile Guardrail

As illustrated in the diagram, this is a combined solution of the Full-Height Turnstile and matching guardrails. When the entrance/exit width is wider than required for a single access point but only one passage is needed, the remaining excess space can be neatly segregated with the guardrails. This setup not only precisely demarcates the pedestrian flow area to prevent disorderly access but also delivers a seamless visual integration between the turnstile and guardrails, resulting in a more organized and streamlined passage layout. Additionally, it optimizes on-site space utilization, striking a perfect balance between robust security control and rational space planning.

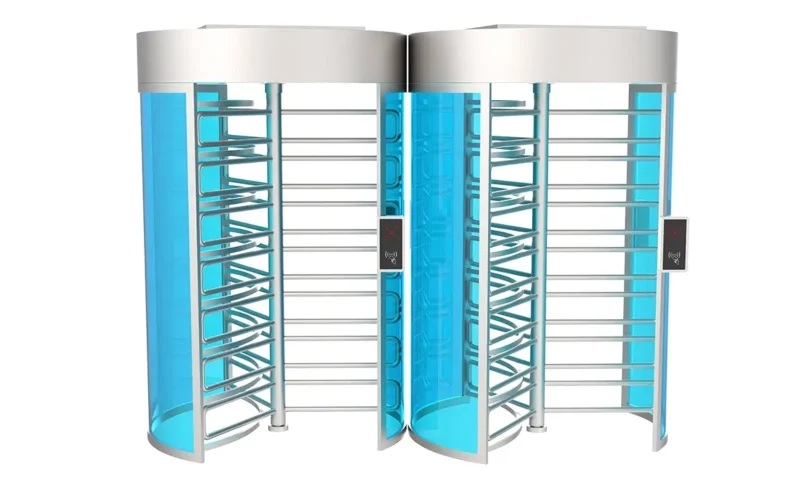

Optional：Turnstile channel count

This full height turnstile is available in flexible lane configurations to meet different site requirements. It can be deployed as a single lane unit for compact installations, or expanded into a double lane system to increase pedestrian throughput while maintaining strict access control. For projects requiring both security and accessibility, the turnstile can be combined with an integrated accessible swing gate, forming a multi-lane solution that supports standard users and wheelchair access simultaneously. Multiple units can also be installed side by side to create a scalable multi-lane entrance system, ideal for high-traffic environments such as industrial facilities, stadiums, and transportation hubs. This modular lane design allows clients to balance space, flow rate, and security level efficiently.

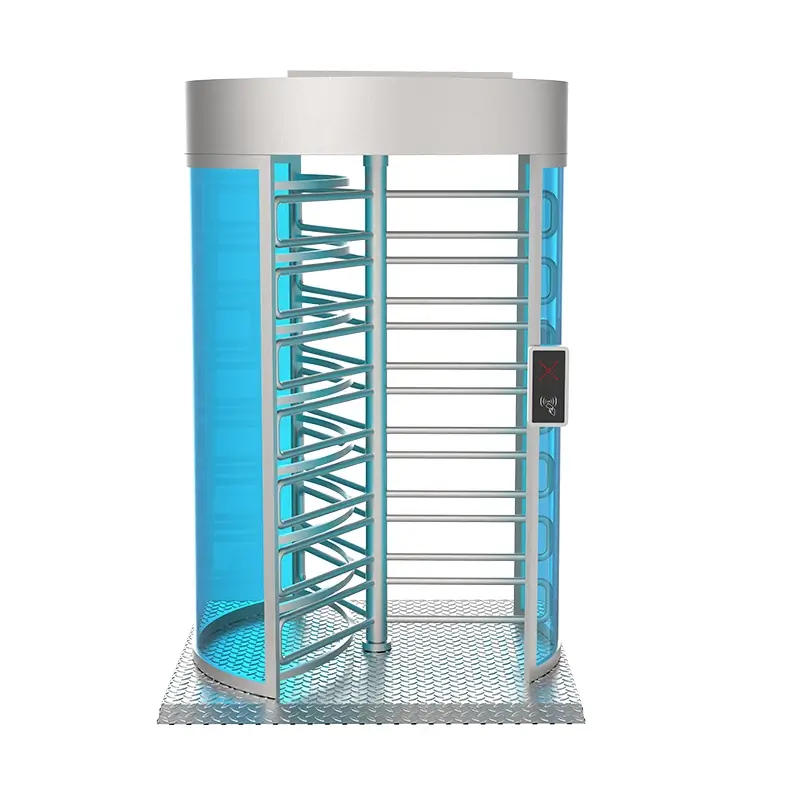

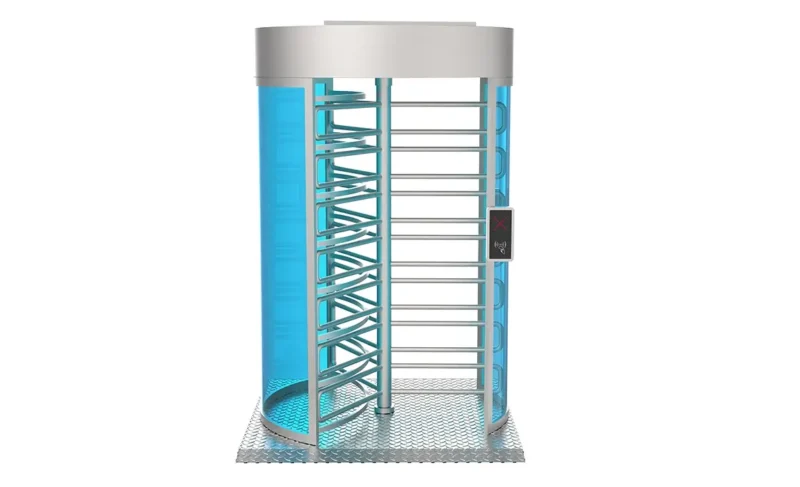

Optional：Turnstile base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

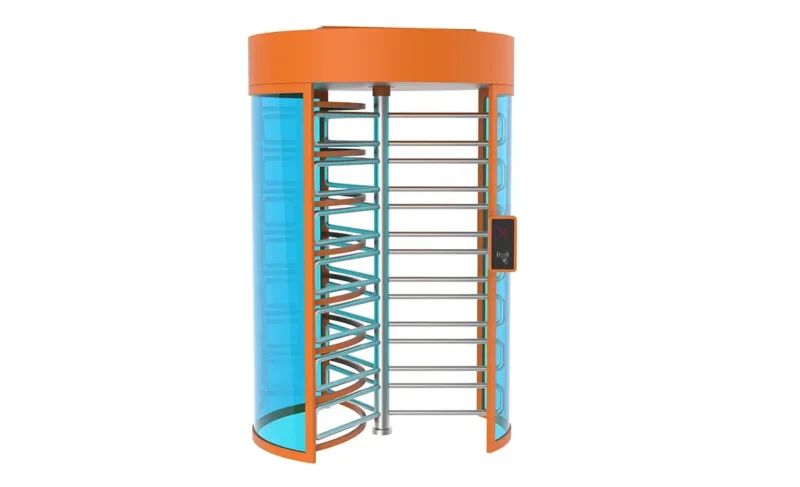

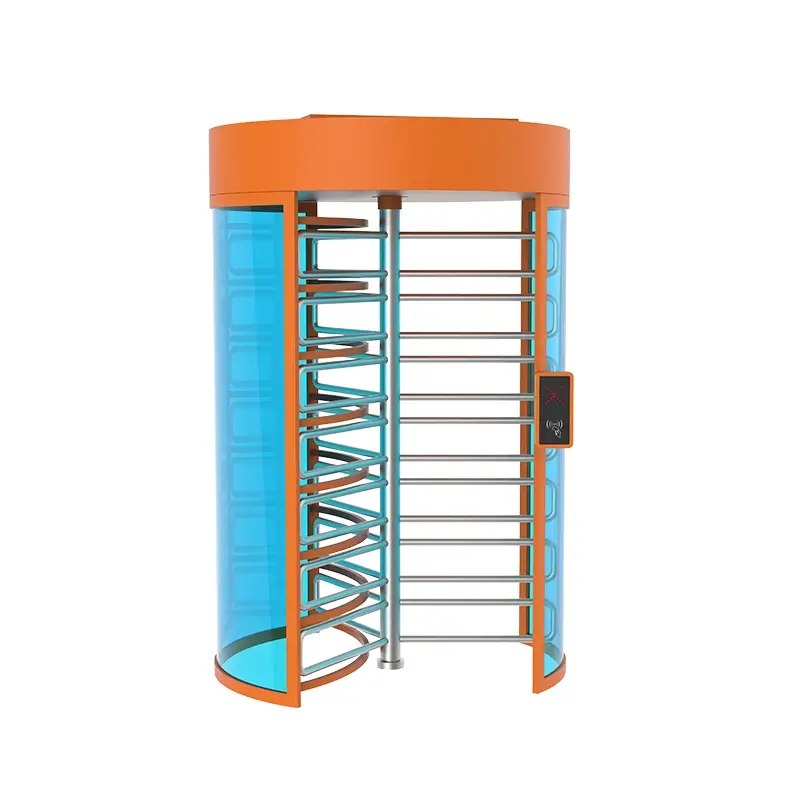

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q：What materials are used for the side panels of this full height turnstile?
A：The side panels adopt high‑impact translucent blue acrylic material. Tempered glass is also available as an optional upgrade.

2.Q：Can the cabinet material be changed to stainless steel for coastal projects?
A：Yes, SUS304 and corrosion‑resistant SUS316 stainless steel are optional, perfectly suited for coastal and high‑humidity environments.

3.Q：What are the standard dimensions of AT514 full height turnstile? Can we customize the size?
A：Standard dimension is 1500×2300 mm. Custom height and diameter are supported to fit site space limits.

4.Q：What identification devices can connect to this full height turnstile?
A：It works with card readers, QR‑code scanners, fingerprint and facial recognition terminals.

5.Q：What is the people throughput per minute for AT514?
A：Normal throughput reaches 25‑30 people per minute for high‑frequency pedestrian scenarios.

6.Q：Can we print our company logo on the turnstile cabinet? Can we change the cabinet colour?
A：Custom laser‑engraved logo and RAL colour spraying are available according to your requirements.
