AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

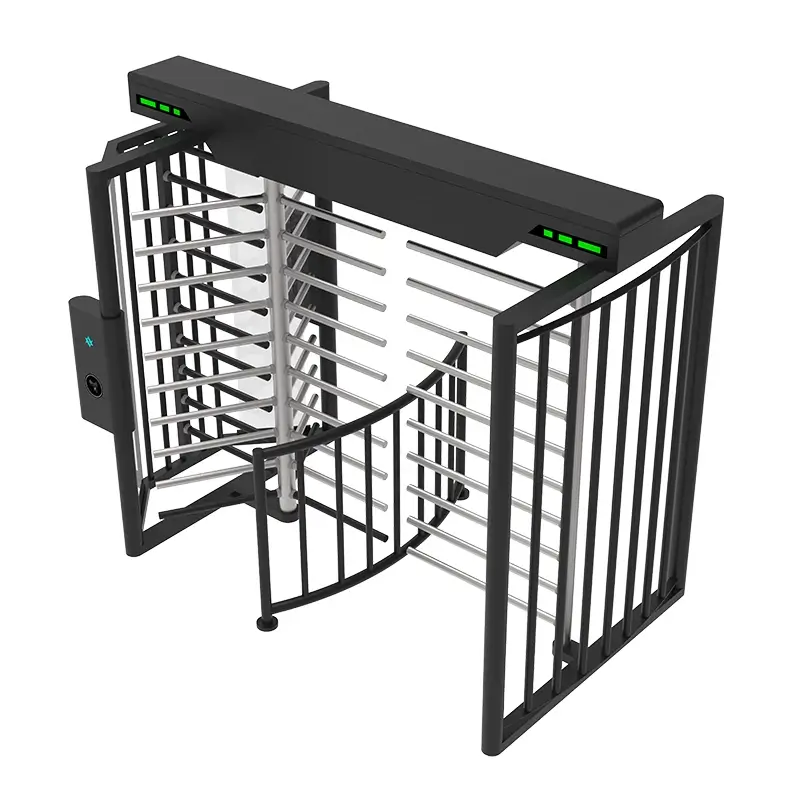

Full Height Turnstile 3D view display
Full Height Turnstile Functional features
1.Passage Indication: The front LED remains green to indicate lane availability. It turns red if the lane is unavailable.
2.Emergency Exit Function: Allows free passage in emergencies; the full-turn gate opens for free passage during power outages.
3.Operating Direction: Selectable for one-way or two-way passage.
4.Automatic Reset Function: After opening, the system automatically locks if no passage occurs within a specified time; the passage time is adjustable.
5.Intrusion Prevention: The gate automatically locks before a valid opening signal is sent.
6.Quick Unlock: The gate automatically unlocks within 0.2 seconds (adjustable) upon receiving a valid signal.
7.Hydraulic Damper: Equipped with a hydraulic shock absorber for quieter operation.
8.Mold Design: The mechanism utilizes a mold design, resulting in more precise components. This saves on labor costs and facilitates assembly.
9.Passage Modes: Entry and exit directions can be independently set to 【Controlled Passage】/【Free Passage】/【No Passage】.
10.Passage Request Memory Function: When two or more valid passage signals are given simultaneously (including same-direction and opposite-direction), the system will remember all passage requests and complete each passage action sequentially (the number of requests to remember and whether to select the memory function can be customized according to customer requirements).
11.Safety Features: Equipped with lightning protection and leakage protection.
12.LCD Display Function: Controlled by a controller with a display screen for easy parameter setting.
13.Anti-Reverse Rotation Function: This mechanism is equipped with a mechanical anti-reverse rotation function; if the rotor rotates to a 60° angle, it is prevented from rotating in the opposite direction.
14.Lighting Function: Full-height turnstile with night lighting function.
15.Voice Prompt Function: Voice prompts during entry and exit; multiple voice prompts can be set (customizable).
16.Interface Protocol: Free development kit protocol provided for convenient control and debugging; strong scalability.

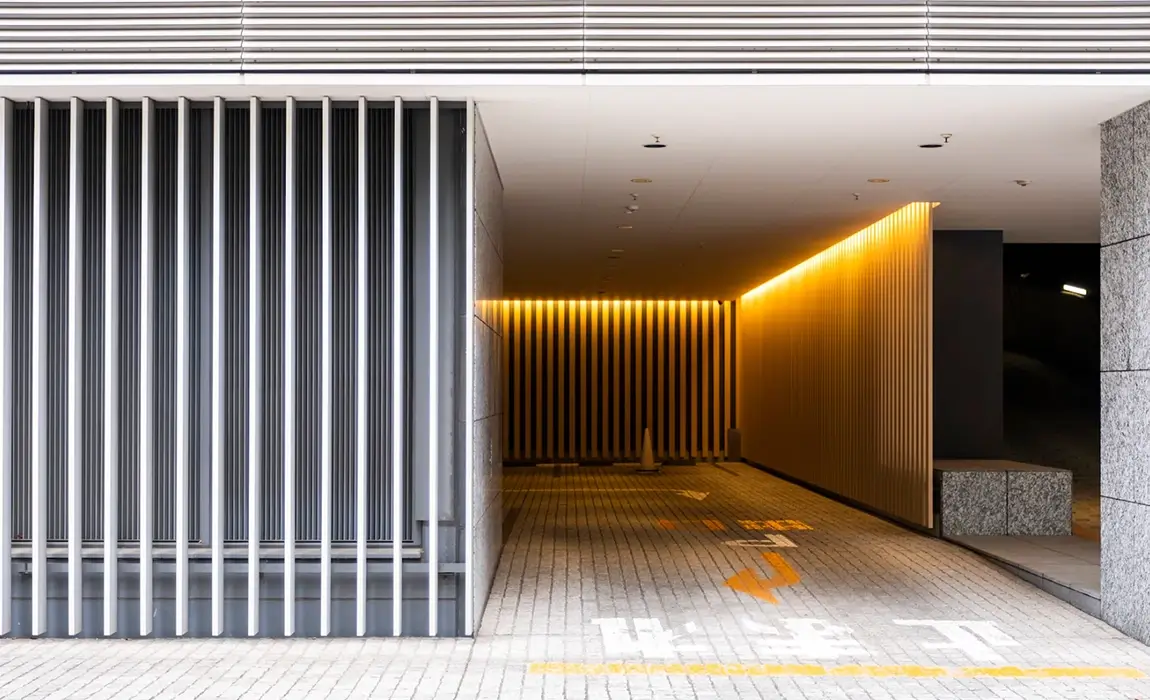

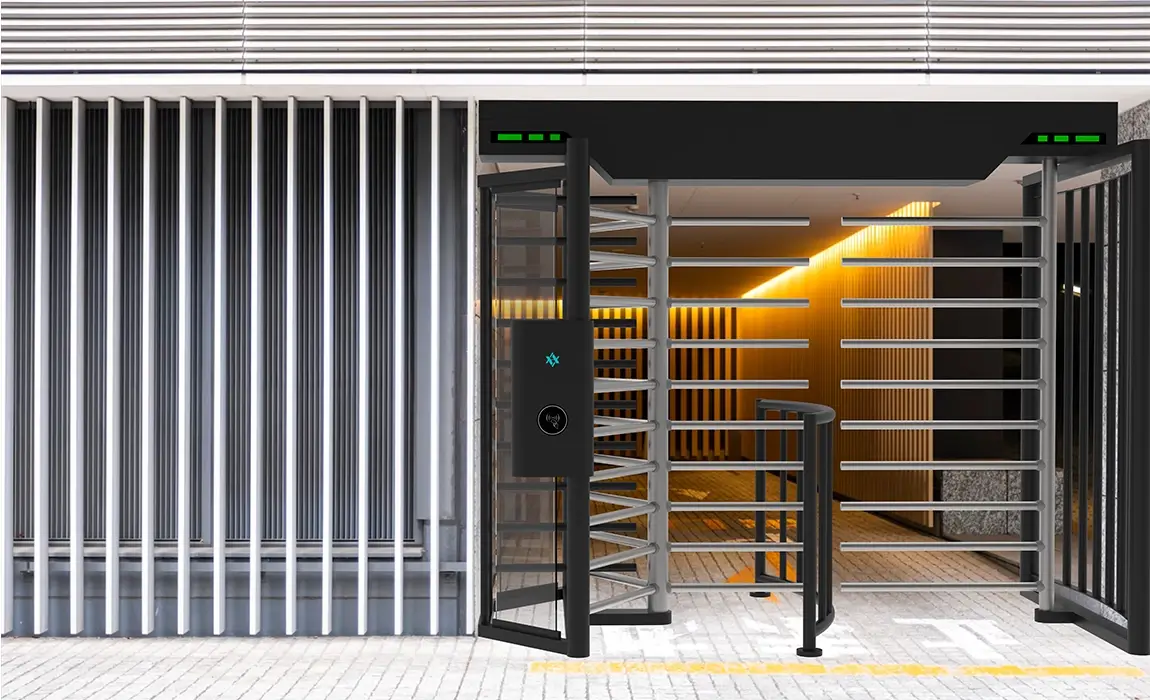

Full Height Turnstile Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
Full Height Turnstile Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

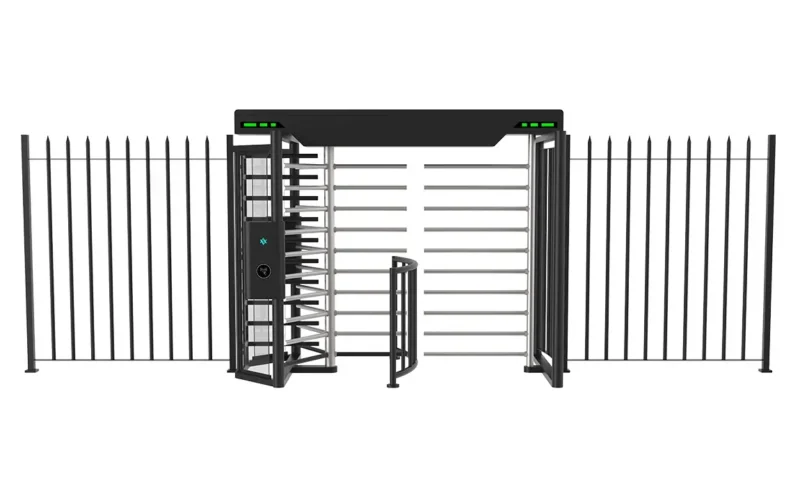

Optional: Turnstile Guardrail

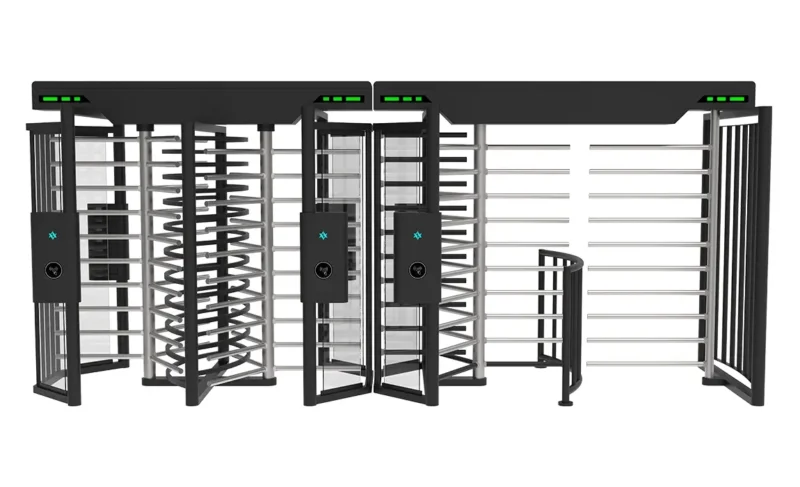

As illustrated in the diagram, this is a combined solution of the Full-Height Turnstile and matching guardrails. When the entrance/exit width is wider than required for a single access point but only one passage is needed, the remaining excess space can be neatly segregated with the guardrails. This setup not only precisely demarcates the pedestrian flow area to prevent disorderly access but also delivers a seamless visual integration between the turnstile and guardrails, resulting in a more organized and streamlined passage layout. Additionally, it optimizes on-site space utilization, striking a perfect balance between robust security control and rational space planning.
](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT506-LD-01-800x487.webp "AT506 Dual-Lane Full-Height Turnstile High-throughput Full Height Turnstile 11")
](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT506-LD-02-800x487.webp "AT506 Dual-Lane Full-Height Turnstile High-throughput Full Height Turnstile 12")
Optional：Turnstile Awning
For outdoor/semi-outdoor scenarios, we can add a dedicated canopy component to the full-height gate: it can not only significantly improve the waterproof protection level of the equipment, effectively block rainwater intrusion and extend the service life of the body and internal components; but also guide rainwater to both sides of the passage through a scientific flow-guiding design, avoiding water accumulation and slippery passage areas, allowing people to maintain a dry and comfortable experience when passing through in the rain, taking into account both equipment durability and passage comfort.

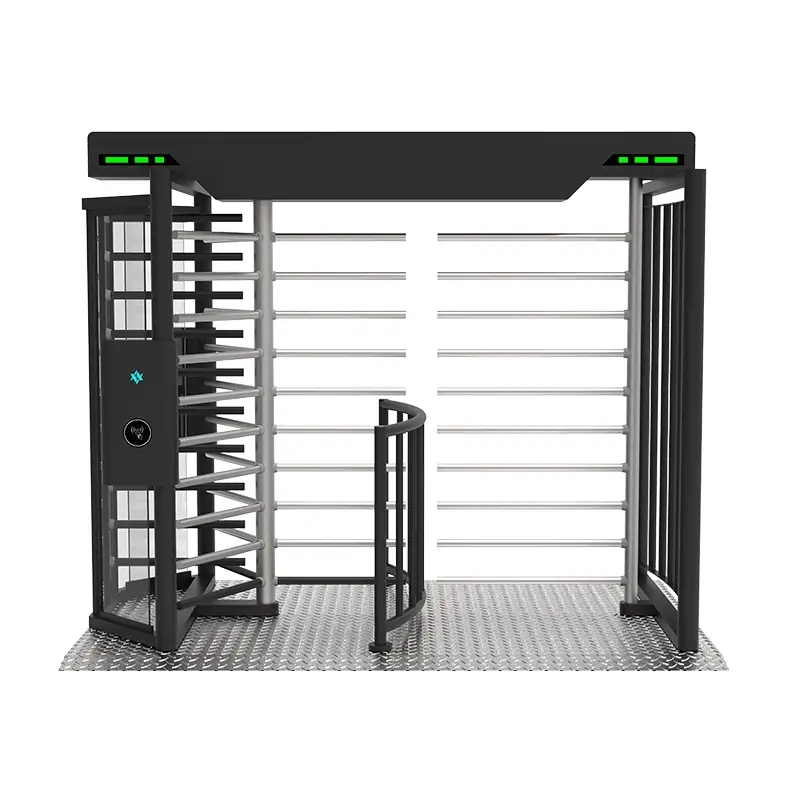

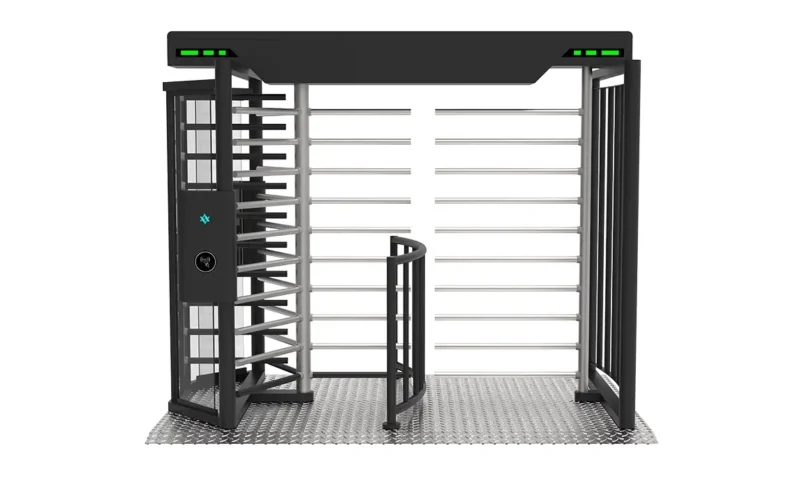

Optional：Turnstile base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.
](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT506-LD-04-800x487.webp "AT506 Dual-Lane Full-Height Turnstile High-throughput Full Height Turnstile 13")
](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT506-LD-03-800x487.webp "AT506 Dual-Lane Full-Height Turnstile High-throughput Full Height Turnstile 14")

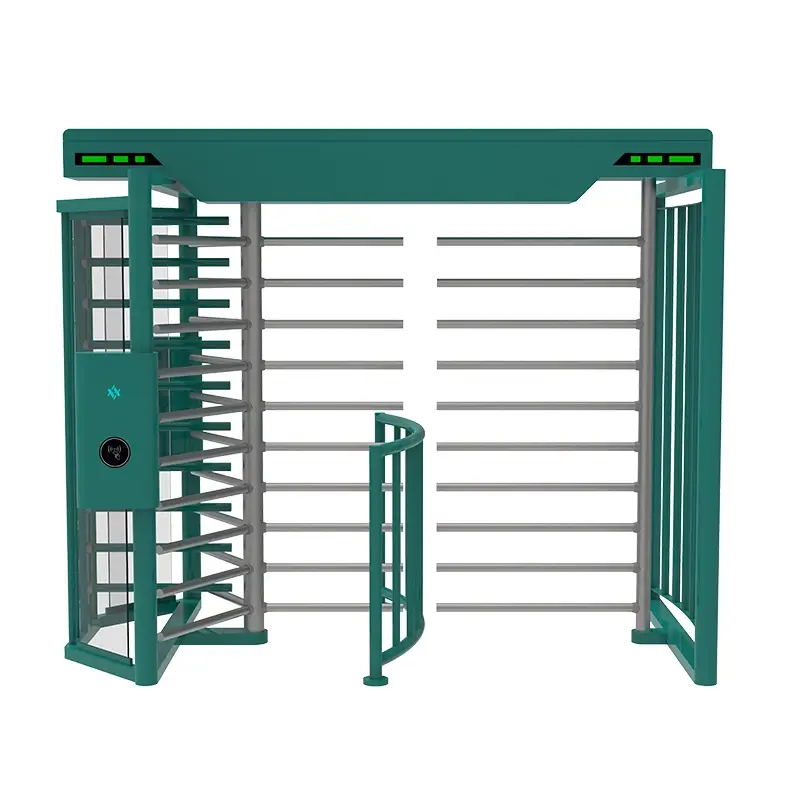

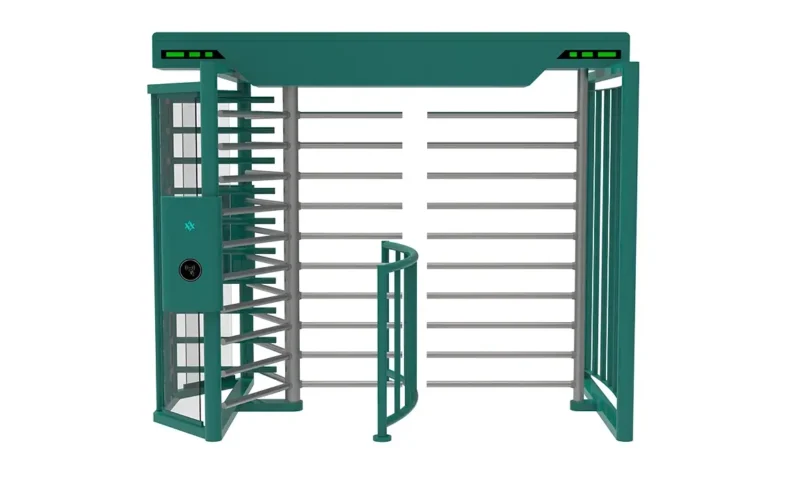

Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT506-TC-01.webp "AT506 Dual-Lane Full-Height Turnstile High-throughput Full Height Turnstile 17")
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
Dual-Lane Full-Height Turnstile: Secure Access for All
Our dual-lane full-height turnstile redefines secure, inclusive access control for high-traffic venues. Designed with a 650mm-wide pedestrian lane and a 900mm-wide accessible lane, this high-throughput full height Turnstile seamlessly accommodates daily foot traffic, bicycles, large items, and wheelchair users, fully complying with ADA accessibility standards.
Crafted with a robust stainless-steel structure and premium housing, this full-height turnstile delivers unmatched anti-tailgating and anti-climbing performance, ideal for stadiums, factories, residential compounds, and public transit hubs. As a high-throughput full height Turnstile, it is equipped with a modular access control system that supports card swiping, QR code, facial recognition, and other authentication methods for flexible integration.
With its sleek, modern design and reliable 24/7 operation, it balances strict security with user-friendly convenience, ensuring a smooth, safe entry experience for every visitor.
