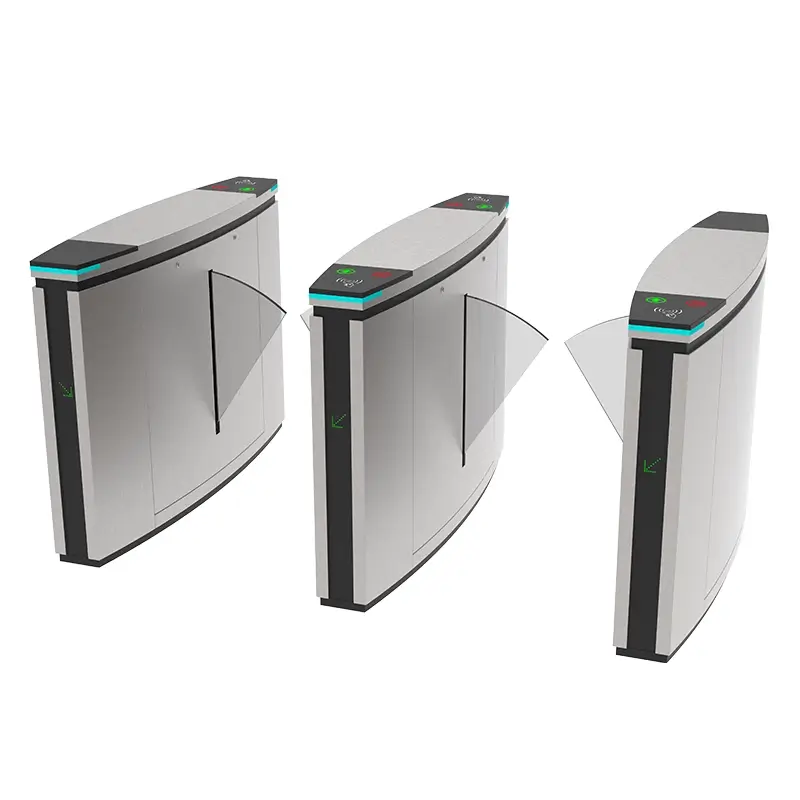

Dual-lane Curved Flap Barrier Turnstile AT312, streamlined arc 304 stainless steel pedestrian security gate for European corporate office building entrance crowd management

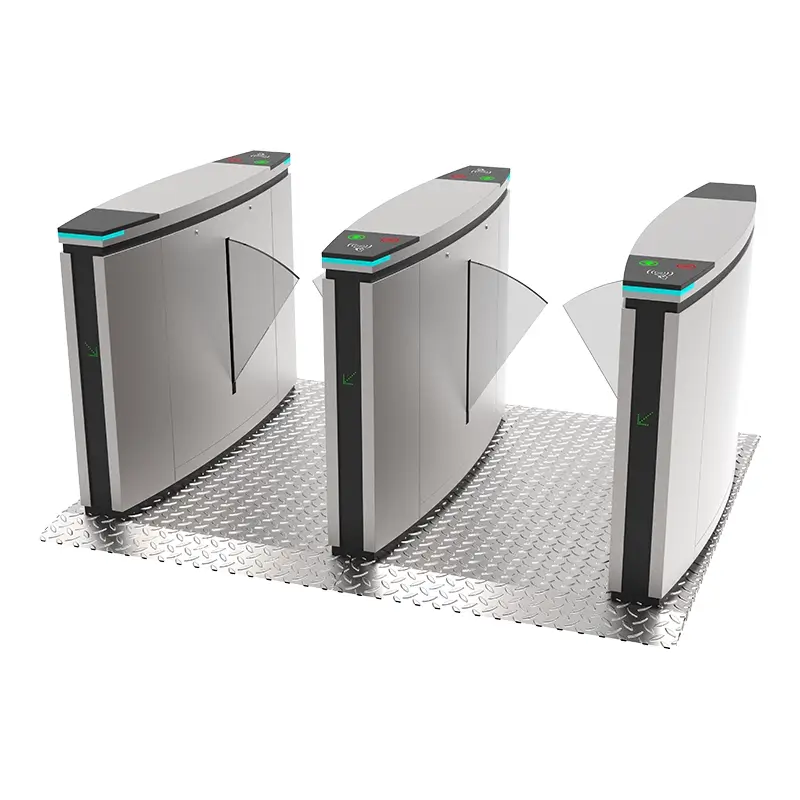

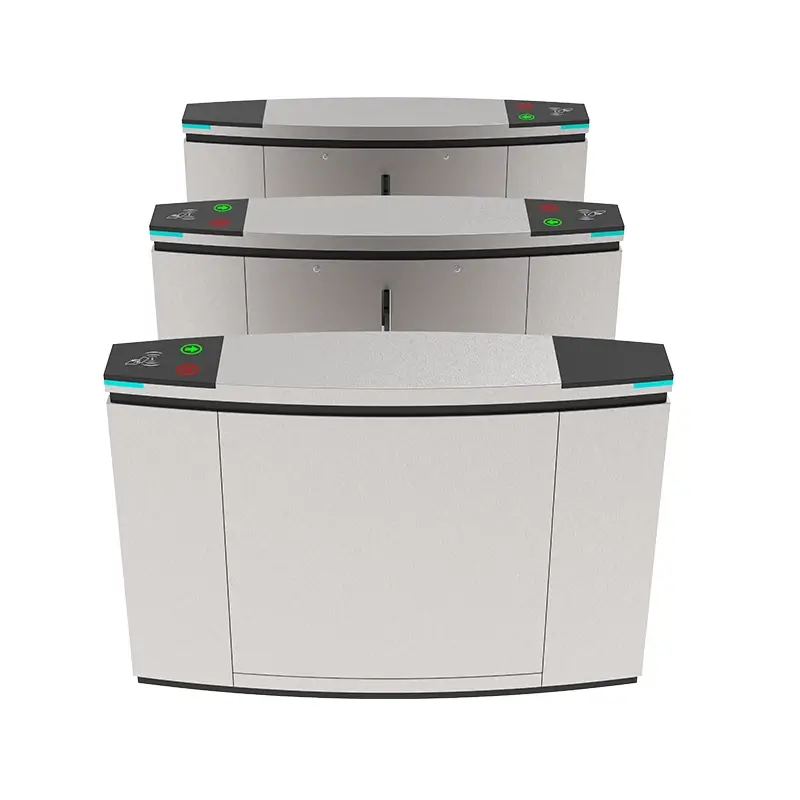

Triple-lane Curved Flap Barrier Turnstile AT312, arc-shaped 304 stainless steel access control gate for high-traffic European business tower lobby pedestrian passage management

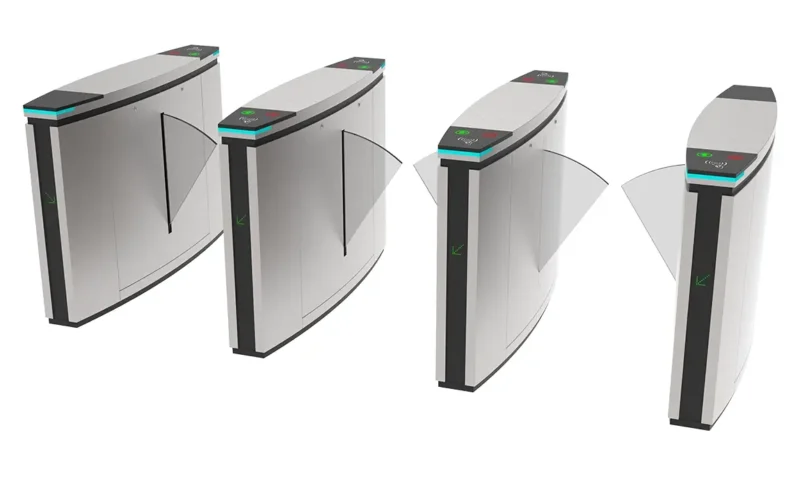

Side view dual-lane Curved Flap Barrier Turnstile AT312, sleek arc-shaped stainless steel pedestrian gate tailored for compact European office entrance space control

Front close-up stacked view Curved Flap Barrier Turnstile AT312, matte finished arc cabinet twin-lane security gate for European modern office interior aesthetic matching

Curved Flap Barrier Turnstile AT312

Curved Flap Barrier Turnstile AT312, curved 304 stainless steel access gate for European offices & hotels, EU fire compliant, biometric compatible, with optional barrier-free wide lane and custom finish options.

Product Dimensions: Curved Flap Barrier Turnstile AT312 Standard cabinet size: 1400*300*980mm（4.59*0.98*3.22ft）. Custom dimension customization is available on demand.
Aisle Width:Curved Flap Barrier Turnstile AT312 Standard single passage width ranges from 550 mm to 600 mm. A widened 900 mm barrier-free lane is optional to accommodate wheelchairs and bulky sports gear.
Enclosure Material:Curved Flap Barrier Turnstile AT312 Curved AT304 flap barrier turnstile with standard SUS304 stainless steel or matte powder-coated carbon steel housing; SUS316 upgrade available for rust resistance in humid gym shower areas.
Traffic Flow Mode:Curved Flap Barrier Turnstile AT312 Supports programmable one-way or bidirectional passage, enabling flexible control over member entry and exit.
Drive System:Curved Flap Barrier Turnstile AT312 Equipped with a high-performance brushless servo motor core. It delivers stable, near-silent wing operation and instant response, even under continuous heavy peak-hour use.
Throughput Capacity:Curved Flap Barrier Turnstile AT312 Handles 30–45 pedestrians per minute under regular operation, fully covering high visitor volumes during gym morning and evening rush hours.
Safety Mechanisms:Fitted with multi-point infrared anti-pinch sensors that activate automatic obstacle rebound to eliminate pinching hazards, the turnstile’s retractable flaps fully unlock automatically in the event of a power failure to enable unobstructed emergency fire evacuation.
Access Integration:Compatible with facial recognition terminals, NFC wristbands, IC membership cards and QR code readers, and seamlessly connects to most mainstream gym member management systems.

Flap Barrier Turnstile AT312 Product Manual

SKU: AT312 Categories: Flap Barrier Turnstiles, All Turnstiles Tags: exit turnstile, flap barrier gate, flap barrier system, flap barrier turnstile, flap turnstile, flap turnstile gate, mobile turnstile, QR Code Visitor Access Flap Barrier Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT312 Curved Flap Barrier Turnstile 3D view display

AT312 Curved Flap Barrier Turnstile Functional features

Standard Cabinet Overall Dimension:Curved Flap Barrier Turnstile AT312 Standard size 1400*300*980mm（4.59*0.98*3.22ft）, full size customization available for narrow lobbies, entrance corridors and special-shaped building spaces
Single Channel Passage Width: Default 600mm standard pedestrian aisle; optional 900mm wide barrier-free aisle, suitable for wheelchairs, strollers, large luggage and bulky sports equipment
Single Equipment Net Weight: Curved Flap Barrier Turnstile AT312 70KG thickened integrated cabinet, with internal reinforced metal support frame, anti-tilting and shock-resistant for long-term commercial high-frequency operation
Cabinet Main Enclosure Material: SUS304 stainless steel as main housing, equipped with matte powder coated carbon steel decorative edge strips; SUS316 stainless steel upgrade optional for coastal humid, salt-fog European areas
Retractable Flap Swing Arm Material: High-transparency impact-resistant acrylic plate, flexible soft rebound structure, effectively reduce collision bruising risk for passing pedestrians
Cabinet Surface Treatment Technology: Multiple optional finishes including brushed stainless steel, mirror polishing, electroplating and customizable baking paint, support matching enterprise brand color schemes
Adjustable Traffic Flow Direction Mode: Software programmable three modes: one-way entry, one-way exit, two-way bidirectional free passage, switch remotely via management background
Core Driving Power System: Silent brushless servo motor drive core, fast instant flap retraction response, low noise operation, no stuck failure under continuous rush-hour heavy pedestrian flow
Continuous Passing Throughput Capacity: Stable processing capacity of 30–45 people per minute, fully meet morning and evening peak passenger flow of office buildings, hotels and business parks
Wide-Voltage Global Power Supply Module: Curved Flap Barrier Turnstile AT312 Input AC100V–240V, fully match all European national power grid standards; built-in DC24V and DC12V dual output power ports for external access control equipment
Multi-Point Infrared Anti-Pinch Safety System: Full-channel distributed multi-group infrared sensors, automatically rebound the flap when sensing obstacles, avoid clamping pedestrians, children and luggage
Fire Emergency Automatic Unlock Function: When power cut off or fire alarm signal input, all flaps fully retract automatically to form barrier-free evacuation channel, conform to EU commercial building fire safety regulations
Multifunctional Access Control Interface Compatibility: Reserved Wiegand, RS485 universal signal interfaces, compatible with facial recognition machines, IC employee cards, NFC wristbands, QR visitor scanners, docking mainstream attendance & visitor management systems
Modular Multi-Lane Splicing Structure: Support arbitrary combination of single-lane, dual-lane, triple-lane layout, optional integrated anti-slip metal base plate for surface installation without floor trenching
Top LED Visual Status Indicator: Embedded color light strip on cabinet top, green light for permission to pass, red light for access rejection, intuitive real-time passage status prompt
Built-In Anti-Tailgating Detection Function: Multi-layer infrared sensor array identifies tailgating behavior, lock the flap to prevent unauthorized personnel from following into the building
Anti-Collision Buffer Protection Function: The acrylic swing arm adopts soft buffer drive, slow retraction and extension speed, avoid hard impact damage caused by pedestrian rushing
Remote Background Management Function: Support network connection to PC management system, realize real-time access record query, access authority setting and equipment operation status monitoring
Low Power Standby Energy Saving Mode: Automatically enter low-power standby state after no passage for a fixed time, reduce power consumption and extend motor service life
OEM Full Customization Service: Support customized cabinet painting, engraving brand logo, pre-installed facial recognition mounting bracket, matched integrated base plate and special size modification for renovation and new construction projects
Waterproof Dustproof Cabinet Grade: Cabinet shell with IP54 dustproof and splash-proof performance, adapt to semi-outdoor lobby, corridor and other complex environment use
Equipment Self-Check Fault Alarm Function: Automatic self-check after power on, trigger red light flashing alarm and record fault code when motor, sensor or power module fails for quick maintenance
Human Voice Broadcast Prompt Module (Optional): Optional voice broadcast function, voice prompts for successful passage, access denial and tailgating warning, improve lobby humanized experience

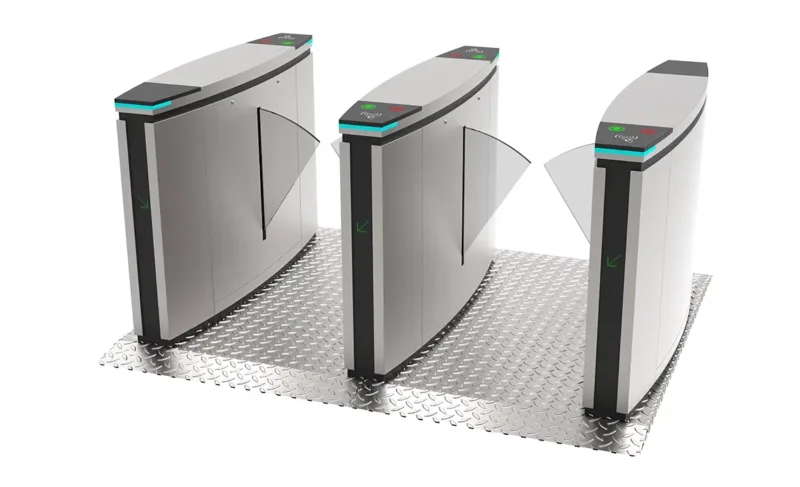

Metal Base Plate Optional Accessory: Integrated whole-piece stainless steel base plate with anti-slip texture, direct ground installation without slotting, protect original marble, tile and wooden floors of old office renovation projects

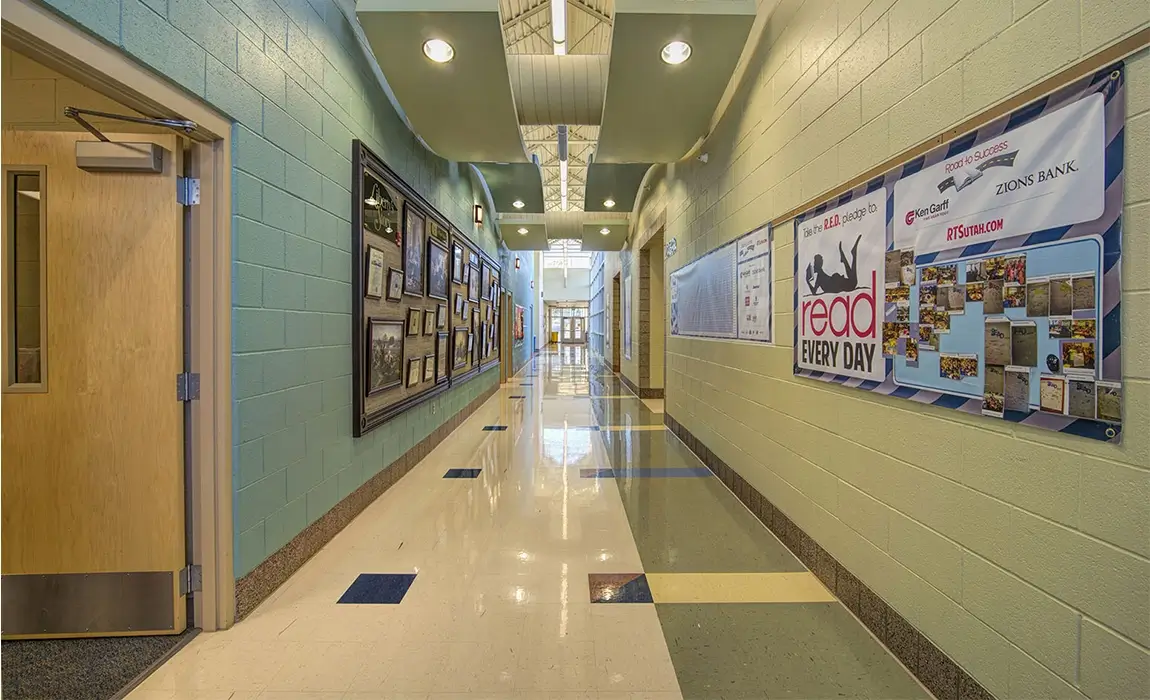

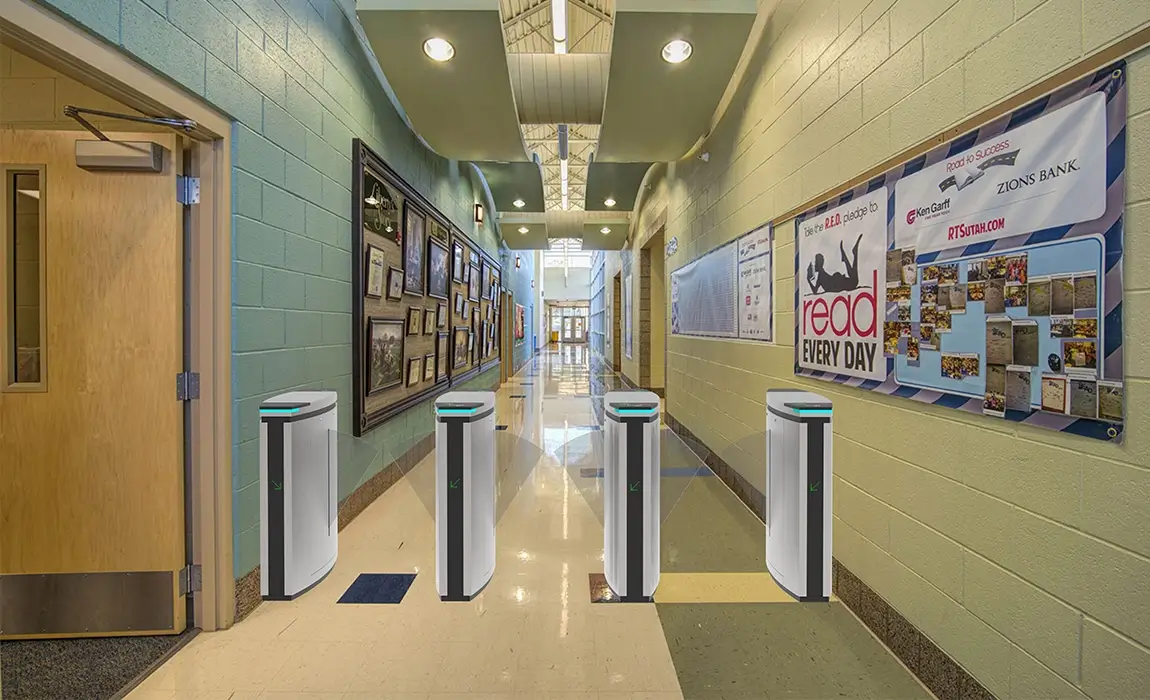

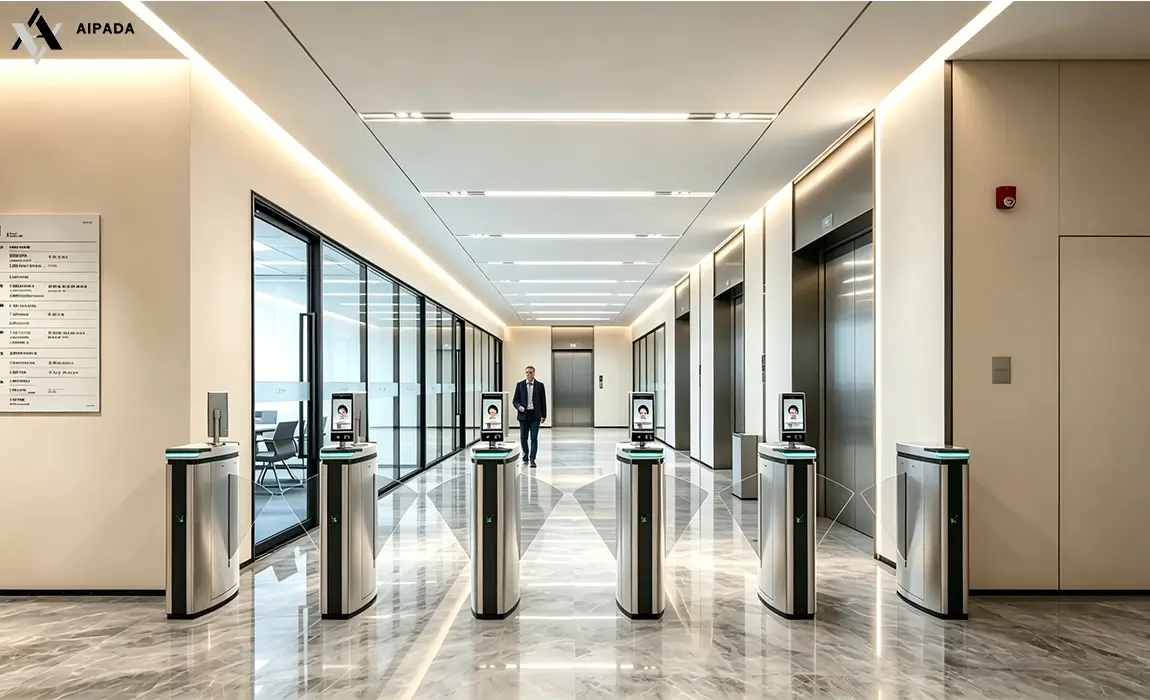

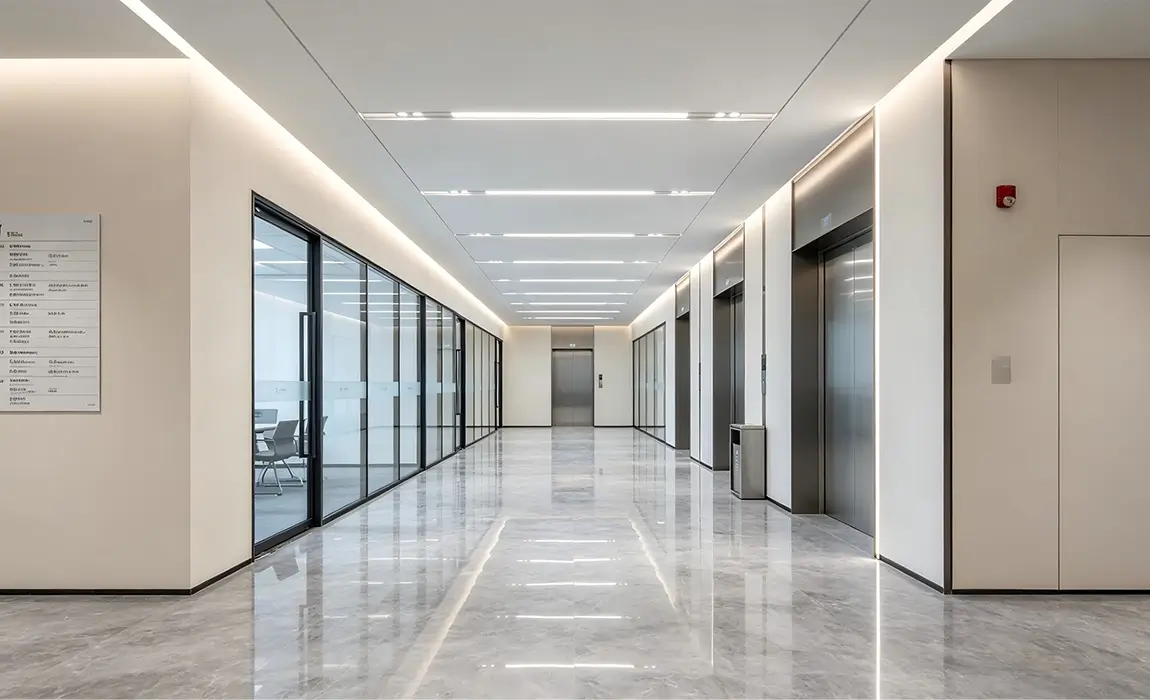

AT312 Curved Flap Barrier Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT312 Curved Flap Barrier Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

The diagram shows a dual-channel system consisting of two single-core and two double-core wing and rotary gates. If more channels are needed, the number of rotary gates can be increased.

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

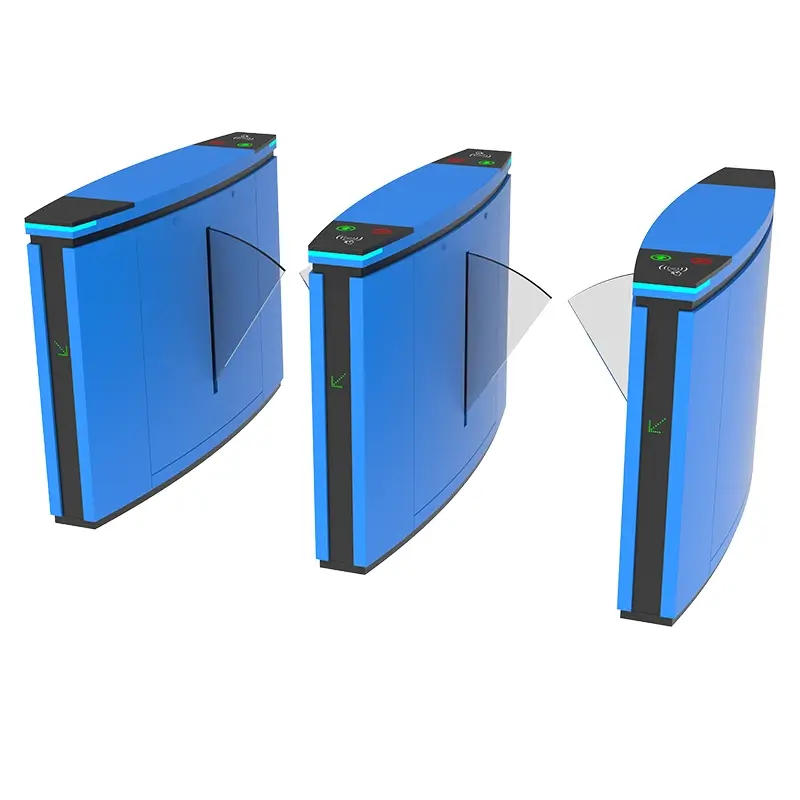

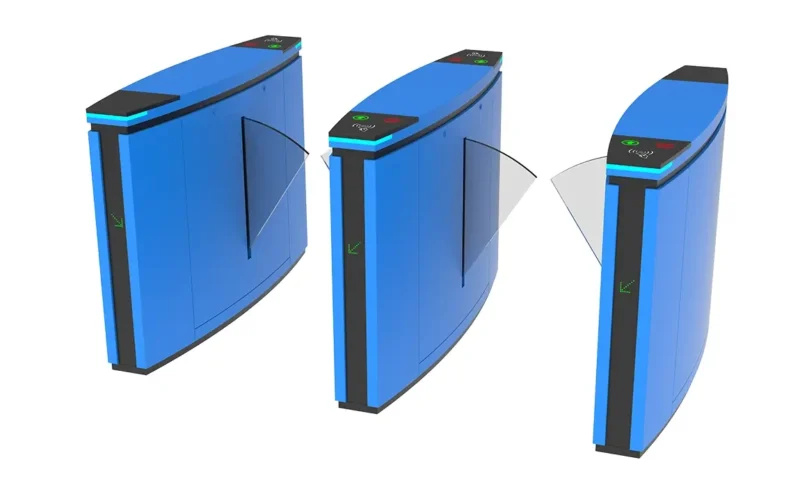

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

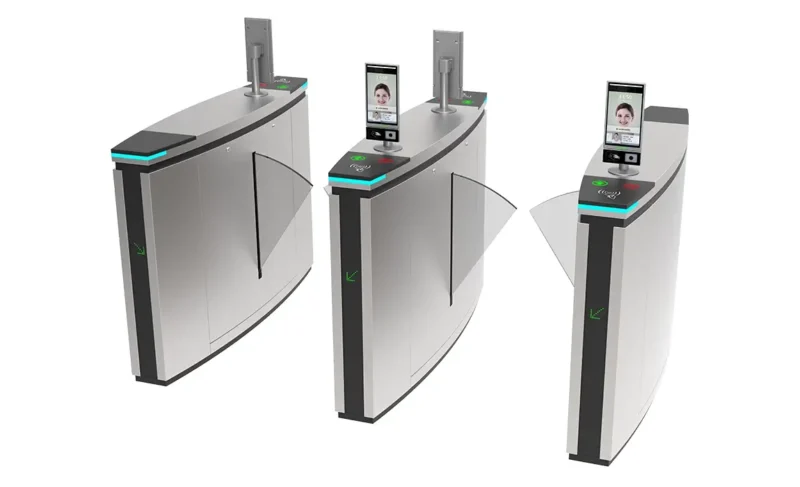

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Can this AT312 curved flap barrier be installed on finished marble tile floors without chiseling trenches?

A1: Yes. We provide a matching integrated stainless steel base plate accessory for AT312 turnstile. The whole set can be fixed directly on the ground without slotting, perfectly protecting finished marble, tile and wood floors, which is very suitable for office renovation and hotel lobby upgrade projects.

2.Q: Is the AT312 curved flap barrier compatible with my existing facial recognition attendance machine?

A2: Fully compatible. The AT312 reserves standard Wiegand and RS485 universal signal interfaces, which can be seamlessly connected with most mainstream face scanners, IC card readers, NFC wristbands and QR visitor code devices, and supports data synchronization with staff attendance management systems.

3.Q: What should we do if there is a power outage in the building, will the flaps block the escape passage?

A3: No safety risks. When power fails or receives a fire alarm signal, all retractable acrylic flaps of AT312 will automatically fully retract to form a wide unobstructed evacuation channel, fully complying with EU commercial building fire safety standards for office and hotel use.

4.Q: Can I customize the cabinet color of the AT312 curved flap barrier to match my corporate brand tone?

A4: Custom color service is supported. The standard body is brushed SUS304 stainless steel, and we can customize baking paint in any color you need, such as blue, gray, black, etc. We also provide optional mirror polishing, matte powder coating and other surface finishing processes.

5.Q: How many people can the AT312 handle during morning and evening rush hours, and can it prevent tailgating?

A5: The single channel stably supports 30–45 pedestrians passing per minute to cope with peak passenger flow of office buildings. Multi-layer distributed infrared sensors are equipped inside the passage. Once tailgating behavior is detected, the flap will lock immediately to stop unauthorized follow-up access, greatly improving lobby security.
