Dual Lane Glass Full Height Turnstile AT511

Dual Lane Glass Full Height Turnstile AT511 dual lane full height turnstile combines robust anti-tailgating security, intelligent access integration, and sleek modern design to deliver a reliable, one-person-per-passage access management solution.

Product Dimensions:Dual Lane Glass Full Height Turnstile Standard size is 2400*1500*2300 mm (7.87 × 4.92 × 7.55ft), fully customizable to suit site layout and space constraints.
Aisle Width:Dual Lane Glass Full Height Turnstile Standard aisle width is 650 mm (2.13 ft), customizable to specific passage requirements.
Shell Structure: Dual Lane Glass Full Height Turnstile Standard structure uses painted metal sheet or tempered glass railings, offering rust and wear resistance suitable for most common indoor and outdoor environments. SUS304 and SUS316 stainless steel are available as upgrade options, providing enhanced corrosion and salt spray resistance, suitable for coastal, high-humidity, and harsh industrial environments.
Turret Operation Modes: Dual Lane Glass Full Height Turnstile Standard semi-automatic mode ensures economical, efficient, and stable daily operation. Fully automatic mode can be customized for upgrades, featuring smarter sensor detection and a smoother passage experience.
Pedestrian Flow:Dual Lane Glass Full Height Turnstile Supports configurable one-way or two-way traffic modes, allowing for flexible and scientific management of pedestrian flow based on actual site access rules. Drive Control System: Equipped with mature and reliable mechanical drive and intelligent control modules, supporting continuous and frequent operation. It features sensitive sensing, anti-interference operation, and automatic reset functions, effectively preventing card swipe failures and unauthorized tailgating.
Passage Capacity:Dual Lane Glass Full Height Turnstile Under normal operating conditions, it can accommodate 25-30 people per minute, meeting the high-frequency pedestrian passage needs of medium to large-scale traffic scenarios.

Categories: All Turnstiles, Full Height Turnstiles Tags: Dual Lane Glass Full Height Turnstile, full height turnstile, Full height turnstile manufacturers, Full height Turnstiles for office buildings, Glass Full Height Turnstile, New design Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT511 Dual Lane Glass Full Height Turnstile 3D view display

AT511 Dual Lane Glass Full Height Turnstile Functional features

Full-Height Enclosed Barrier:Dual Lane Glass Full Height Turnstile AT511 The 2300mm tall enclosed structure with reinforced metal railings and tempered glass panels eliminates all unauthorized access attempts, including climbing, crawling, jumping, or forced prying.
Dual-Lane Independent Access Management: Dual Lane Glass Full Height Turnstile AT511 The 2300mm tall enclosed structure with reinforced metal railings and tempered glass panels eliminates all unauthorized access attempts, including climbing, crawling, jumping, or forced prying.Two separate lanes support independent permission rules, traffic directions, and access modes, enabling complex, site-specific flow control.
Advanced Anti-Tailgating & Anti-Passback: Precision infrared sensors and mechanical interlocking instantly detect and block tailgating, while anti-passback technology prevents credential sharing by requiring valid exit authorization before re-entry.
Vandalism & Forced Entry Resistance: A reinforced steel frame and heavy-duty mechanical components withstand impact and forced pushing, triggering real-time alarms to alert security personnel.
Tiered Permission Control: Supports role-based access rules, including time/date restrictions, to manage employees, visitors, and contractors with granular precision.
Semi-Automatic Mode (Standard): Economical, stable, and efficient for daily use, with manual turret rotation after authorization.
Fully Automatic Mode (Upgradable): Hands-free automatic rotation with soft start/stop, delivering a smooth, frictionless passage experience for high-traffic areas.
Free Passage Mode: Automatically unlocks for emergencies, peak hours, or special events to enable unobstructed flow.
Locked Mode: Permanently secures the turnstile, only opening with valid credentials for restricted zones.
Smart Sensor & Anti-Interference Technology: High-precision infrared sensors prevent pinching, collisions, and false triggers, while anti-electromagnetic interference design ensures stable performance near industrial equipment or power stations.
Automatic Reset & Fault Self-Diagnosis: Automatically resets to standby if a user does not pass within the set time, and continuously monitors motor, sensors, and control components to alert administrators of faults.
Standard: Corrosion-resistant painted metal shell with rust and wear resistance, suitable for general indoor/outdoor use.
Upgraded: SUS304 / SUS316 stainless steel options offer enhanced corrosion and salt-spray resistance, ideal for coastal, high-humidity, and harsh industrial environments.
High-Frequency Operation Design: Engineered for 24/7 continuous use, supporting over 5 million cycles without failure, with a throughput of 25-30 people per minute to handle large-scale traffic scenarios.
Low-Maintenance Modular Structure: Modular components enable quick disassembly and maintenance, reducing long-term operational costs and downtime.
Universal Compatibility: Works with all mainstream access control technologies, including IC/ID cards, QR/barcode scanners, facial recognition systems, fingerprint readers, and NFC/Bluetooth mobile access.
Remote Monitoring & Traffic Analytics: Optional TCP/IP connectivity enables real-time remote monitoring, traffic data statistics, and access pattern reporting via a central management platform.
Fire Safety Automatic Unlock: Automatically unlocks during power outages or fire alarms to allow free evacuation, meeting all international fire safety regulations.
Customizable Dimensions & Design: Standard size 2400 × 1500 × 2300 mm (7.87 × 4.92 × 7.55 ft) with fully customizable height, width, and aisle width (650mm standard, adjustable on request) to fit any site layout.
Brand-Aligned Finishes: Custom spray paint and material options to match facility design, complementing office buildings, stadiums, industrial parks, and commercial spaces with a sleek, modern look.

AT511 Dual Lane Glass Full Height Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

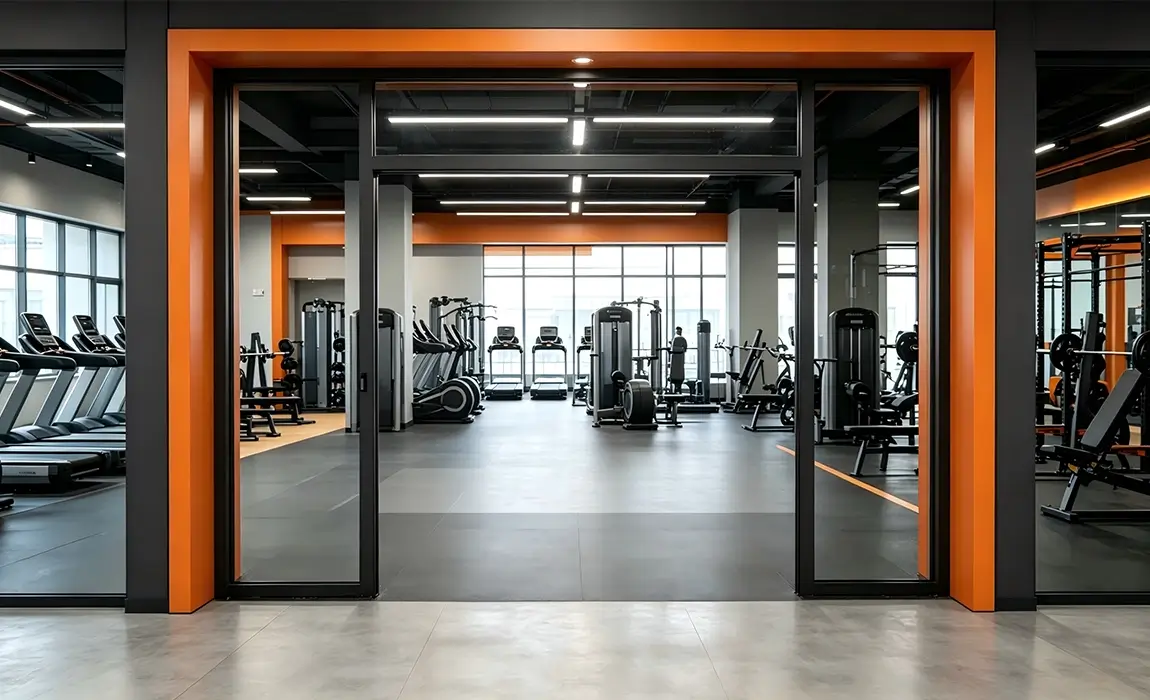

Before

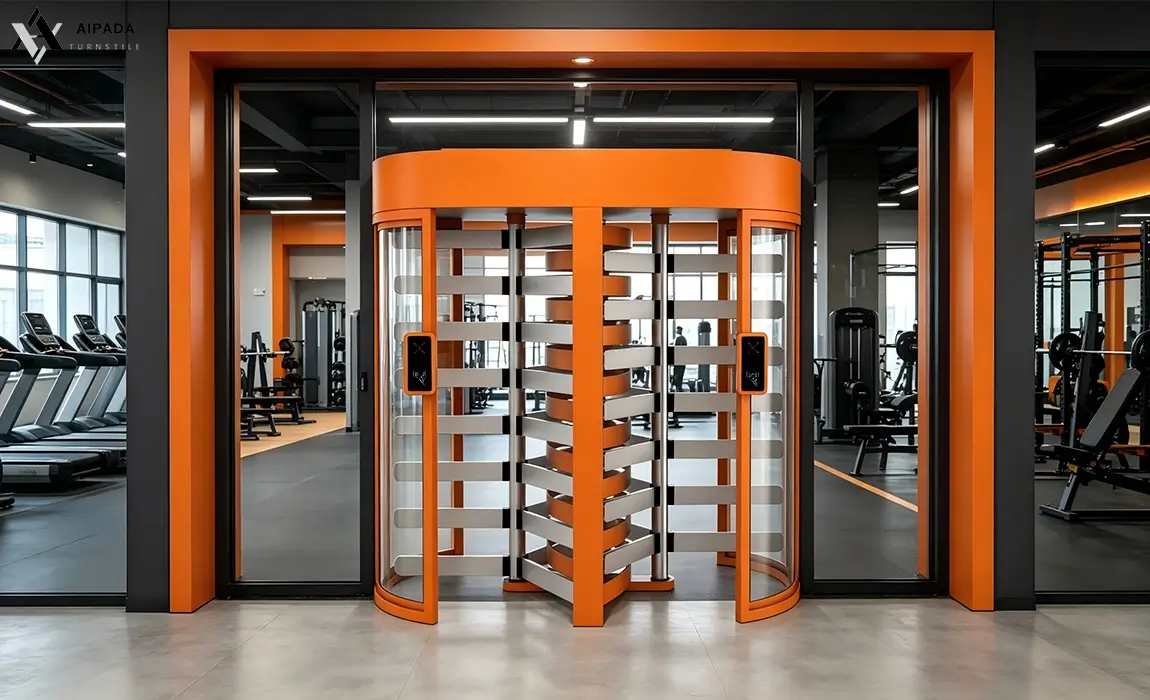

After

AT513 Glass Full Height Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional: Turnstile Guardrail

As illustrated in the diagram, this is a combined solution of the Full-Height Turnstile and matching guardrails. When the entrance/exit width is wider than required for a single access point but only one passage is needed, the remaining excess space can be neatly segregated with the guardrails. This setup not only precisely demarcates the pedestrian flow area to prevent disorderly access but also delivers a seamless visual integration between the turnstile and guardrails, resulting in a more organized and streamlined passage layout. Additionally, it optimizes on-site space utilization, striking a perfect balance between robust security control and rational space planning.

Optional：Turnstile channel count

This full height turnstile is available in flexible lane configurations to meet different site requirements. It can be deployed as a single lane unit for compact installations, or expanded into a double lane system to increase pedestrian throughput while maintaining strict access control. For projects requiring both security and accessibility, the turnstile can be combined with an integrated accessible swing gate, forming a multi-lane solution that supports standard users and wheelchair access simultaneously. Multiple units can also be installed side by side to create a scalable multi-lane entrance system, ideal for high-traffic environments such as industrial facilities, stadiums, and transportation hubs. This modular lane design allows clients to balance space, flow rate, and security level efficiently.

Optional：Turnstile base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1. Q: What makes the glass full height turnstile different from traditional metal ones?

A: The AT511 glass full height turnstile combines robust anti-tailgating security with a sleek, modern aesthetic. The tempered glass railings offer full visibility while maintaining a clean, premium look, making it ideal for commercial spaces where both security and design matter.

2. Q: Is the glass durable and safe for high-traffic use?

A: Yes. The turnstile uses high-strength tempered glass railings, which are impact-resistant and built to withstand frequent use. The painted metal frame adds extra durability, ensuring long-term reliability in busy environments.

3. Q: Can I upgrade the materials for harsh environments like coastal areas?

A: Absolutely. While the standard model uses painted metal, we offer upgrades to SUS304 or SUS316 stainless steel frames. These options provide enhanced corrosion and salt spray resistance, making the turnstile suitable for coastal, high-humidity, and harsh industrial settings.

4. Q: What kind of access control systems can this turnstile work with?

A: The AT511 is fully compatible with mainstream access control devices, including card readers, fingerprint scanners, facial recognition systems, and QR code readers. It can be seamlessly integrated into your existing security infrastructure.

5. Q: Which operation mode should I choose for my facility?

A: The standard semi-automatic mode is cost-effective and stable for daily use. For high-traffic locations like stadiums, gyms, or transit stations, the optional fully automatic mode offers faster, hands-free passage with smarter sensor detection, improving user experience and throughput.
