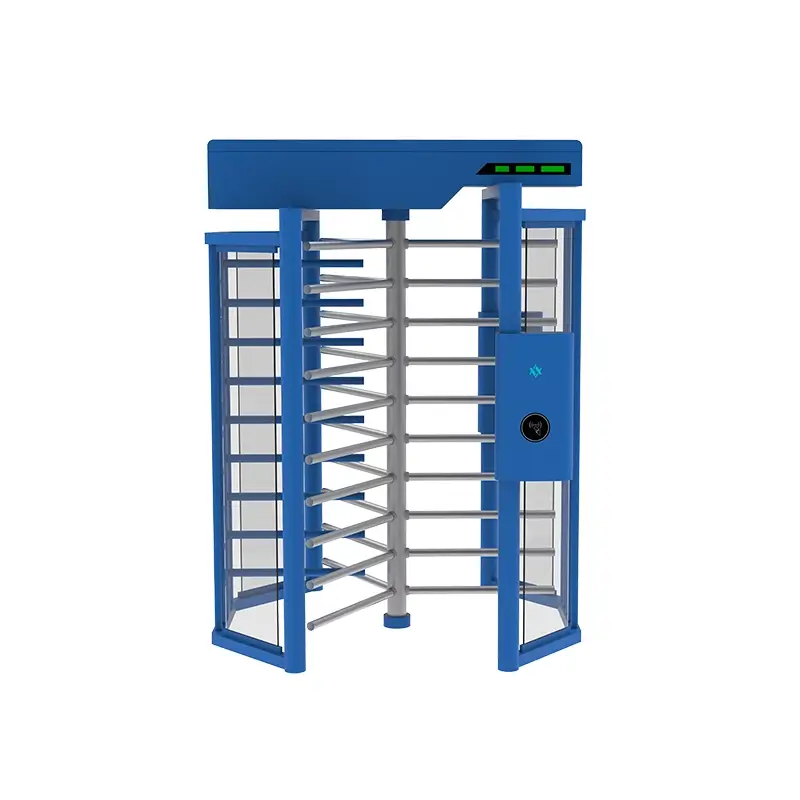

AT504-TC-05 Blue Full Height Turnstile
AT504-TC-05 Blue Full Height Turnstile
AT504-TC-05 Blue Full Height Turnstile
AT504-TC-05 Blue Full Height Turnstile
AT504-TC-05 Blue Full Height Turnstile
Aipad AT504-TC-01 single lane full height turnstile, high security access control gate with anti-tailgating design
AT504-TC-05 Blue Full Height Turnstile
AT504-TC-05 Blue Full Height Turnstile
AT504-TC-05 Blue Full Height Turnstile
AT504-TC-05 Blue Full Height Turnstile
AT504-TC-05 Blue Full Height Turnstile

AT504 Coating Full Height Turnstile

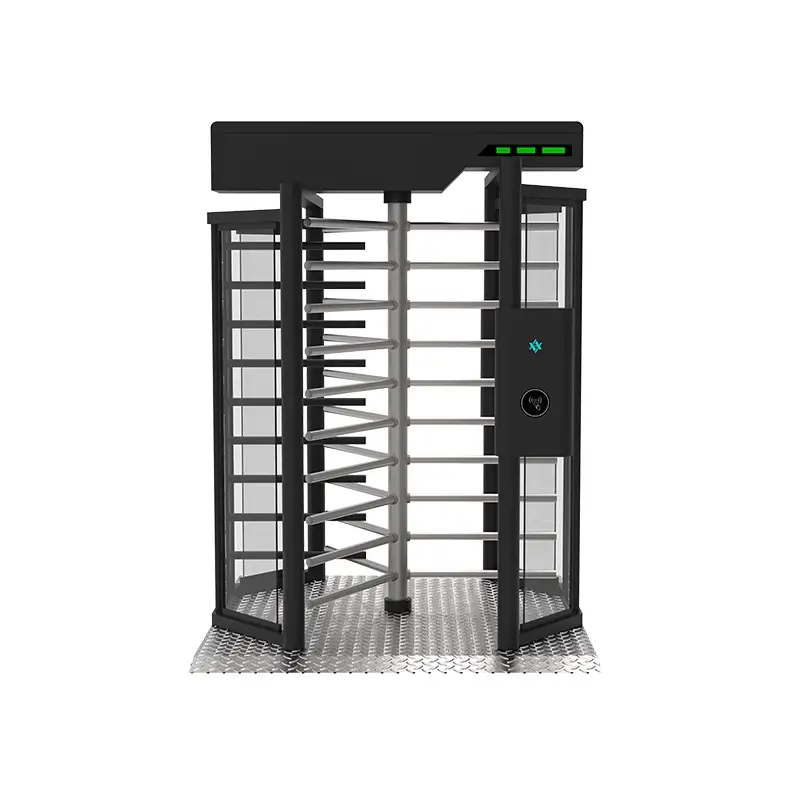

This is a single-lane full height turnstile, a high-security access control solution. It features a floor-to-ceiling barrier design with stainless steel rotating arms, preventing climbing, tailgating, and unauthorized entry. The black powder-coated housing, paired with tempered glass panels, offers both durability and a sleek modern look. Integrated with an RFID reader and LED status indicators, it supports smooth, controlled one-person passage per cycle, ideal for secure facilities, industrial sites, and public venues.

  1. Product Dimensions: 1630 × 1500 × 2200 mm (5.35 × 4.92 × 7.22 ft) as standard, with full structural customization available to suit site-specific installation layouts and space limitations.
  2. Aisle Width: Standard aisle width is 650 mm (2.13 ft), with customized width solutions available to accommodate special passage demands.
  3. Enclosure Construction: Standard build combines iron baking paint with durable SUS304 stainless stee, offering rust and wear resistance suitable for most common indoor and outdoor environments. SUS316 stainless steel is available as an upgrade option, providing even greater corrosion and salt spray resistance, making it suitable for coastal, high-humidity, and harsh industrial environments.
  4. Turnstile Operation Mode: Semi-automatic mode is configured as standard for cost-effective and stable daily operation. Fully automatic mode is available for customized upgrade, featuring more intelligent sensor induction and a streamlined passage experience.
  5. Traffic Direction: Supports configurable one-way or two-way passage modes, allowing flexible and scientific management of pedestrian flow according to the actual access control rules of the site.
  6. Drive & Control System: Equipped with mature and reliable mechanical drive and intelligent control modules, supporting continuous frequent operation. It features sensitive induction, anti-jamming operation and automatic reset functions, effectively preventing card-passing without entry and illegal trailing behavior.
  7. Passage Throughput: Capable of handling 25–30 persons per minute under normal operating conditions, meeting the high-frequency pedestrian passage demands of medium and large traffic scenarios.



Categories: , Tags: , , , , , Brand: ,

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

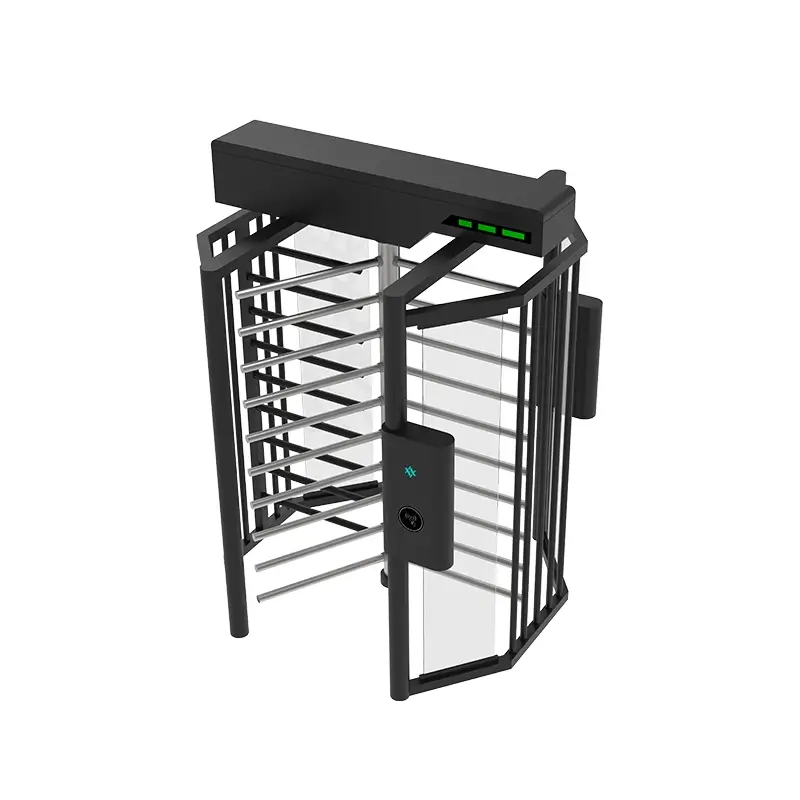

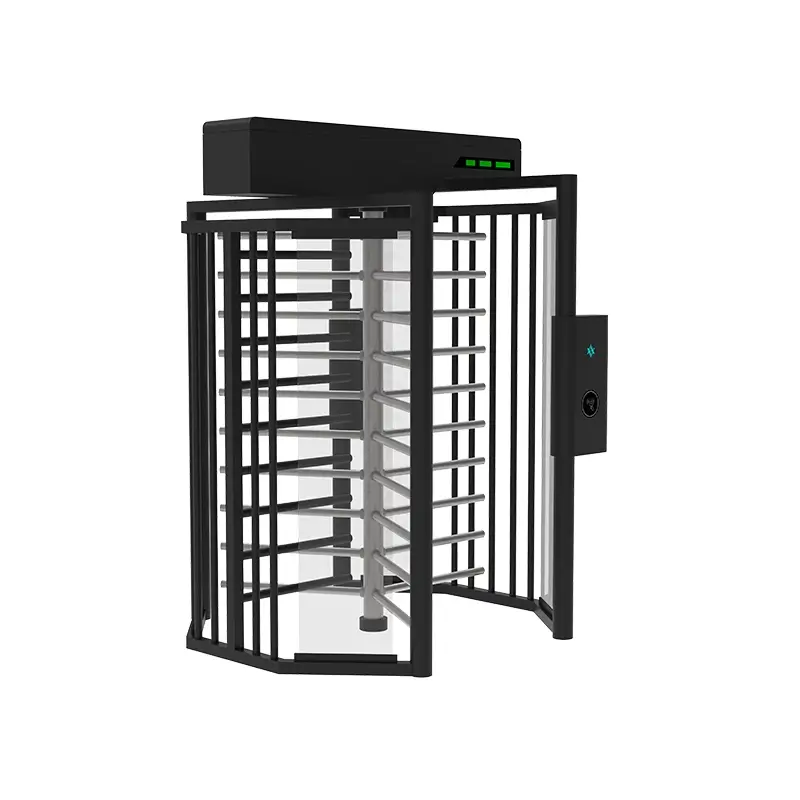

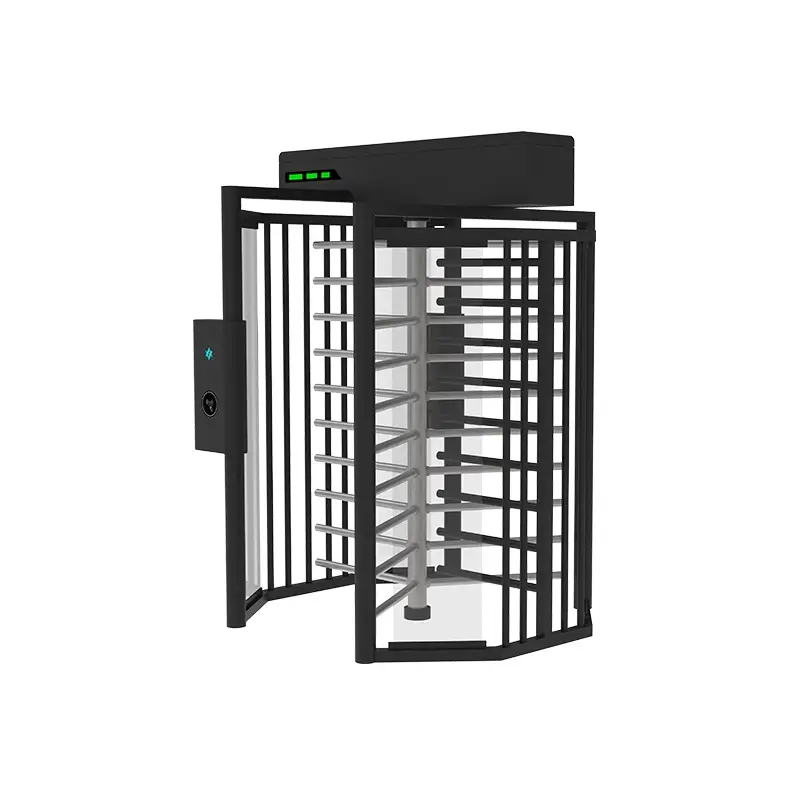

AT504 Full Height Turnstile 3D view display

AT504 Full Height Turnstile Functional features

  • High-Security Full-Height Barrier Design

    The floor-to-ceiling, fully enclosed structure with stainless steel rotating arms effectively prevents climbing, tailgating, and unauthorized entry, ensuring strict one-person passage per cycle.
  • Durable & Modern Construction
  1. Housing: Black powder-coated finish for scratch resistance and long-lasting performance.
  2. Materials: Standard premium SUS304 stainless steel (rust-proof, wear-resistant); SUS316 upgrade available for coastal/high-humidity environments.
  3. Panels: Tempered glass for both safety and a sleek modern aesthetic.
  • Flexible Installation & Customization
  1. Standard dimensions: 1630 × 1500 × 2200 mm (5.35 × 4.92 × 7.22 ft), with full structural customization available for site-specific layouts.
  2. Aisle width: 650 mm (2.13 ft) standard, with custom widths available to meet special passage demands.
  • Reliable Operation Modes
  1. Standard: Semi-automatic mode for cost-effective, stable daily use.
  2. Optional upgrade: Fully automatic mode with intelligent sensor induction for a seamless passage experience.
  • Configurable Traffic Management

    Supports one-way or two-way passage modes, allowing flexible, scientific pedestrian flow control based on the site’s actual access rules.
  • Advanced Control & Anti-Trailing System
  1. Equipped with mature mechanical drive and intelligent control modules for continuous frequent operation.
  2. Features sensitive induction, anti-jamming operation, and automatic reset functions to effectively prevent cardless entry and illegal trailing.
  • High Throughput Capacity

    Handles 25–30 persons per minute under normal conditions, meeting the high-frequency passage demands of medium to large traffic scenarios.
  • Integrated Access Control Compatibility

    Comes with built-in RFID reader and LED status indicators, supporting smooth integration with various access control systems for secure facilities, industrial sites, and public venues.

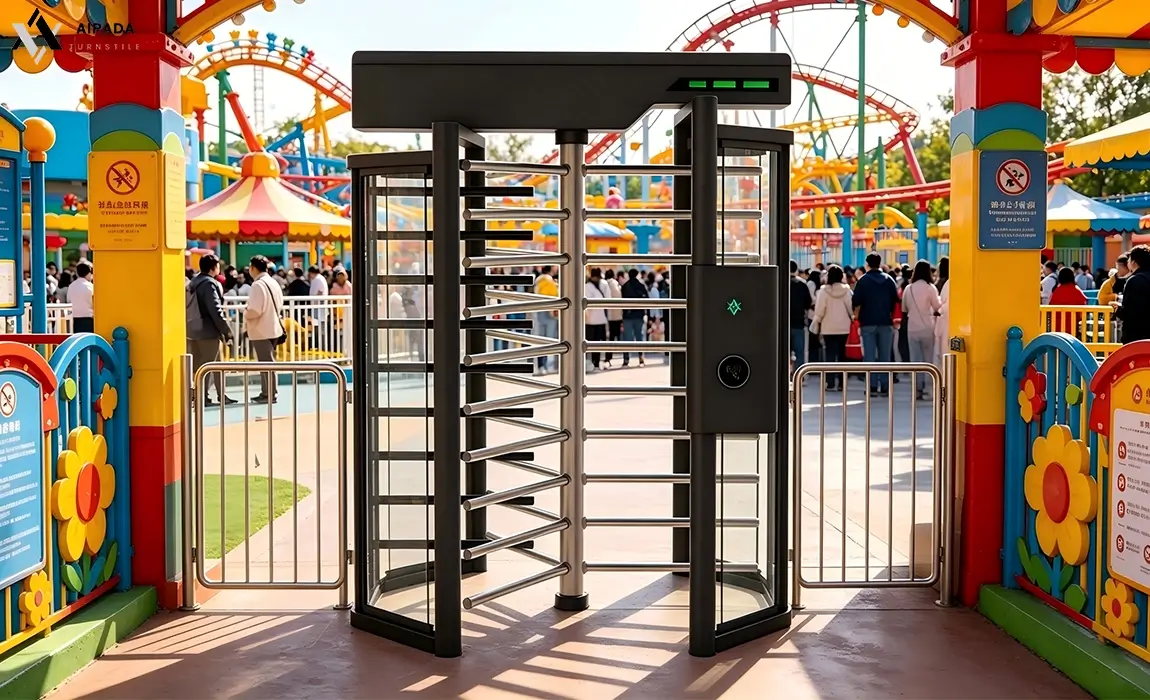

AT504 Full Height Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

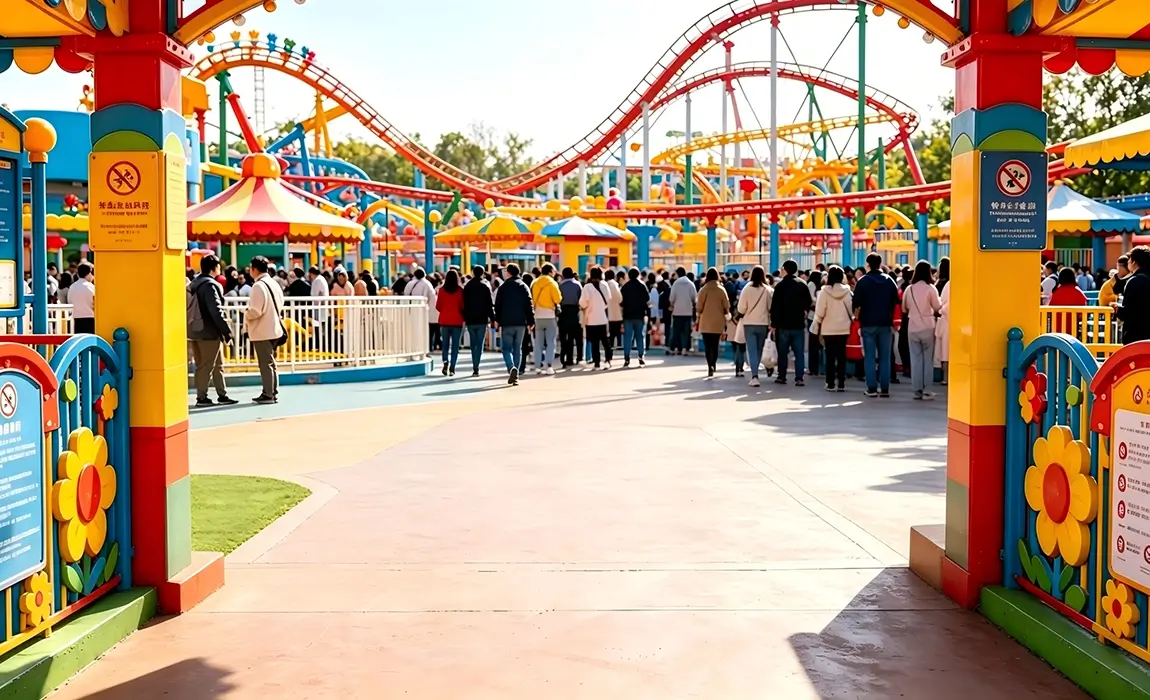

Before After

AT504 Full Height Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

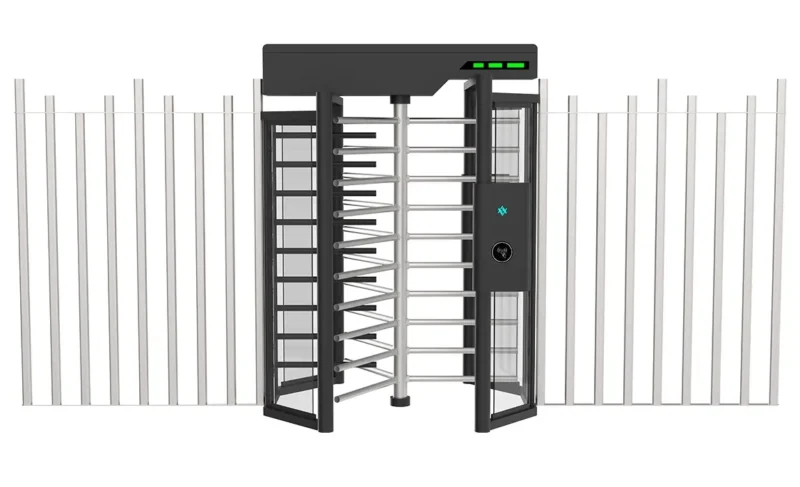

Optional: Turnstile Guardrail

As illustrated in the diagram, this is a combined solution of the Full-Height Turnstile and matching guardrails. When the entrance/exit width is wider than required for a single access point but only one passage is needed, the remaining excess space can be neatly segregated with the guardrails. This setup not only precisely demarcates the pedestrian flow area to prevent disorderly access but also delivers a seamless visual integration between the turnstile and guardrails, resulting in a more organized and streamlined passage layout. Additionally, it optimizes on-site space utilization, striking a perfect balance between robust security control and rational space planning.

![Stylish LD turnstile designed for modern access control](https://aipadaturnstile.com/wp-content/uploads/2025/12/AT504-LD-01.webp "Stylish LD Turnstile")
![Compact LD turnstile ideal for limited space installations](https://aipadaturnstile.com/wp-content/uploads/2025/12/AT504-LD-03.webp "Compact LD Turnstile")

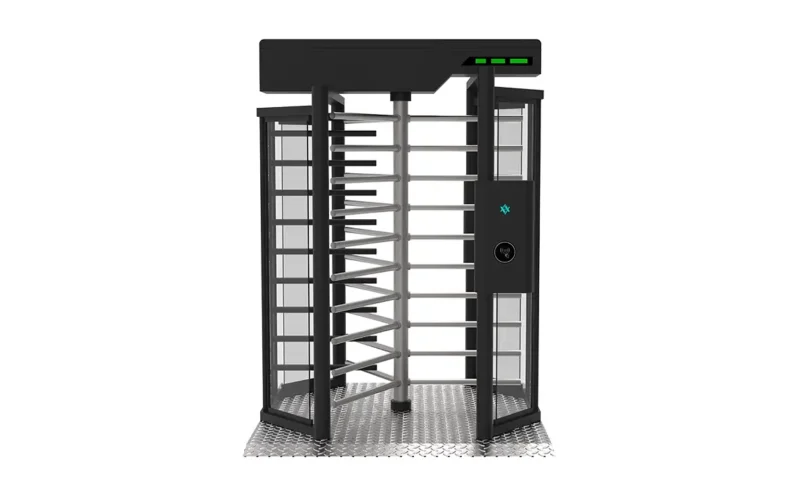

Optional：Turnstile base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

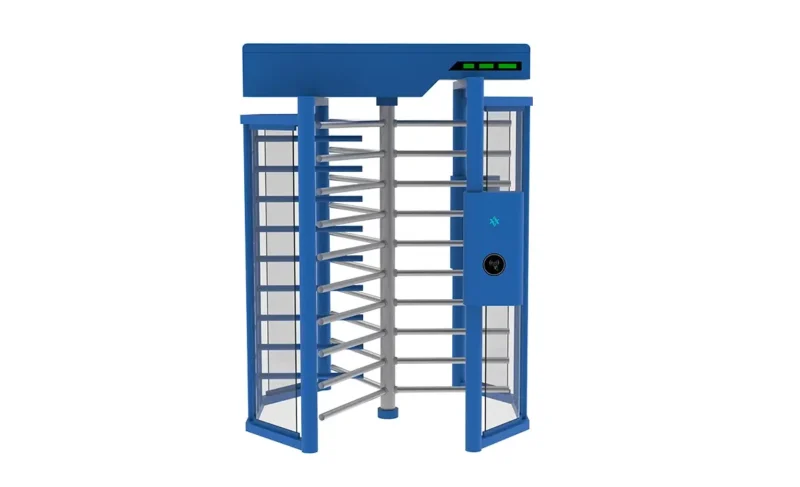

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

![Innovative LD turnstile enhancing security in public areas](https://aipadaturnstile.com/wp-content/uploads/2025/12/AT504-LD-02.webp "Innovative LD Turnstile")

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card reader

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Aipad AT504-TC-01 single lane full height turnstile, high security access control gate with anti-tailgating design
touch button

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

remote control

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.



Face

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint scanner

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Can this full height turnstile prevent climbing and tailgating?

A: Yes. It features a floor-to-ceiling fully enclosed structure with stainless steel rotating arms, which effectively prevents climbing over the barrier. At the same time, it is equipped with anti-tailgating sensor modules to ensure only one person can pass per cycle, eliminating unauthorized tailgating behavior, making it ideal for high-security facilities.

2.Q: Can it be used outdoors, in humid conditions, or coastal environments? Will it rust?

A: The standard version uses SUS304 stainless steel, which is rust-proof and wear-resistant, suitable for most indoor and outdoor scenarios. For coastal, high-humidity, or harsh industrial environments, we offer an upgraded SUS316 stainless steel option, which provides enhanced corrosion and salt-spray resistance to meet long-term use requirements in special conditions.

3.Q: What is its passage throughput? Will it cause congestion during peak hours?

A: Under normal operating conditions, it can handle 25-30 persons per minute, meeting the high-frequency pedestrian passage demands of medium and large sites such as factories and venues, ensuring smooth flow even during peak hours.



4.Q: Does it support two-way passage? Can it integrate with my existing access control system?

A: Yes. The turnstile supports configurable one-way or two-way passage modes to adapt to different site management rules. It also comes with standard interfaces that seamlessly integrate with common access control readers (e.g., RFID cards), facial recognition systems, and more, enabling unified access management.



5.Q: The on-site dimensions differ from the standard size, can it be customized?

A: Yes. The standard dimensions are 1630 × 1500 × 2200 mm, but full structural customization is available, including overall dimensions, aisle width (standard 650 mm, customizable), housing color, and coating process, to suit your specific installation layout and space limitations.
