AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

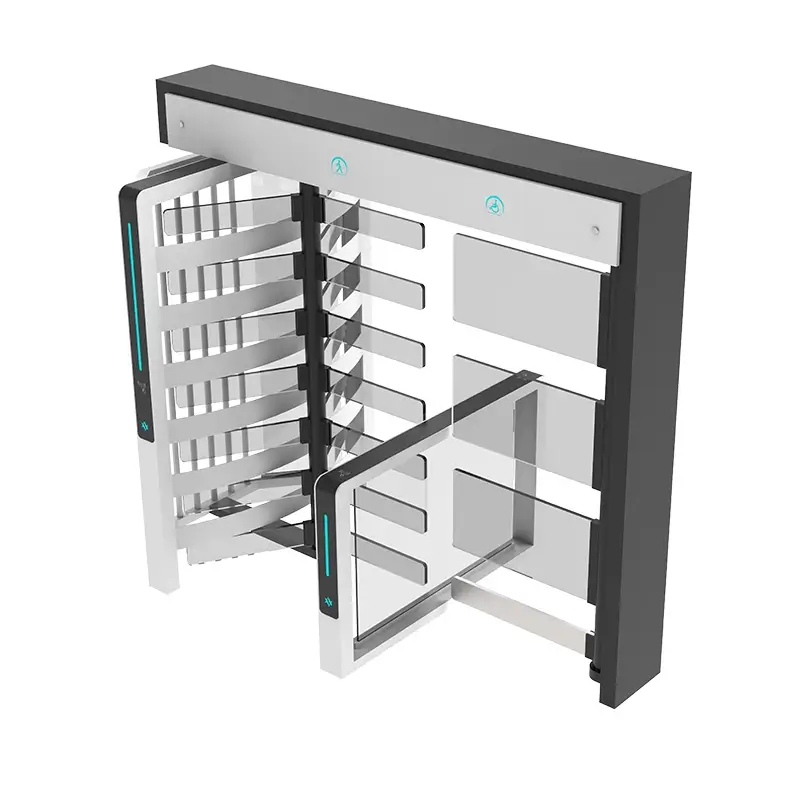

Full Height Turnstile 3D view display
Full Height Turnstile Functional features
1.Passage Indication: The front LED remains green to indicate lane availability. It turns red if the lane is unavailable.
2.Emergency Exit Function: Allows free passage in emergencies; the full-turn gate opens for free passage during power outages.
3.Operating Direction: Selectable for one-way or two-way passage.
4.Automatic Reset Function: After opening, the system automatically locks if no passage occurs within a specified time; the passage time is adjustable.
5.Intrusion Prevention: The gate automatically locks before a valid opening signal is sent.
6.Quick Unlock: The gate automatically unlocks within 0.2 seconds (adjustable) upon receiving a valid signal.
7.Hydraulic Damper: Equipped with a hydraulic shock absorber for quieter operation.
8.Mold Design: The mechanism utilizes a mold design, resulting in more precise components. This saves on labor costs and facilitates assembly.
9.Passage Modes: Entry and exit directions can be independently set to 【Controlled Passage】/【Free Passage】/【No Passage】.
10.Passage Request Memory Function: When two or more valid passage signals are given simultaneously (including same-direction and opposite-direction), the system will remember all passage requests and complete each passage action sequentially (the number of requests to remember and whether to select the memory function can be customized according to customer requirements).
11.Safety Features: Equipped with lightning protection and leakage protection.
12.LCD Display Function: Controlled by a controller with a display screen for easy parameter setting.
13.Anti-Reverse Rotation Function: This mechanism is equipped with a mechanical anti-reverse rotation function; if the rotor rotates to a 60° angle, it is prevented from rotating in the opposite direction.
14.Lighting Function: Full-height turnstile with night lighting function.
15.Voice Prompt Function: Voice prompts during entry and exit; multiple voice prompts can be set (customizable).
16.Interface Protocol: Free development kit protocol provided for convenient control and debugging; strong scalability.

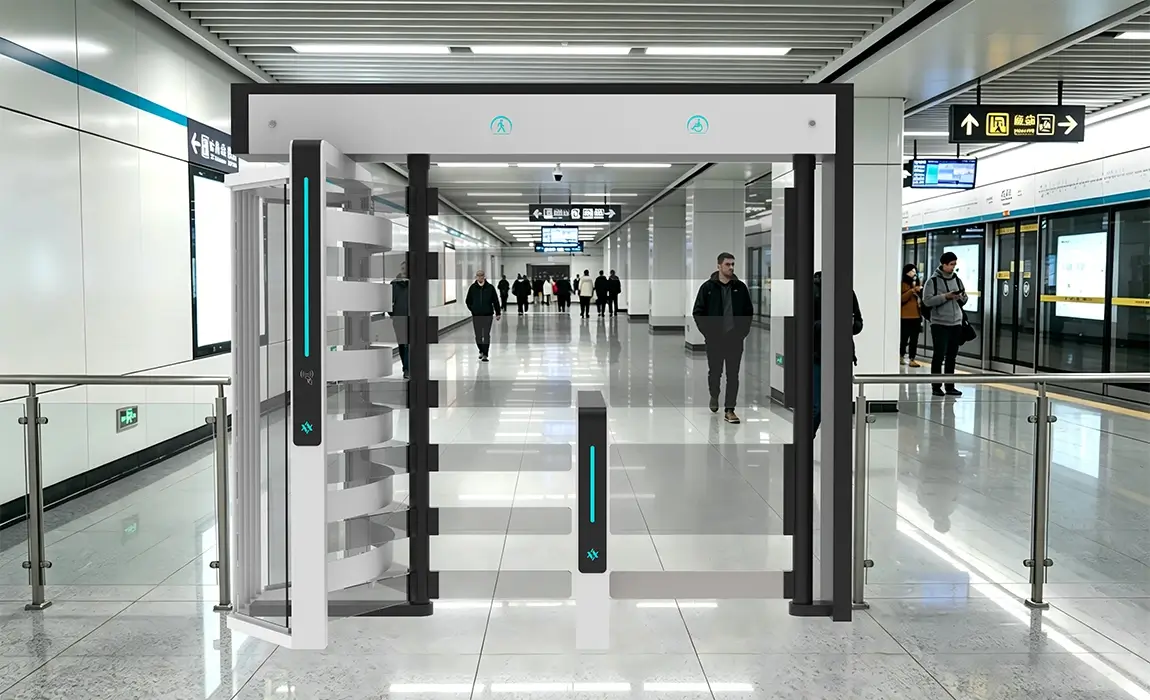

Full Height Turnstile Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
Full Height Turnstile Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

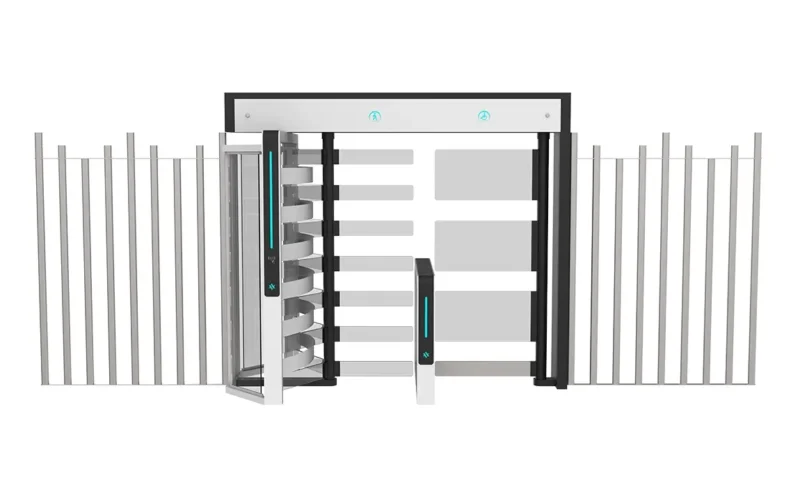

Optional: Turnstile Guardrail
As illustrated in the diagram, this is a combined solution of the Full-Height Turnstile and matching guardrails. When the entrance/exit width is wider than required for a single access point but only one passage is needed, the remaining excess space can be neatly segregated with the guardrails. This setup not only precisely demarcates the pedestrian flow area to prevent disorderly access but also delivers a seamless visual integration between the turnstile and guardrails, resulting in a more organized and streamlined passage layout. Additionally, it optimizes on-site space utilization, striking a perfect balance between robust security control and rational space planning.

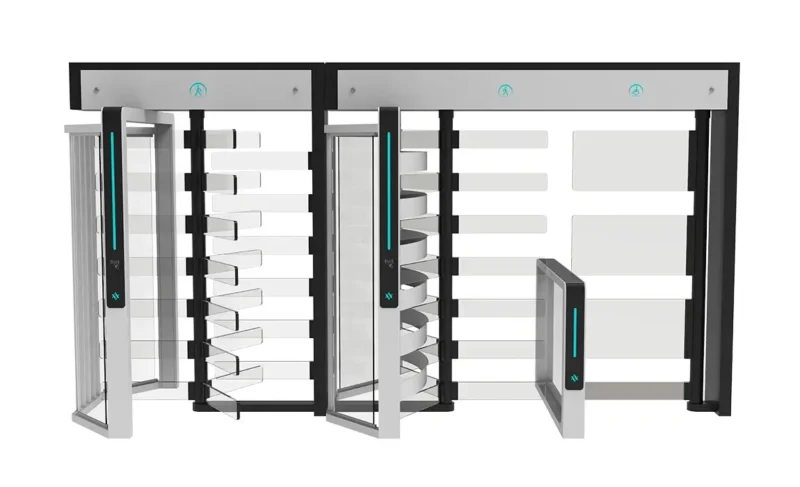

Optional：Turnstile channel count
This full height turnstile is available in flexible lane configurations to meet different site requirements. It can be deployed as a single lane unit for compact installations, or expanded into a double lane system to increase pedestrian throughput while maintaining strict access control. For projects requiring both security and accessibility, the turnstile can be combined with an integrated accessible swing gate, forming a multi-lane solution that supports standard users and wheelchair access simultaneously. Multiple units can also be installed side by side to create a scalable multi-lane entrance system, ideal for high-traffic environments such as industrial facilities, stadiums, and transportation hubs. This modular lane design allows clients to balance space, flow rate, and security level efficiently.

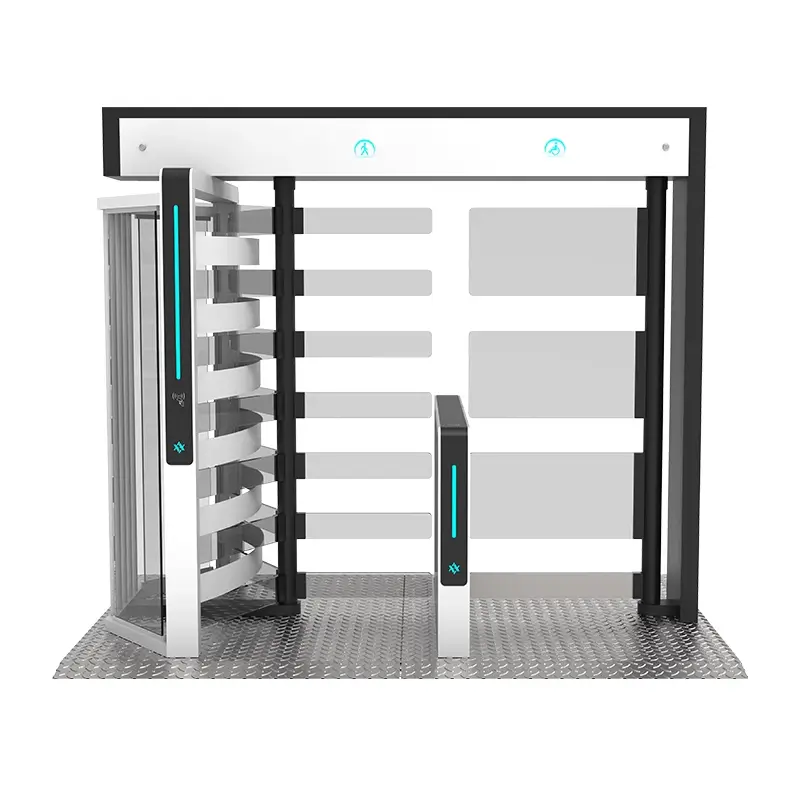

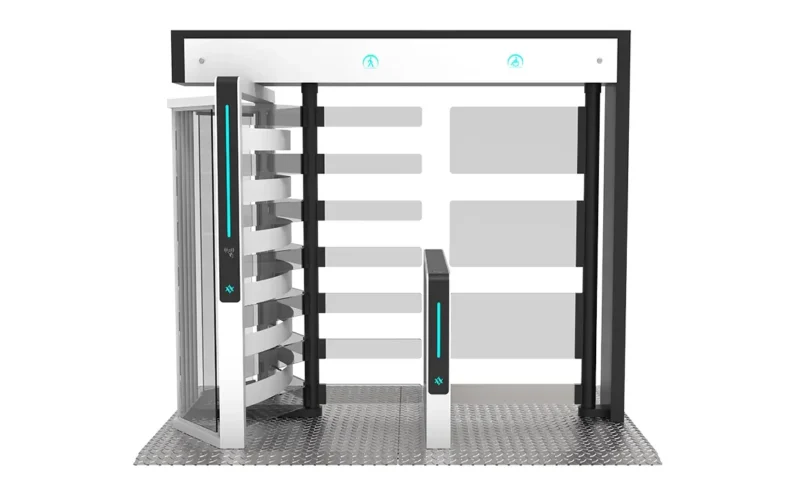

Optional：Turnstile base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

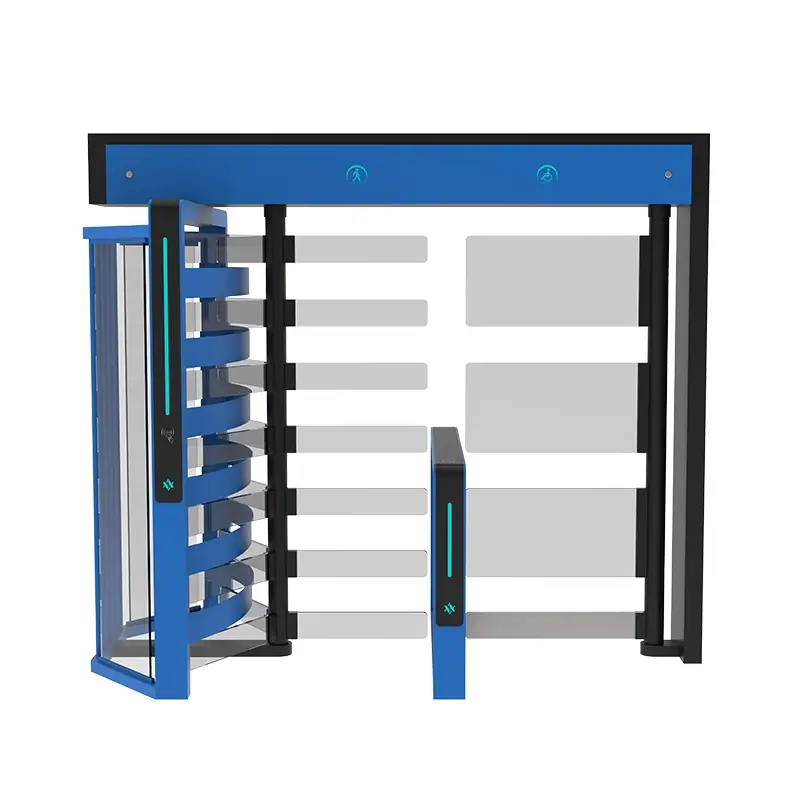

Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

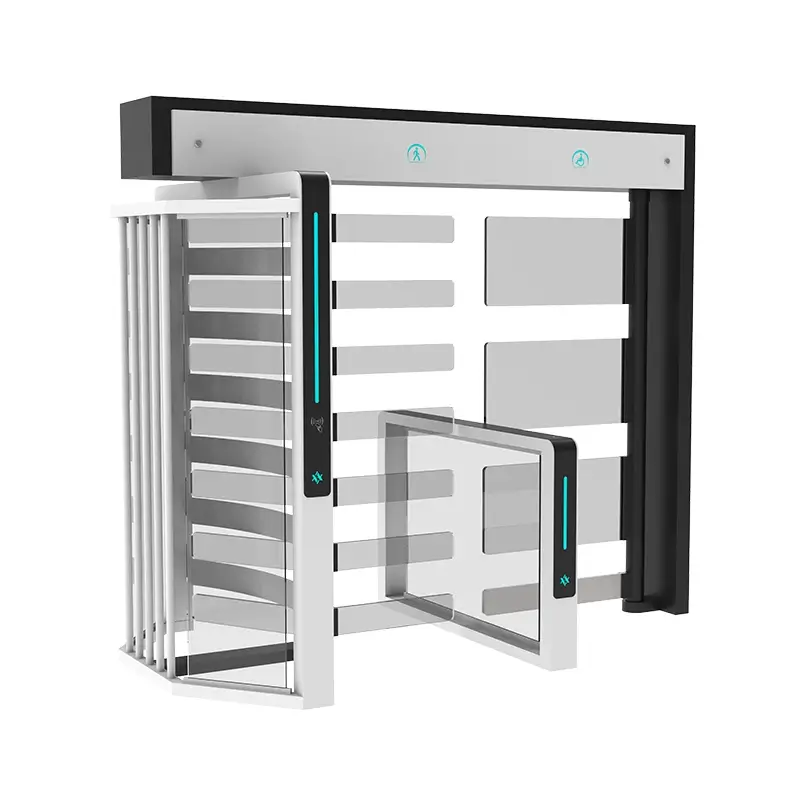

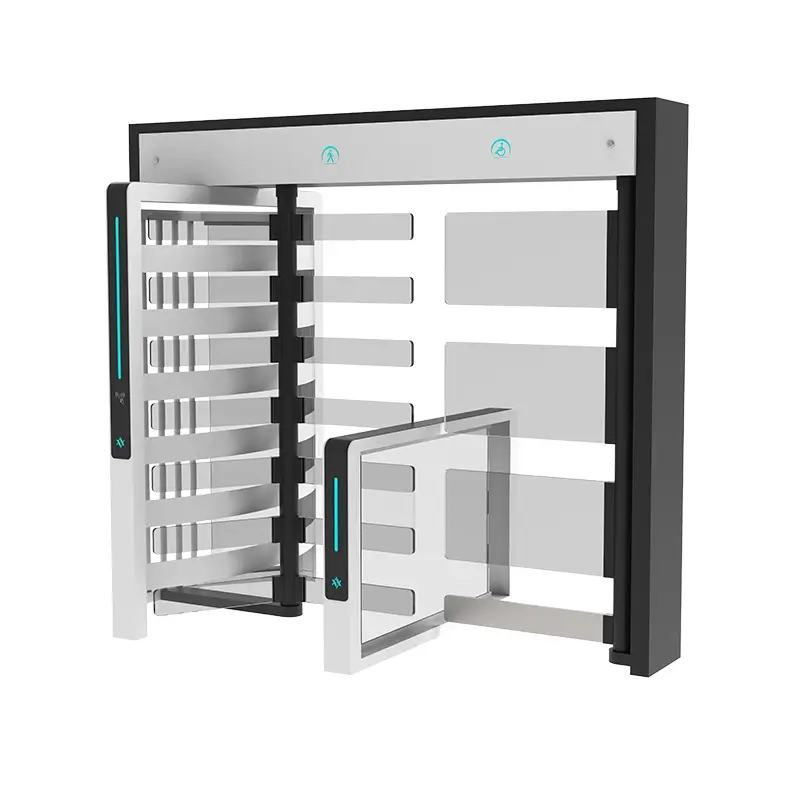

This full height turnstile with accessible swing gate is engineered for high-security environments where durability, safety, and visual adaptability are essential. As a reliable high security access control system, it effectively prevents unauthorized entry and tailgating, making it an ideal pedestrian access control system for demanding applications. The entire structure features a powder-coated finish, allowing flexible color customization to suit different architectural styles and environmental conditions, whether installed as an outdoor security turnstile or in indoor facilities.
The accessible turnstile gate is designed with a tempered glass side door, ensuring both strength and visibility, while the rotating arms and swing barrier are equipped with durable acrylic panels for a modern and impact-resistant finish. Built with a full ground-mounted cabinet, this full height turnstile delivers superior stability with no risk of forced tipping, ensuring long-term operational safety.
Available in single lane or double lane turnstile configurations, it can also be expanded into a multi-lane access control system to handle high pedestrian flow efficiently. This turnstile with swing gate is widely used in industrial facilities, construction sites, data centers, stadiums, transportation hubs, and government buildings, supporting integration with RFID, biometric, QR code, and facial recognition technologies for advanced secure access management.
