AT505 Coated double doors Full Height Turnstile

AIPADA AT504 dual-lane full height turnstile delivers high-security, anti-tailgating access control. With heavy-duty construction and dual-passage design, it ensures efficient, reliable pedestrian flow for stadiums, parks and industrial sites.

Product Dimensions: 2400*1500*2200mm（7.87*4.92*7.22 ft） as standard, with full structural customization available to suit site-specific installation layouts and space limitations.
Aisle Width: Standard aisle width is 650 mm (2.13 ft), with customized width solutions available to accommodate special passage demands.
Enclosure Construction: Standard build combines iron baking paint with durable SUS304 stainless stee, offering rust and wear resistance suitable for most common indoor and outdoor environments. SUS316 stainless steel is available as an upgrade option, providing even greater corrosion and salt spray resistance, making it suitable for coastal, high-humidity, and harsh industrial environments.
Turnstile Operation Mode: Semi-automatic mode is configured as standard for cost-effective and stable daily operation. Fully automatic mode is available for customized upgrade, featuring more intelligent sensor induction and a streamlined passage experience.
Traffic Direction: Supports configurable one-way or two-way passage modes, allowing flexible and scientific management of pedestrian flow according to the actual access control rules of the site.
Drive & Control System: Equipped with mature and reliable mechanical drive and intelligent control modules, supporting continuous frequent operation. It features sensitive induction, anti-jamming operation and automatic reset functions, effectively preventing card-passing without entry and illegal trailing behavior.
Passage Throughput: Capable of handling 25–30 persons per minute under normal operating conditions, meeting the high-frequency pedestrian passage demands of medium and large traffic scenarios.

Categories: All Turnstiles, Full Height Turnstiles Tags: full height turnstile, full height turnstile gate, Full height Turnstiles for airports, Full height Turnstiles for office buildings, New design Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

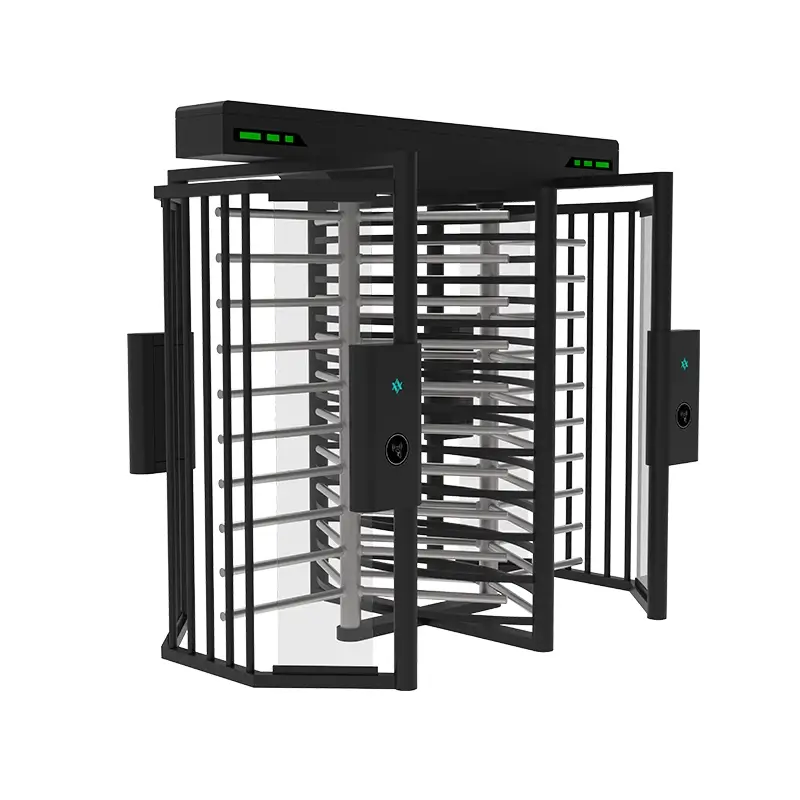

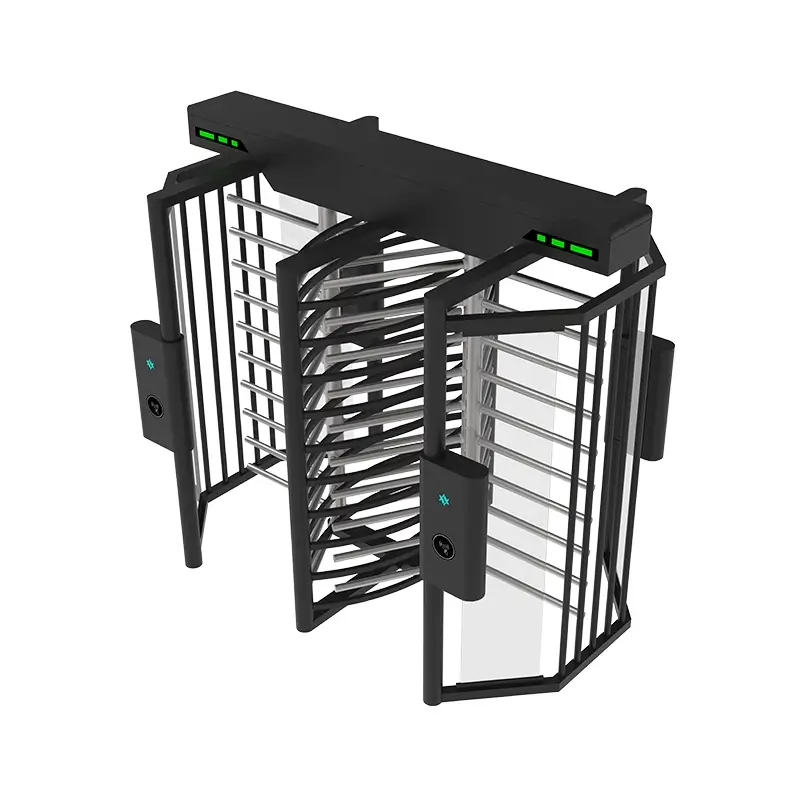

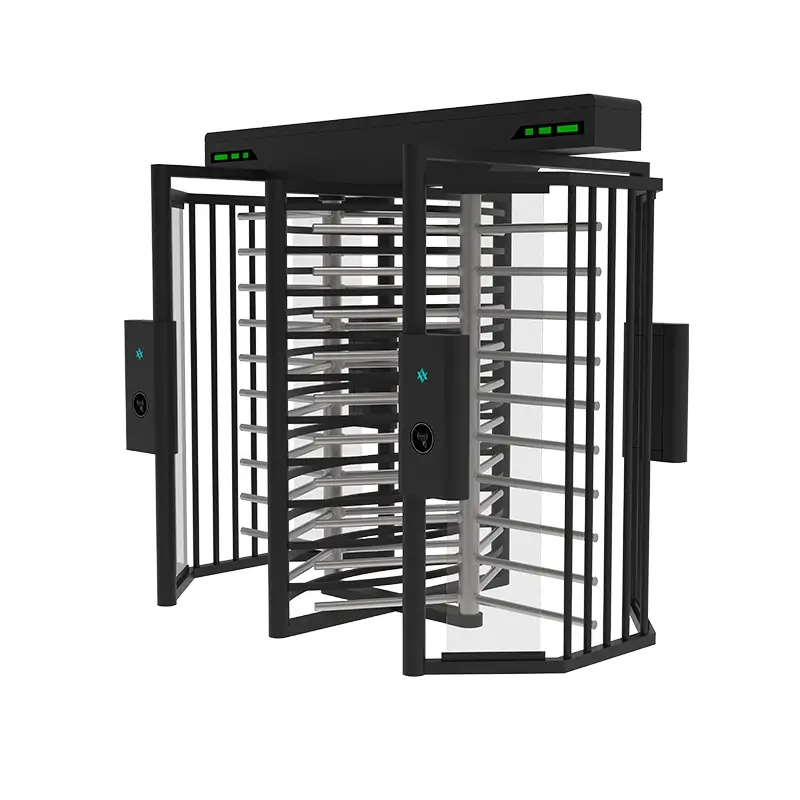

AT505 Full Height Turnstile 3D view display

AT505 Full Height Turnstile Functional features

Space & Layout Customization – Fit Any Site, No Compromises
Unlike one-size-fits-all turnstiles, the AT505 is built to adapt to your space.
1. Standard dimensions: 2400×1500×2200mm (custom structural modifications available to suit tight corners, uneven layouts, or unique installation constraints).
2. Adjustable aisle width: Standard 650mm width, with custom solutions to accommodate wheelchairs, large bags, or special passage requirements.
3. Tailored configuration: Single-lane, dual-lane, or multi-lane setups available to match your venue’s traffic flow and security rules.
Material & Environmental Customization – Built for Your Conditions
Choose the right build to match your location’s needs, from urban offices to coastal facilities.
1. Standard build: Iron baking paint + SUS304 stainless steel, ideal for most indoor/outdoor environments with basic rust and wear resistance.
2. Premium upgrade: SUS316 stainless steel for superior corrosion and salt spray resistance, perfect for coastal, high-humidity, or harsh industrial sites.
3. Custom coated finishes: Match your brand’s aesthetic with custom colors and coating options, without compromising durability.
Operation & Function Customization – Align with Your Security Rules
Every venue has unique access needs, and the AT505 adapts to yours.
1. Operation mode options: Choose cost-effective semi-automatic mode for daily use, or upgrade to fully automatic mode with intelligent sensor induction for a streamlined, hands-free experience.
2. Traffic direction flexibility: Configure one-way or two-way passage to control pedestrian flow according to your site’s access policies.
3. Customizable access rules: Set anti-tailgating sensitivity, alarm triggers, and reset behaviors to match your security requirements.
Integration Customization – Work With Your Existing System
No need to replace your current infrastructure. The AT505 is built for seamless integration with your preferred access control tools.
1. Compatible with RFID readers, biometric scanners, barcode/QR code readers, and visitor management systems.
2. Custom interface and communication protocols available to connect with your existing security platform.
3. Optional LED indicators, voice prompts, and signage customization to match your venue’s user experience.
Core Performance – Reliable, Even in High-Traffic Environments
Beyond customization, the AT505 delivers consistent performance:
1. High throughput of 25–30 persons per minute under normal conditions.
2. Robust anti-tailgating, anti-climb, and anti-jamming protection for maximum security.
3. Low-maintenance design for long-term reliability, even with continuous frequent use.

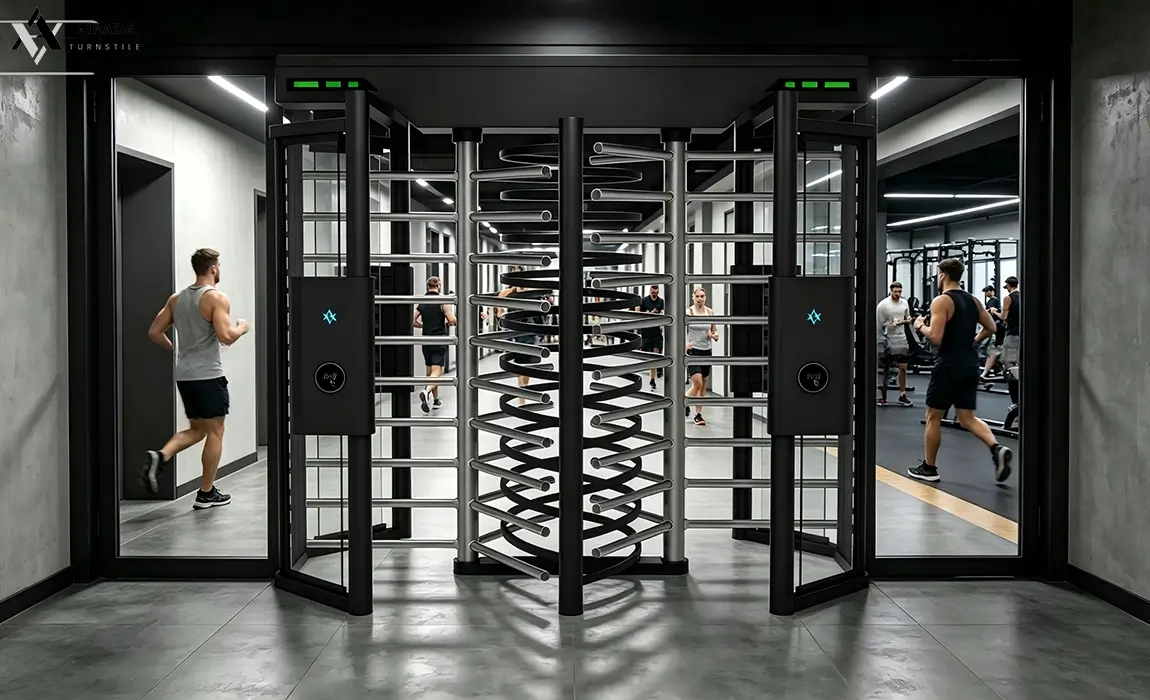

AT505 Full Height Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT505 Full Height Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

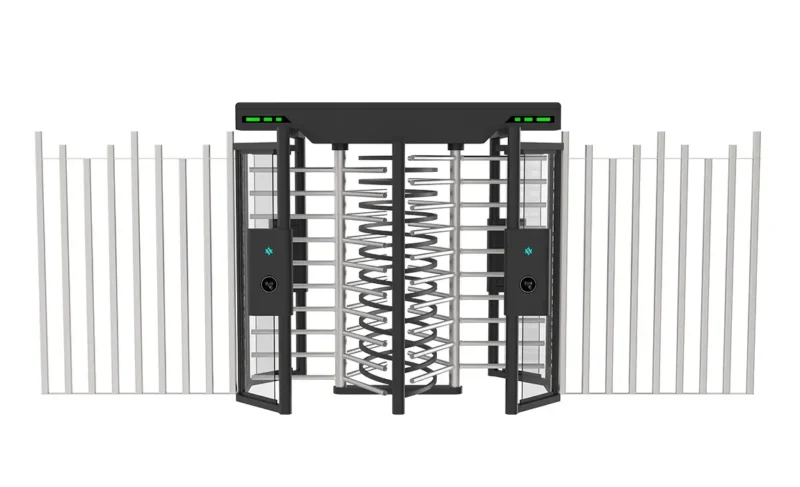

Optional: Turnstile Guardrail

As illustrated in the diagram, this is a combined solution of the Full-Height Turnstile and matching guardrails. When the entrance/exit width is wider than required for a single access point but only one passage is needed, the remaining excess space can be neatly segregated with the guardrails. This setup not only precisely demarcates the pedestrian flow area to prevent disorderly access but also delivers a seamless visual integration between the turnstile and guardrails, resulting in a more organized and streamlined passage layout. Additionally, it optimizes on-site space utilization, striking a perfect balance between robust security control and rational space planning.

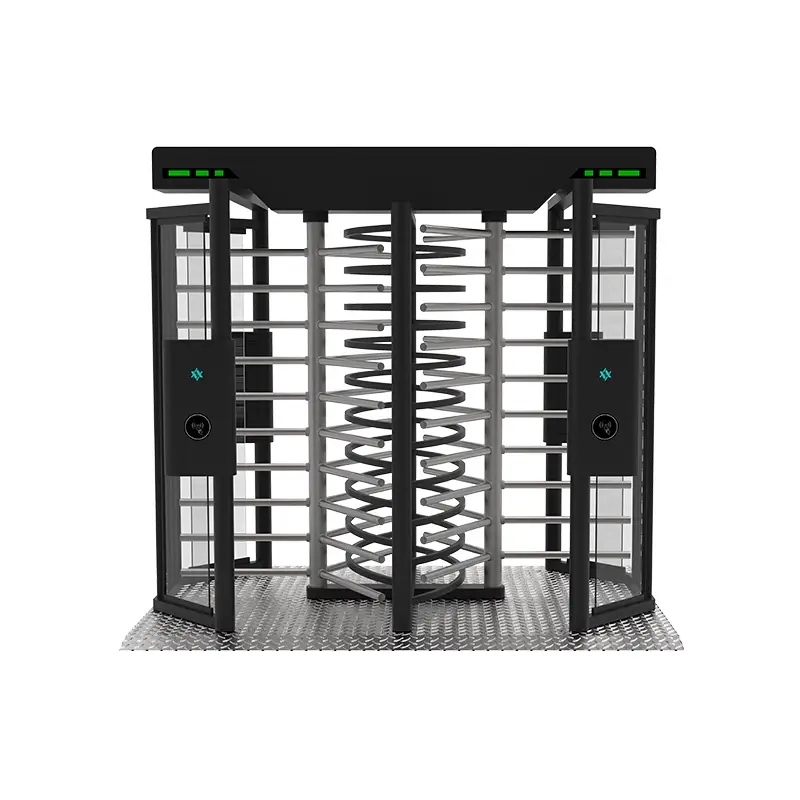

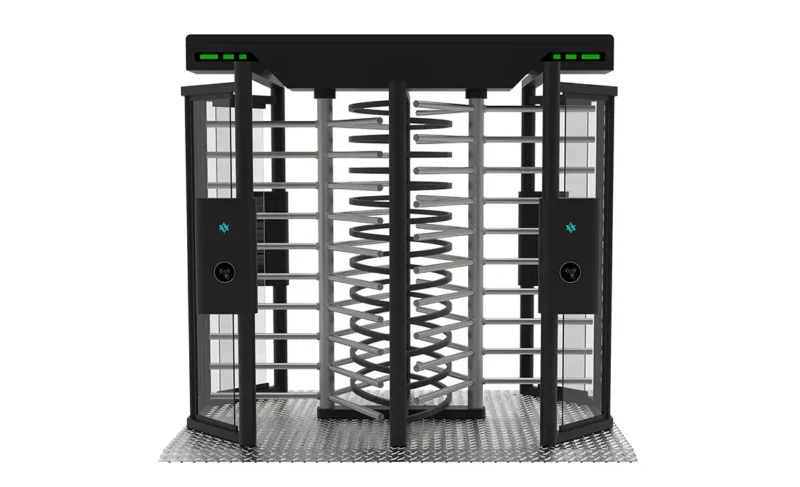

Optional：Turnstile base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

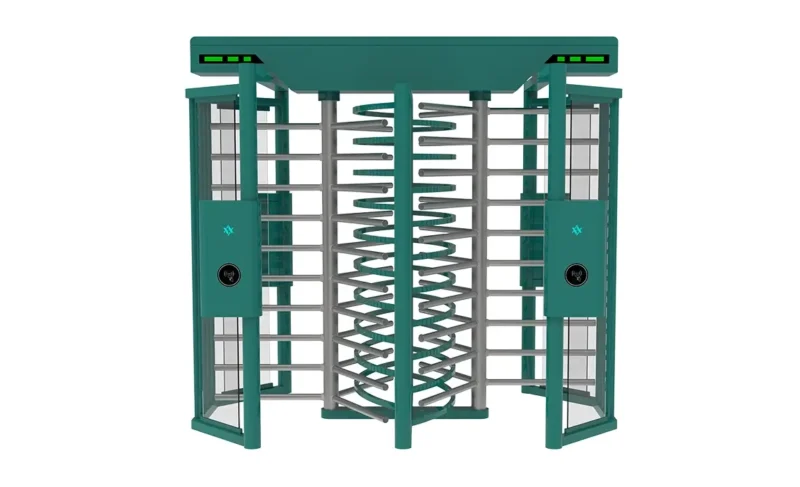

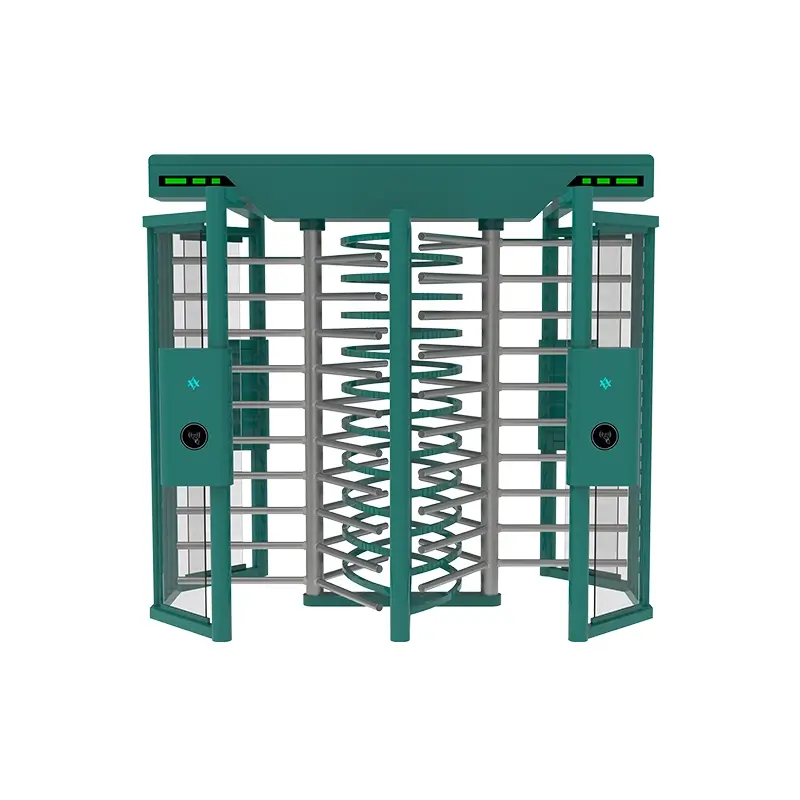

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Can this full height turnstile be customized to fit my unique installation space?

A: Yes, absolutely. The AT505 supports full structural customization to match site-specific layouts. We offer custom dimensions, adjustable aisle widths (beyond the standard 650mm), and multi-lane configurations to accommodate tight corners, uneven spaces, or special passage needs like wheelchair access.

2.Q: Is this turnstile durable enough for outdoor or harsh environments like coastal areas?

A: Yes. The standard model uses SUS304 stainless steel with iron baking paint for excellent rust and wear resistance, suitable for most indoor/outdoor settings. For coastal, high-humidity, or harsh industrial environments, we offer an upgraded SUS316 stainless steel option for superior corrosion and salt spray resistance.

3.Q: Can I choose between different operation modes to match my site’s needs?

A: Yes. The AT505 comes standard with a cost-effective semi-automatic mode for stable daily use. You can upgrade to fully automatic mode with intelligent sensor induction for a streamlined, hands-free passage experience. It also supports configurable one-way or two-way traffic directions.

4.Q: How much maintenance does this full height turnstile require?

A: Very low maintenance. The turnstile is built with mature mechanical drive and intelligent control modules for long-term reliability. Its anti-jamming, automatic reset, and wear-resistant design minimize downtime and routine upkeep, even with continuous high-frequency use.

5.Q: Can this turnstile integrate with my existing access control system?

A: Yes. The AT505 is fully compatible with most common access control systems, including RFID readers, biometric scanners, QR code readers, and visitor management platforms. We can also provide custom interface solutions to connect with your existing security infrastructure.
