AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.
Swing Turnstile Gate AT209 3D view display
Swing Turnstile Gate AT209 Product Description
Irregular Hexagonal Frame Appearance：Swing Turnstile Gate AT209 adopts unique irregular hexagonal frame outline, angular geometric cabinet with straight beveled edges, minimalist modern layered design. Hollow frame equipped with flat transparent swing arms to form open pedestrian passage.
Standard Cabinet Size：Standard dimension 1400*185*1000mm (4.59*0.61*3.28ft). Custom cabinet sizes are acceptable to satisfy various construction project customization demands.
Adjustable Passage Width：Passage width adjustable between 600mm (1.97ft) and 900mm (2.95ft), suitable for ordinary pedestrians, luggage carriers and partial wheelchair access scenarios.
Optional Swing Arm Materials：Multiple swing arm options including acrylic, tempered safety glass, plexiglass and solid stainless steel to match different interior decoration styles.
Modular Combination Installation：Support single set, dual-lane and multi-lane combined splicing installation, flexible layout for entrances with different space sizes.
High Traffic Throughput：Maximum passing efficiency reaches 40 people per minute, guaranteeing smooth and orderly pedestrian flow during morning and evening peak hours.
Configurable Traffic Direction：Freely set one-way passage or two-way bidirectional passage mode according to site management regulations.
Multi-type Recognition Device Compatibility：Reserved standard external interfaces, compatible with RFID card readers, QR code scanners, fingerprint collectors and facial recognition access terminals to realize diversified identity verification.
Power-off Emergency Release Function：The swing arms automatically unlock and open when power cuts off, supporting pedestrian emergency evacuation; the gate will automatically reset after power supply is restored.
Infrared Anti-Pinch Protection：Multiple built-in infrared sensors monitor passage area in real time, prevent swing arms from clamping pedestrians during movement and improve operation safety.
Anti-Reverse Intrusion Detection：Infrared sensor system identifies reverse pedestrian trespassing, trigger alarm signal to block unauthorized reverse entry.
Automatic Reset Function：If authenticated users fail to pass within the preset time, the system will automatically revoke access permission and reset the swing turnstile to standby status.
LED Traffic Status Indicator：Top-mounted high visibility LED indicator lights. Green light means pass allowed, red light means access forbidden, clearly remind pedestrians of passage status.
Wide Application Scenarios：Perfect intelligent access control equipment for office lobbies, business parks, high-end apartments, hotel staff entrances, gyms and data centers.

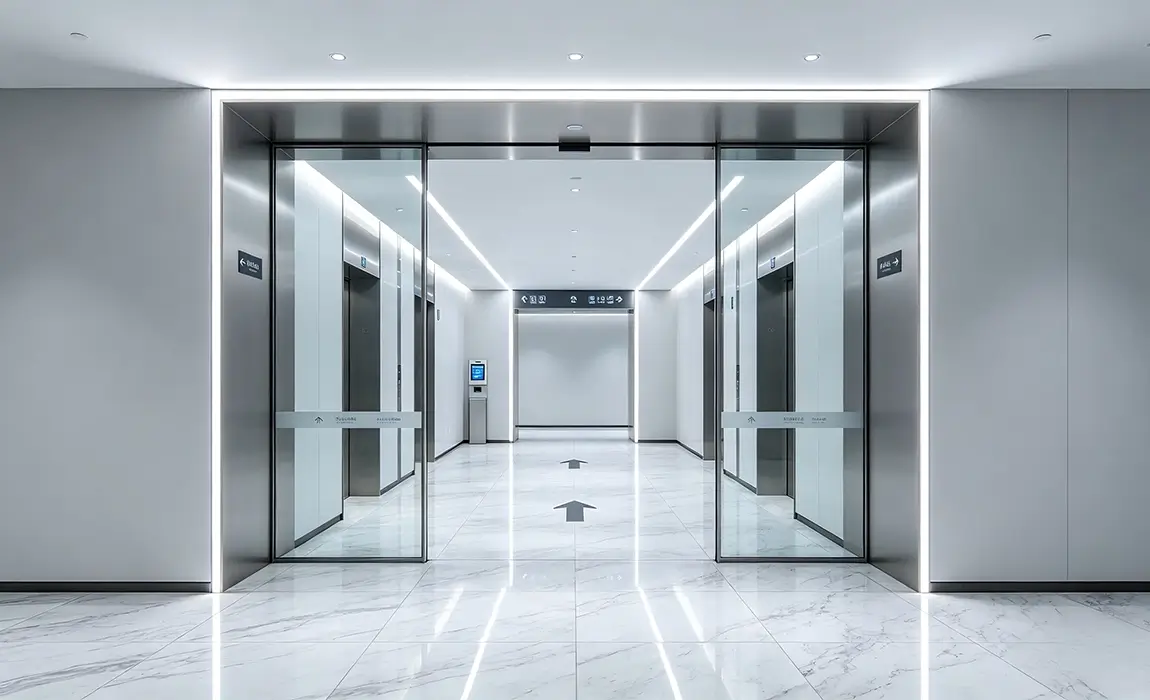

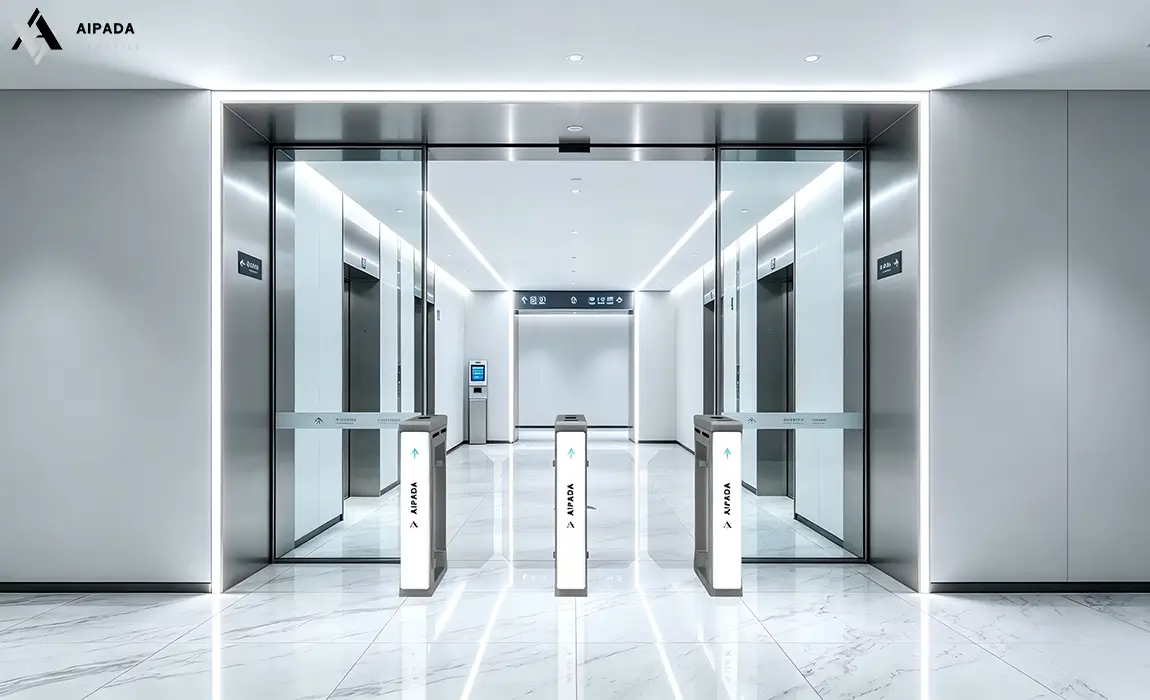

Swing Turnstile Gate AT209 Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
Swing Turnstile Gate AT209 Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.
Optional：Number of turnstile channels
The diagram shows a dual-channel system consisting of two single-core and two double-core wing and rotary gates. If more channels are needed, the number of rotary gates can be increased.
Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.
Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.
Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
A：Yes. Our AT209 swing turnstile supports custom surface paint colors. We can customize the housing color according to your shopping mall, club and project decoration requirements.
A：Absolutely. This swing turnstile adopts modular design. You can expand channels by adding equipment without replacing the whole access control system.
A：It is reserved with standard interface. It can be perfectly connected to mainstream facial recognition devices and guarantee smooth recognition and gate operation.
A：Not mandatory. Two installation options are available: ground drilling fixation or installation with an integrated base plate for simpler construction.
A：We provide tempered glass and acrylic swing arms for selection. Different materials can be chosen based on the safety style of your building.
