AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

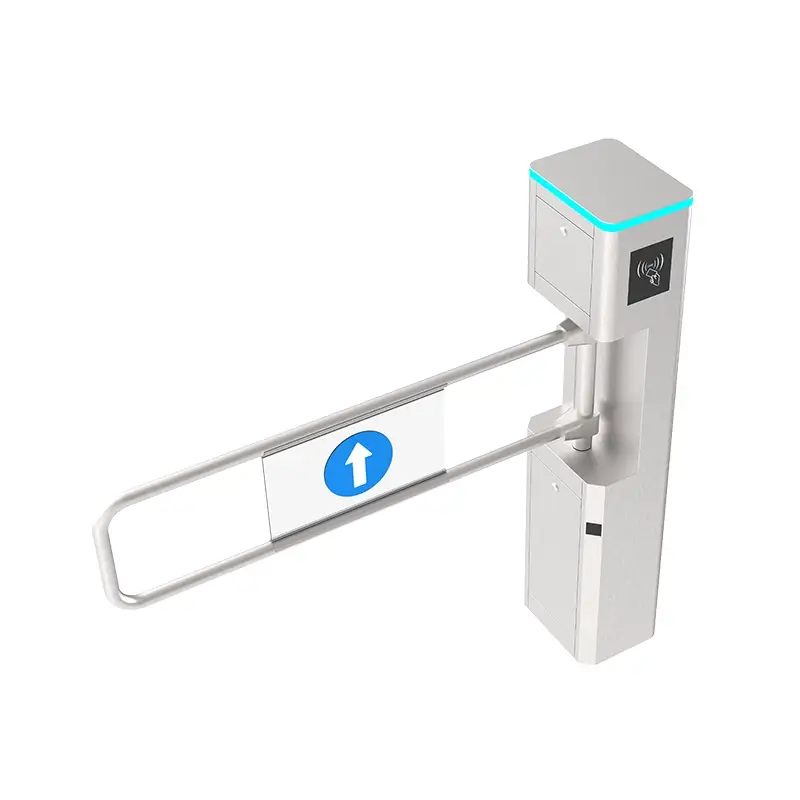

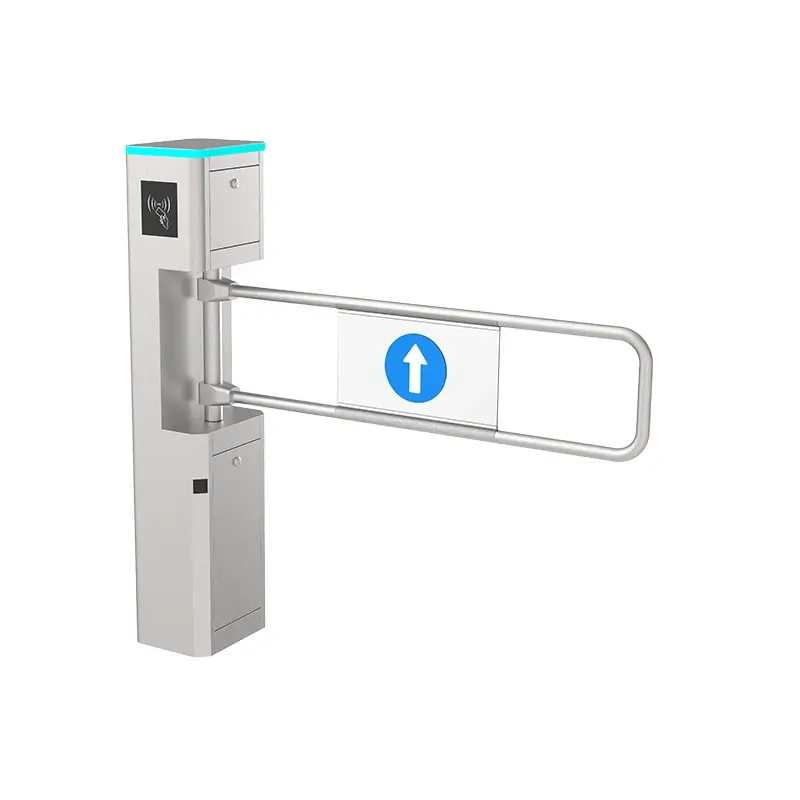

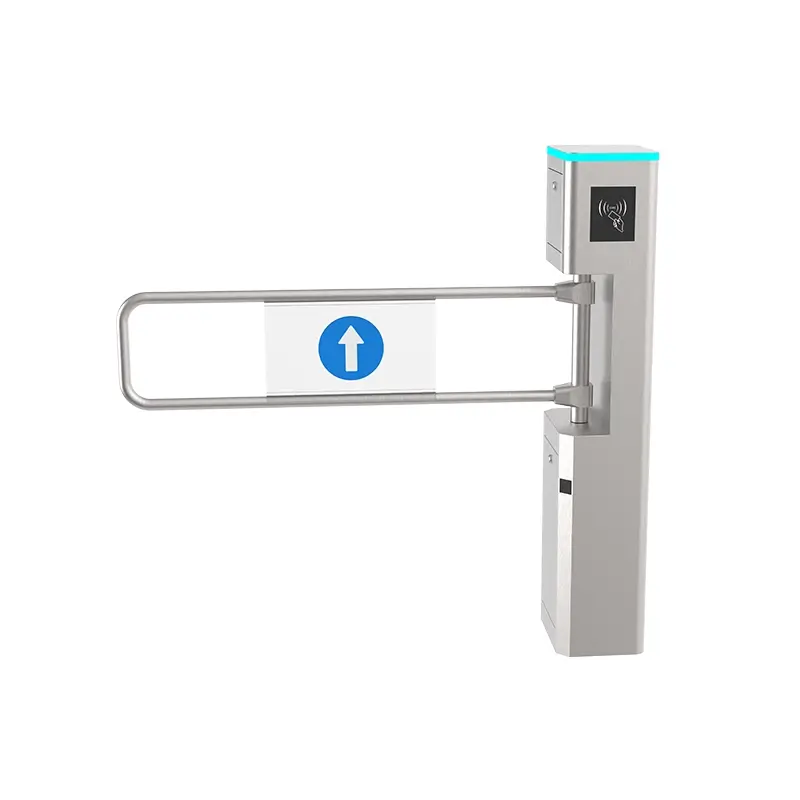

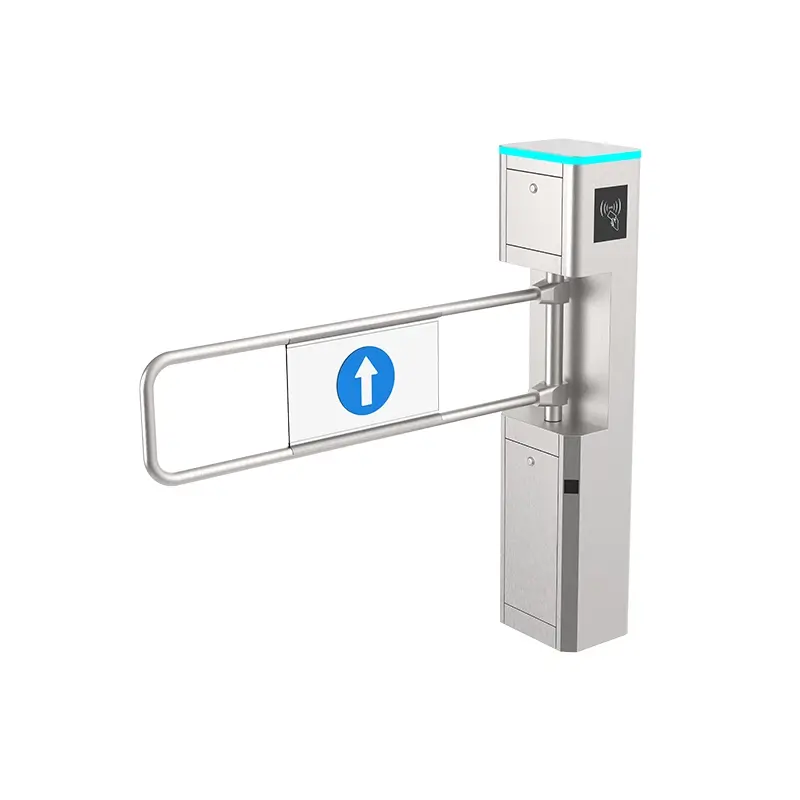

AT207 Supermarket Entrance Swing Gate 3D view display
AT207 Supermarket Entrance Swing Gate Functional features
- Standard Dimension ：Standard cabinet 260 × 160 × 1050 mm (0.85 × 0.52 × 3.44 ft) Custom sizes available on request.
- Swing Arm Length：Swing arm length 350‑600mm adjustable, custom‑made length available, fits retail pedestrian swing barrier application scenarios
- Cabinet Material：Main cylinder housing adopts SUS304 stainless‑steel, SUS316 optional for damp shopping mall environment
- Swing Arm Material：Standard acrylic swing arm; optional tempered glass, stainless‑steel tube for shop entry swing gate
- Surface Treatment：Stainless‑steel brushed finish as standard; polishing surface optional for different store decoration styles
- Drive Mode：Brushless servo drive, stable low‑noise operation for long‑time frequent opening
- Working Voltage：DC24V safe working voltage, low power consumption for long‑duration supermarket operation
- Input Power：Rated input power 40W‑60W, energy‑saving design for retail business hours
- Response Speed：Swing arm response time 0.2‑0.5s, quick reaction for supermarket passenger flow
- Infrared Sensor Quantity：Multi‑group infrared photoelectric sensors for anti‑pinch detection
- Anti‑pinch Function：Real‑time infrared anti‑pinch protection, avoids injury for customers and shoppers
- Power‑off Release Mode：Auto‑open when power failure, swing arm automatically opens for emergency evacuation
- Power‑on Reset：Auto reset to closed status after power‑on, restore access control status
- Signal Interface：Dry‑contact relay signal interface, compatible with access controller, card & QR readers
- Working Temperature：‑20℃ ~ +60℃, adapt to indoor supermarket and shopping mall environment
- Working Humidity：5%‑90% non‑condensing humidity, suitable for shopping mall public area
- Indicator Light：Embedded LED status indicator, show pass /deny status for pedestrians
- Operation Mode：Bidirectional configurable; one‑way or two‑way access control mode selectable
- Compatibility：Support integration with face recognition, RFID card, barcode scanning devices
- Application Scenarios：Ideal for supermarket, retail shop, convenience store and shopping mall entrance

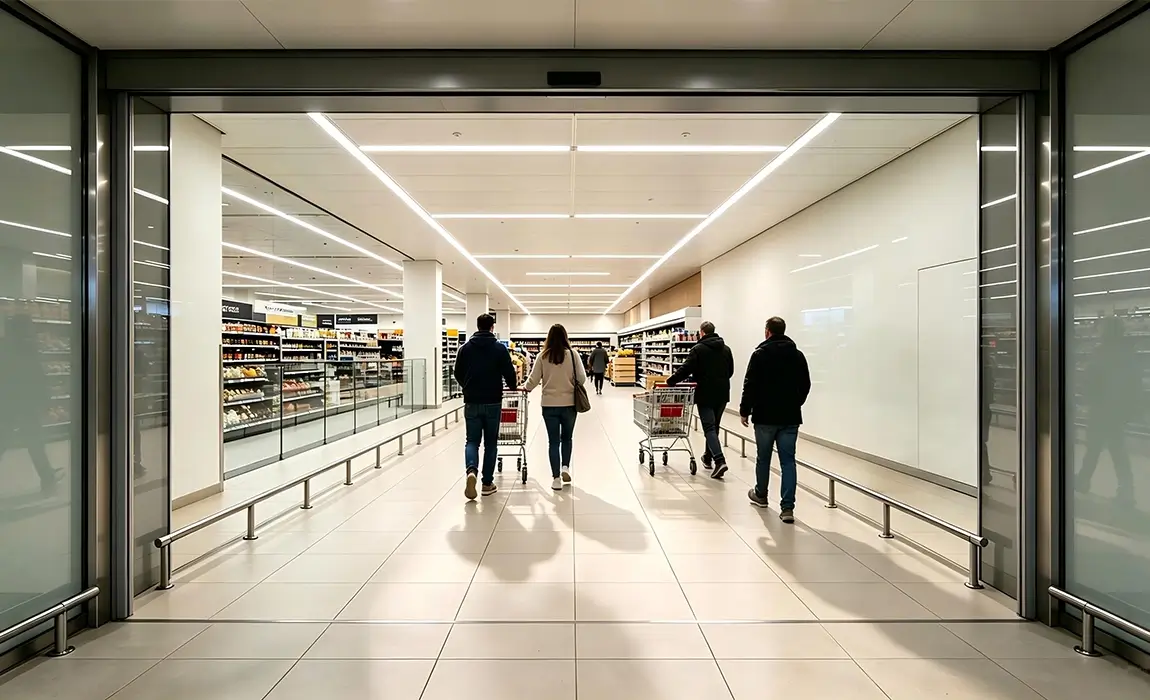

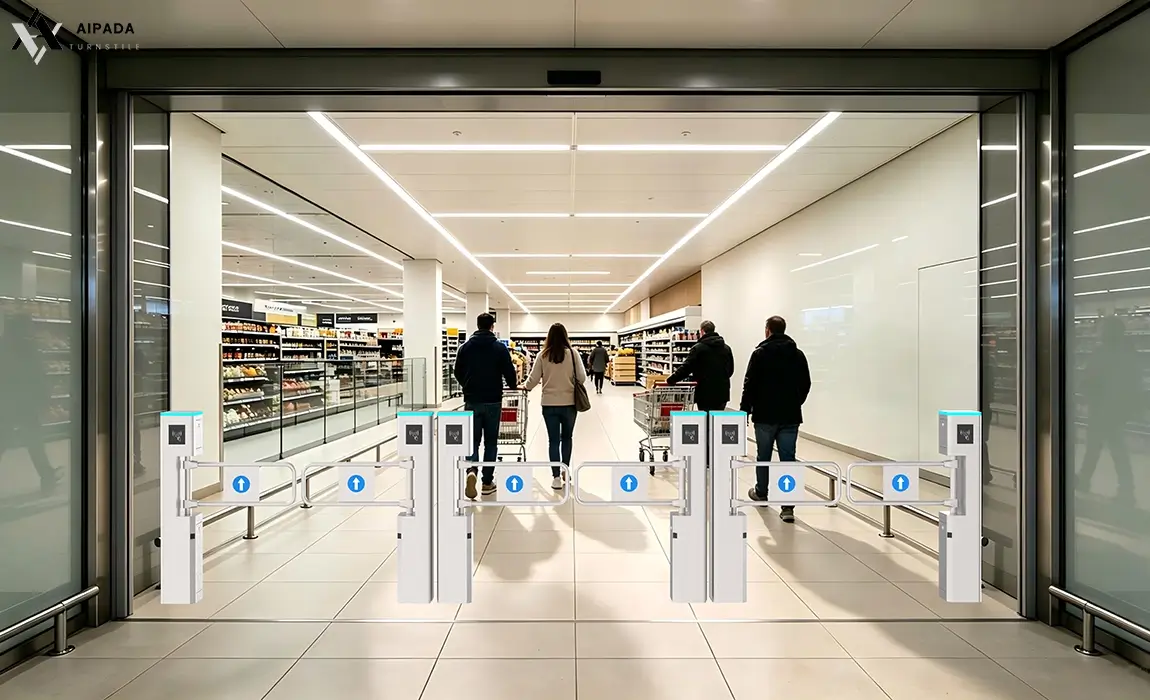

AT207 Supermarket Entrance Swing Gate Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
AT207 Supermarket Entrance Swing Gate Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

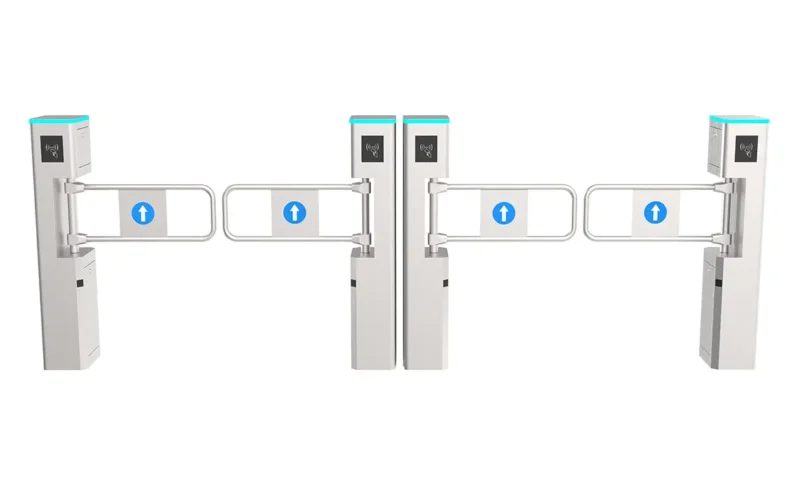

Optional：Number of turnstile channels
The diagram shows a dual-channel system consisting of four mechanisms. If more channels are needed, the number of revolving doors can be increased.

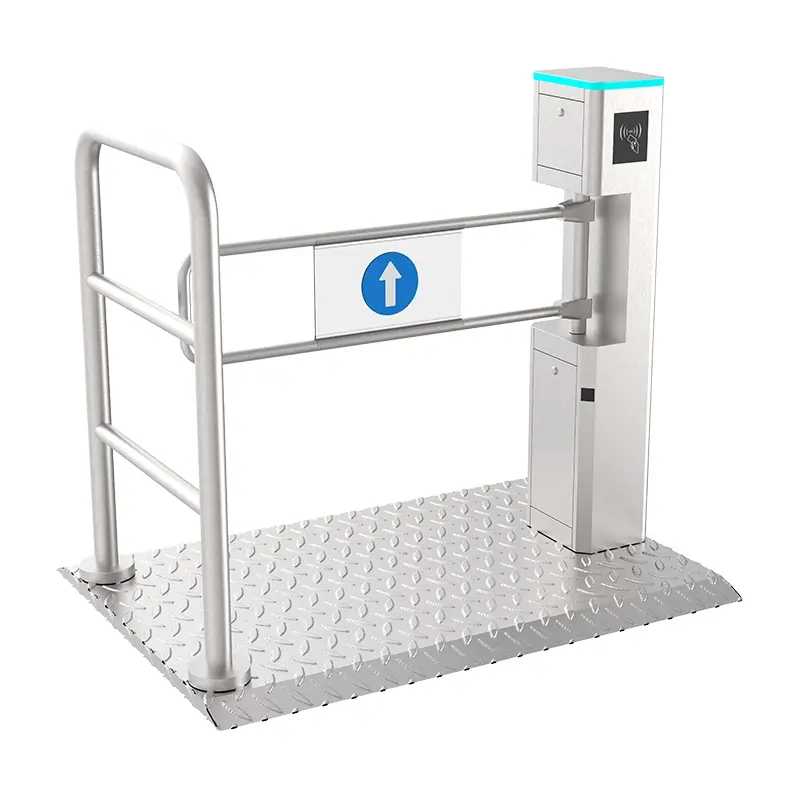

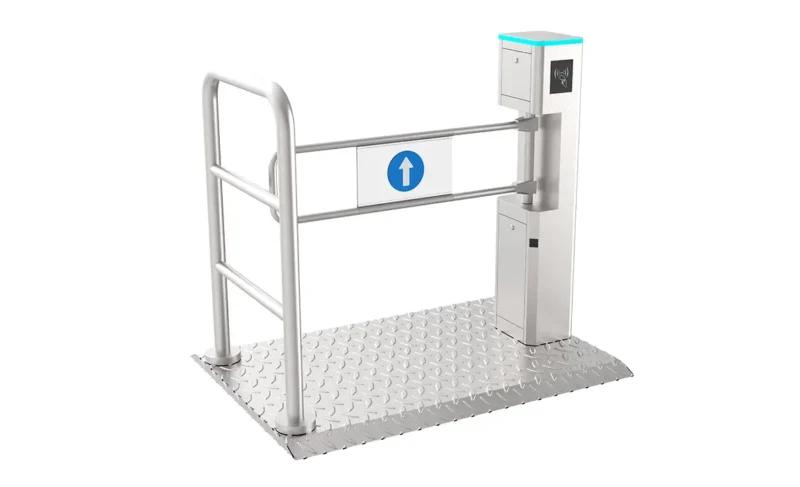

Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.
Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

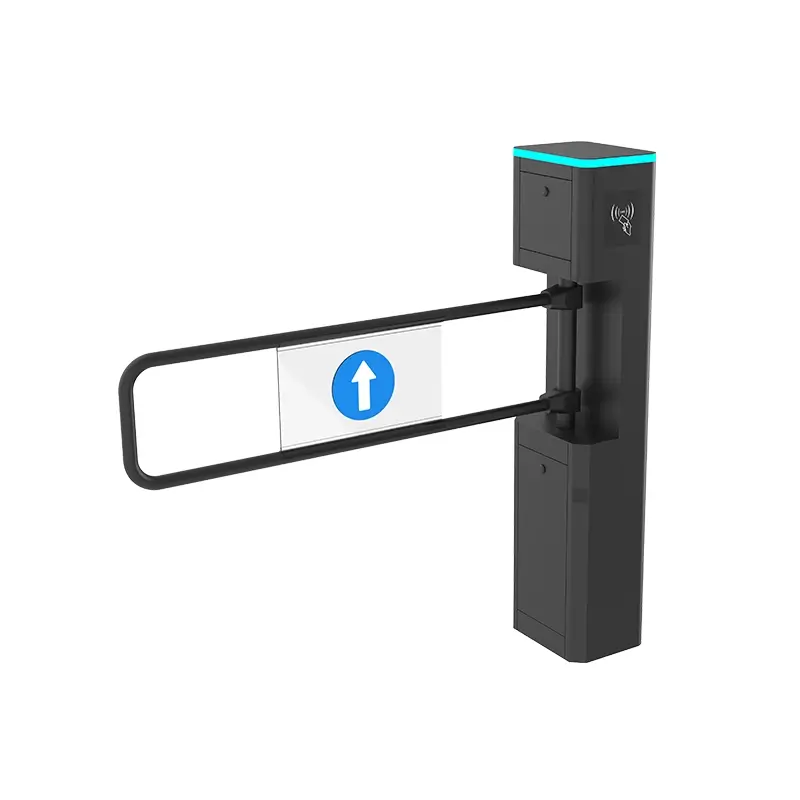

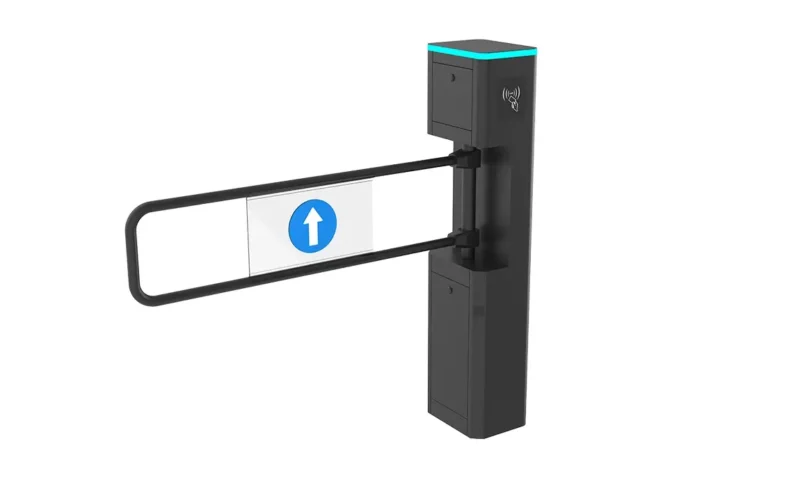

Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

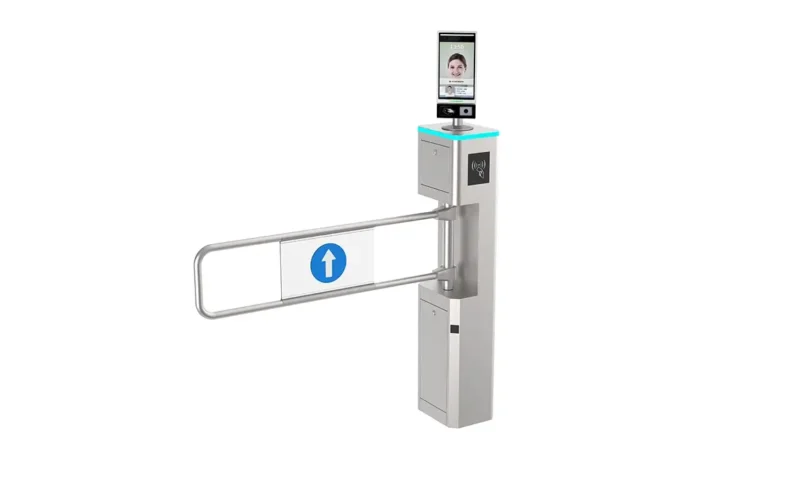

Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
1.Q：Can this swing turnstile handle high‑volume rush‑hour supermarket foot traffic?
A：Yes, it adopts heavy‑duty mechanical structure, designed for frequent peak‑hour pedestrian flow in retail sites.
2.Q：Is it possible to customize housing colors to match our supermarket brand style?
A：Custom spray‑paint color options are supported, you can provide target color code for reference.
3.Q：What protection level does the supermarket swing gate have for dusty supermarket environment?
A：The main unit reaches IP54 rating, resist daily dust and minor splash inside shopping mall supermarkets.
4.Q：Can I add infrared sensors on the matching guard rails for pedestrian detection?
A：Auxiliary guard rails reserve installation space, infrared sensor modules can be configured as optional parts.
5.Q：Will the swing arm cause scratches to shopping carts or customer luggage?
A：Swing arm uses rounded edge design to reduce collision damage for trolleys and personal belongings.
6.Q：What happens during power‑off for supermarket swing turnstile?
A：Power‑fail automatic unlock function, barriers swing free for safe emergency evacuation.
7.Q：Does this swing turnstile work with supermarket existing access control readers?
A：Standard dry‑contact relay interface, compatible with most card, QR and barcode readers on market.
8.Q：Can we purchase only swing turnstile main bodies without guard rail accessories?
A：Yes, guard rail is optional accessory, you can order main machine only according to site layout.
9.Q：Do you provide installation drawing and wiring diagram for supermarket swing gate?
A：Complete technical documents including dimension drawing and wiring manual will be supplied together.
10.Q：Is stainless steel material anti‑corrosive for humid supermarket fresh‑food area?
A：Standard SUS304 for general supermarket; SUS316 can be upgraded for high‑humidity fresh zone.
