AT502 Double Full Height Turnstile Stainless Steel Anti-Climb High Security Access Control Gate

![Compact TC turnstile ensuring efficient crowd control](https://aipadaturnstile.com/wp-content/uploads/2025/12/AT502-TC-03.webp "Compact TC Turnstile")

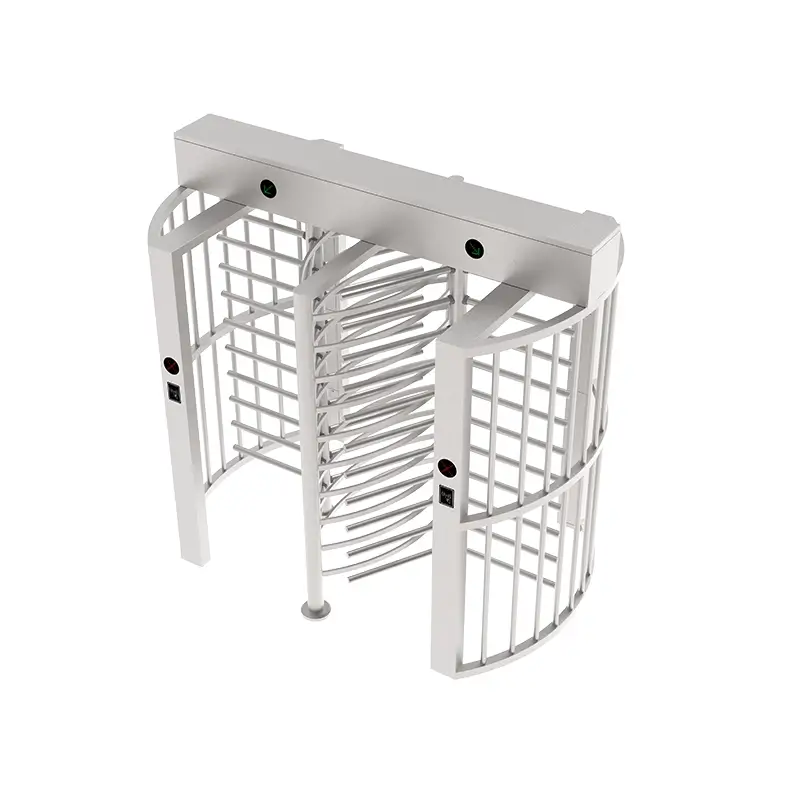

![Modern TC turnstile offering reliable access management](https://aipadaturnstile.com/wp-content/uploads/2025/12/AT502-TC-04.webp "Modern TC Turnstile")

![Sleek TC turnstile providing secure entry solutions](https://aipadaturnstile.com/wp-content/uploads/2025/12/AT502-TC-05.webp "Sleek TC Turnstile")

![Reliable TC turnstile optimizing entrance efficiency](https://aipadaturnstile.com/wp-content/uploads/2025/12/AT502-TC-06.webp "Reliable TC Turnstile")

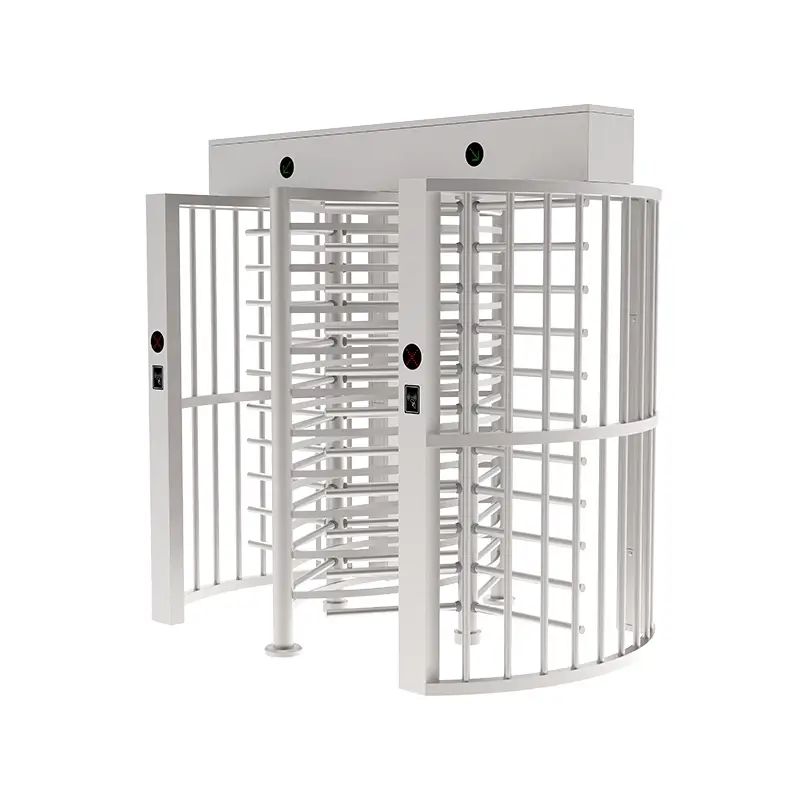

AT502 Full Height Turnstile Double Rotary

The AT502 Double Full Height Turnstile combines high-security performance with efficient dual-channel throughput. Its fully enclosed stainless steel structure prevents climbing and tailgating, ideal for industrial sites and high-traffic facilities. Customizable and compatible with most access control systems, it ensures reliable pedestrian management.

Product Dimensions: 2400*1500*2300mm（7.87*4.92*7.55 ft） as standard, with full structural customization available to suit site-specific installation layouts and space limitations.
Aisle Width: Standard aisle width is 650 mm (2.13 ft), with customized width solutions available to accommodate special passage demands.
Enclosure Construction: The standard configuration adopts premium SUS304 stainless steel, which is rust-proof, wear-resistant and suitable for most conventional indoor and outdoor scenarios. SUS316 stainless steel is available as an upgraded option, providing enhanced corrosion and salt-spray resistance for coastal, high-humidity and harsh industrial environments.
Turnstile Operation Mode: Semi-automatic mode is configured as standard for cost-effective and stable daily operation. Fully automatic mode is available for customized upgrade, featuring more intelligent sensor induction and a streamlined passage experience.
Traffic Direction: Supports configurable one-way or two-way passage modes, allowing flexible and scientific management of pedestrian flow according to the actual access control rules of the site.
Drive & Control System: Equipped with mature and reliable mechanical drive and intelligent control modules, supporting continuous frequent operation. It features sensitive induction, anti-jamming operation and automatic reset functions, effectively preventing card-passing without entry and illegal trailing behavior.
Passage Throughput: Capable of handling 25–30 persons per minute under normal operating conditions, meeting the high-frequency pedestrian passage demands of medium and large traffic scenarios.

Full Height Turnstile AT502 Product Manual

SKU: AT502 Categories: Full Height Turnstiles, All Turnstiles Tags: double full height turnstile, full height industrial turnstiles, full height turnstile, full height turnstile singapore, industrial turnstiles, turnstile gate singapore

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

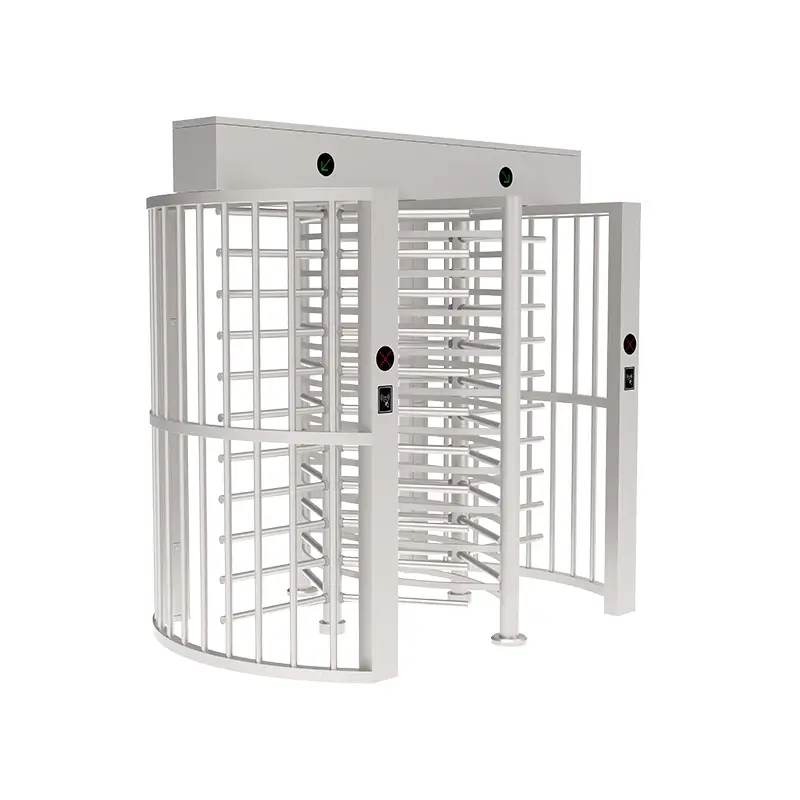

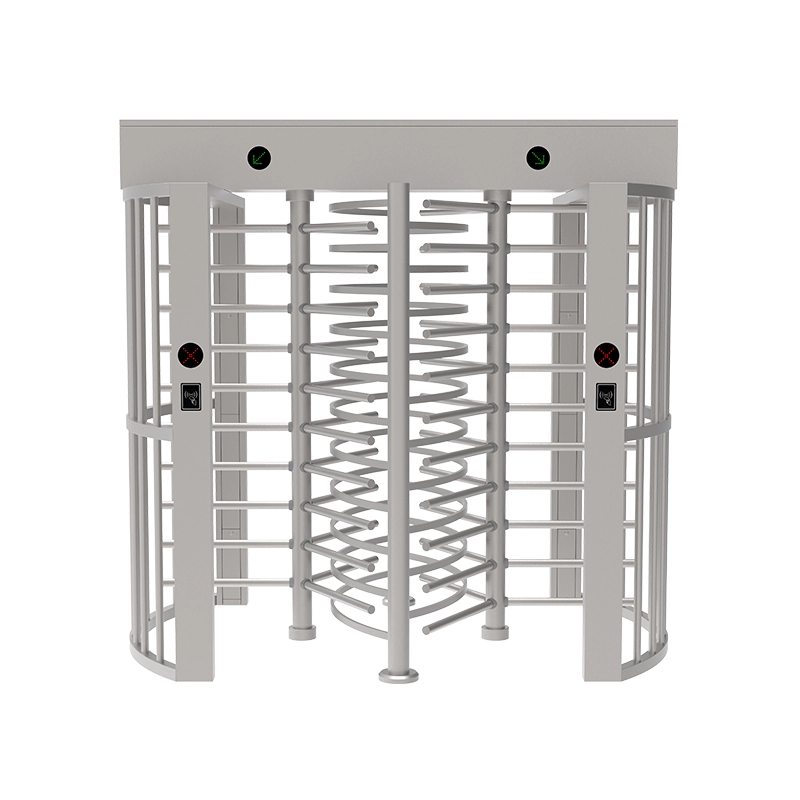

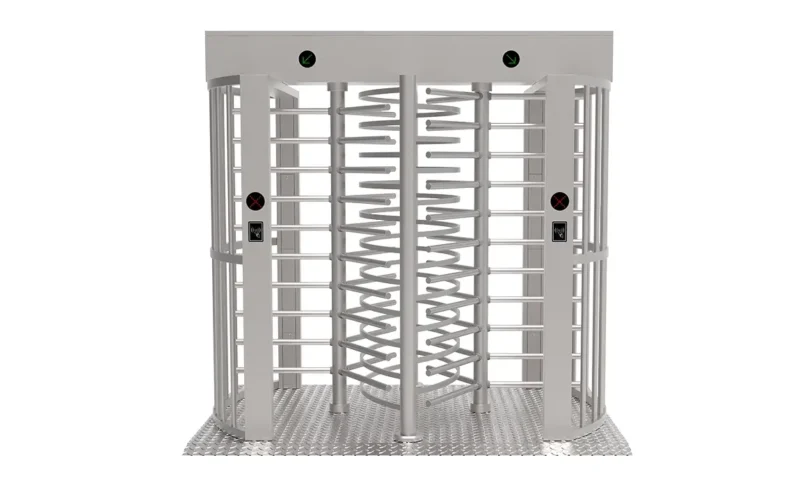

AT502 Full Height Turnstile 3D view display

AT502 Full Height Turnstile Functional features

The AT502 Double Full Height Turnstile is a high-security dual-channel enclosed pedestrian access control solution designed for high-traffic, demanding environments. Featuring a zero-dead-angle fully enclosed structure, excellent environmental adaptability, and low-maintenance design, it delivers reliable, high-throughput access management for industrial facilities, commercial buildings, and restricted public areas, while seamlessly integrating with all standard access control and attendance systems.

Core Structure & Safety Design

Zero-dead-angle Full Enclosed Protection: The full-height enclosed frame eliminates gaps for climbing or crawling over the barrier, delivering complete physical access control to prevent unauthorized entry. The dual-channel structure doubles throughput while maintaining strict security.
Durable Stainless Steel Construction: The standard configuration uses premium SUS304 stainless steel, which is rust-proof, wear-resistant, and suitable for most conventional indoor and outdoor scenarios. The optional SUS316 stainless steel upgrade provides enhanced corrosion and salt-spray resistance, making it ideal for coastal, high-humidity, and harsh industrial environments.

Flexible Size & Passageway Design

Standard Dimensions: The standard footprint is 2400 × 1500 × 2300 mm (7.87 × 4.92 × 7.55 ft), with full structural customization available to fit site-specific installation layouts and space limitations.
Adjustable Aisle Width: The standard aisle width is 650 mm (2.13 ft). Customized width solutions are available to accommodate special passage demands, such as oversized item transit or accessibility requirements.

Intelligent & Efficient Access Control Functions

Multiple Operation Modes:
- Standard semi-automatic mode offers a cost-effective, stable solution for daily continuous operation.
- Optional fully automatic mode with intelligent sensor induction for a streamlined, hands-free passage experience.
Configurable Traffic Directions: Supports one-way or two-way passage modes, enabling flexible and scientific management of pedestrian flow according to on-site access control rules.
Reliable Drive & Intelligent Control System: Equipped with mature mechanical drive and intelligent control modules, supporting continuous high-frequency operation. Features include sensitive induction, anti-jamming operation, and automatic reset functions to effectively prevent cardless entry and illegal trailing behavior.
High Passage Throughput: Capable of handling 25–30 persons per minute per channel under normal operating conditions, meeting the high-frequency pedestrian passage demands of medium and large traffic scenarios.

Wide Compatibility & Application Scenarios

The AT502 double full height turnstile seamlessly integrates with all standard access control and attendance systems, making it easy to deploy in both new construction and retrofit projects. It is widely applicable to:

Industrial facilities and construction sites requiring strict personnel access management and high throughput.
High-security locations such as commercial buildings, data centers, and financial institutions with large pedestrian volumes.
Restricted public areas including stadiums, transit stations, and tourist attractions that demand both efficiency and anti-tailgating protection.

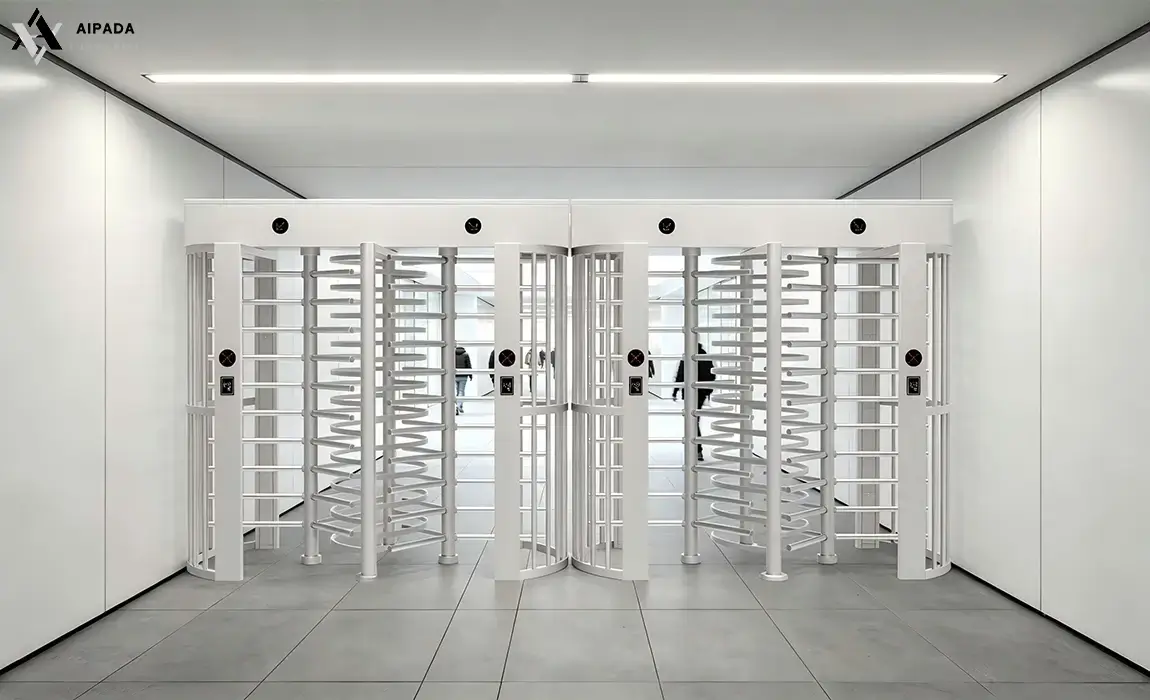

AT502 Full Height Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT502 Full Height Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

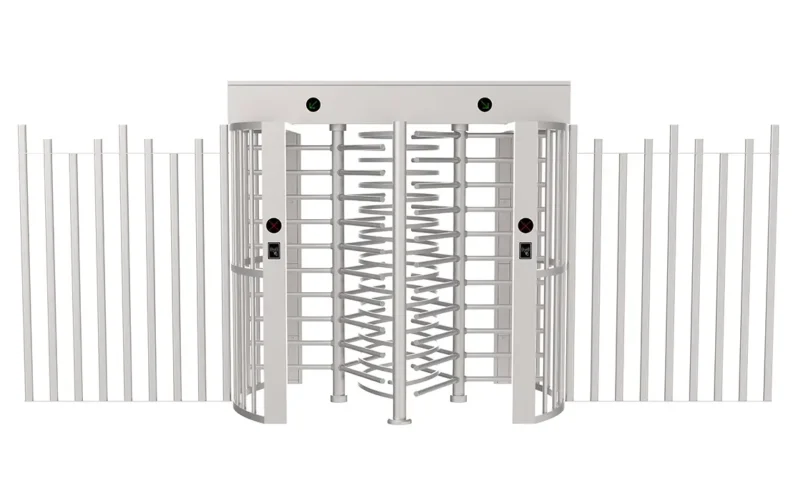

Optional: Turnstile Guardrail

As illustrated in the diagram, this is a combined solution of the Full-Height Turnstile and matching guardrails. When the entrance/exit width is wider than required for a single access point but only one passage is needed, the remaining excess space can be neatly segregated with the guardrails. This setup not only precisely demarcates the pedestrian flow area to prevent disorderly access but also delivers a seamless visual integration between the turnstile and guardrails, resulting in a more organized and streamlined passage layout. Additionally, it optimizes on-site space utilization, striking a perfect balance between robust security control and rational space planning.

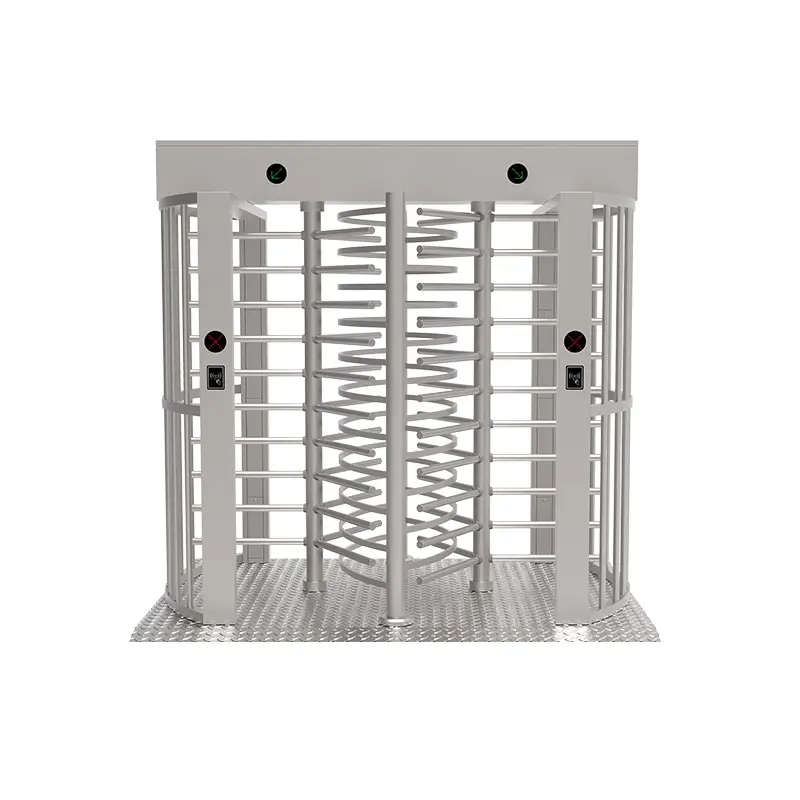

Optional：Turnstile base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

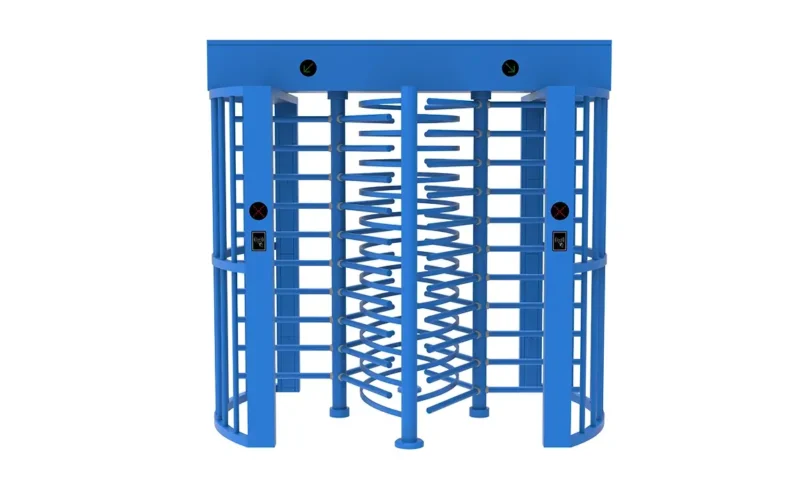

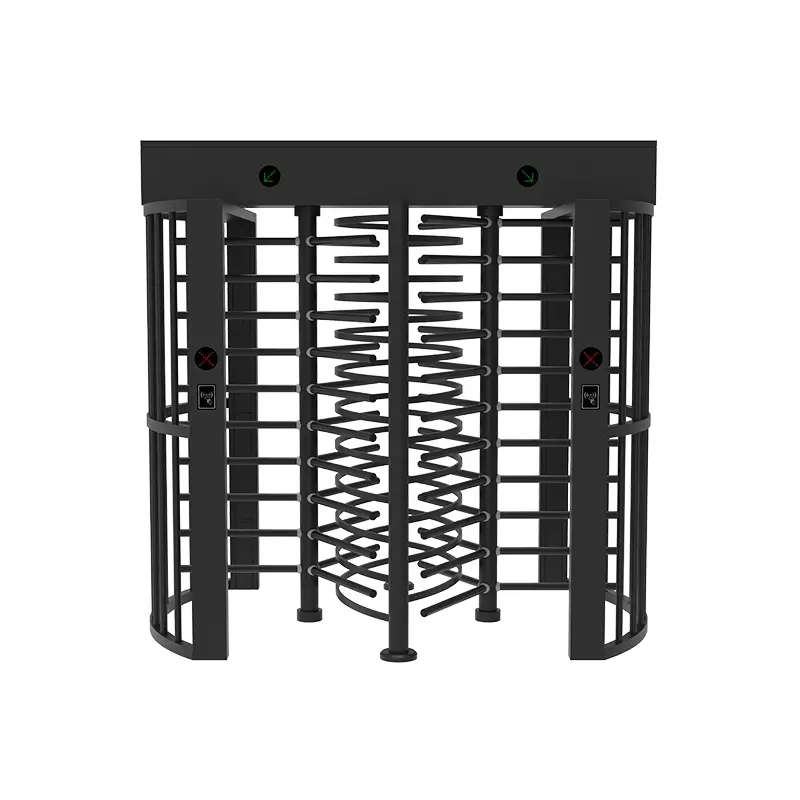

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1. Q: Why choose a full height turnstile instead of other types of gates?

A: Full height turnstiles feature a fully enclosed structure that prevents climbing, tailgating, and unauthorized access. They offer much higher security than swing barriers or flap gates, making them ideal for industrial sites, construction zones, and restricted areas that require strict access control.

2. Q: Can I customize the size, material, or design of the turnstile?

A: Yes. We support full customization, including overall dimensions, aisle width, and surface finish. Standard material is SUS304 stainless steel, and SUS316 or powder-coated options are also available to adapt to different environments and design requirements.

3. Q: Is a full height turnstile suitable for outdoor use?

A: Absolutely. Our full height turnstiles are built with corrosion-resistant stainless steel, designed to withstand sun, rain, and temperature changes. They operate reliably in outdoor conditions and require minimal daily maintenance.

4. Q: What access control systems can this turnstile work with?

A: It is highly compatible with most mainstream access control devices, including card readers, fingerprint scanners, facial recognition systems, and QR code readers. This allows you to build a complete, integrated access management system easily.

5. Q: Which operation mode is better for me: semi-automatic or fully automatic?

A: Semi-automatic mode is cost-effective and stable, suitable for low-to-medium traffic areas. Fully automatic mode uses intelligent sensors for smoother, faster passage, which works best for high-traffic locations like stations or stadiums. You can choose based on your daily pedestrian volume.
