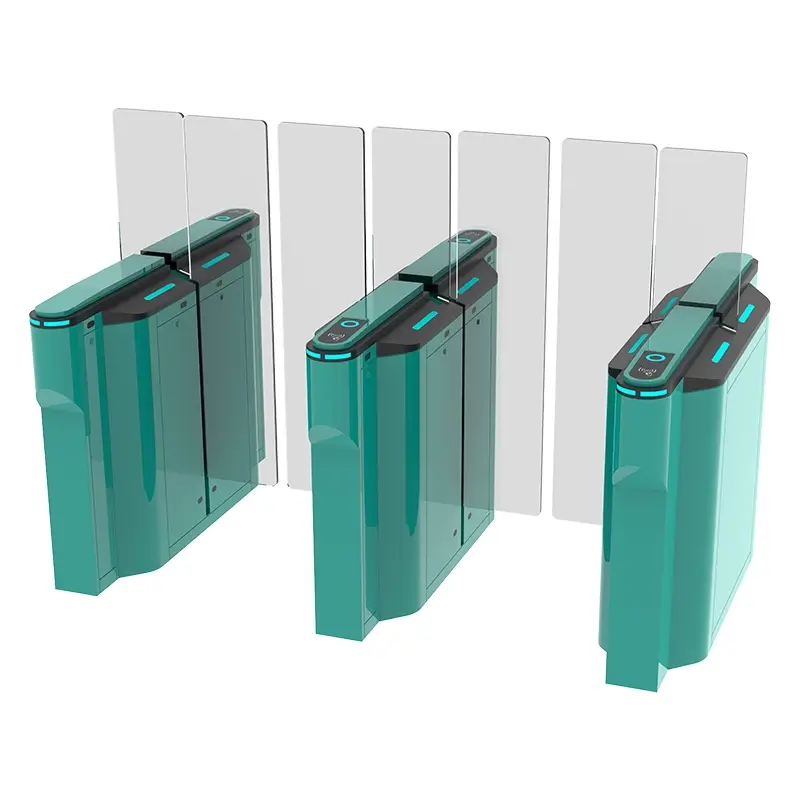

![Compact sliding turnstile gate AT607-TC-05](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT607-TC-05-Sliding-Turnstile.webp "Compact Turnstile")

![Advanced sliding turnstile gate AT607-TC-06](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT607-TC-06-Sliding-Turnstile.webp "Advanced Turnstile")

![Sleek sliding turnstile gate AT607-TC-04](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT607-TC-04-Sliding-Turnstile.webp "Sleek Turnstile")

AT607 Sliding Turnstile Gate

Tired of turnstiles that jam during rush hour, fail to stop tailgaters, or ruin your building’s modern aesthetic? Our Servo Sliding Speed Gate solves all three problems in one sleek, reliable package. Designed for high-traffic offices, airports, and commercial centers, it combines precision servo motor performance, full-height security, and fully customizable design to keep your facility safe, efficient, and on-brand.

Product Dimensions:1500 × 350 × 1005 mm (4.92 × 1.15 × 3.30 ft) as standard, with full customization available to suit site-specific layouts.
Channel Width: Adjustable from 600 mm (1.97 ft) to 900 mm (2.95 ft), with custom widths offered to accommodate different user needs, including wheelchair or large-item access.
Enclosure Construction: Standard build combines iron baking paint with durable SUS304 stainless steel. SUS316 stainless steel is available as an upgrade for enhanced corrosion resistance in coastal or high-humidity environments.
Swing Arm Material: Features clear acrylic as standard, with optional upgrades to tempered glass, plexiglass, or stainless steel for varying security and aesthetic requirements.
Surface Finish: Multiple customizable options including brushed, polished, electroplated, and baking paint finishes, to match any interior or exterior design scheme.
Traffic Direction: Configurable for one-way or two-way passage, allowing flexible management of pedestrian flow based on your facility’s needs.
Drive Mechanism: Equipped with a high-precision servo motor drive, ensuring ultra-silent, smooth, and reliable operation even under continuous use.
Passage Throughput: Capable of handling 30–40 persons per minute under normal operating conditions, ideal for high-traffic areas such as office buildings, transit stations, and commercial complexes.

SKU: AT607 Categories: Sliding Turnstiles, All Turnstiles Tags: coated sliding gate, coated sliding turnstile, innovative design, New design, security turnstiles, sliding turnstile manufacturers, sliding turnstiles for office buildings Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

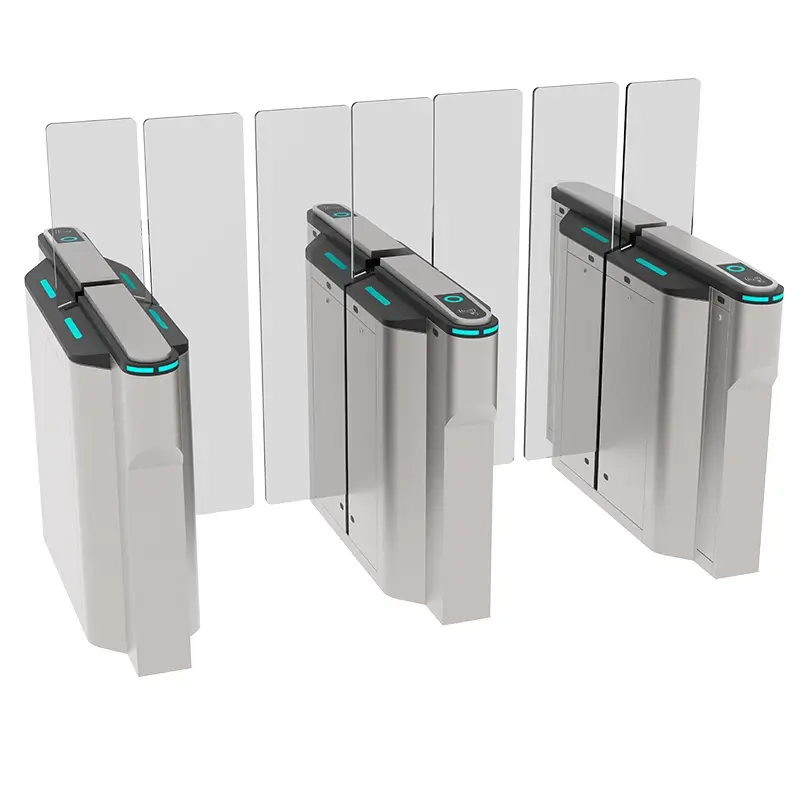

AT607 Sliding Turnstile 3D view display

AT607 Sliding Turnstile Functional features

This solution is tailor-made for high-speed sliding turnstiles. Centered on a high-performance DC servo drive, it integrates full closed-loop control, intelligent trajectory planning, and multi-layer safety protection technologies to deliver an accurate, efficient, and secure access control solution for premium office buildings, airports, government halls, and other high-standard scenarios.

High-Precision Full Closed-Loop Control, Zero Deviation in Operation

Built on a fully digital servo control architecture with a high-resolution encoder for position closed-loop feedback, the solution achieves a positioning accuracy of within 1mm, eliminating the cumulative errors inherent to traditional open-loop control systems. It adopts three-loop collaborative control (current loop, speed loop, position loop) to correct the door panel’s position and speed in real time, ensuring every opening and closing action is precisely executed. This prevents misalignment, jamming, or overshooting of the door panel, maintaining stable performance even after long-term continuous operation.

Intelligent S-Curve Trajectory Planning, Smooth and Low-Noise Operation for Extended Lifespan

Equipped with dedicated turnstile motion algorithms, the system enables S-curve acceleration/deceleration trajectory control, delivering shock-free, jitter-free door panel movement from start to stop. This significantly reduces mechanical component wear. Compared with traditional drives, the solution operates at a notably lower noise level while keeping the motor running in its optimal efficiency range. The Mean Cycles Between Failures (MCBF) reaches the ten-million level, greatly extending the equipment’s service life and making it ideal for high-frequency access scenarios.

Wide-Range Adjustable Speed and Stroke, Adaptable to Diverse Scenarios

The opening speed is continuously adjustable from 0.3 to 1.5 seconds, allowing flexible configuration based on venue-specific traffic efficiency requirements. Meanwhile, parameters such as door panel stroke, opening/closing positions, and buffer distance can be set parametrically to accommodate different passage widths and door panel sizes. Whether handling peak-hour high-speed traffic in office buildings or prioritizing smooth operation in government halls, the system adapts with a single setting, eliminating the need for complex mechanical adjustments.

Multi-Layer Safety Protection Mechanisms, Zero-Risk Passage

Anti-Pinch and Anti-Collision Protection: Integrated with infrared light curtain detection and motor torque monitoring, the system triggers a quick rebound or stop action when an obstruction is encountered during closing, with millisecond-level response time. This prevents pedestrian injuries and equipment damage.
Anti-Tailgating and Anti-Intrusion Linkage: Supports integration with infrared detection and access control systems to monitor tailgating behavior in real time. It triggers audible and visual alarms and locks the passage to prevent unauthorized access.
Emergency Power-Off Handling: Features automatic unlock on power failure. In emergencies, the door panel can be pushed open manually, meeting fire evacuation requirements and ensuring safe personnel escape.

Intelligent Fault Diagnosis and Remote Maintenance, Efficient and Convenient Operation

The system has a built-in self-diagnosis function that monitors key parameters such as motor current, temperature, and encoder signals in real time. It automatically generates fault codes and uploads status information when issues occur. Remote parameter configuration and firmware upgrades are supported, allowing system debugging and maintenance without disassembly, significantly reducing operational costs and minimizing equipment downtime.

Multi-Mode Access Control, Flexible Adaptation to Management Needs

Supports multiple access modes, including one-way traffic, two-way traffic, normally open, and normally closed, which can be flexibly set according to venue management strategies. It is also compatible with various access control identification devices such as facial recognition, card swiping, and QR code readers, enabling quick integration into existing security management systems for intelligent and integrated passage control.

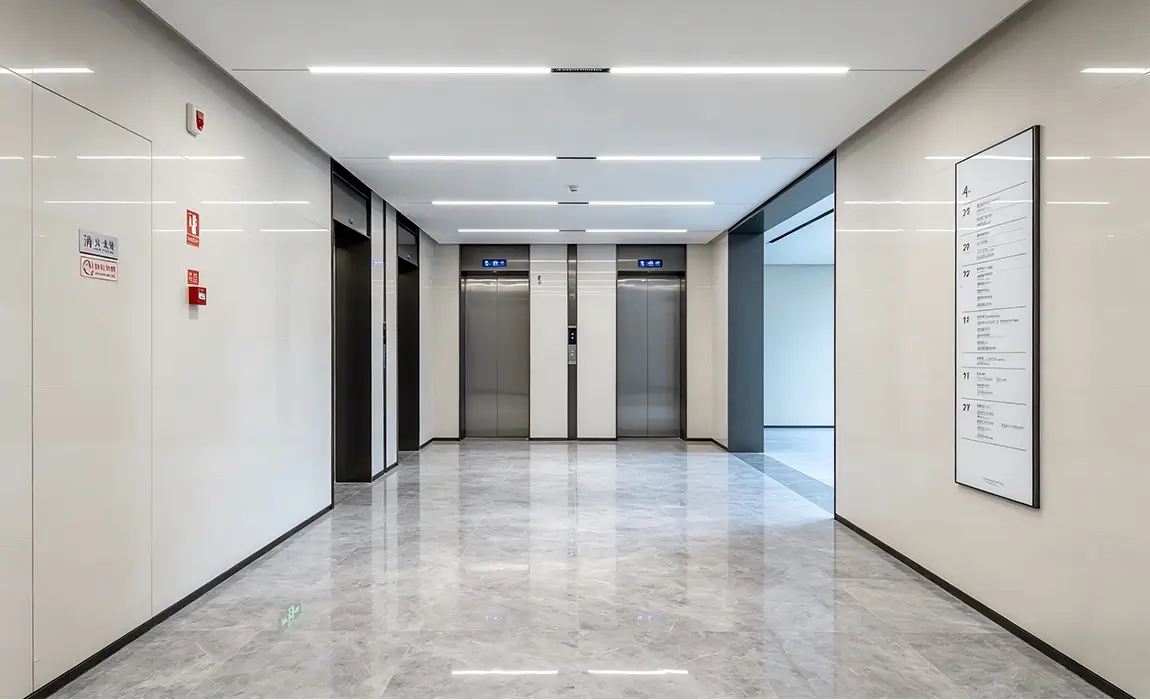

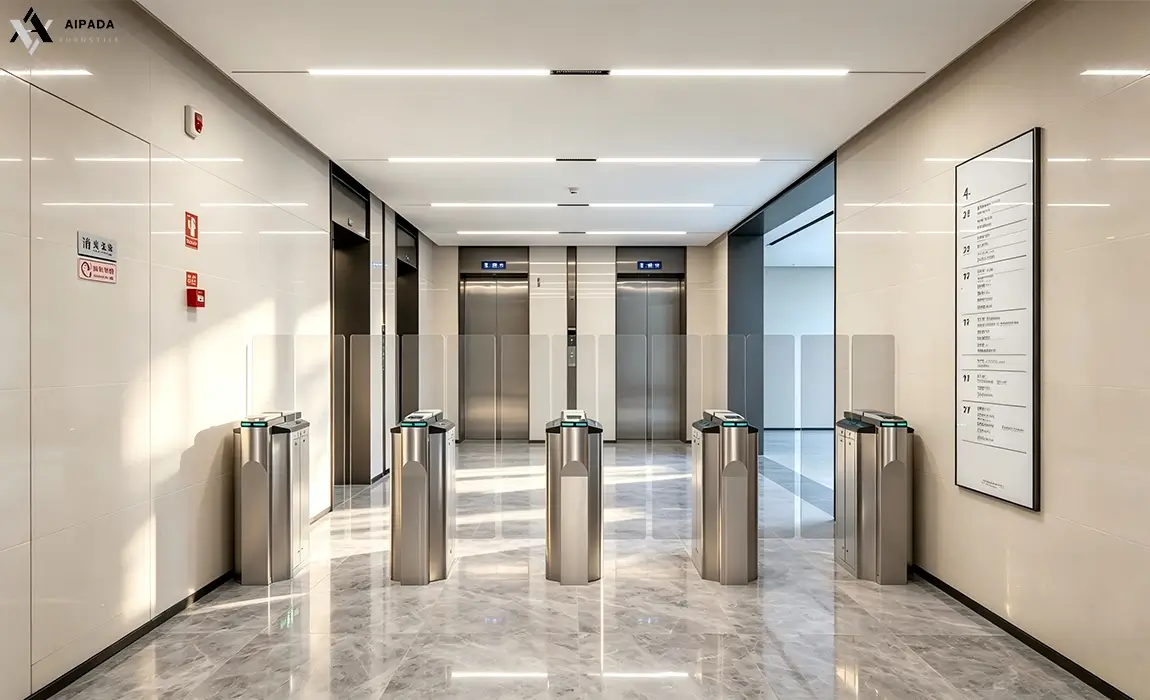

AT607 Sliding Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT607 Sliding Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

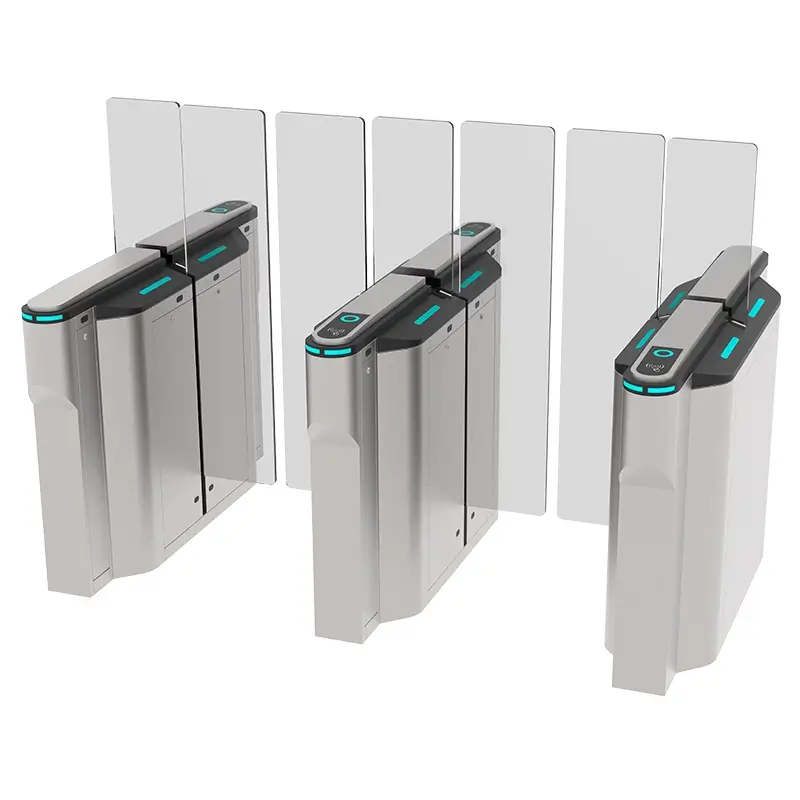

Optional：Number of turnstile channels

The diagram shows a three-channel system consisting of two single-core and two dual-core sliding turntiles. The number of turntiles can be increased if more channels are needed.

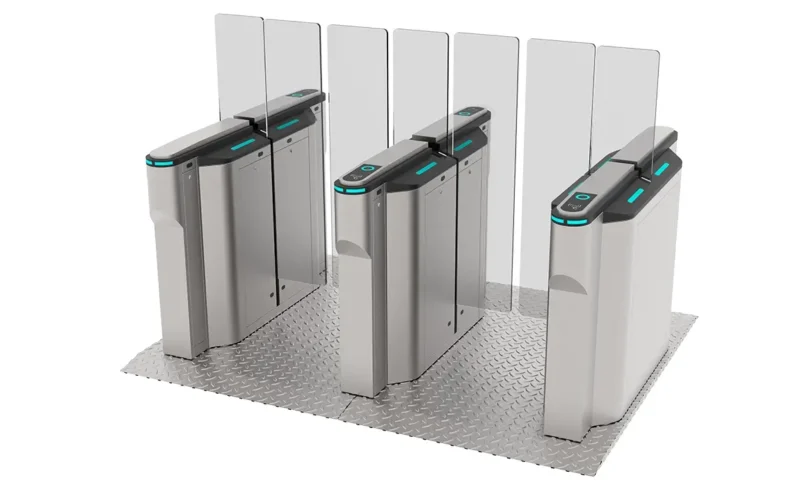

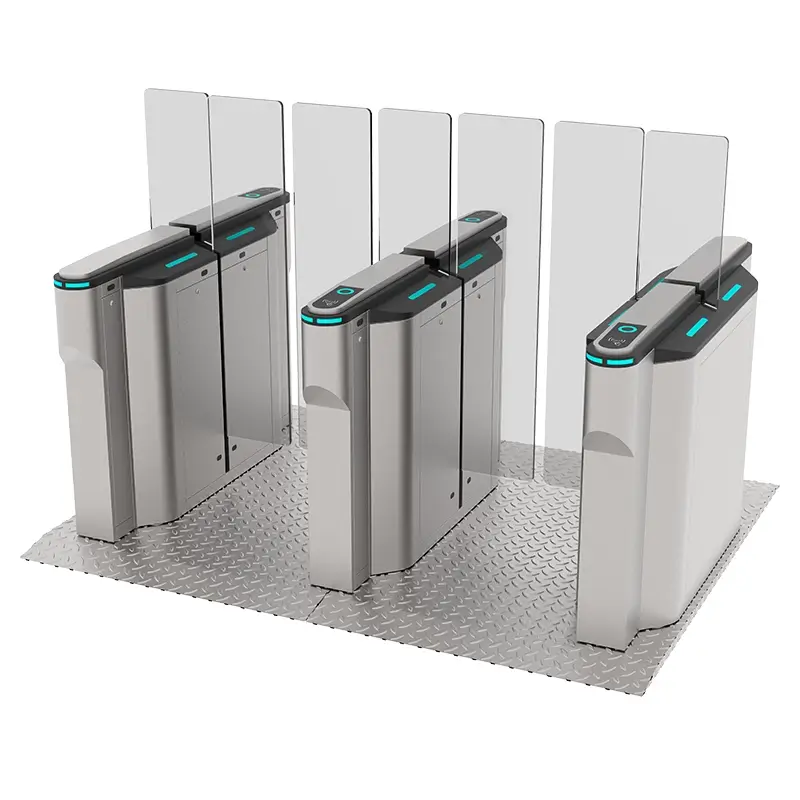

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

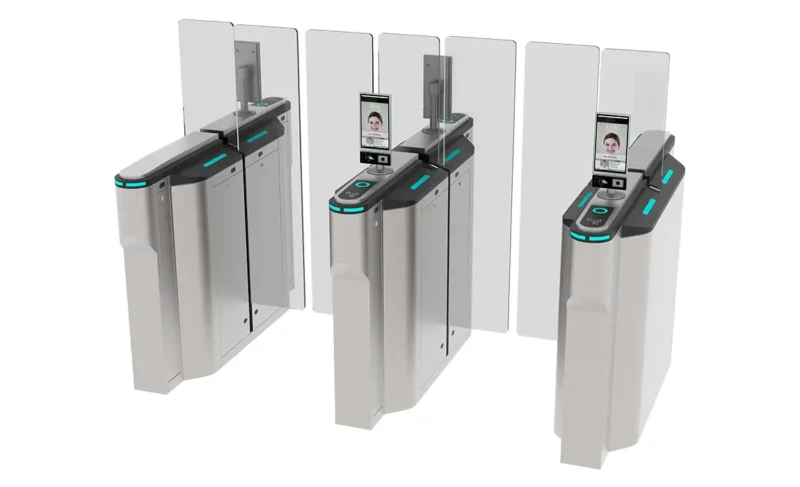

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

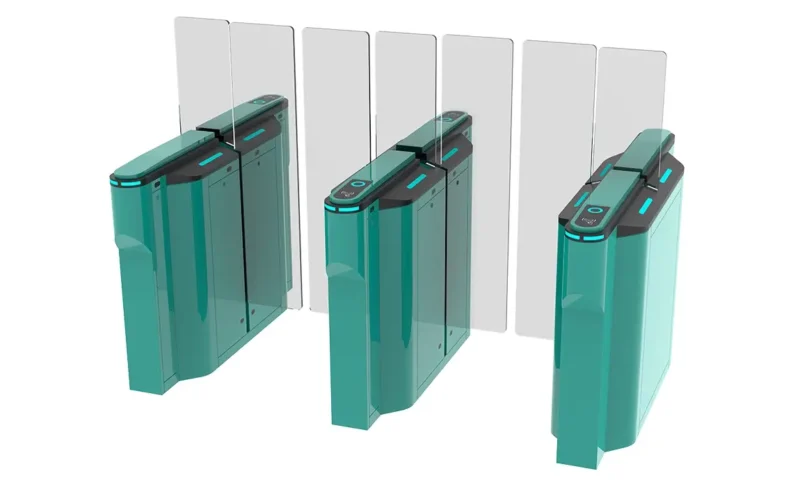

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: What is the typical lifespan of the servo motor in this turnstile, and how many opening/closing cycles can it reliably perform before maintenance is required?

A: The servo motor is engineered for high durability in continuous use, with a design lifespan exceeding 10 years under normal operating conditions. It supports a Mean Cycles Between Failures (MCBF) rating of over 10 million opening/closing cycles, and with basic preventive maintenance (such as cleaning and visual inspections), it can operate reliably for years without needing motor replacement or major servicing.

2.Q: We have high foot traffic, and some users may rush through. How robust is the turnstile against impact, and will it automatically recover if the door is pushed off-track?

A: The turnstile is built with a reinforced stainless steel frame and impact-resistant acrylic door panels to withstand accidental impacts. The servo drive system features torque monitoring and position feedback: if the door is pushed off-track, the system detects the anomaly, stops movement to prevent damage, and will automatically recalibrate and reset to its home position once the obstruction is cleared.

3.Q: The environment at our site can be dusty and humid. What is the IP rating of this turnstile, and is it suitable for semi-outdoor use like building lobbies or covered entrances?

A: The turnstile has an IP54 rating, meaning it is protected against dust ingress (limited to non-harmful amounts) and splashing water from any direction. This makes it ideal for semi-outdoor use in covered entrances, building lobbies, and sheltered areas, as it resists common environmental factors like humidity, dust, and light rain.

4.Q: Can the system be configured to work with different lane widths for VIP or disabled access, and does this require different hardware or just software adjustments?

A: Yes, the system supports flexible lane width configurations. Standard lanes are typically 550–600mm wide, while accessible/VIP lanes can be expanded to 900mm or more. Adjustments are primarily done via software: you can modify door travel limits, speed profiles, and sensor zones through the control panel. Minor hardware adjustments (such as custom door panel sizes) are only needed for very wide lanes, and we offer compatible parts for such setups.

5.Q: For our project, we need to meet strict data privacy regulations. Does this turnstile store any personal data from access control devices, or does it only process verification signals locally?

A: The turnstile itself acts as a secure pass-through device: it only receives verification signals (e.g., “access granted/denied”) from your access control system and does not store any personal data, such as biometrics, card numbers, or user records, locally. All sensitive information remains stored on your existing access control platform, helping you maintain compliance with privacy regulations like GDPR and CCPA.
