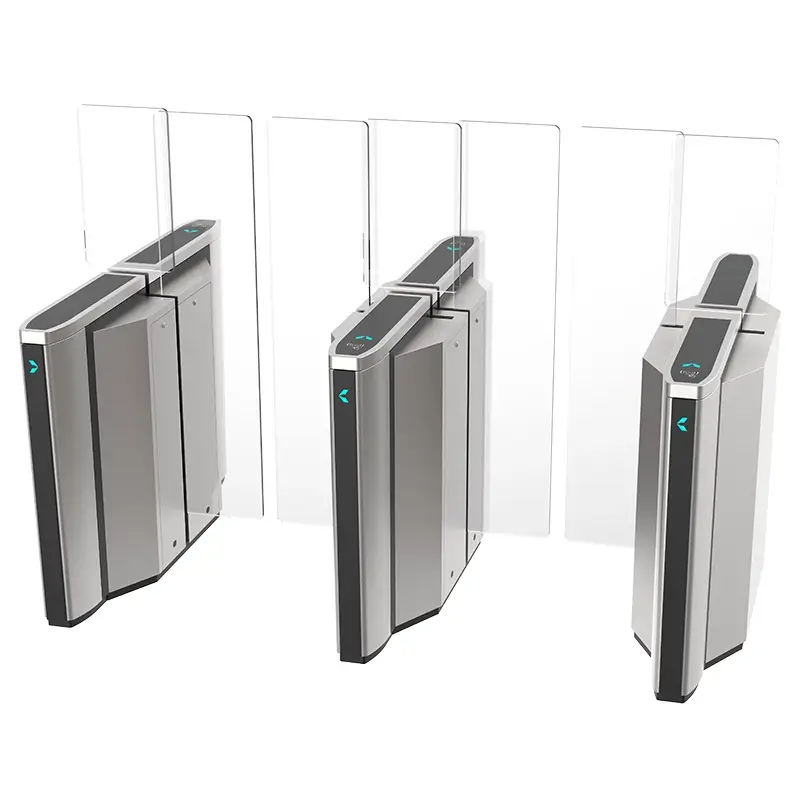

Compact AT608-TC-01 servo sliding turnstile access control system, stainless steel security gate

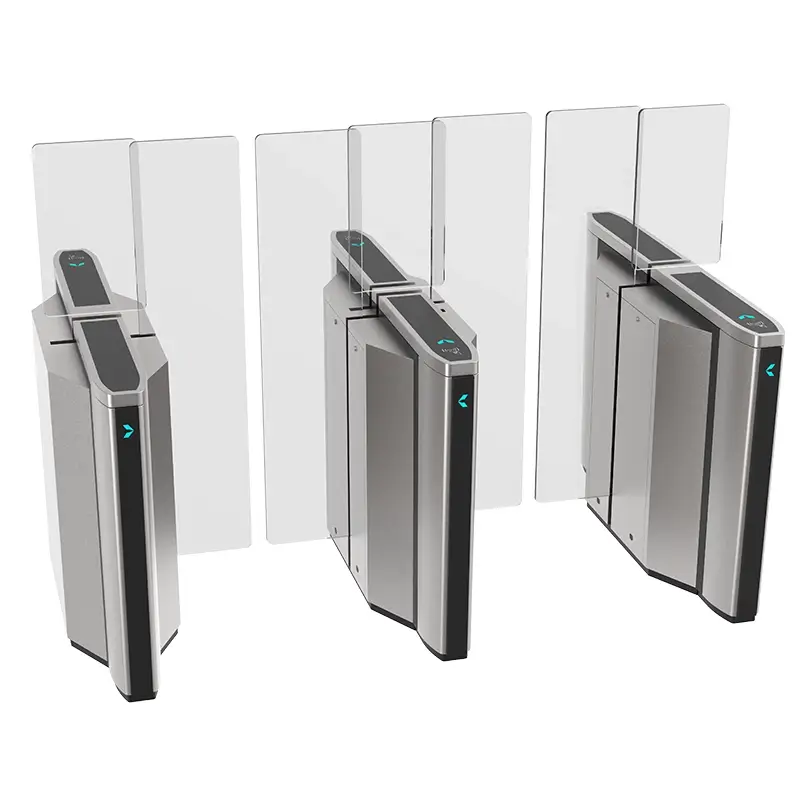

![Reliable AT608-TC-02 sliding turnstile for efficient people flow management](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT608-TC-02-Sliding-Turnstile.webp "Reliable Sliding Turnstile")

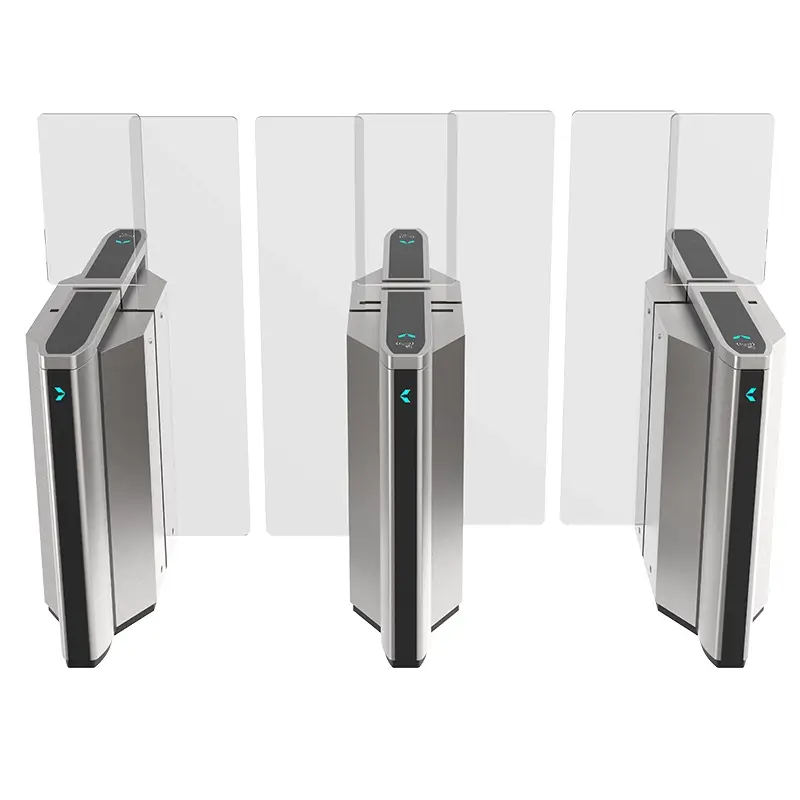

![Advanced AT608-TC-03 sliding turnstile designed for seamless integration](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT608-TC-03-Sliding-Turnstile.webp "Advanced Sliding Turnstile")

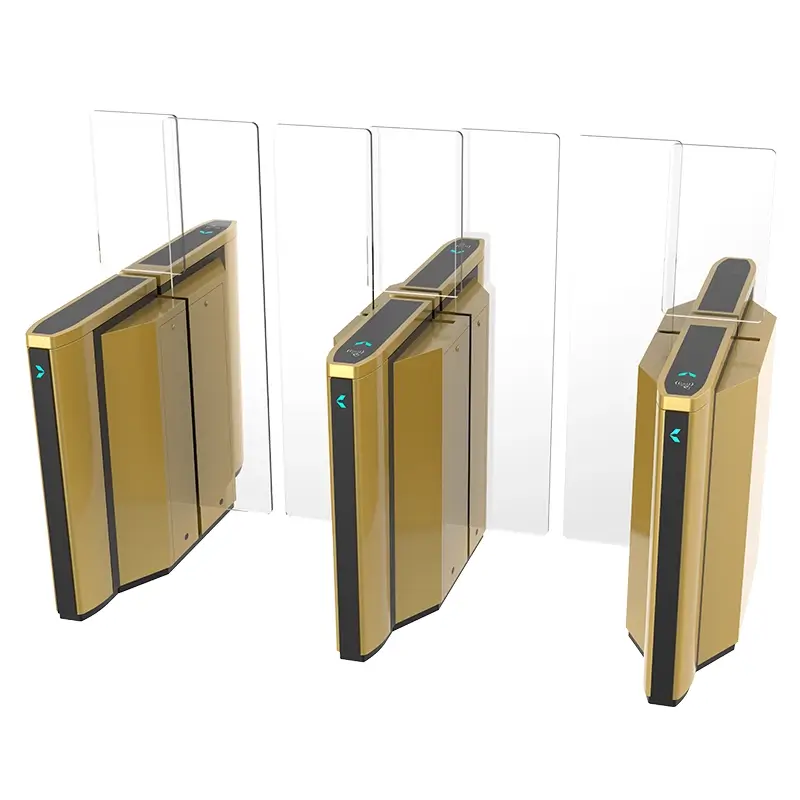

![Modern AT608-TC-05 sliding turnstile offering robust access control](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT608-TC-05-Sliding-Turnstile.webp "Modern Sliding Turnstile")

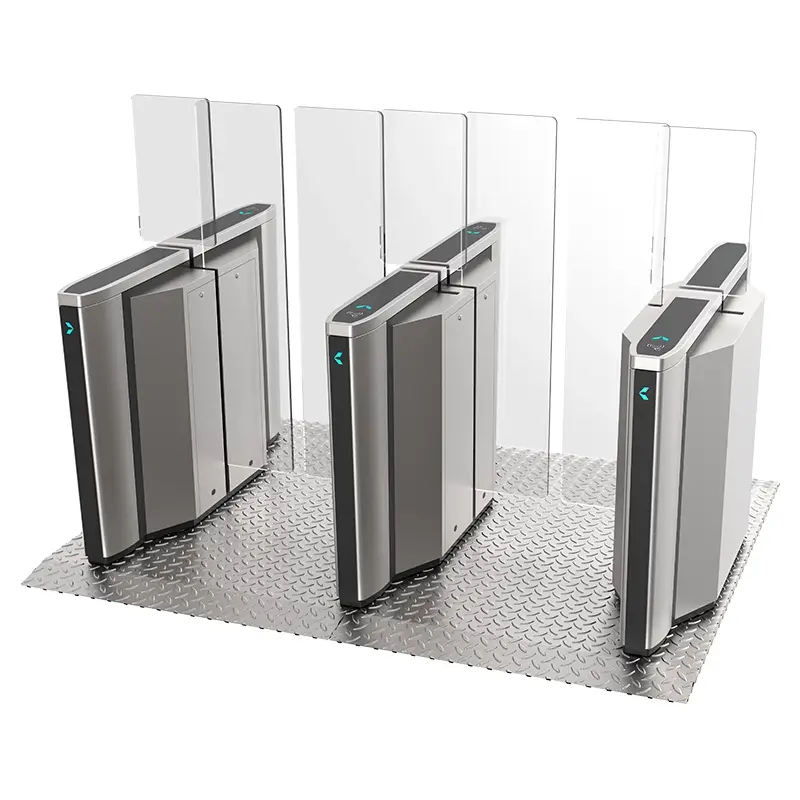

![Efficient AT608-TC-06 sliding turnstile ideal for high-traffic areas](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT608-TC-06-Sliding-Turnstile.webp "Efficient Sliding Turnstile")

![Stylish AT608-TC-04 sliding turnstile engineered for smooth passage](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT608-TC-04-Sliding-Turnstile.webp "Stylish Sliding Turnstile")

AT608 Silent Servo sliding turnstile

The AT608 Servo Sliding Turnstile by AIPADA is a premium, high-performance access control solution engineered for modern commercial buildings, corporate lobbies, and high-security facilities. Powered by advanced servo motor technology, it delivers ultra-smooth, quiet, and reliable operation even under peak-hour foot traffic, combining sleek design with robust anti-tailgating and anti-pinch safety features.

Product Dimensions:1470 × 350 × 1000 mm (4.82 × 1.15 × 3.28 ft)as standard, with full customization available to suit site-specific layouts.
Channel Width: Adjustable from 600 mm (1.97 ft) to 900 mm (2.95 ft), with custom widths offered to accommodate different user needs, including wheelchair or large-item access.
Enclosure Construction: Standard build combines iron baking paint with durable SUS304 stainless steel. SUS316 stainless steel is available as an upgrade for enhanced corrosion resistance in coastal or high-humidity environments.
Swing Arm Material: Features clear acrylic as standard, with optional upgrades to tempered glass, plexiglass, or stainless steel for varying security and aesthetic requirements.
Surface Finish: Multiple customizable options including brushed, polished, electroplated, and baking paint finishes, to match any interior or exterior design scheme.
Traffic Direction: Configurable for one-way or two-way passage, allowing flexible management of pedestrian flow based on your facility’s needs.
Drive Mechanism: Equipped with a high-precision servo motor drive, ensuring ultra-silent, smooth, and reliable operation even under continuous use.
Passage Throughput: Capable of handling 30–40 persons per minute under normal operating conditions, ideal for high-traffic areas such as office buildings, transit stations, and commercial complexes.

SKU: AT608 Categories: Sliding Turnstiles, All Turnstiles Tags: coated sliding gate, coated sliding turnstile, innovative design, New design, security turnstiles, sliding turnstile manufacturers, sliding turnstiles for office buildings Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT608 Sliding Turnstile 3D view display

AT608 Sliding Turnstile Functional features

Built around a next-generation closed-loop servo drive system, the AT608 sliding turnstile redefines what modern access control can deliver. Unlike conventional motor-driven gates, this servo-powered solution combines precision engineering, intelligent motion control, and adaptive safety logic to meet the demands of today’s high-traffic commercial and secure facilities. Below is a detailed breakdown of its core servo-driven capabilities:

Precision Closed-Loop Servo Control: Zero Compromise on Accuracy

The system uses a high-resolution encoder to form a full closed-loop control circuit, continuously monitoring the door panel’s position, speed, and torque. This eliminates the drift and positioning errors common in open-loop motor systems, ensuring the gate opens and closes to the exact calibrated position every single time. Even after millions of cycles, the mechanism maintains millimeter-level precision, preventing misalignment, jamming, or overshooting—critical for preserving the unit’s sleek, seamless appearance.

Adaptive S-Curve Motion Profiles: Ultra-Silent, Jitter-Free Operation

At the heart of the servo drive is a dynamic motion control algorithm that generates custom S-curve acceleration and deceleration profiles. Unlike fixed-speed motors that produce abrupt starts and stops, the servo motor ramps up and down speed smoothly, eliminating mechanical shocks, vibrations, and disruptive noise. The result is near-silent operation—ideal for quiet office lobbies, upscale hotels, and premium corporate environments where noise is a key concern.

Intelligent Torque Sensing & Anti-Obstruction Safety

The servo drive continuously monitors motor torque with microsecond-level precision, acting as a built-in safety system. If an obstruction (such as a person, luggage, or a stray object) is detected during the closing cycle, the system instantly adjusts torque and triggers a controlled stop or reverse motion. This prevents pinching, impact damage, and potential injury—going beyond basic infrared sensors to offer true, fail-safe protection at every stage of operation.

Customizable Speed & Response Tuning: Tailored to Your Traffic Flow

The servo system offers granular, software-based control over every aspect of gate movement:

Opening/closing speeds can be independently adjusted from 0.3s to 1.5s to match high-traffic peak hours or slow-paced low-volume periods.
The system supports adjustable response sensitivity, allowing it to adapt to everything from fast-moving commuters to slower pedestrians with accessibility needs.
No mechanical adjustments are required—all settings are configured digitally, making on-site tuning fast and flexible.

Long-Term Durability & Low Maintenance: Built for Continuous Operation

Designed for reliability, the servo drive system significantly reduces mechanical stress on the turnstile’s moving parts. The smooth motion profile eliminates the repeated shocks that wear out gears, belts, and bearings in traditional turnstiles. This translates to a far longer service life, with an MCBF (Mean Cycles Between Failures) rating exceeding 10 million cycles, and minimal maintenance required over years of continuous use.

Fail-Safe & Emergency Compatibility

The servo drive integrates seamlessly with emergency and power-fail protocols. In the event of a power outage, the system automatically unlocks the gates, allowing manual push-through for unobstructed egress—fully compliant with fire safety and evacuation codes. The motor’s low-torque design ensures the gate can be opened easily by hand, without requiring excessive force.

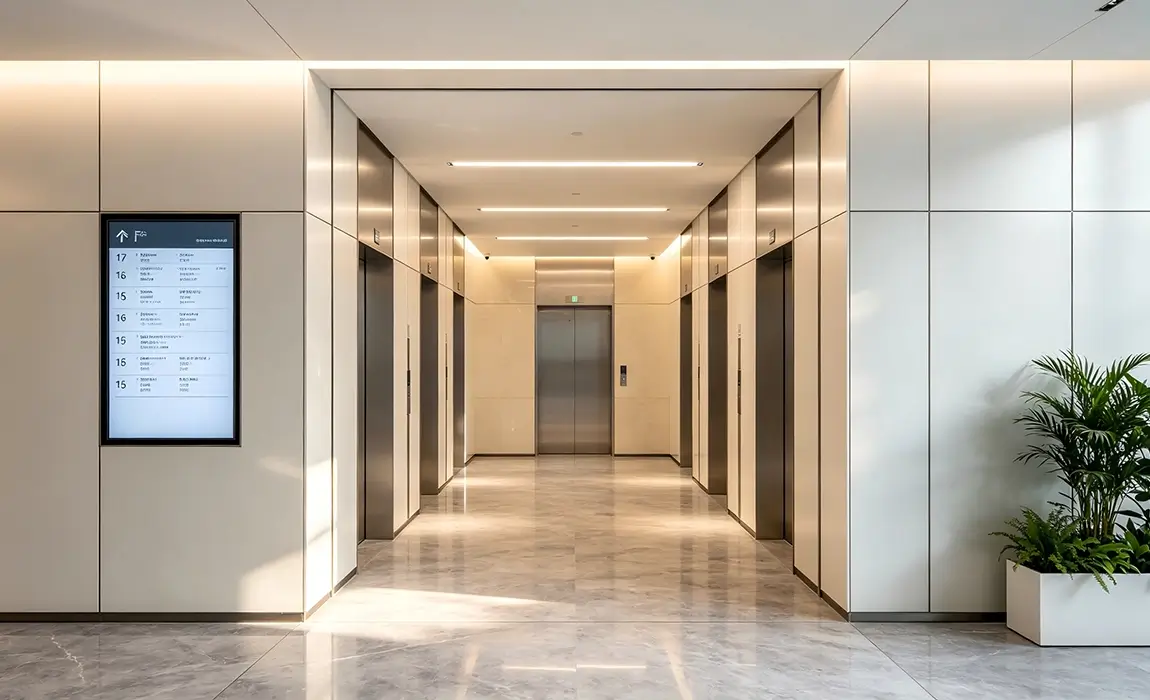

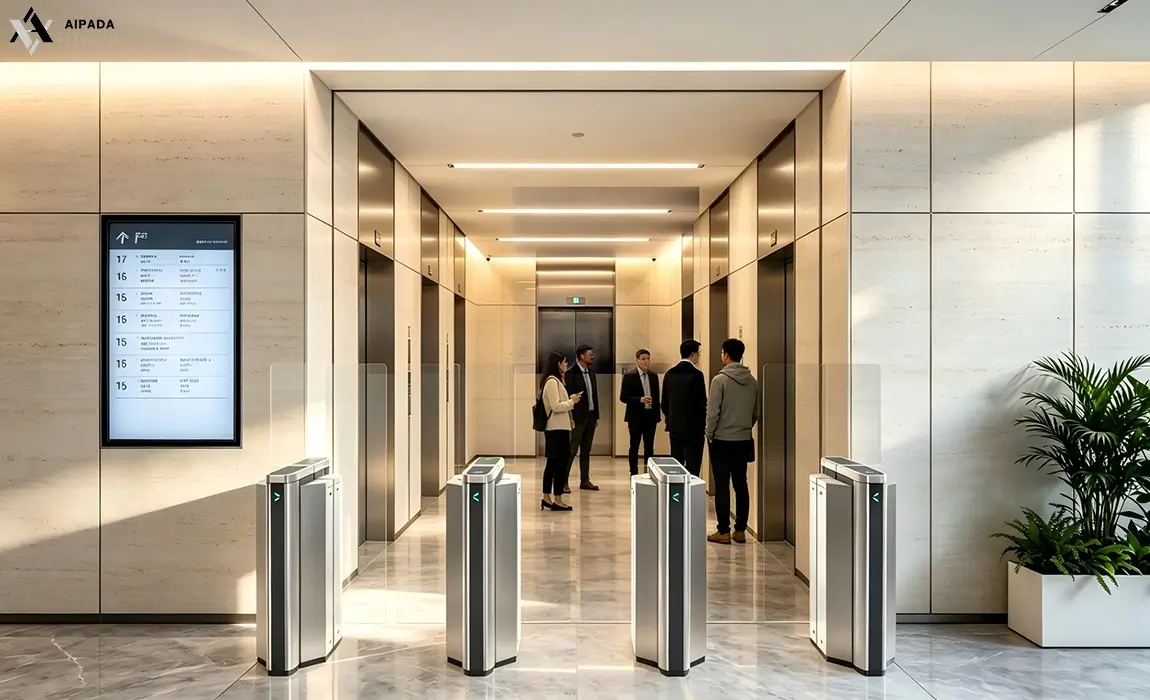

AT608 Sliding Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT608 Sliding Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

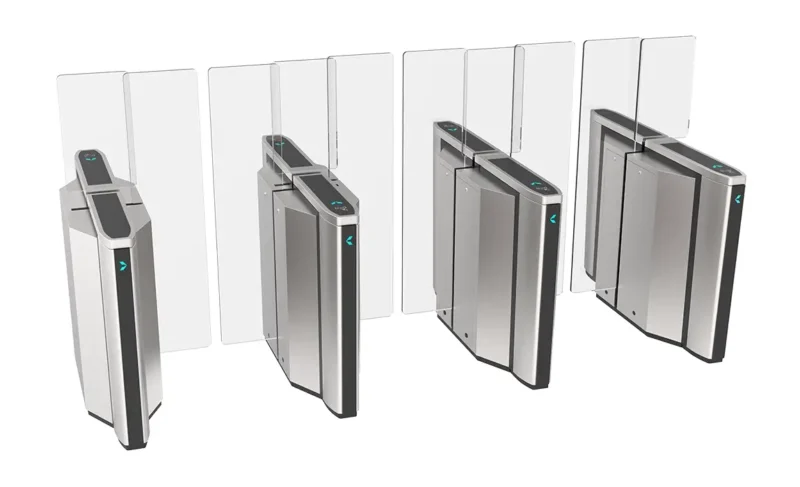

Optional：Number of turnstile channels

The diagram shows a three-channel system consisting of two single-core and two dual-core sliding turntiles. The number of turntiles can be increased if more channels are needed.

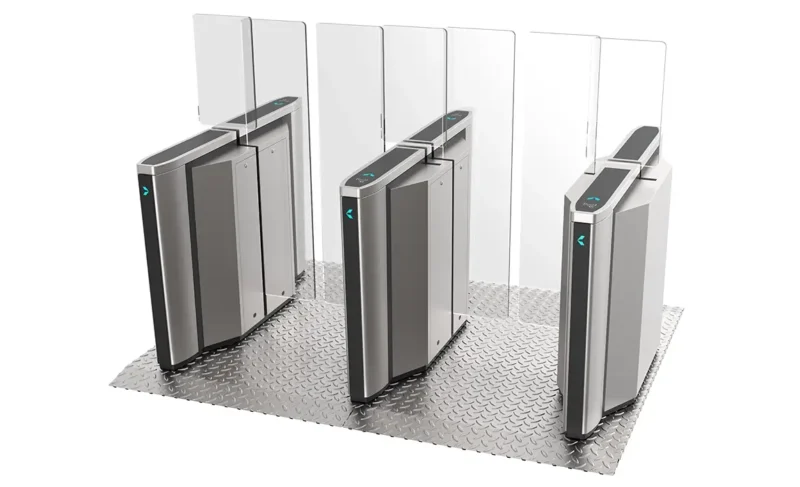

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

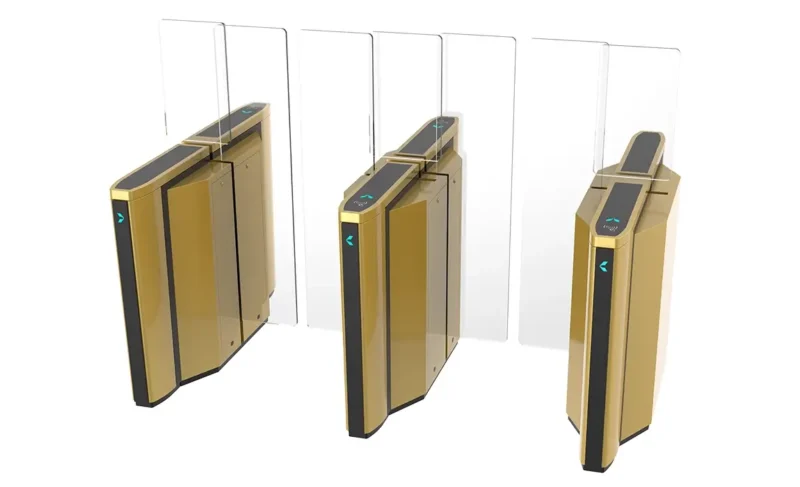

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

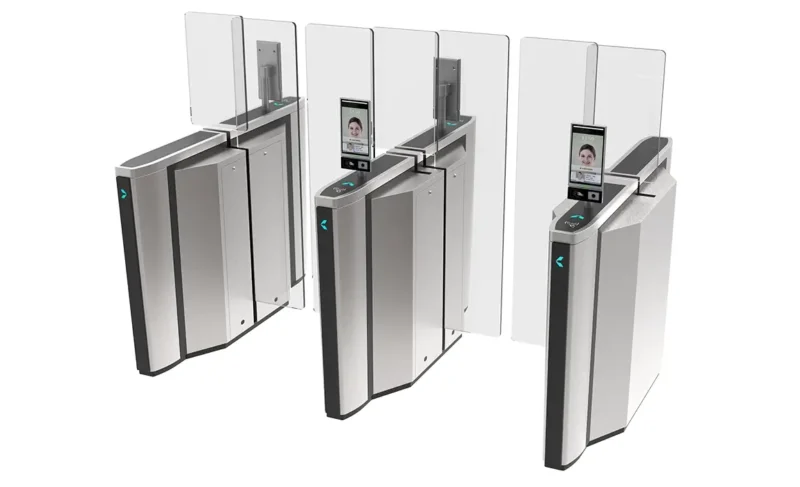

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Can the AT608 servo turnstile be configured for both standard and wide-access lanes to accommodate wheelchairs or large items?

A: Yes, absolutely. The AT608 system supports flexible lane width configurations. Standard lanes are typically 600 mm (1.97 ft), while dedicated wide-access lanes can be adjusted up to 900 mm (2.95 ft) to easily accommodate wheelchairs, strollers, and large carry-on items. These adjustments are primarily done through software to modify door travel limits, with custom-sized door panels available as a hardware upgrade if needed.

2.Q: How does the servo motor affect the long-term maintenance requirements compared to traditional motorized turnstiles?

A: The high-precision servo motor significantly reduces long-term maintenance needs. Unlike traditional motors, it operates with smooth, controlled motion that minimizes mechanical shock and wear on gears and moving parts. The closed-loop control system also reduces the risk of jamming or misalignment, leading to fewer breakdowns. With basic preventive care, the servo motor can reliably perform over 10 million cycles, resulting in lower service costs and less downtime over its lifespan.

3.Q: In high-security areas, can the AT608 integrate with third-party biometric systems like facial recognition readers?

A: Yes, the AT608 is designed with open communication protocols to ensure seamless integration with a wide range of third-party security systems. It works with facial recognition readers, fingerprint scanners, RFID cards, QR code scanners, and visitor management systems. The turnstile only processes the “access granted/denied” signal, keeping all biometric data securely stored within your existing system.

4.Q: What safety features are in place to prevent injury if a child or pet unexpectedly enters the path of the moving gate?

A: The AT608 features multi-layered safety protection. It combines infrared light curtain sensors that detect obstructions across the entire door path with the servo motor’s torque-sensing capability. If an obstruction is detected, the system triggers an immediate stop or soft-reverse motion with millisecond-level response time. This dual protection prevents pinching or impact injuries, making it safe for use in public areas.

5.Q: Is the turnstile’s housing material suitable for humid or coastal environments, and what corrosion resistance options are available?

A: The standard AT608 enclosure is constructed from durable SUS304 stainless steel with an optional iron baking paint finish, which offers good resistance to general indoor and covered outdoor conditions. For humid or coastal environments where corrosion is a concern, we offer an upgrade to SUS316 stainless steel, which provides superior resistance to saltwater and moisture, ensuring long-term durability in challenging climates.
