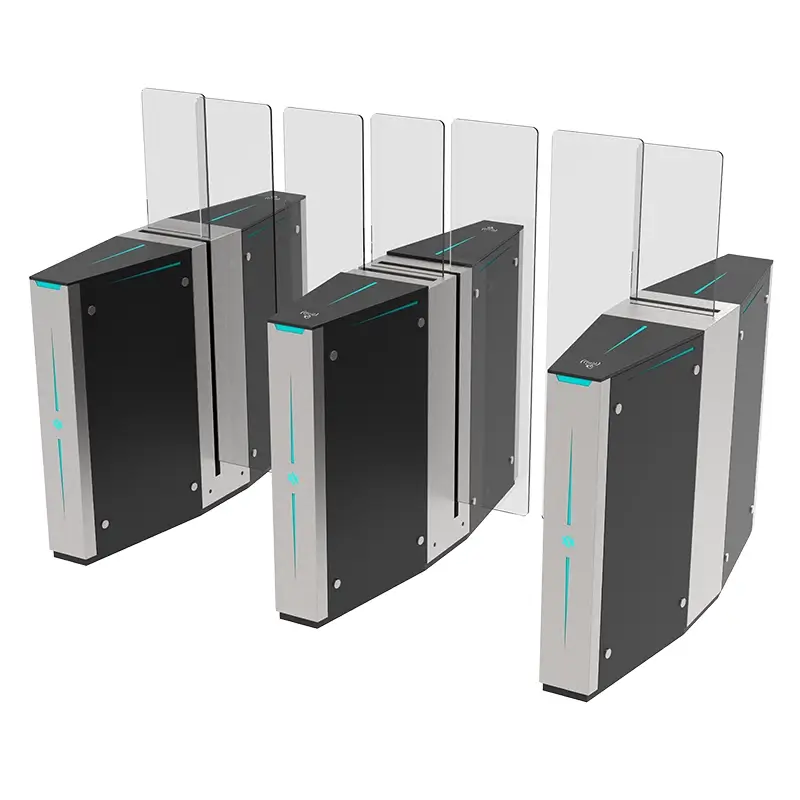

AT604-TC-01 high-security sliding turnstile with black-silver finish, featuring servo motor drive for ultra-silent operation.

![Reliable AT604-TC-03 sliding turnstile offering streamlined access control](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT604-TC-03.webp "Streamlined Turnstile")

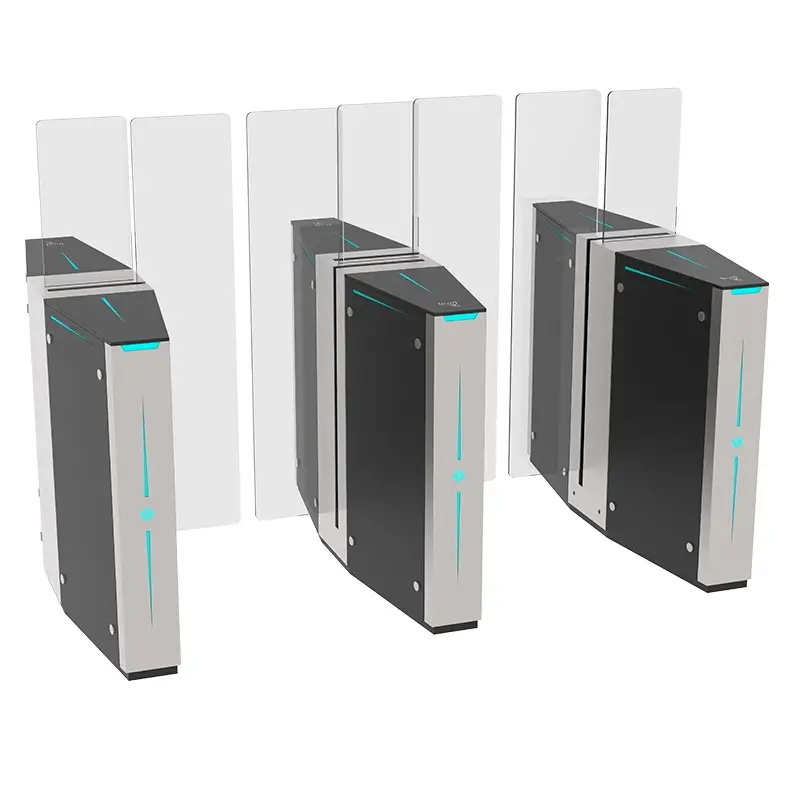

![High-tech AT604-TC-02 sliding turnstile for secure and smooth passage](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT604-TC-02.webp "Secure Turnstile")

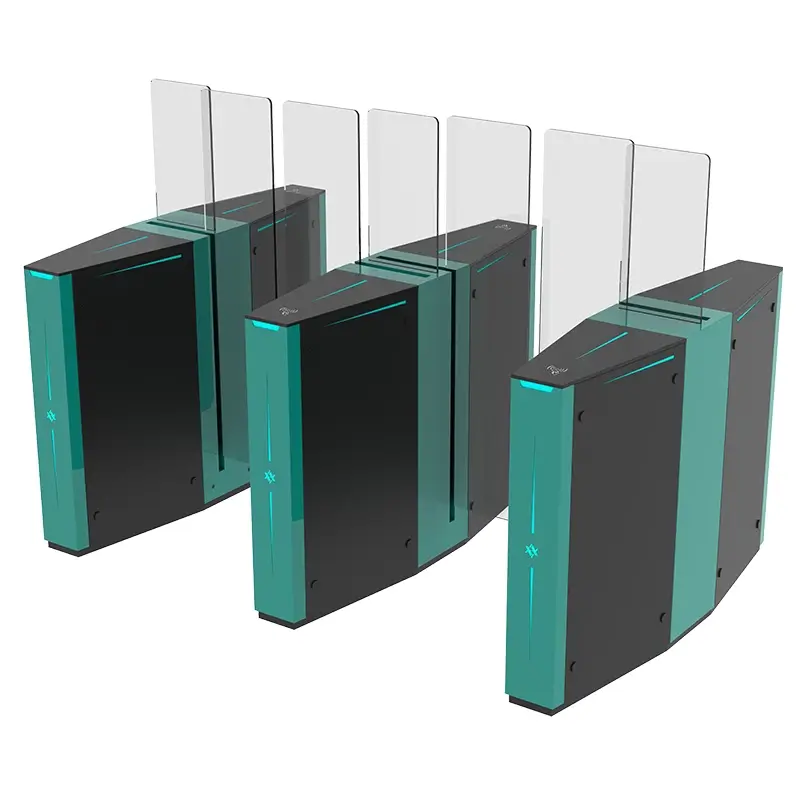

![Robust and reliable AT604-TC-05 sliding turnstile for efficient access](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT604-TC-05.webp "Reliable Turnstile")

![Reliable AT604-TC-06 turnstile suitable for secure and controlled entry](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT604-TC-06.webp "Reliable Turnstile")

![Efficient and sleek AT604-TC-04 sliding turnstile for controlled entry](https://aipadaturnstile.com/wp-content/uploads/2026/04/AT604-TC-04.webp "Sleek Turnstile")

AT604 High-Security Servo Sliding Turnstile

The AT604 sliding turnstile blends a sleek black-and-silver finish with high-performance servo motor technology, ideal for premium offices, airports, and smart facilities. It delivers ultra-silent, smooth operation with 30–40 people/min throughput, while infrared sensors ensure anti-tailgating and anti-pinch safety. Compatible with RFID, QR, and facial recognition systems, this customizable turnstile offers reliable, stylish access control for modern commercial spaces.

Product Dimensions:1400 × 350 × 1000 mm (4.59 × 1.15 × 3.28 ft) as standard, with full customization available to suit site-specific layouts.
Channel Width: Adjustable from 600 mm (1.97 ft) to 900 mm (2.95 ft), with custom widths offered to accommodate different user needs, including wheelchair or large-item access.
Enclosure Construction: Standard build combines iron baking paint with durable SUS304 stainless steel. SUS316 stainless steel is available as an upgrade for enhanced corrosion resistance in coastal or high-humidity environments.
Swing Arm Material: Features clear acrylic as standard, with optional upgrades to tempered glass, plexiglass, or stainless steel for varying security and aesthetic requirements.
Surface Finish: Multiple customizable options including brushed, polished, electroplated, and baking paint finishes, to match any interior or exterior design scheme.
Traffic Direction: Configurable for one-way or two-way passage, allowing flexible management of pedestrian flow based on your facility’s needs.
Drive Mechanism: Equipped with a high-precision servo motor drive, ensuring ultra-silent, smooth, and reliable operation even under continuous use.
Passage Throughput: Capable of handling 30–40 persons per minute under normal operating conditions, ideal for high-traffic areas such as office buildings, transit stations, and commercial complexes.

SKU: AT604 Categories: Sliding Turnstiles, All Turnstiles Tags: coated sliding gate, coated sliding turnstile, innovative design, New design, security turnstiles, sliding turnstile manufacturers, sliding turnstiles for office buildings Brand: AIPADA, AIPADATurnstile

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

AT604 Sliding Turnstile 3D view display

AT604 Sliding Turnstile Functional features

Designed for high-performance access control, our dedicated servo motor system powers this sliding turnstile with precision, reliability, and quiet operation, tailored for premium commercial and public environments.

Silent, Vibration-Free Operation

High-precision servo drive technology eliminates mechanical noise and jitter, delivering smooth, near-silent opening and closing. This ensures a quiet, unobtrusive experience ideal for office lobbies, airports, and smart facilities.
Fast, Responsive Speed Control

With quick start/stop and accurate speed regulation, the system supports a throughput of 30–40 people per minute, keeping pedestrian flow efficient even during peak hours.
Accurate Positioning & Consistent Performance

Real-time feedback ensures the sliding barrier stops precisely at the set position, with no offset or drift even after years of continuous use.
Flexible Traffic Management

Easily configured for one-way or two-way passage to meet diverse access rules for offices, public venues, and secure facilities.
Smart Anti-Pinch Safety

Integrated with intelligent sensors and soft-stop logic, the servo motor automatically slows and reverses when resistance is detected, preventing injuries and equipment damage.
Durable, Low-Maintenance Design

Built with overload protection and long-life components, the system operates reliably with minimal downtime, reducing long-term maintenance costs.
Seamless Integration

Compatible with all major access control systems, including RFID, QR code, facial recognition, and fingerprint readers, for easy installation and system matching.

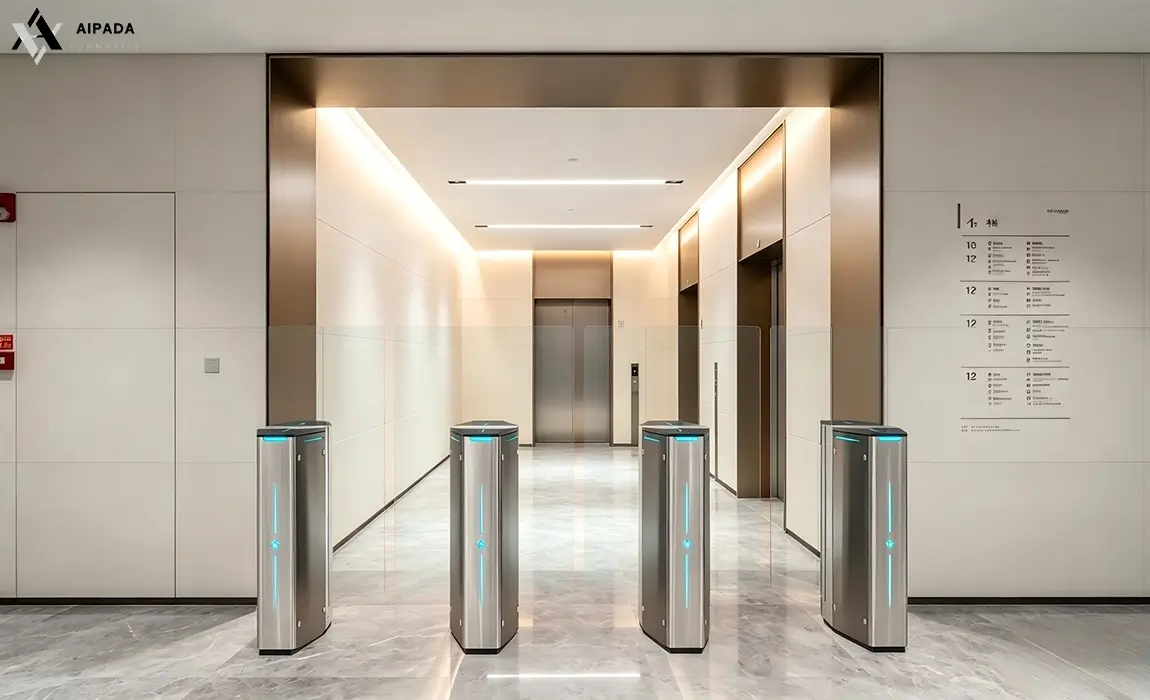

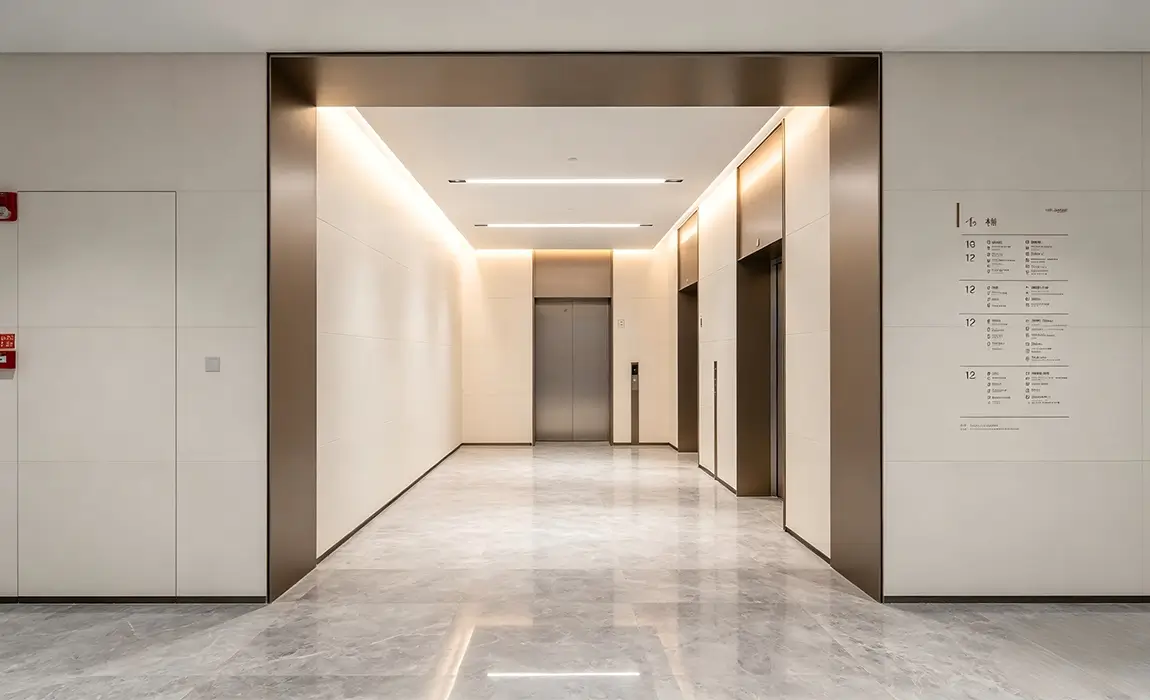

AT604 Sliding Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

AT604 Sliding Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

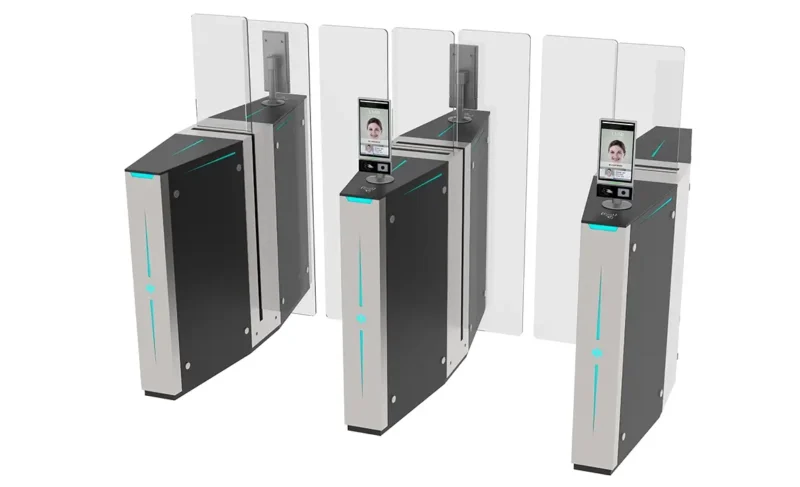

Optional：Number of turnstile channels

The diagram shows a three-channel system consisting of two single-core and two dual-core sliding turntiles. The number of turntiles can be increased if more channels are needed.

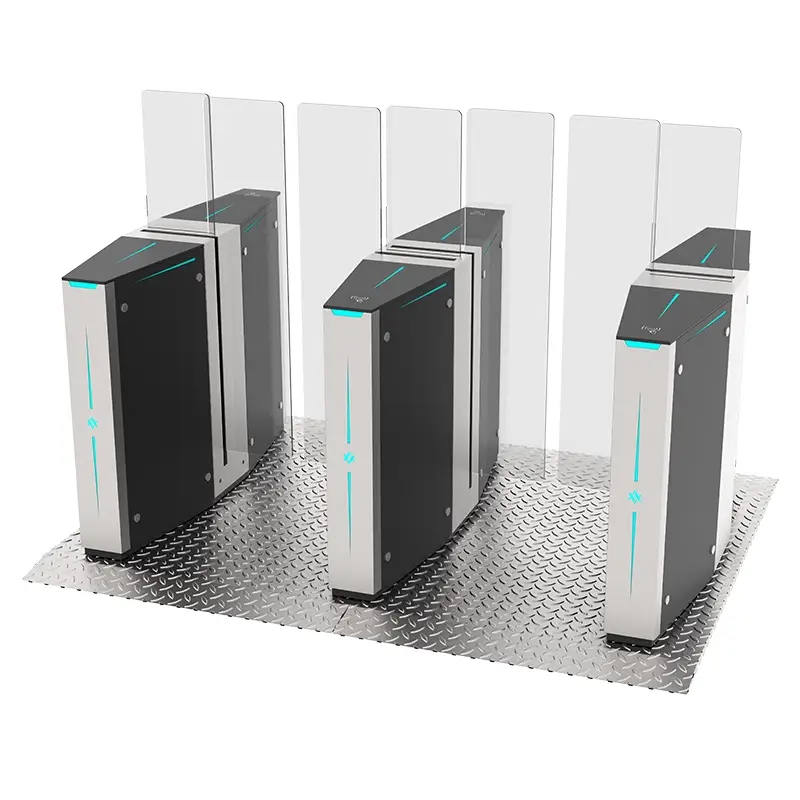

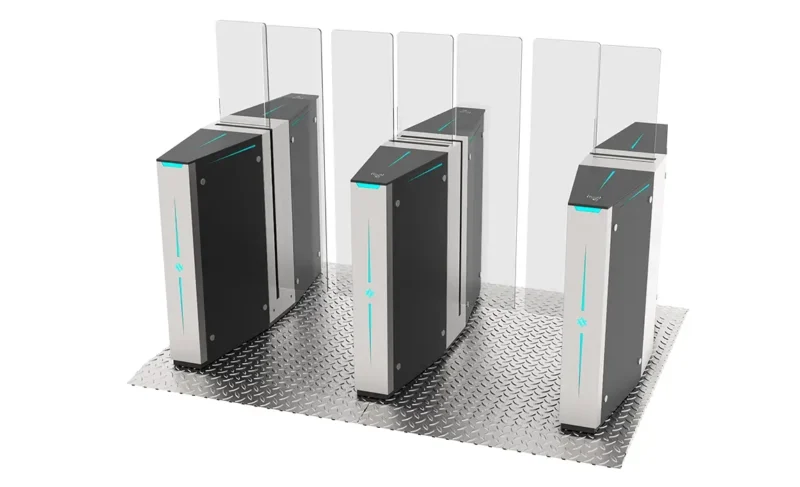

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

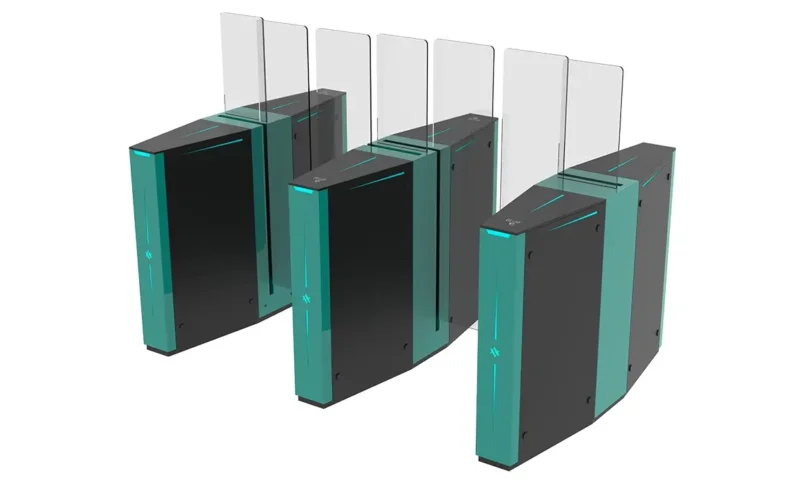

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

Q: Will this servo sliding turnstile automatically open in case of power failure or emergency?

A: Yes. The system features an emergency power-off automatic unlock function. When there is a power outage or emergency, the gate will automatically open to keep the passage fully unobstructed, meeting fire safety requirements and ensuring rapid evacuation.
Q: How long is the service life of the servo motor, and what maintenance is required on a daily basis?

A: Our servo motor is designed for industrial-grade long-term use, capable of stable operation for years under normal conditions, with no easily worn belts or gears. Daily maintenance only requires regular cleaning of the track and inspection of wiring, making it nearly maintenance-free and significantly reducing long-term operating costs.
Q: Can the gate’s opening/closing speed and access permission logic be customized according to our project requirements?

A: Absolutely. The servo system supports precise speed and travel parameter settings, allowing you to adjust the gate’s opening and closing speed based on the scenario (e.g., office buildings, airports). The device can also integrate with your access control system to implement custom access rules based on time, department, or permission groups.
Q: How effective is this sliding turnstile at preventing tailgating? How does it stop unauthorized personnel from following someone through?

A: The device uses the servo motor’s precise positioning in conjunction with infrared sensors to implement multi-layer anti-tailgating logic. It accurately identifies single-pass behavior and immediately locks the gate and triggers an alarm if multiple people tailgate, effectively enhancing entrance security.
Q: Will the servo motor operate unstably in extreme temperatures, such as high heat in summer or low temperatures in winter?

A: No. The servo motors and control boards we use have passed wide-temperature testing and can operate stably between -20°C and 60°C. They will not experience stuttering or positioning errors due to temperature differences, making them suitable for deployment in a variety of indoor and outdoor environments.
