AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.
AT214 Luxury framed Swing Turnstile 3D view display
AT214 Luxury framed Swing Turnstile Product Description
- Overall Dimension: Luxury framed Swing Turnstile AT214 standard cabinet 1470*180*970mm, bespoke sizing available for special projects
- Usable Passage Width: Adjustable opening width between 600mm–900mm, flexible setup for different pedestrian flow demands
- Cabinet Material Structure: SUS304 stainless steel outer housing with coated steel inner frame, excellent rust resistance for long-term operation
- Swing Panel Selection: Optional tempered glass, acrylic, plexiglass and solid stainless steel swing panels
- Surface Finishing Options: Brushed, polished, electroplated and spray baking paint finishes to match building interior design
- Power Drive Unit: Built-in DC brushless drive motor, quiet running, stable movement and lower maintenance cost
- Throughput Capacity: Supports up to 40 pedestrians per minute for efficient crowd passage
- Intelligent LED Status Prompt: Multi-color LED indicators visually display standby, allow entry and access denied status
- Infrared Safety Protection: Infrared sensing anti-pinch system plus impact buffer protection to prevent injury and equipment damage
- Power-off Emergency Mode: Swing panels automatically open upon power cut; auto reset function after power restoration
- Access Integration: Seamlessly connect facial recognition, RFID readers and QR scanners for integrated access management
- Operating Conditions: Operates steadily from -20℃ to 60℃, applicable for indoor and covered outdoor locations
- Target Application: Premium offices, business parks, luxury residences, fitness clubs, hotels and data center access points
- Global Voltage Adaptation: Wide voltage power supply design AC110-240V, convenient for overseas export projects
- Reverse Passage Prevention: Intelligent anti-reverse function stops illegal backward crossing to maintain orderly traffic
- Low Noise Design: Optimized mechanical structure suppresses operating noise, will not disturb indoor working environment
- Long Lifespan Mechanism: Wear-resistant brushless driving structure, greatly reduce later maintenance frequency
- Custom Running Speed: Freely set gate rotation speed to adapt high or low pedestrian flow occasions
- Real-time Fault Reminder: Intelligent self-test function, quickly locate malfunctions to shorten maintenance time
- Universal Signal Interface: Standard dry contact interface, great compatibility for biometric recognition equipment

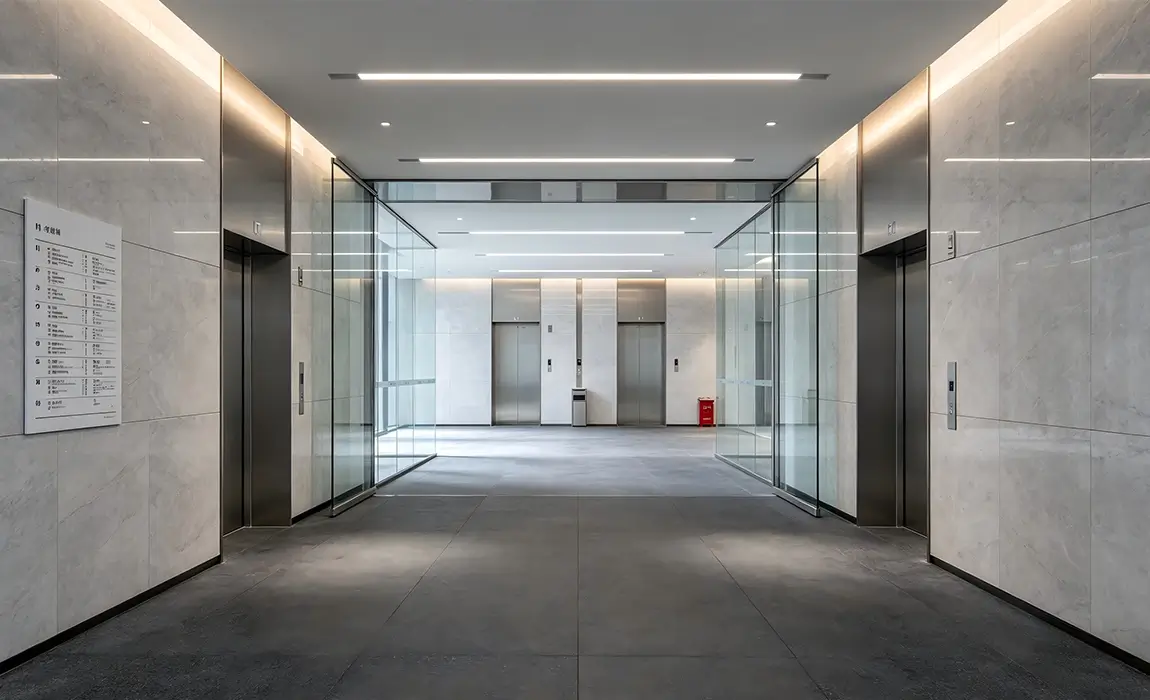

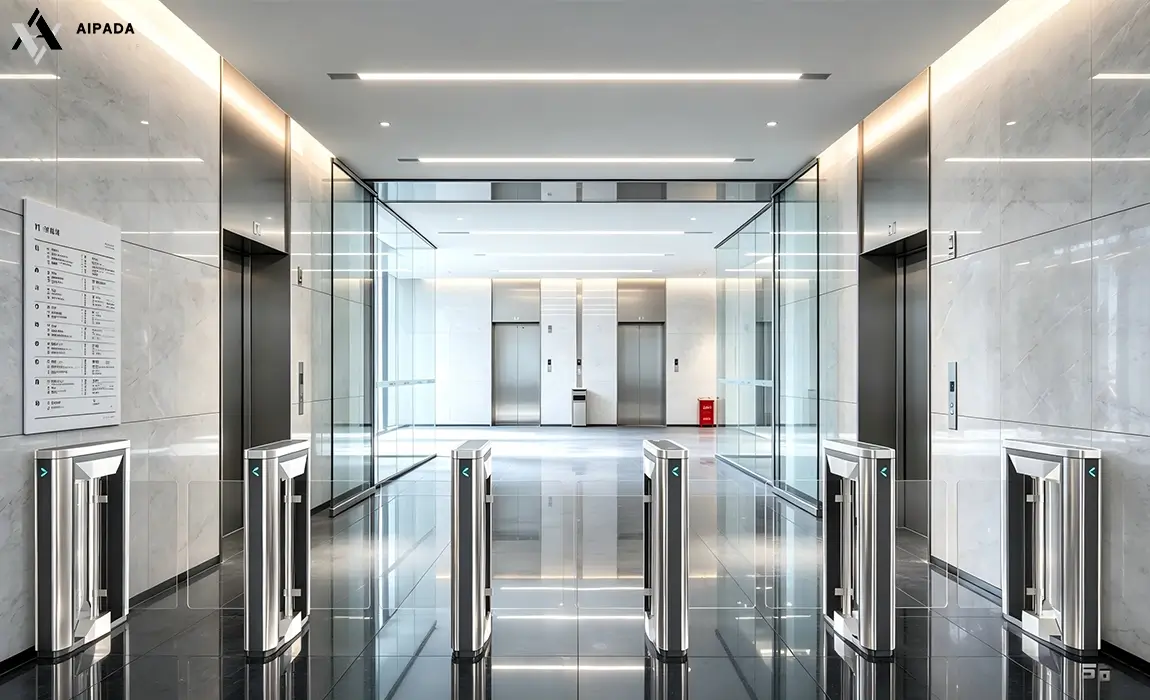

AT214 Luxury framed Swing Turnstile Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
AT214 Luxury framed Swing Turnstile Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.
Optional：Number of turnstile channels
The diagram shows a dual-channel system consisting of two single-core and two double-core wing and rotary gates. If more channels are needed, the number of rotary gates can be increased.
Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.
Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.
Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
- Q：Can the cabinet color of this AT214 swing turnstile be adjusted to fit our venue interior design?
A：Yes. We support customized baking paint finishes. You can provide color codes, and we will process the housing to meet your decoration requirements. - Q：Can the swing arm material be selected separately when ordering custom color swing turnstiles?
A：Absolutely. You may choose tempered glass, acrylic or stainless steel swing arms independently, no need to match fixed configurations. - Q：Does the AT214 swing turnstile support delayed closing adjustment after each pedestrian passage?
A：Delay time is adjustable via the control panel. Technicians can set proper waiting time according to on-site passenger flow. - Q：If minor scratches appear on the paint surface, do you provide touch-up paint for repair?A：We will provide corresponding touch-up paint together with goods for custom color orders to fix small surface scratches.
- Q：Is it possible to add brand logos on the cabinet of custom painted swing turnstiles?
A：Logo engraving or silk printing service is supported. You just need to provide clear logo files in advance. - Q：Does this swing turnstile support infrared anti-pinch protection function?
A：It is equipped with infrared sensing anti-pinch system. The swing arm will automatically retract when obstacles are detected to prevent injuries. - Q：Will the noise be obvious when the painted swing turnstile continuously operates during peak hours?
A：Adopting brushless motor drive structure, the unit runs smoothly with low noise, suitable for quiet indoor public areas.
