AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.
Commercial pedestrian swing turnstile AT206 3D view display
Commercial pedestrian swing turnstile AT206 Functional features
- Standard Cabinet Dimension：Ultra-slim cabinet dimension 603*130*980mm（1.98*0.43*3.22ft), occupying less indoor floor space. Custom sizes available, perfect for office lobbies and commercial buildings with limited installation space.
- Adjustable Passage Width：Passage width adjustable between 600mm and 900mm. Suitable for regular pedestrians and visitors carrying luggage, flexible enough for business parks, high-end apartments and gym entrances.
- Optional Swing Arm Materials：Multiple swing arm material choices: acrylic, tempered safety glass, plexiglass and solid stainless steel. Easy to match minimalist interior decoration of offices, hotels and commercial facilities.
- High Traffic Throughput：Maximum passing rate up to 40 people per minute. Ensure smooth pedestrian flow during morning and evening peak hours for busy commercial premises and corporate reception areas.
- DC Brushless Motor Driving System：Equipped with 24V reliable DC brushless motor. Ultra-low noise ≤50dB, stable operation and low failure rate, ideal for all-day continuous use in quiet office and hotel environments.
- Bidirectional Traffic Direction Control：Support one-way or two-way passage switching via software setup without hardware replacement. Administrators can flexibly adjust access rules for gyms, office buildings and residential compounds.
- Wide Recognition Device Compatibility：Interface: RS485 / TCP/IP. Seamlessly integrate RFID readers, QR scanners and facial recognition terminals. Convenient for upgrading intelligent access systems of business parks and high-end apartments.
- Premium Baking Paint Surface Finish：Cabinet adopts high-quality cold rolled steel + baking paint craft, scratch-resistant and stain-resistant. Clean minimalist appearance fits modern office lobbies, luxury apartments and commercial public areas.
- Infrared Anti-Clamping Protection：Built-in 6 pairs high-sensitivity infrared sensors. The swing arm stops immediately when obstacles are detected to avoid clamping pedestrians, raising safety for crowded gym and office scenarios.
- Emergency Release Function：Swing arms automatically open freely during power failure or emergency alert. Meet fire evacuation requirements for office buildings, hotels and all public commercial venues. Working voltage: AC100V~240V.
- Anti-Reverse Intrusion Detection：Infrared sensing system detects reverse intrusion and activates alarm signals. Effectively prevent unauthorized reverse passing for high-security office and hotel staff entrances.
- Intelligent Automatic Reset：Adjustable automatic reset time: 1~10 seconds. The turnstile automatically locks and resets permissions if users fail to pass on time after verification. Reduce tailgating risks for corporate lobbies and residential access points.
- Working Environment Parameter：Operating temperature: -10℃ ~ +55℃, indoor use. Adapt to year-round indoor environments of offices, apartments and commercial venues.
- Service Life：Motor continuous test service life ≥5 million operations. Stable long-term operation, lower maintenance cost for commercial long-term access control projects.
- Multi-Scenario Application：Commercial-grade pedestrian swing barrier, tailored for office lobbies, business parks, high-end apartments, gyms, hotel staff entrances and other commercial intelligent access control projects.

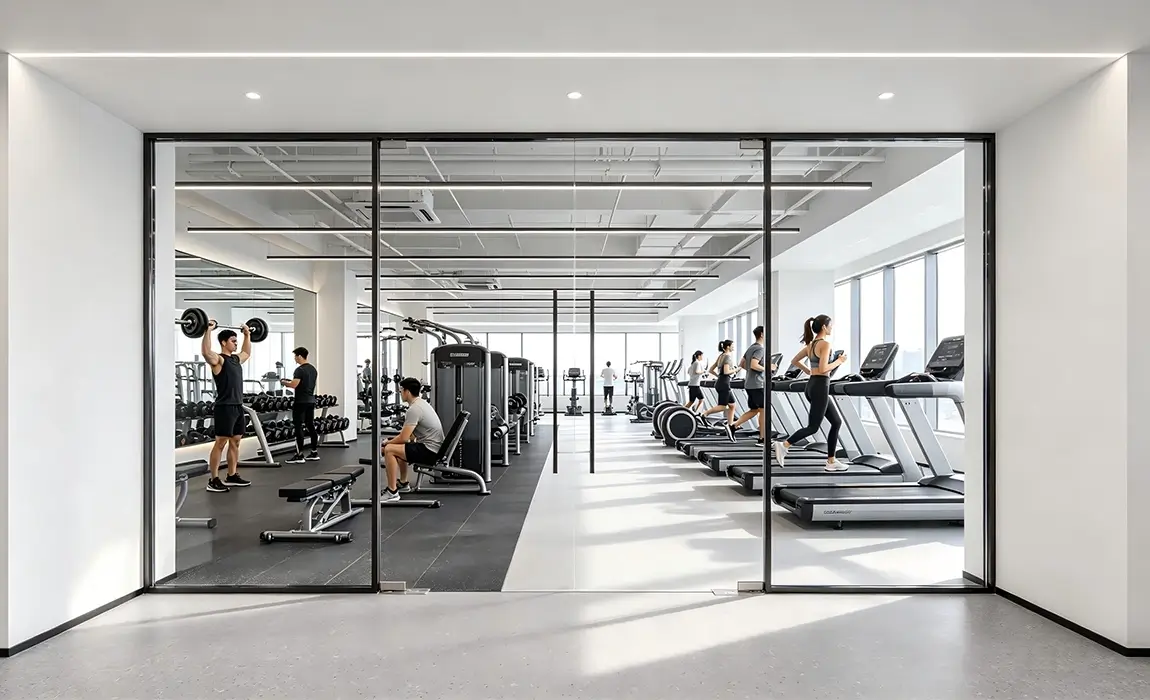

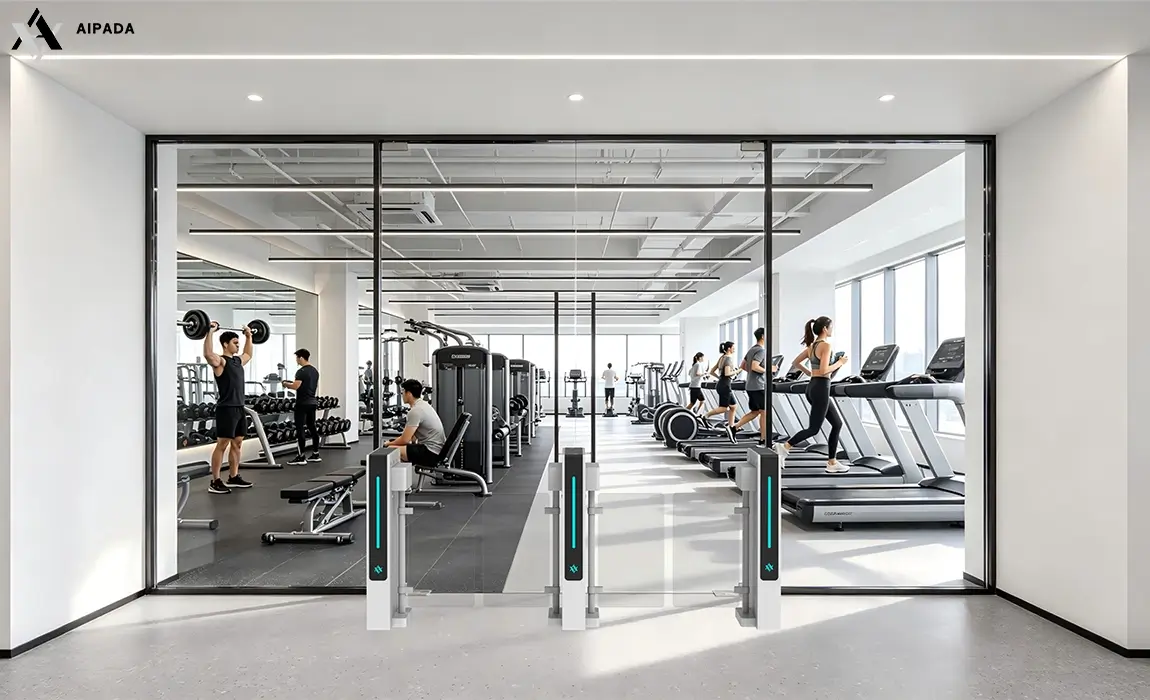

Commercial pedestrian swing turnstile AT206 Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
Commercial pedestrian swing turnstile AT206 Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.
Optional：Number of turnstile channels
The diagram shows a three-channel system consisting of two single-core swing gates and two dual-core swing gates. If more channels are needed, the number of rotary gates can be increased.
Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.
Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.
Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
1.Q: Does the AT206 swing turnstile produce loud operating noise during long continuous operation?
A: Adopted DC brushless drive motor. It maintains low-noise operation all day, suitable for quiet environments such as offices, galleries and museums.
2.Q: If the project has special space limits, can you customize the cabinet size of AT206 swing turnstile?
A: Yes. Apart from the standard cabinet dimension, customized cabinet sizes are available according to the actual layout of your site.
3.Q: What protection will the AT206 device activate if pedestrians attempt reverse intrusion?
A: Built-in infrared sensing module will trigger alarm prompts to stop reverse entry and guarantee access order.
4.Q: What will happen to AT206 swing turnstile once power failure occurs?
A: The swing arm will automatically open freely to form emergency passages, ensuring safe evacuation of all pedestrians.
A: Multiple surface treatment options are provided. Different paint finishes can be selected to coordinate various interior decoration designs.
