Office Building Sliding Turnstile AT602

This premium Sliding Speed Gate Turnstile boasts elegant curved stainless‑steel cabinets with a turquoise circular top light strip and integrated red‑green status indicators for upscale interiors. It adopts tall transparent acrylic sliding baffles, with tempered glass available as an upgrade for higher security. Powered by a stable servo drive system, it ensures fast, quiet horizontal sliding. Built‑in multi‑point infrared sensors enable anti‑pinch, smart anti‑tailgating and emergency auto‑release. Compatible with various identification readers to handle heavy foot traffic, it suits corporate lobbies, 5‑star hotels, exhibition centers and high‑end commercial sites.

Product Dimensions: 1400 × 350 × 1000 mm (4.60 × 1.15 × 3.29 ft) as standard, with full customization available to suit site-specific layouts.
Channel Width: Adjustable from 600 mm (1.97 ft) to 900 mm (2.95 ft), with custom widths offered to accommodate different user needs, including wheelchair or large-item access.
Enclosure Construction: Standard build combines iron baking paint with durable SUS304 stainless steel. SUS316 stainless steel is available as an upgrade for enhanced corrosion resistance in coastal or high-humidity environments.
Swing Arm Material: Features clear acrylic as standard, with optional upgrades to tempered glass, plexiglass, or stainless steel for varying security and aesthetic requirements.
Surface Finish: Multiple customizable options including brushed, polished, electroplated, and baking paint finishes, to match any interior or exterior design scheme.
Traffic Direction: Configurable for one-way or two-way passage, allowing flexible management of pedestrian flow based on your facility’s needs.
Drive Mechanism: Equipped with a high-precision servo motor drive, ensuring ultra-silent, smooth, and reliable operation even under continuous use.
Passage Throughput: Capable of handling 30–40 persons per minute under normal operating conditions, ideal for high-traffic areas such as office buildings, transit stations, and commercial complexes.

SKU: AT602 Categories: Sliding Turnstiles, All Turnstiles Tags: coated sliding gate, coated sliding turnstile, innovative design, New design, security turnstiles, sliding turnstile manufacturers, sliding turnstiles for office buildings Brand: AIPADA

Description

AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

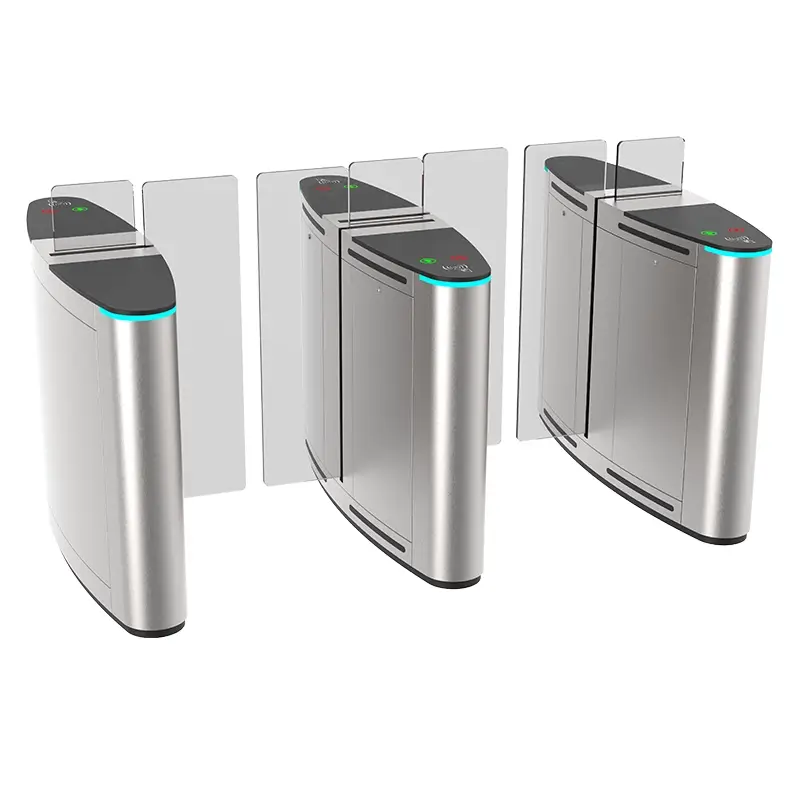

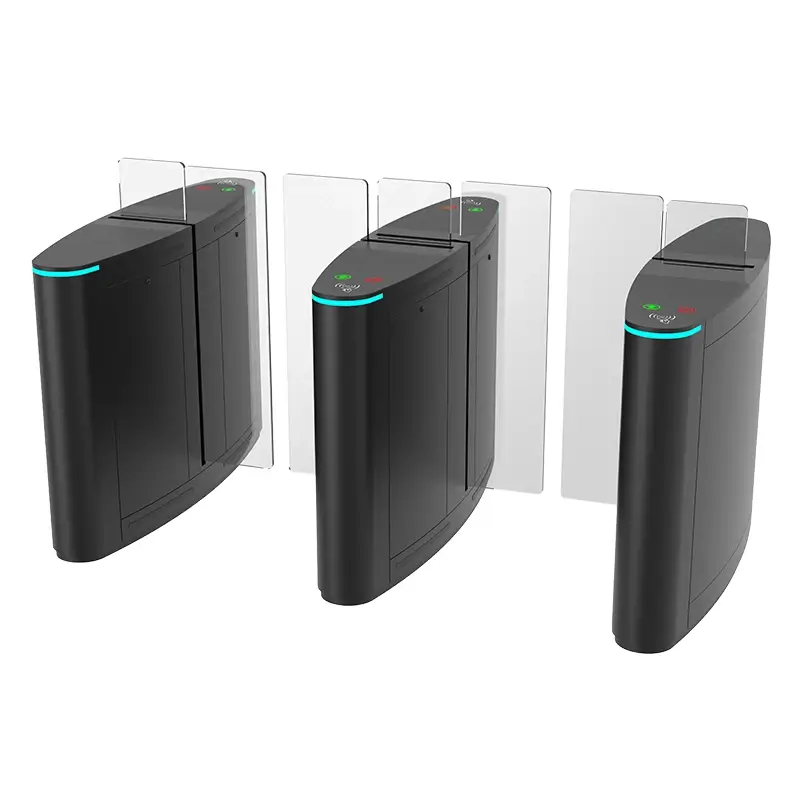

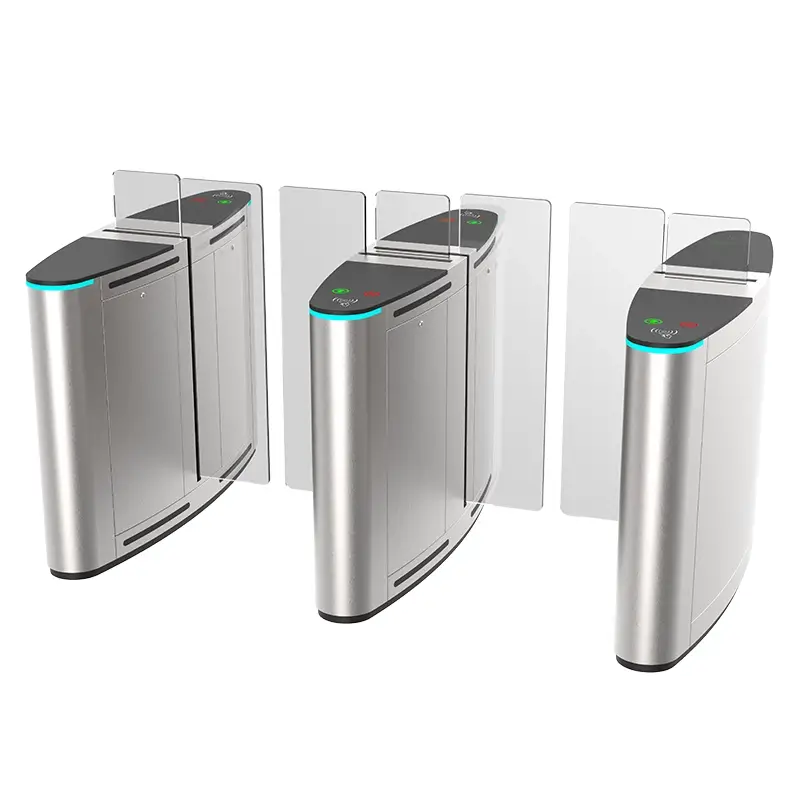

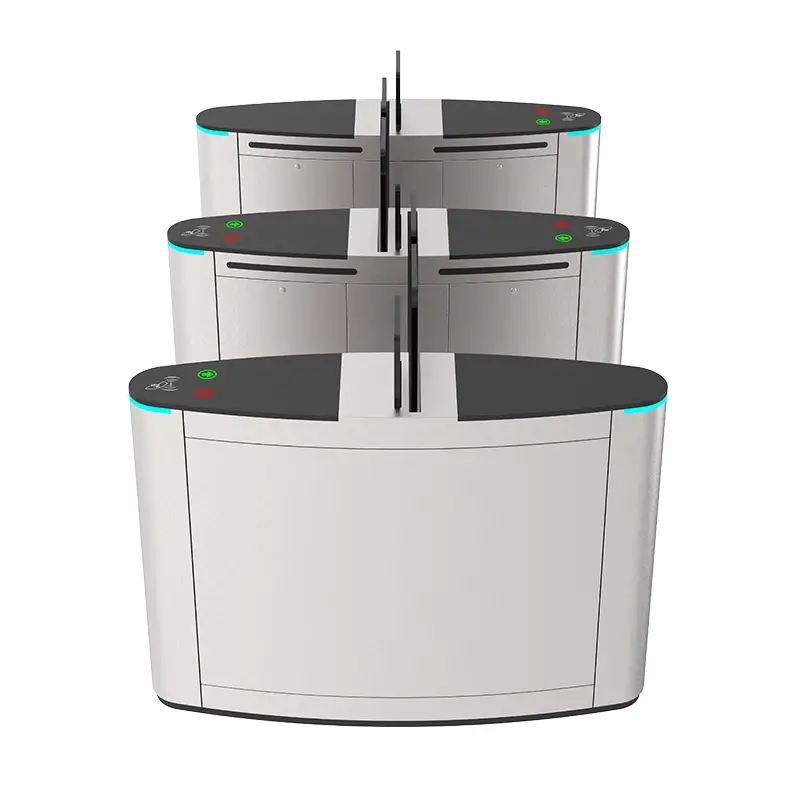

AT602 Sliding Turnstile 3D view display

AT602 Sliding Turnstile Functional features

Standard Cabinet Dimension：This Sliding Turnstile features standard cabinet dimension of 1400×350×1000 mm with metric‑imperial dual‑unit marking. Full‑size custom modification is supported to fit special entrance space and complex site layout requirements.
Adjustable Passage Channel Width：Passage width is adjustable within 600‑900mm. Further custom widened lane is available to realize barrier‑free access for wheelchairs, strollers and over‑sized luggage.
Composite Cabinet Enclosure Construction：Standard cabinet adopts iron baking paint combined with SUS304 stainless‑steel curved panel. SUS316 stainless‑steel can be upgraded for coastal and high‑humidity locations to strengthen salt‑spray & corrosion resistance.
Sliding Baffle Material Selection：Tall clear acrylic sliding baffles are equipped as standard; tempered glass, plexiglass and stainless‑steel panel are optional upgrades to satisfy different security‑level and visual aesthetic demands.
Diversified Custom Surface Finish：Multiple surface treatment solutions are optional, including brushed, polished, electroplated and baking paint finish, perfectly matching various interior and exterior decoration styles.
Flexible Traffic Direction Setting：Each lane supports configurable one‑way or two‑way passage mode. Operation mode can be modified through management software according to real‑site pedestrian flow conditions.
High‑Precision Servo Motor Drive Mechanism：Adopts industrial high‑precision servo drive unit, delivering ultra‑silent, stable and smooth sliding performance for long‑time continuous high‑frequency operation.
Practical Pedestrian Passage Throughput：Achieves 30‑40 people per minute passing capacity under normal working status, well‑suited for high‑traffic scenarios such as office buildings, transit hubs and commercial complexes.
Curved Streamlined Cabinet Appearance：Ergonomic rounded curved cabinet design without sharp corners, premium streamline shape improves visual texture for high‑end lobby environment.
Top Circular Ambient LED Light Strip：Turquoise circular ambient light strip around cabinet top edge, synchronously reflects real‑time working state of the sliding turnstile.
Built‑in Red‑Green Traffic Status Indicator：Integrated red‑green signal indicators on cabinet top, directly show pass‑allowed /no‑pass status for pedestrians from long distance.
Full‑Height Multi‑Point Infrared Anti‑Pinch Array：Multi‑point infrared sensors cover full passage height, real‑time detection prevents clamping injury during horizontal baffle moving process.
Intelligent Anti‑Tailgating Recognition Logic：Advanced infrared algorithm identifies tailgating and piggy‑backing behaviours, effectively blocking unauthorized person follow‑up access into restricted zone.
Emergency Automatic Release Function：Sliding baffles will fully open automatically once emergency signal is triggered, forming complete passage for fast pedestrian evacuation.
Fire‑Alarm Signal Linkage Control：Supports external fire‑alarm dry‑contact signal input; all barriers unlock automatically for evacuation requirement when fire signal received.
Power‑Off Manual Mechanical Release：Equipped with manual unlocking mechanism, authorized staff can manually push open baffles for evacuation under power‑failure situation.
Wide Compatibility for Access Control Terminals：Works seamlessly with mainstream access‑control devices, including RFID card reader, QR scanner, fingerprint and facial recognition terminals.
Baffle Automatic Reset Protection：Sliding baffles auto‑reset to closed position after valid pedestrian passage, avoiding long‑term open status to guarantee site security level.
Dry‑Contact Signal Output Interface：Reserved dry‑contact signal output port, convenient to connect central monitoring system for unified security management.
Wide Operating Temperature Adaptability：Reliable performance within ‑10℃ ~ +55℃ working temperature range, suitable for indoor lobby, hotel, exhibition center and office‑building scenarios.
Custom Laser‑Engraved Logo Option：Cabinet surface supports customer‑specified laser engraved logo, realizing brand display for corporate and commercial projects.

AT602 Sliding Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

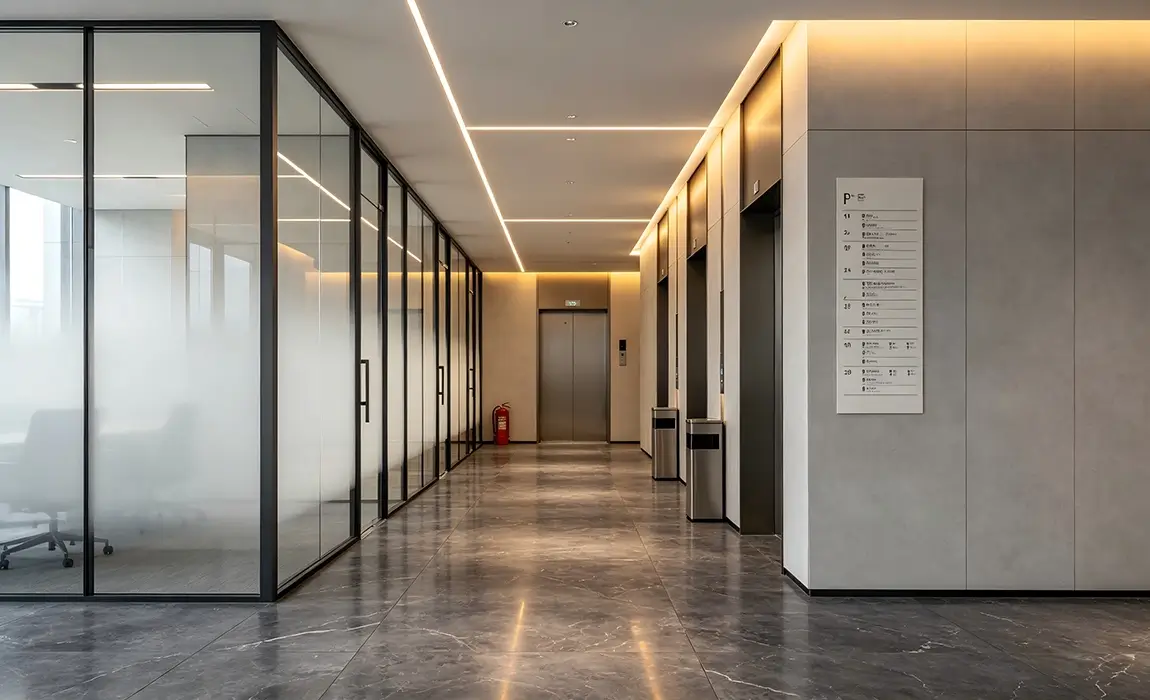

Before

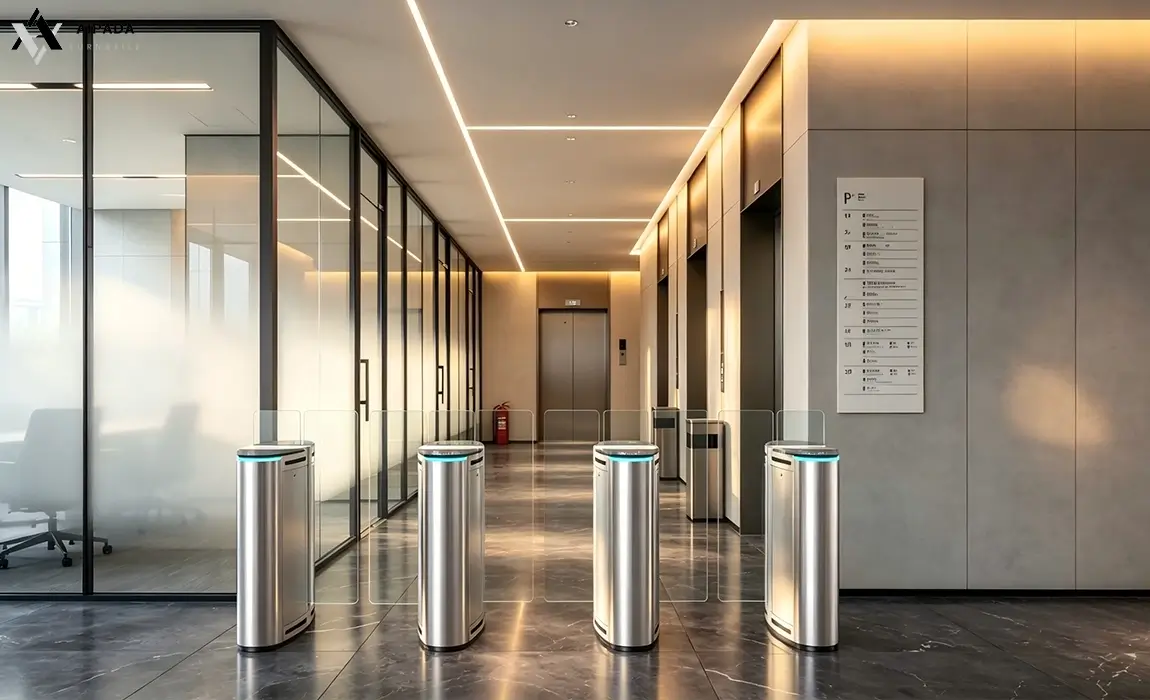

After

AT602 Sliding Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

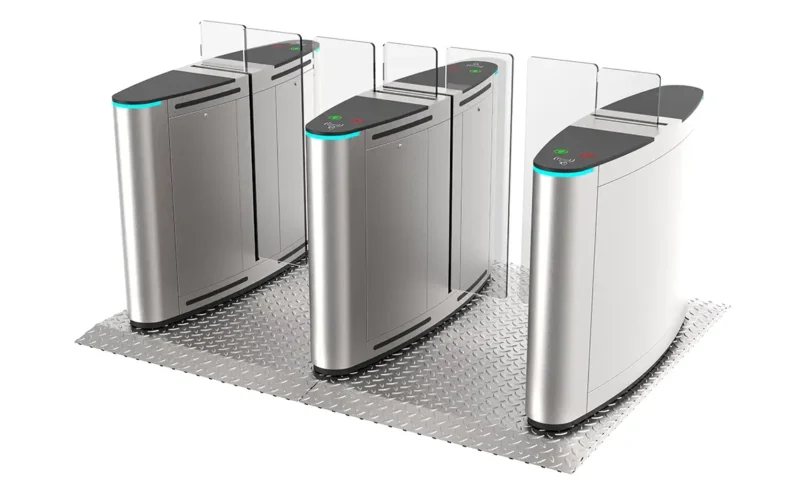

The diagram shows a three-channel system consisting of two single-core and two dual-core sliding turntiles. The number of turntiles can be increased if more channels are needed.

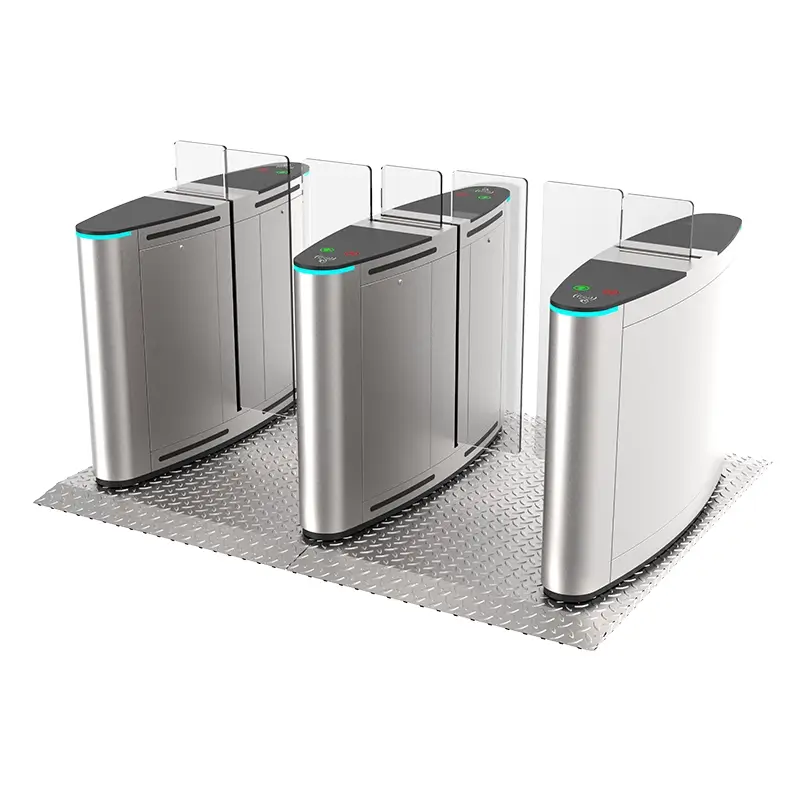

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

Optional： your own exclusive pass

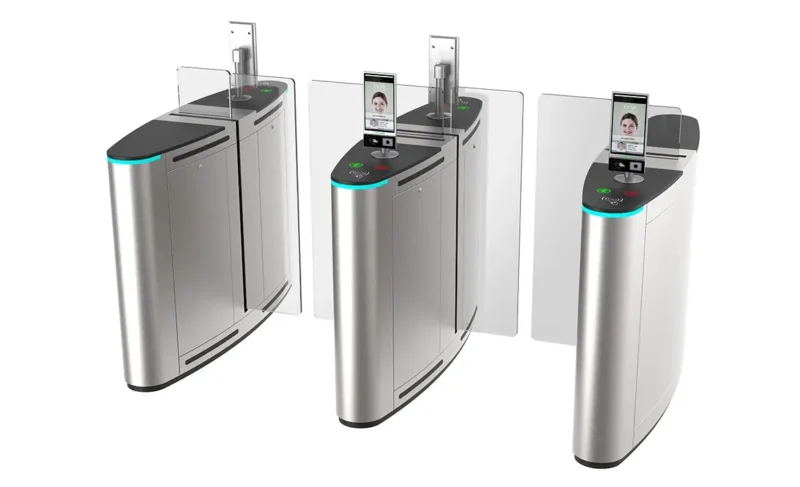

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

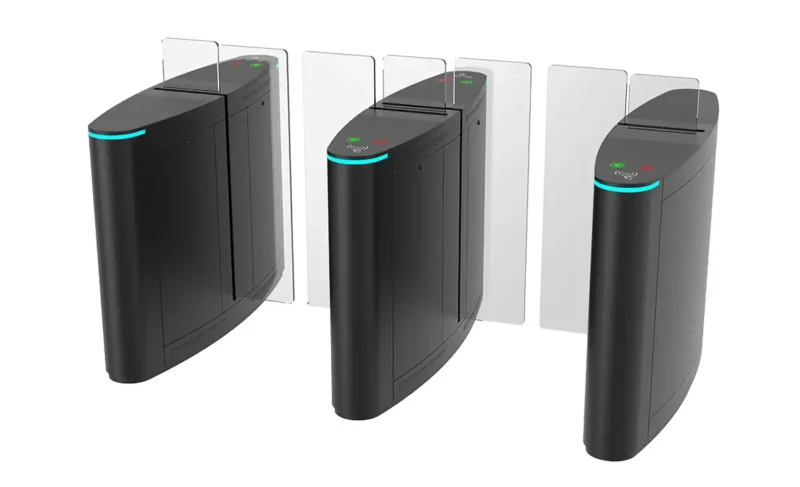

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Card

Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Touch Button

Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Remote Control

Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Face Reader

Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Fingerprint Scanner

Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

Q: Can this servo sliding turnstile handle high-frequency pedestrian flow during morning rush hours in office buildings stably?
A: This sliding turnstile is designed for high-traffic commercial environments, powered by a high-performance servo motor that ensures consistent and reliable operation. It supports a throughput of 30–40 people per minute, allowing it to smoothly manage peak-hour crowds without jams, delays, or performance degradation, ensuring uninterrupted daily access for employees.
Q: How does the noise control of this servo motor model compare with traditional motor models? Will it affect the office environment?
A: Equipped with a high-precision servo drive system, this turnstile operates at noise levels below 50dB during normal use. Unlike traditional motor turnstiles that produce clunking, humming, or vibration during opening and closing, the servo motor delivers smooth, jitter-free motion. This ultra-quiet performance makes it ideal for noise-sensitive environments such as corporate lobbies, headquarters, and libraries.
Q: Is the combination of stainless steel enclosure and transparent barrier panels difficult to maintain in daily use?
A: The brushed stainless steel housing is highly resistant to fingerprints, minor scratches, and corrosion, maintaining its sleek appearance with minimal effort. The tempered glass or acrylic barrier panels can be easily cleaned with a soft cloth and neutral cleaner. No special tools or complex maintenance procedures are required, resulting in low long-term operating costs.
Q: Will safety features like anti-pinch and anti-tailgating fail under continuous high-frequency use?
A: Safety is ensured by both the servo motor control system and multi-beam infrared sensor array. The turnstile automatically slows down, stops, or reverses immediately when an obstruction is detected, preventing pinching injuries to pedestrians. The anti-tailgating infrared sensors remain accurate even with 24/7 continuous operation, providing consistent and reliable security performance.
Q: Can this turnstile integrate with our existing access control system directly? What access methods does it support?
A: Yes, it features open communication protocols including TCP/IP, RS485, and Wiegand, enabling seamless integration with mainstream access control technologies. It supports multiple access methods such as RFID cards, QR codes, facial recognition readers, and fingerprint scanners. Custom integration services are also available to meet specific system requirements.
