AIPADA Turnstile carries a 2 years warranty and durable maintenance and repair support.

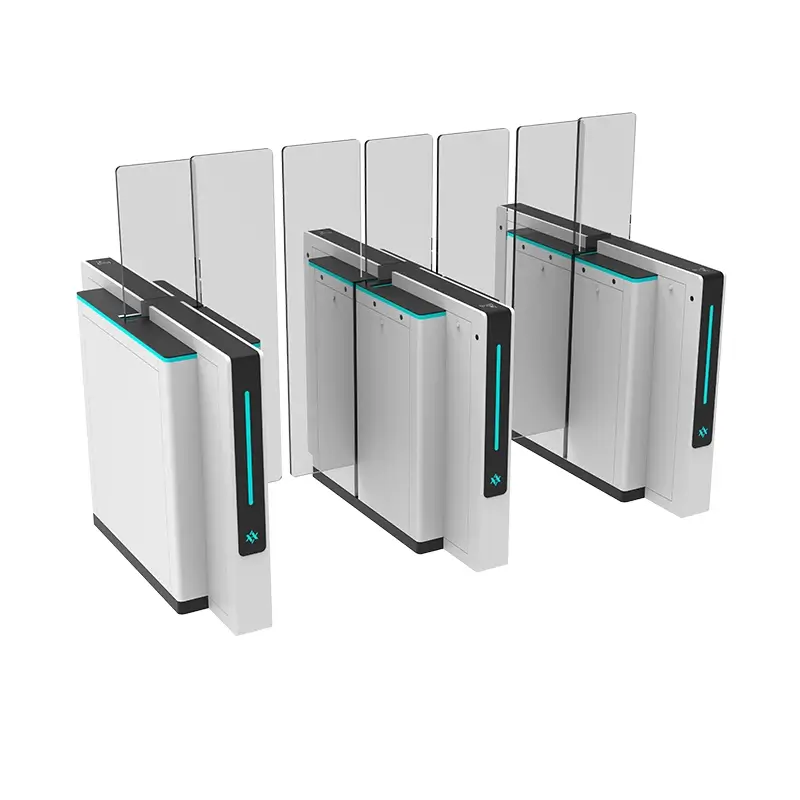

AT601 Sliding Turnstile 3D view display
AT601 Sliding Turnstile Functional features
- Standard Overall Dimension：This Sliding Turnstile standard cabinet dimension is 1403×350×1002 mm with metric‑imperial dual‑unit marking. Full‑structural customization supports size modification to match special on‑site layout and space‑restricted installation conditions.
- Adjustable Channel Width：Adjustable passage width ranges from 600 mm to 900 mm. Further custom‑widened lanes are available to satisfy barrier‑free access for wheelchairs, strollers and oversized goods.
- Enclosure Base Material：Standard cabinet adopts high‑quality painted‑iron housing with stable structural performance. SUS304 and SUS316 stainless steel are optional upgrades to boost corrosion resistance for coastal and high‑humidity environments.
- Sliding Baffle Material Options：Tall transparent acrylic sliding baffles are supplied as standard. Tempered glass, plexiglass and stainless steel panels are optional to meet different security grades and aesthetic demands.
- Multiple Custom Surface Finishes：Various surface treatments are optional including brushed, polished, electroplated and baking paint finishes, to coordinate with diverse interior and exterior decoration styles.
- Configurable Traffic Direction：Supports flexible one‑way or two‑way passage setup per lane. Passage mode can be adjusted via management software according to actual site pedestrian flow rules.
- High‑Precision Servo Drive Mechanism：Adopts industrial high‑precision servo motor drive unit, delivering ultra‑quiet, smooth sliding movement and stable performance under long‑term continuous high‑frequency operation.
- Practical Passage Throughput：Achieves 30‑40 people per minute under normal working conditions, suitable for high‑density pedestrian scenarios such as office buildings, transport hubs and commercial complexes.
- Vertical Side Status Light Strip：Built‑in vertical blue LED light strip on cabinet side panel, intuitively displaying access‑allowed or access‑denied status for pedestrians from distance.
- Top Ambient Indicator Light Bar：Turquoise top ambient light bar presents modern tech‑style visual effect, synchronously indicating gate working status.
- Multi‑Point Infrared Anti‑Pinch Sensor Array：Full‑height multi‑point infrared sensors cover the whole passage, real‑time detection prevents pinching injury during horizontal baffle sliding movement.
- Intelligent Anti‑Tailgating Logic Algorithm：Advanced infrared sensing logic identifies tailgating and piggyback behaviours, effectively preventing unauthorized trailing entry into restricted areas.
- Emergency Auto‑Release Function：When receiving emergency trigger signal, sliding baffles automatically open to form full‑width passage for fast personnel evacuation.
- Fire‑Alarm Signal Linkage：Supports external fire‑alarm signal input. All sliding baffles unlock automatically once fire signal is triggered for emergency evacuation requirements.
- Power‑Off Manual Release Mechanism：Equipped with mechanical manual unlocking device. Staff can manually push baffles open for evacuation when power failure occurs.
- Rich Access Control Terminal Compatibility：Seamlessly compatible with mainstream access‑control devices, including RFID card readers, QR‑code scanners, fingerprint and facial recognition terminals.
- Baffle Self‑Reset Protection：Sliding baffles will automatically reset to closed position after valid passage, avoiding long‑term open status and maintaining site security.
- Modular Assembly Structure：Modular design for main mechanical and electrical components, simplifying on‑site installation, routine maintenance and part replacement work.
- Dry‑Contact Signal Output Interface：Reserved dry‑contact signal output ports, convenient for connecting central monitoring system for unified security management.
- Custom Laser‑Engraved Logo Option：Cabinet surface supports customer‑specified laser‑engraved logo printing, to realize brand display for commercial and corporate projects.

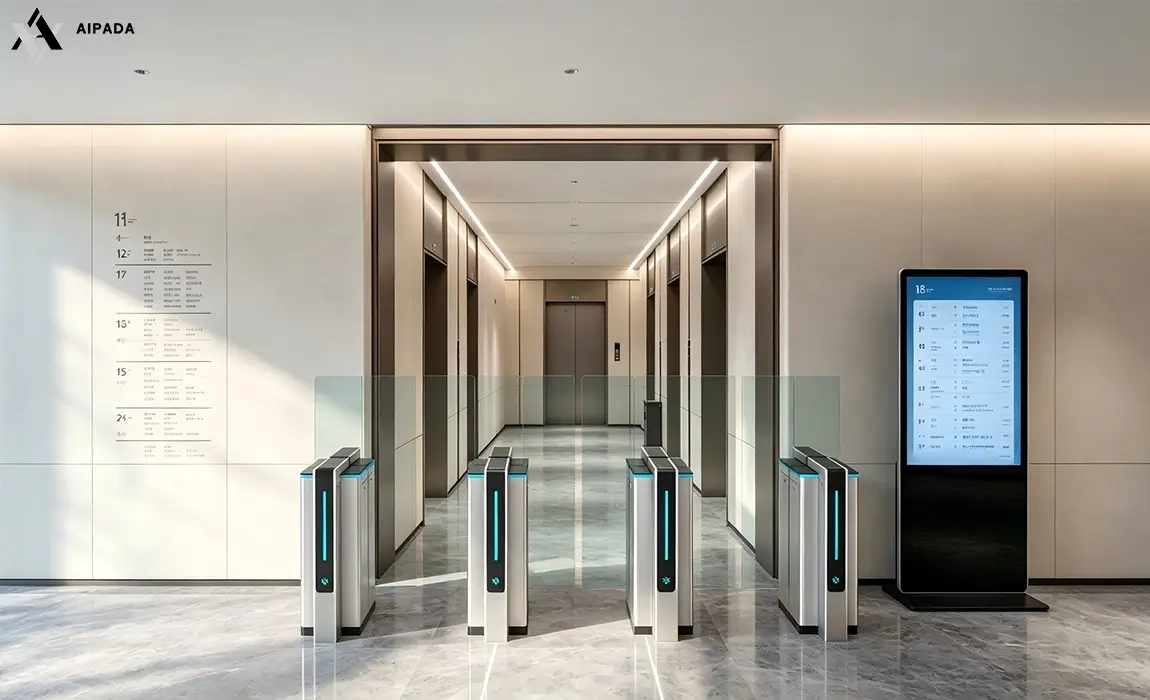

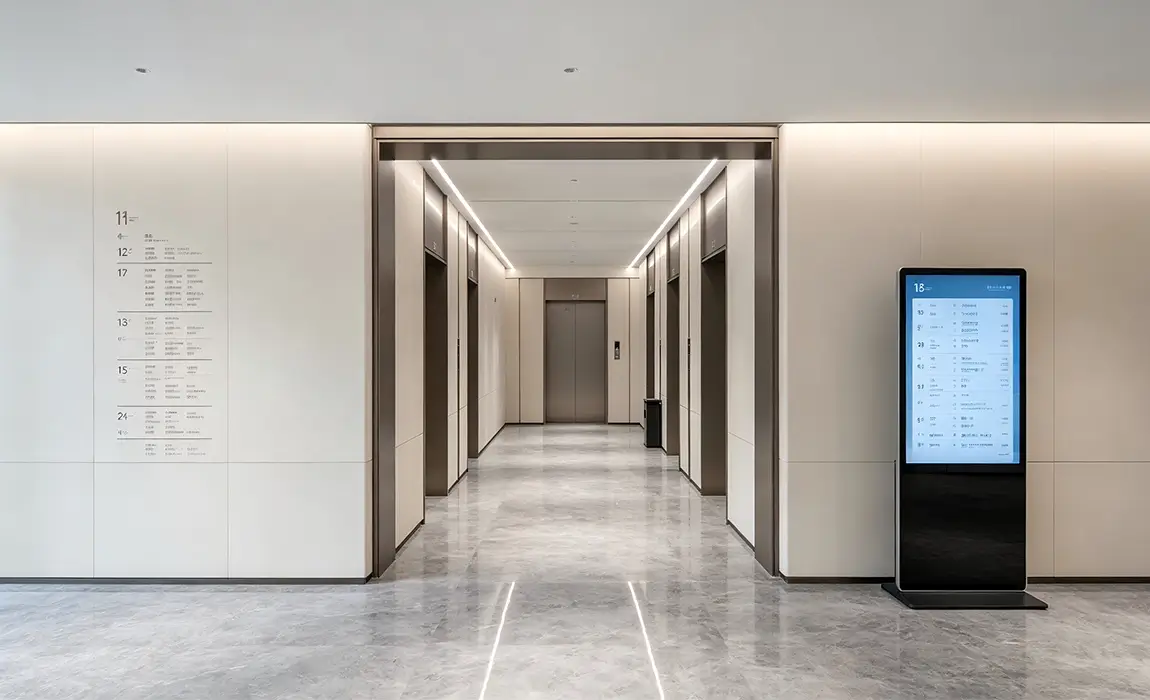

AT601 Sliding Turnstile Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
AT601 Sliding Turnstile Customization
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

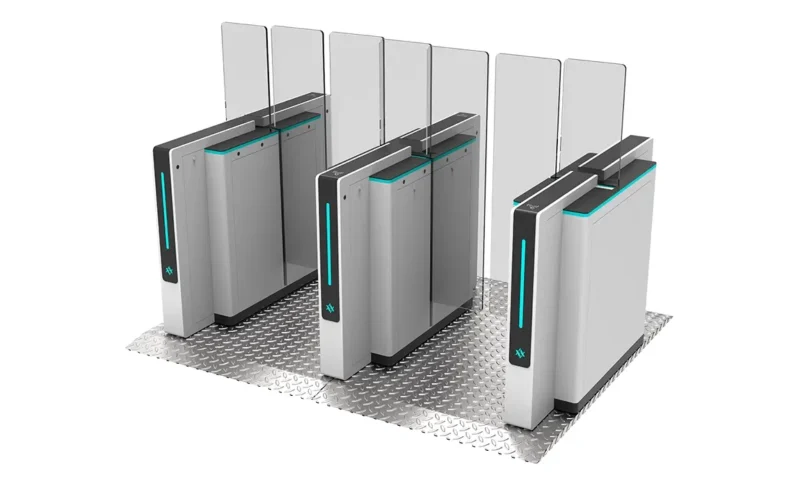

Optional：Number of turnstile channels

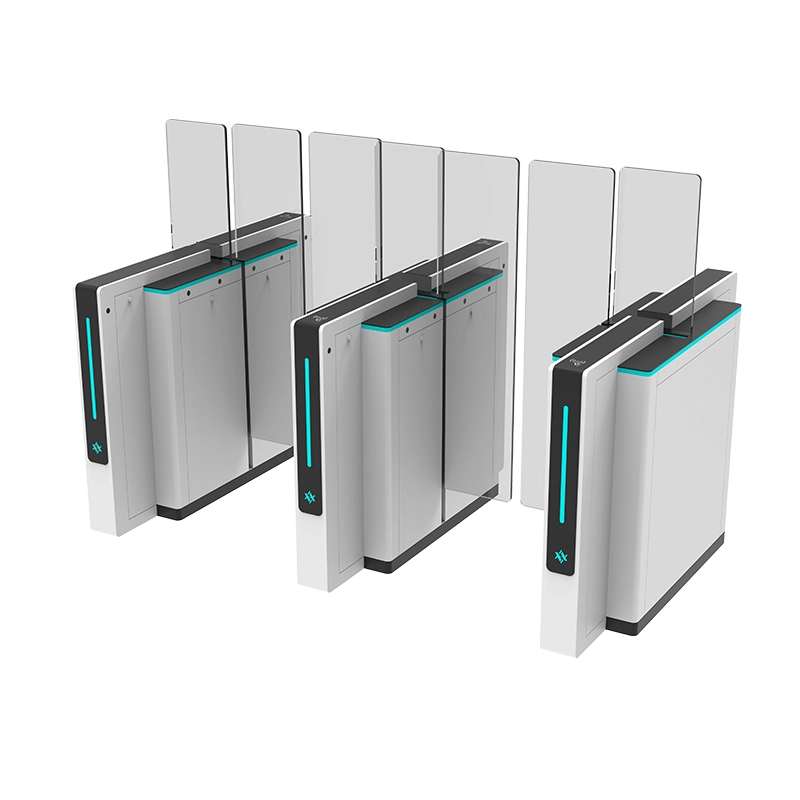

The diagram shows a three-channel system consisting of two single-core and two dual-core sliding turntiles. The number of turntiles can be increased if more channels are needed.
](https://aipadaturnstile.com/wp-content/uploads/2025/12/AT601-LD-01-800x487.webp "Zhi Leng Series Turnstiles Sliding Turnstile AT601 10")
](https://aipadaturnstile.com/wp-content/uploads/2025/12/AT601-LD-02-800x487.webp "Zhi Leng Series Turnstiles Sliding Turnstile AT601 11")

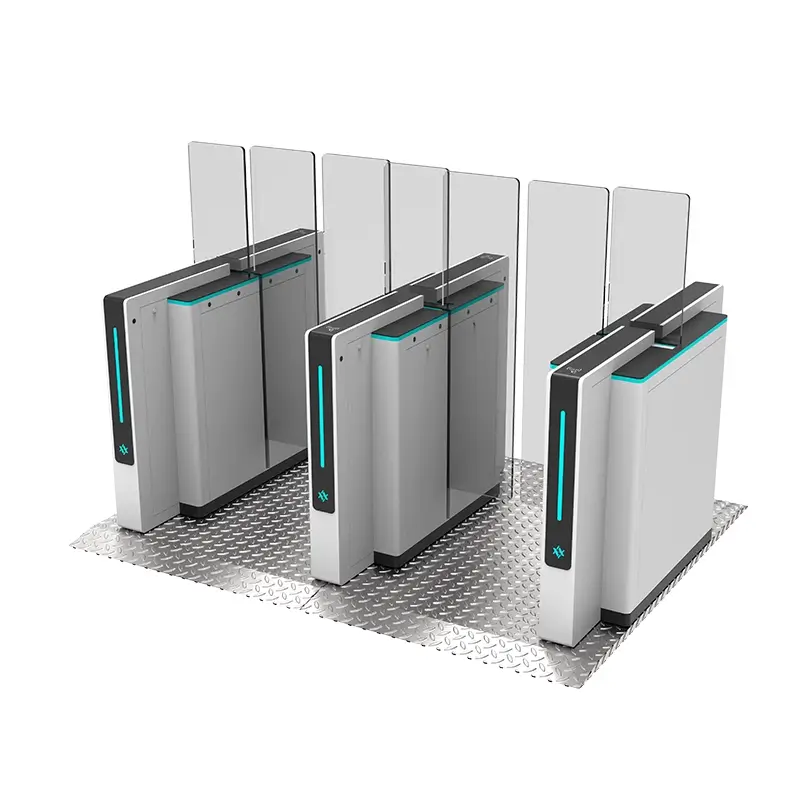

Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

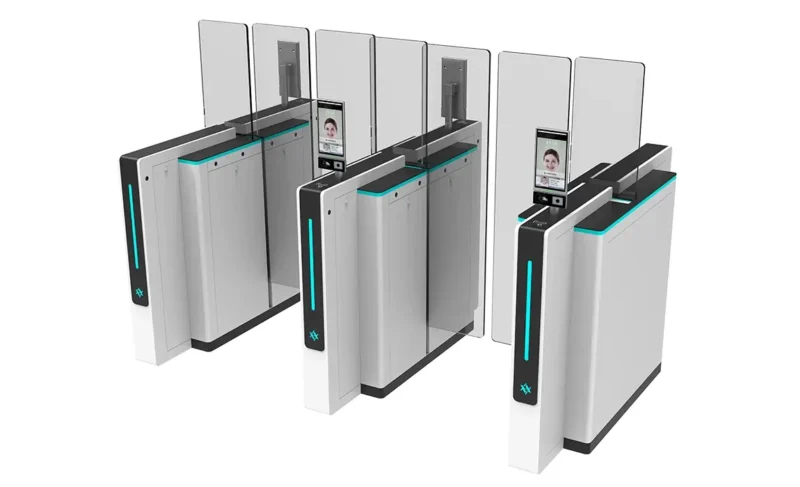

Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.
](https://aipadaturnstile.com/wp-content/uploads/2025/12/AT601-LD-03-800x487.webp "Zhi Leng Series Turnstiles Sliding Turnstile AT601 12")
](https://aipadaturnstile.com/wp-content/uploads/2025/12/AT601-LD-04-800x487.webp "Zhi Leng Series Turnstiles Sliding Turnstile AT601 13")

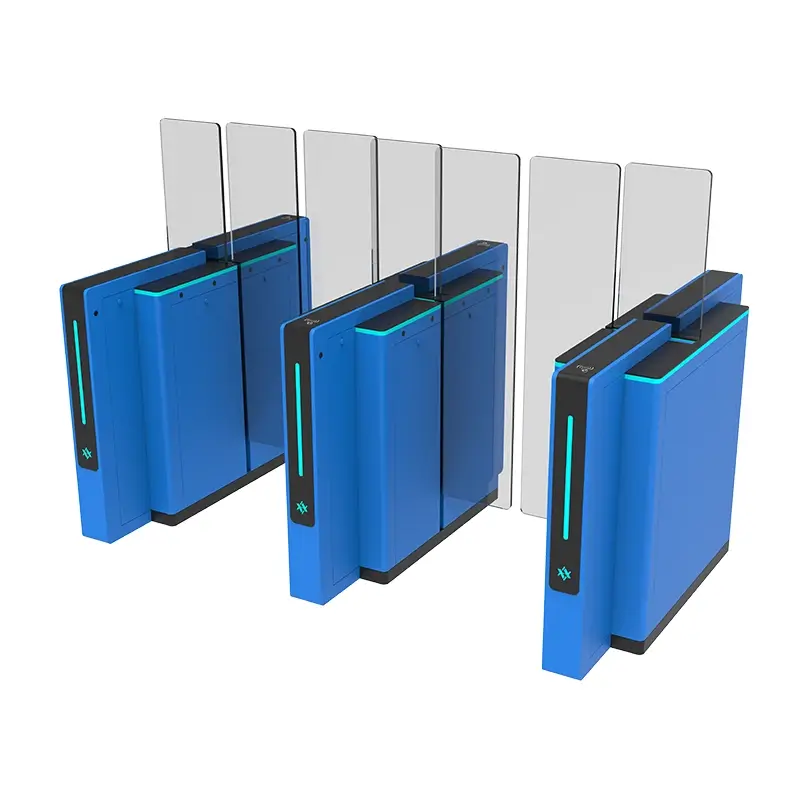

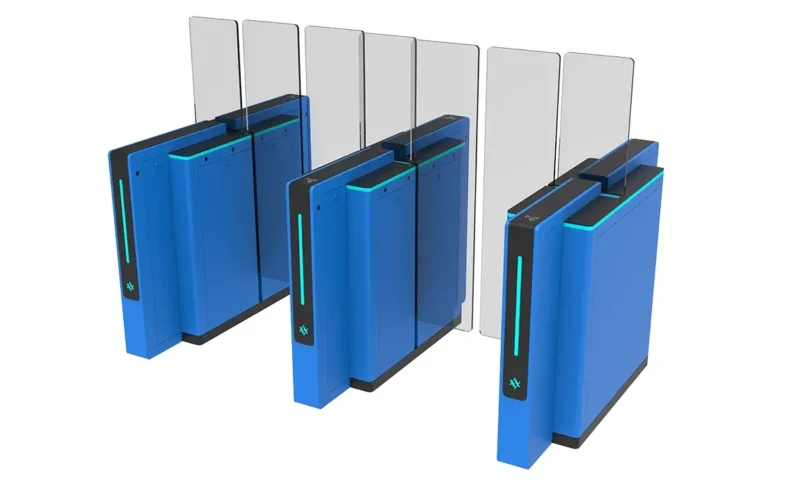

Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.
Diverse Methods of Passage Compatibility
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
QR Code
Optional:We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Card
Optional:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Touch Button
Optional:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Remote Control
Optional:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Face Reader
Optional:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Fingerprint Scanner
Optional:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.
1. Q: What is the durability of the iron baking paint enclosure? Is it scratch-resistant?
A: The enclosure is made of high-quality iron with a high-temperature baking paint finish, which offers excellent resistance to scratches, corrosion, and fading. The smooth, uniform coating is designed to withstand daily wear in high-traffic environments like offices and airports, maintaining its sleek appearance for years. For enhanced protection, we also offer optional powder coating finishes for more demanding conditions.
2. Q: How quiet is the servo motor operation? Will it cause noise disturbance in an office environment?
A: Equipped with a high-precision servo motor drive system, this sliding turnstile operates at ≤55dB noise level during normal use. The servo motor delivers smooth, vibration-free start/stop motion, eliminating the clunking or humming common in traditional motor turnstiles. This makes it ideal for quiet environments such as corporate offices, hotels, and libraries.
3. Q: How does the anti-tailgating and safety protection work on this model?
A: The turnstile is fitted with multi-beam infrared sensors and servo motor closed-loop control to ensure full safety:
- Anti-tailgating: Detects unauthorized following, triggering real-time alarms and preventing access.
- Anti-pinch safety: The servo motor automatically stops and reverses the barrier when encountering an obstacle, preventing injury to pedestrians or damage to the equipment.
- Emergency release function ensures full opening during power outages or fire alarms, meeting evacuation safety standards.
4. Q: Can the channel width and barrier height be customized for our project?
A: Yes, this sliding turnstile supports full customization to fit your site requirements:
- Channel width: Adjustable from 600mm (1.97ft) to 900mm (2.95ft) to accommodate standard pedestrians, wheelchairs, or luggage carts.
- Barrier height: We offer standard and extended height options (up to 1.8m) for enhanced anti-climbing security.
- The iron enclosure’s color can also be customized to match your building’s interior design.
5. Q: What is the maintenance requirement for the servo motor system?
A: The servo motor drive system is designed for low-maintenance, long-term use:
- With a rated lifespan of over 5 million operations, the system requires no routine lubrication or complex upkeep.
- The closed-loop servo control includes built-in fault detection, alerting you to potential issues before they cause downtime.
- Our team provides detailed maintenance guidelines and after-sales support to ensure stable performance for years.
